Description
Aerpro AMDNI13 10 Inch Multimedia Receiver Complete Upgrade Kit for Nissan Navara 2015–2019 Factory Navigation Models with Wireless CarPlay Android Auto and DAB+

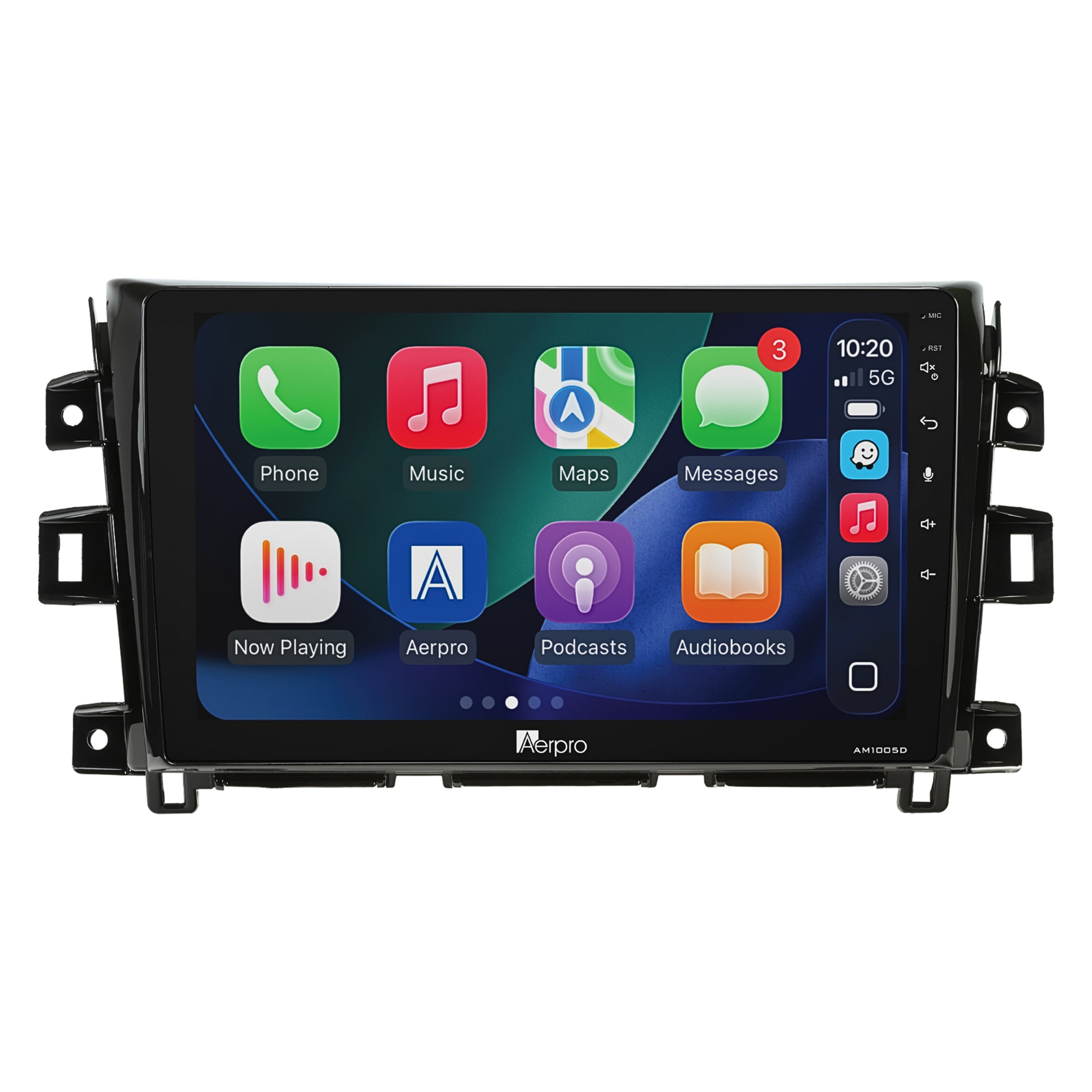

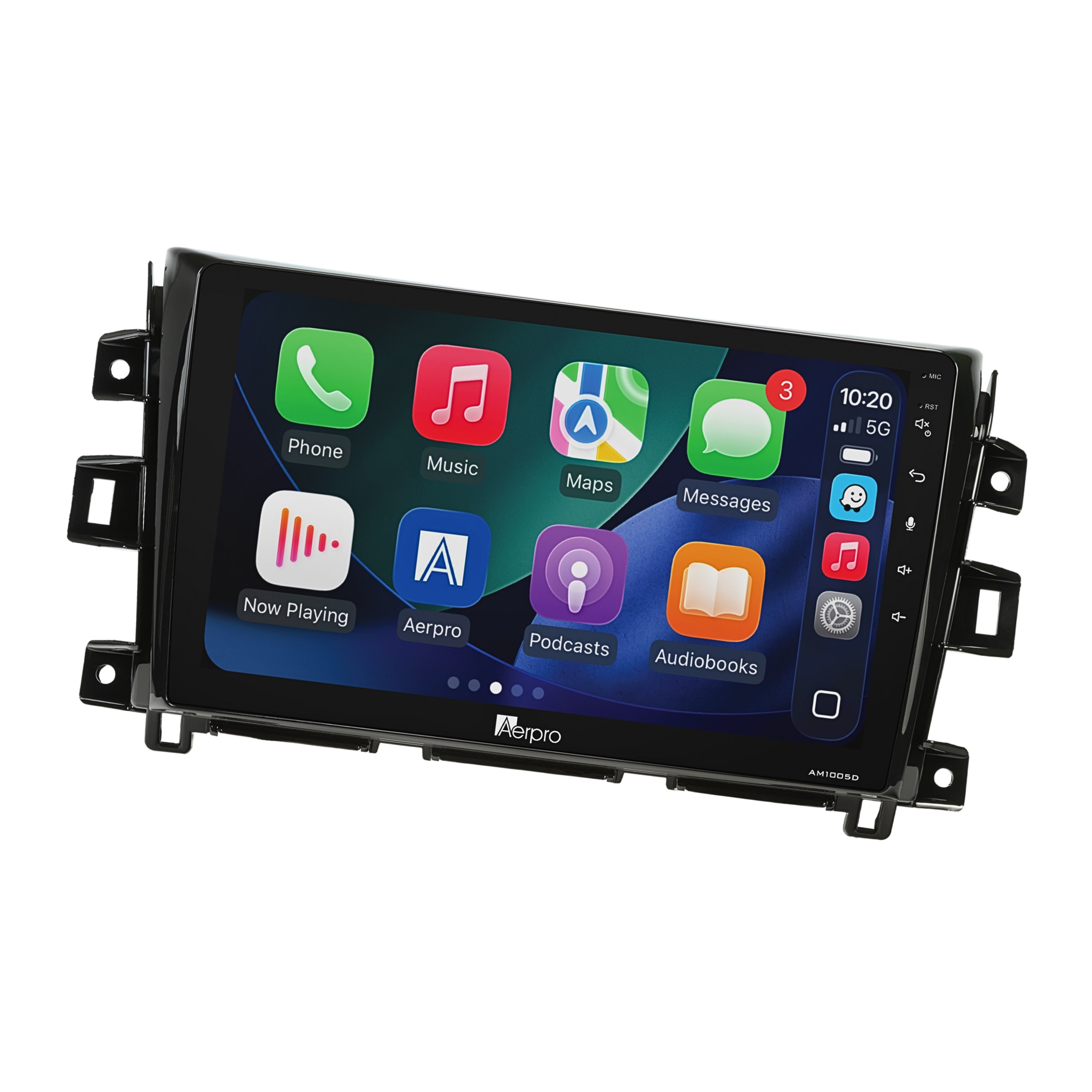

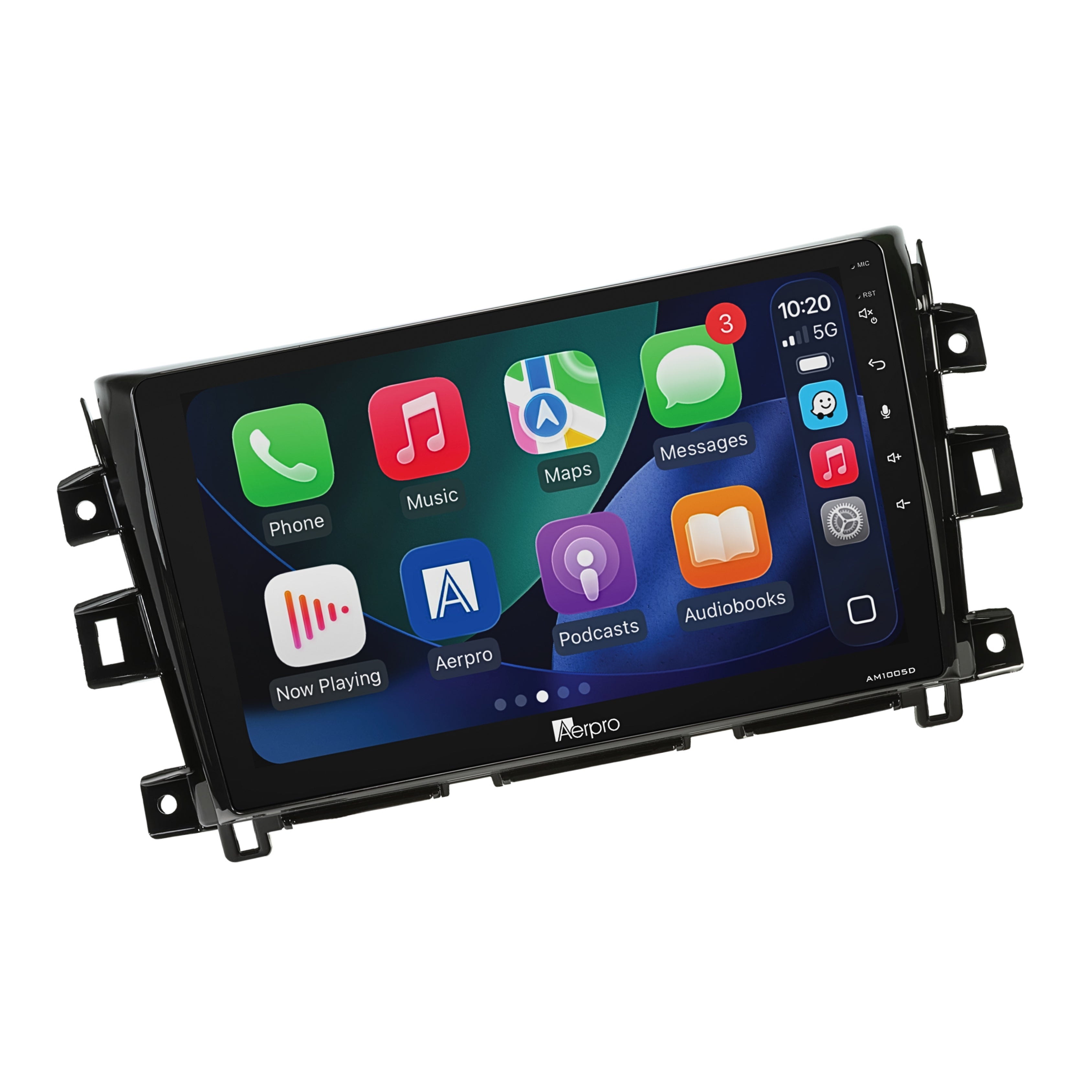

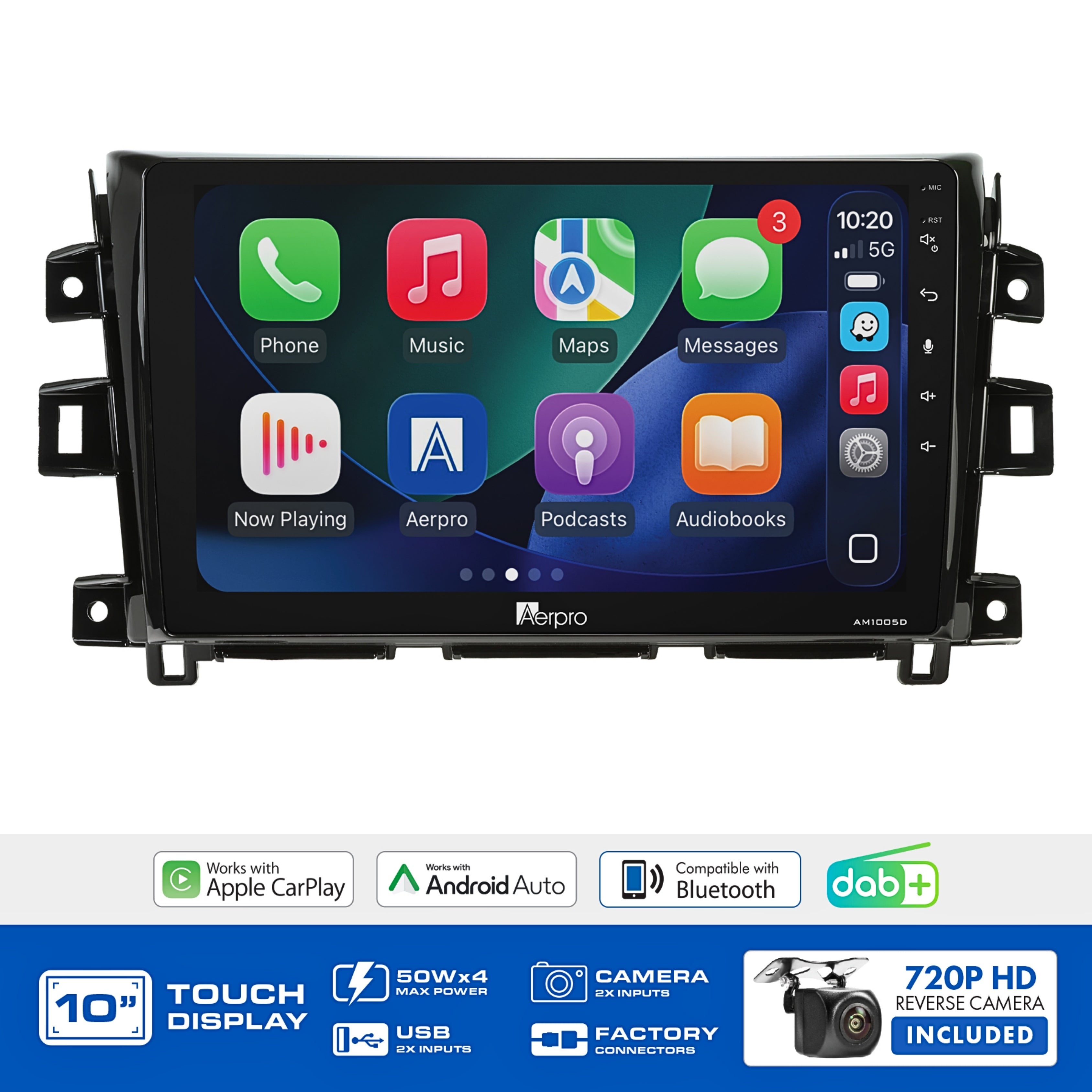

The AMDNI13 from Aerpro is a complete head unit upgrade kit for the Nissan Navara D23 (2015 to 2019) fitted with the factory navigation system. The kit is built around the AM1005D 10 inch multimedia receiver with wireless Apple CarPlay and Android Auto, DAB+ digital radio, Bluetooth V5, and 4 x 50W max output with 5-channel 4V RCA preouts. All parts required to complete the installation and retain steering wheel controls, factory reverse camera, USB input, and vehicle menu are included, along with a 720P AHD universal rear camera.
Product overview
Head unit upgrade kits from Aerpro are designed to remove the guesswork from aftermarket receiver installation by supplying every component needed for a specific vehicle in a single purchase. The AMDNI13 is built specifically for Nissan Navara D23 models from 2015 to 2019 that are fitted with the factory navigation system. It is not compatible with factory 360-degree camera systems, and this should be confirmed before ordering. The gloss black fascia kit, steering wheel control interface harness with camera and USB retention, SWC patch lead, and antenna adaptor are all included alongside the AM1005D receiver and rear camera.
The AM1005D features a 10 inch capacitive touchscreen at 1024x600 resolution on a fixed trapezoid-style screen, dual rear USB inputs, a rear A/V input, second camera input, composite video output, 13-band EQ with time alignment, and six-colour button illumination. Wireless and wired CarPlay and Android Auto are both supported, and the built-in DAB+ tuner delivers digital radio without the need for an external module.
Features and benefits
Complete head unit upgrade kit for Nissan Navara 2015–2019 factory navigation models: Includes the AM1005D multimedia receiver, gloss black fascia kit, SWC interface harness with camera and USB retention, SWC patch lead, antenna adaptor, and 720P AHD universal rear camera. All parts required for a complete installation are supplied in a single kit.
Vehicle feature retention: Retains steering wheel controls including the phone button, factory reverse camera, USB input, and vehicle menu (clock settings) after installation.
10 inch capacitive touchscreen at 1024x600 resolution: The fixed trapezoid-style screen delivers a large, sharp display for navigation, media, and menu control with smooth, responsive capacitive touch performance.
Wireless Apple CarPlay and Android Auto: Access maps, music, calls, and messages from the head unit without plugging in the phone, or connect via USB for wired operation and device charging.
Built-in DAB+ digital radio: Integrated DAB+ tuner delivers digital radio without an external module, alongside AM/FM tuning with 12 AM and 18 FM presets and RDS support.
Bluetooth V5 with HD Voice: Bluetooth V5 supports hands-free calling with HFP 1.6 HD Voice, audio streaming via A2DP and AVRCP, and phonebook access via PBAP. Both internal and external microphone inputs are provided.
5-channel 4V RCA preouts: Three pairs of RCA preouts at 4V covering front, rear, and subwoofer channels allow amplifiers to be added to the system, with independent subwoofer level control.
13-band EQ with time alignment: Precise audio tuning via 13-band graphic EQ, time alignment, loudness, LPF for subwoofer, and six preset EQ modes plus two custom presets.
720P AHD universal rear camera included: The Sony 225 CMOS sensor rear camera with 150-degree lens angle improves reversing visibility. A second camera input is also available on the head unit for a front or towing camera.
Not compatible with factory 360-degree camera systems: This kit does not support factory 360-degree camera systems. Confirm your specific Navara variant before ordering.
What's in the box
- AM1005D 10 inch Fixed Multimedia Receiver (Trapezoid)
- Gloss Black Fascia Kit
- Steering Wheel Control Interface Harness (with Camera and USB Retention)
- SWC Patch Lead
- Antenna Adaptor
- 720P AHD Universal Rear Camera (wired, surface mount)
- Mounting Hardware Screws
- Wiring Harness with ISO Connection
- AV, USB and Camera Harnesses
- DAB Antenna
- 3 Wire Learning SWC Lead
- External Microphone with Mount
- GPS Antenna with Adhesive Pad
- QR Digital Manual Leaflet
Technical specs
| Specification |
Detail |
| SKU |
AMDNI13 |
| Brand |
Aerpro |
| Included Receiver |
AM1005D |
| Screen Size |
10 inch |
| Resolution |
1024 x 600 |
| Touchscreen Type |
Capacitive |
| Screen Style |
Fixed (Trapezoid) |
| Operating System |
Linux |
| Max Power Output |
4 x 50W |
| RCA Preouts |
4V, 5 Channel (Front, Rear, Subwoofer) |
| Apple CarPlay |
Yes, wireless and wired |
| Android Auto |
Yes, wireless and wired |
| DAB+ |
Yes, built-in |
| AM/FM Presets |
AM 12, FM 18 |
| Bluetooth Version |
V5 |
| HFP Profile |
HFP 1.6 (HD Voice) |
| USB Inputs |
2x rear (CarPlay/Android Auto + Media) |
| USB Max Capacity |
FAT32, 32GB |
| Reverse Camera Input |
Yes, 720P AHD compatible |
| Second Camera Input |
Yes, 720P AHD compatible |
| EQ |
13-band |
| Time Alignment |
Yes |
| Button Illumination |
6-colour (Red, Yellow, Green, Blue, Purple, White) |
| Rear Camera Included |
Yes, 720P AHD universal (Sony 225, 150-degree lens) |
| 360 Degree Camera Compatible |
No |
Vehicle feature retention
| Feature |
Retained |
| Steering Wheel Controls (including phone button) |
Yes |
| Factory Reverse Camera |
Yes |
| USB Input |
Yes |
| Vehicle Menu (clock settings) |
Yes |
Compatible with
This kit is confirmed for the following Nissan vehicle fitted with the factory navigation system. Not compatible with factory 360-degree camera systems. Confirm your specific variant before ordering.
| Make |
Model |
Variant |
Years |
| Nissan |
Navara |
(D23) Factory Navigation Models |
2015 - 2019 |
Frequently asked questions
Does the AMDNI13 suit all Nissan Navara D23 models from 2015 to 2019?
No. The AMDNI13 is confirmed for Nissan Navara D23 models fitted with the factory navigation system only. It is not compatible with factory 360-degree camera systems. Confirm your specific Navara variant and factory fitment before ordering.
Is wireless CarPlay and Android Auto supported?
Yes. The AM1005D supports both wireless and wired Apple CarPlay and Android Auto. Both connection methods are available, with USB also providing device charging during wired use.
Does this kit retain the factory reverse camera?
Yes. The steering wheel control interface harness included in the AMDNI13 retains the factory reverse camera using the reverse camera input on the head unit.
Can I add an external amplifier using this head unit?
Yes. The AM1005D provides 5-channel 4V RCA preouts covering front, rear, and subwoofer channels, allowing one or more external amplifiers to be connected to the system. Contact us for guidance on amplifier selection and wiring for your specific installation.
Is the rear camera included in the AMDNI13 kit?
Yes. A 720P AHD universal rear camera with a Sony 225 CMOS sensor and 150-degree lens angle is included in the kit. The head unit also has a second camera input available for a front or towing camera if required.
