10" Wireless CarPlay for the 360° Camera Navara Full System Retained with Switchable Camera Modes, No Factory Nav Required
Product Overview

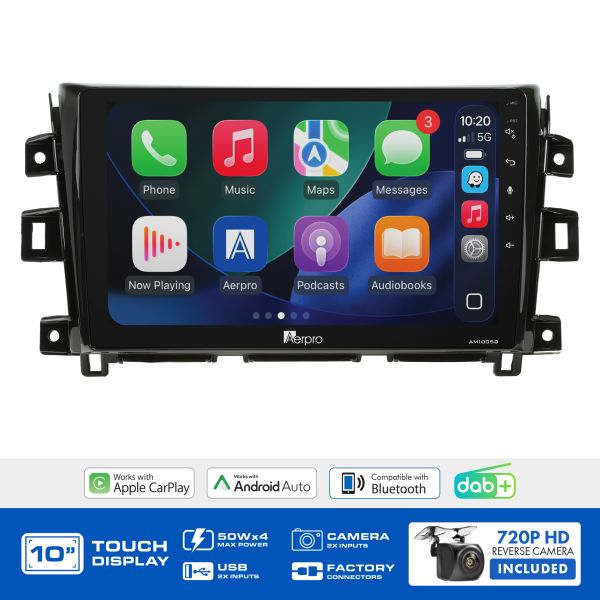

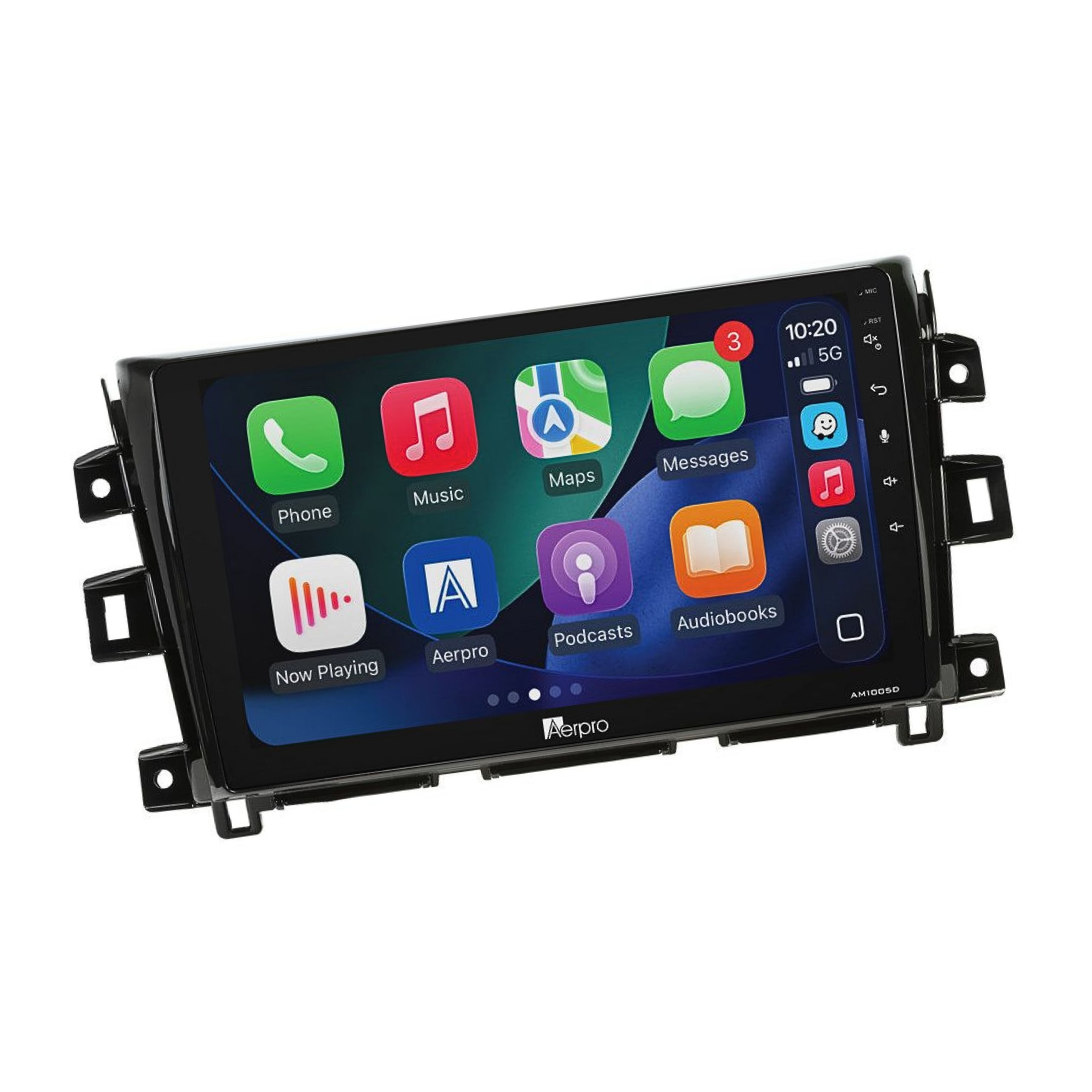

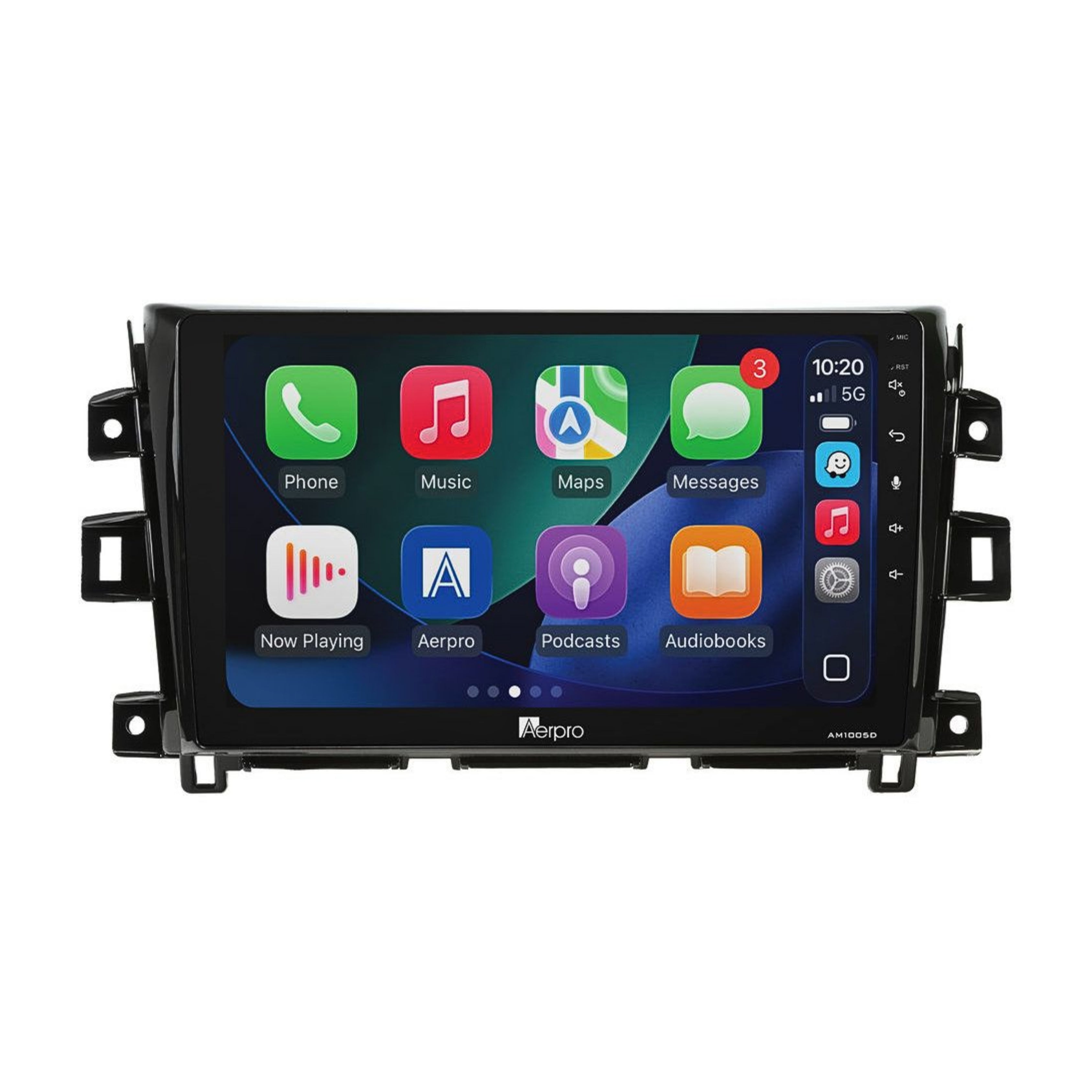

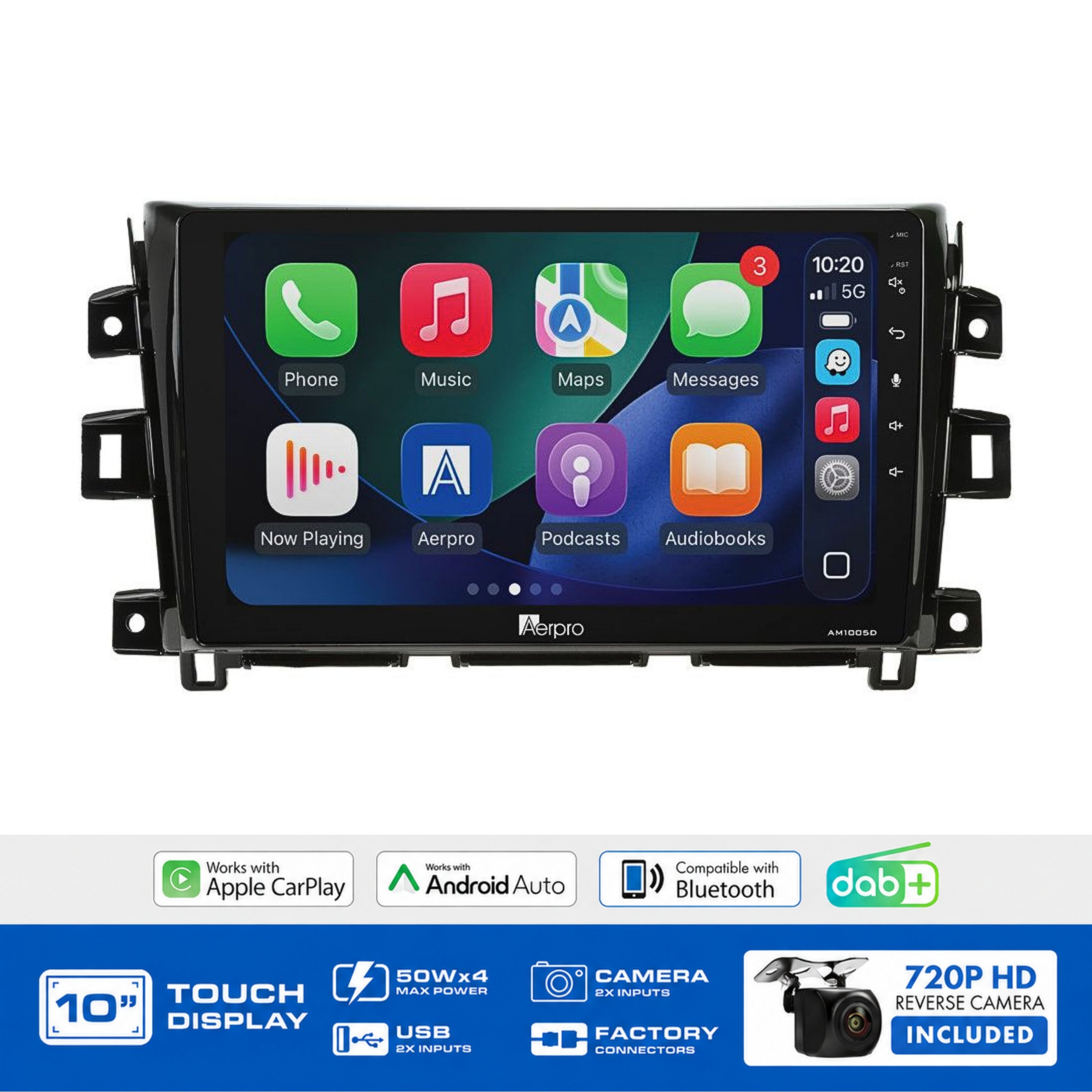

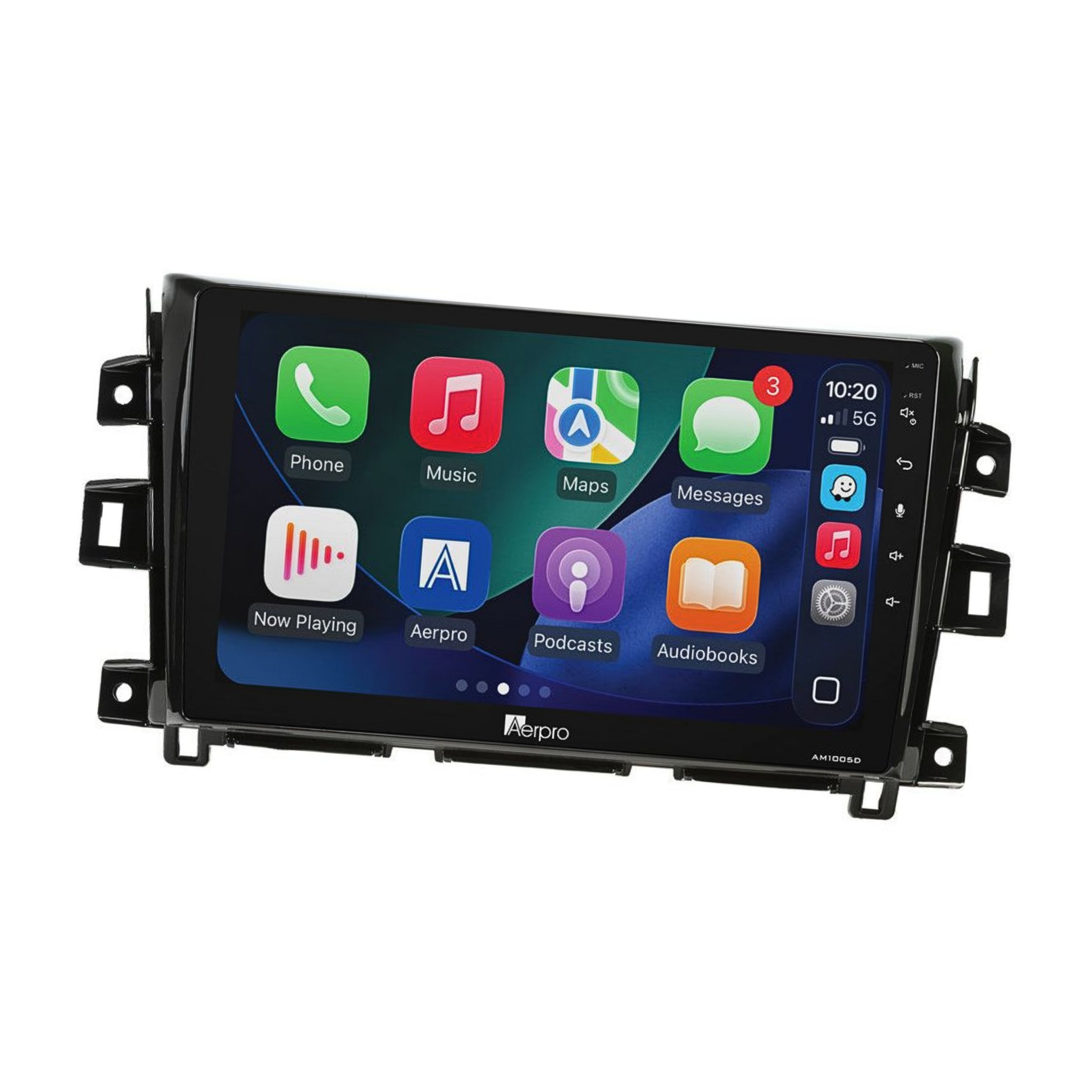

The Aerpro AMDNI15 is a complete head unit upgrade kit for the Nissan Navara D23 (2019–2023) fitted with the 360-degree camera system but without factory navigation. It is the non-navigation counterpart to the AMDNI14 while both kits cover the 2019–2023 D23 and share the same retention package (SWC with phone button, USB, AUX, and clock settings via vehicle menu), the AMDNI15 is specifically engineered for the 360-degree camera system and adds a unique factory-style button for switchable camera viewing modes.
The 360-degree camera is retained via the head unit's reverse camera input through the all-in-one SWC Interface Harness (with Camera, AUX & USB Retention). The kit also includes the AM1005D multimedia receiver, gloss black facia kit, SWC patch lead, and antenna adaptor. Wireless Apple CarPlay and Android Auto, DAB+ digital radio, and Bluetooth V5 are all added via the new head unit.
Features & Benefits
-
360-degree camera system retained — the full factory 360-degree camera is preserved via the head unit's reverse camera input through the all-in-one harness; specific to non-navigation Navara D23 variants fitted with the 360-degree system
-
Switchable camera viewing modes with factory-style button — a factory-style button is included that allows the driver to switch between camera viewing angles (e.g. front, rear, side views) as provided by the 360-degree system; unique to the AMDNI15 within the Navara kit range
-
All-in-one SWC interface harness — camera, AUX, and USB retention are all integrated into a single harness; no separate adaptors required
-
SWC retained including phone button — all factory Navara steering wheel controls carry over
-
Factory USB input retained — connected via the rear USB input on the head unit through the all-in-one harness
-
Factory AUX input retained — connected via the RCA AUX input on the rear of the head unit through the all-in-one harness
-
Vehicle menu retained — clock settings only — partial vehicle menu access is preserved after installation, limited to clock settings
-
Intelligent Park Assist not retained — if your Navara is equipped with Intelligent Park Assist, this function will not be available after installation
-
Without factory navigation models only — Navara D23 variants fitted with the factory navigation system require the AMDNI14 instead
-
Gloss black vehicle-specific facia kit — matched to the 2019–2023 Navara D23 interior; antenna adaptor included
-
10" capacitive touchscreen at 1024x600 resolution — wide, responsive upgrade display for the Navara cabin
-
Wireless Apple CarPlay & Android Auto — connect over Wi-Fi for maps, music, calls, and messages; wired USB also supported
-
Built-in DAB+ digital radio — digital audio clarity and expanded station access; AM/FM with RDS included
-
Bluetooth V5 with HD Voice — hands-free calling, audio streaming, and phonebook access; internal and external microphone included
-
720P AHD universal rear camera included — Sony 225 1/3" CMOS sensor, 150-degree lens
-
4 x 50W max output with 5CH 4V RCA preouts — supports external amplifier integration via front/rear/sub preamp channels
Technical Specs
| Specification |
Detail |
| Display size |
10" |
| Head unit model |
AM1005D |
| Resolution |
1024x600 |
| Touchscreen type |
Capacitive |
| OS |
Linux |
| DIN size |
Fixed Screen Style (Trapezoid) |
| Max power output |
4CH x 50W (4 ohm) |
| RCA preouts |
4V, 5-channel (Front / Rear / Subwoofer) |
| Preamp voltage |
4V p-p |
| EQ |
13-band (32/63/125/250/500/1K/2K/4K/8K/10K/12K/14K/16K Hz) |
| Preset EQs |
6 + 2 custom |
| Time alignment |
Yes |
| Subwoofer level control |
Yes |
| Smartphone connectivity |
Apple CarPlay & Android Auto (wireless and wired) |
| Bluetooth version |
V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP) |
| Microphone |
Internal + external (with mount) |
| DAB |
Yes |
| FM tuner range |
87.5–108.0MHz (0.05MHz step) / 18 presets |
| AM tuner range |
522–1710KHz (9KHz step) / 12 presets |
| RDS |
Yes |
| USB1 (rear) |
CarPlay / Android Auto + charging (5V / 1.5A) |
| USB2 (rear) |
Media playback + charging (5V / 1.5A) |
| USB max capacity |
FAT32 / 32GB |
| Media formats |
MP3, MP4, MKV, FLAC, Xvid |
| Rear A/V input |
RCA type (3 pcs) |
| Composite video output |
Yes (x2) |
| Reverse camera input |
Yes (720P AHD compatible) |
| Second camera input |
Yes (720P AHD compatible) |
| Button illumination |
6-colour (Red, Yellow, Green, Blue, Purple, White) |
| OSD language |
English |
| Rear Camera (AHD) |
|
| Image sensor |
Sony 225, 1/3" CMOS AHD |
| Lens angle |
150° |
| Mount type |
Surface mount |
| Feature Retention |
|
| Steering wheel controls |
Yes (including phone button) |
| 360-degree camera system |
Yes — via head unit reverse camera input |
| Switchable camera modes |
Yes — factory-style button included |
| Factory USB input |
Yes — via all-in-one harness |
| Factory AUX input |
Yes — via all-in-one harness |
| Vehicle menu |
Yes (clock settings only) |
| Intelligent Park Assist |
Not retained |
| Parking tones |
N/A |
| Factory amplifier |
N/A |
| Factory navigation |
N/A — suits non-navigation models only |
| Park brake requirement |
Not specified |
Compatible With / Goes Well With
- Nissan Navara D23 (2019–2023) with 360-degree camera system and without factory navigation
-
Not compatible with Navara D23 fitted with factory navigation — use AMDNI14 for those variants
-
Not compatible with Navara D23 without 360-degree camera
- Supplier metadata references D23 coverage up to 2025 — confirm fitment for years beyond 2023 using the Aerpro What Fits Your Car Guide
- Use the Aerpro What Fits Your Car Guide to confirm fitment before purchasing
- Pairs well with external amplifiers via 4V 5-channel RCA preouts (front/rear/sub)
- Second camera input supports an optional additional camera (720P AHD compatible)
Weight
Not specified
Frequently Asked Questions
How does the AMDNI15 differ from the AMDNI14?
Both kits cover the Navara D23 (2019–2023) and retain the same core features — SWC (including phone button), USB, AUX, and clock settings. The key difference is vehicle type: the AMDNI14 suits factory navigation models; the AMDNI15 suits non-navigation models with the 360-degree camera. The AMDNI15 also adds a factory-style switchable camera modes button for cycling through the 360-degree camera's viewing angles.
What are the switchable camera viewing modes?
The factory-style button included with the AMDNI15 allows the driver to switch between the different camera angles provided by the 360-degree system — typically front, rear, and side views. This preserves the multi-angle functionality of the factory 360-degree system rather than reducing it to a single reverse view.
How is the 360-degree camera system retained?
The full 360-degree camera system is connected through the all-in-one SWC harness and feeds into the head unit's reverse camera input. The factory-style camera mode button in the kit then controls which angle is displayed on screen.
What is Intelligent Park Assist and why isn't it retained?
Intelligent Park Assist (IPA) is Nissan's automatic parking guidance system. It uses the camera system and factory head unit interface to steer the vehicle into parking spaces. The IPA function cannot be mapped to the aftermarket head unit and will not operate after installation. Note that the 360-degree camera views themselves are retained — only the IPA automation is lost.
Does this suit Navara models with factory navigation?
No — the AMDNI15 is specifically for non-navigation Navara D23 models with the 360-degree camera. If your Navara has both factory navigation and the 360-degree camera, the AMDNI14 is the correct kit.
