Description
Complete 10" Head Unit Upgrade Kit for Nissan Qashqai 2021 & X-Trail T32 2021–2022 (Factory Navigation & 360° Camera, Non-Amplified) Wireless Apple CarPlay, Android Auto, DAB+, SWC Phone Button, USB, AUX, 360° Camera & Clock Settings Retained, Rear Camera Included.
Product Overview

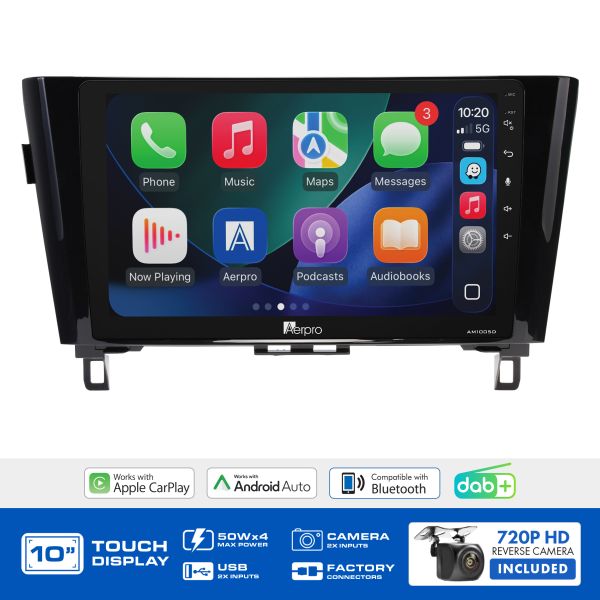

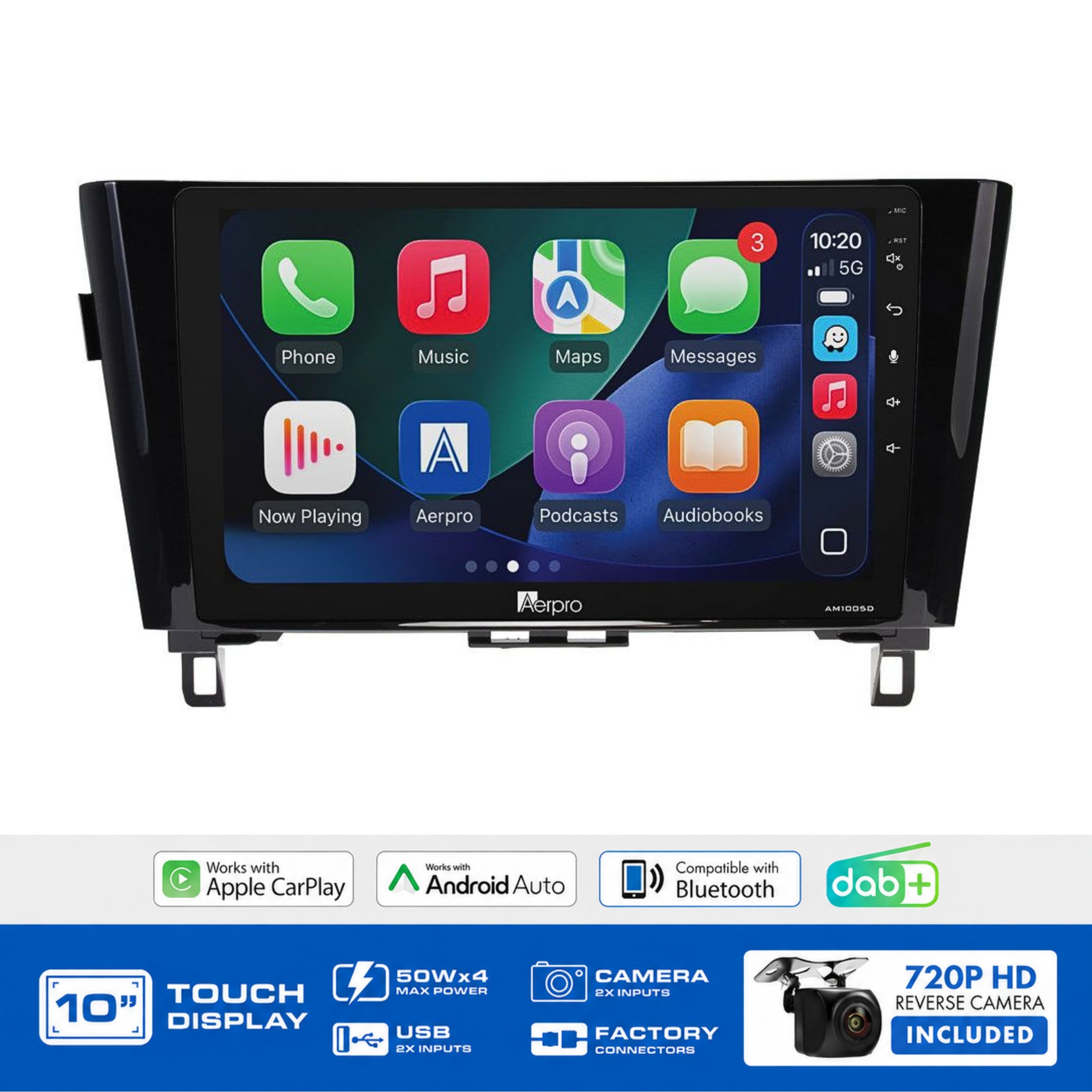

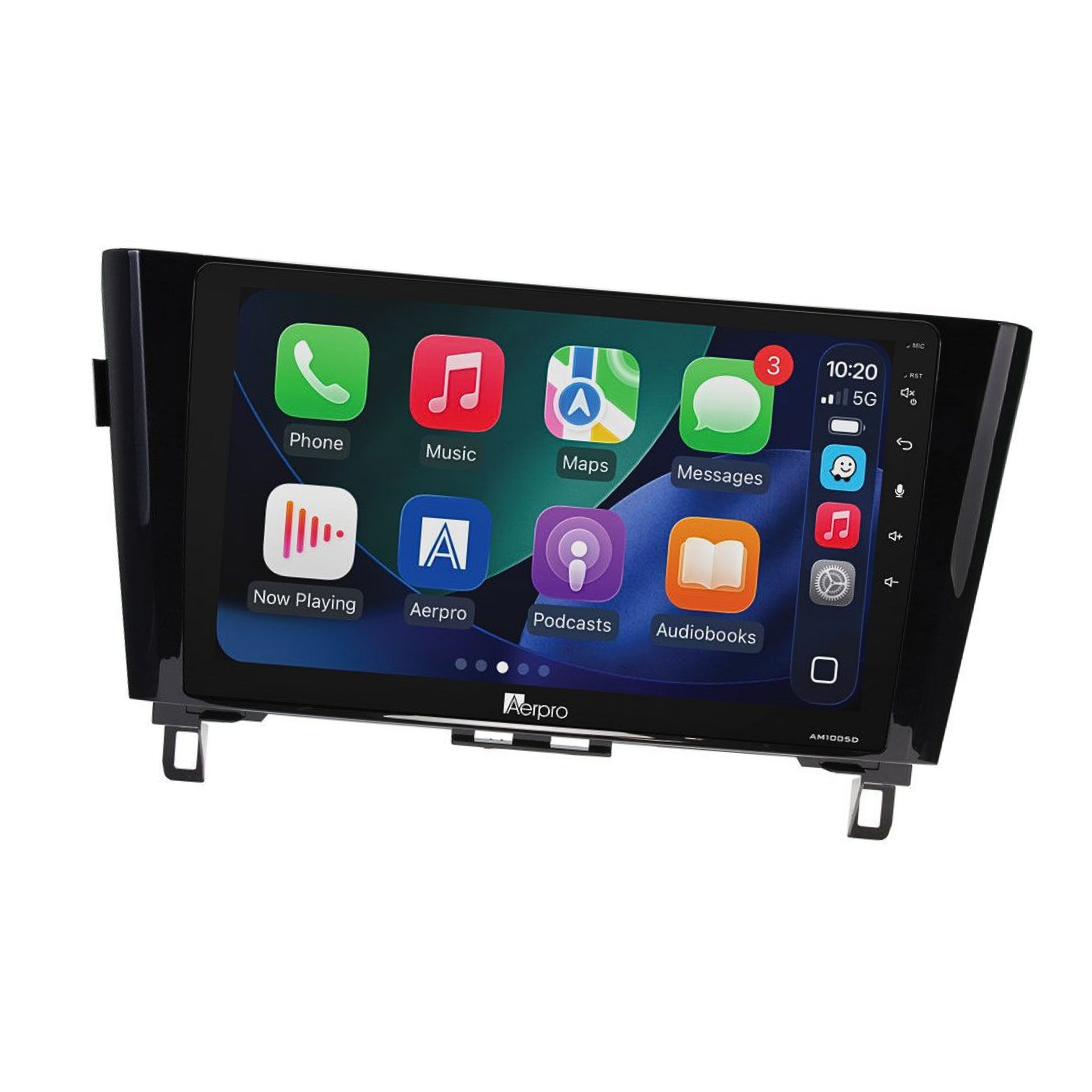

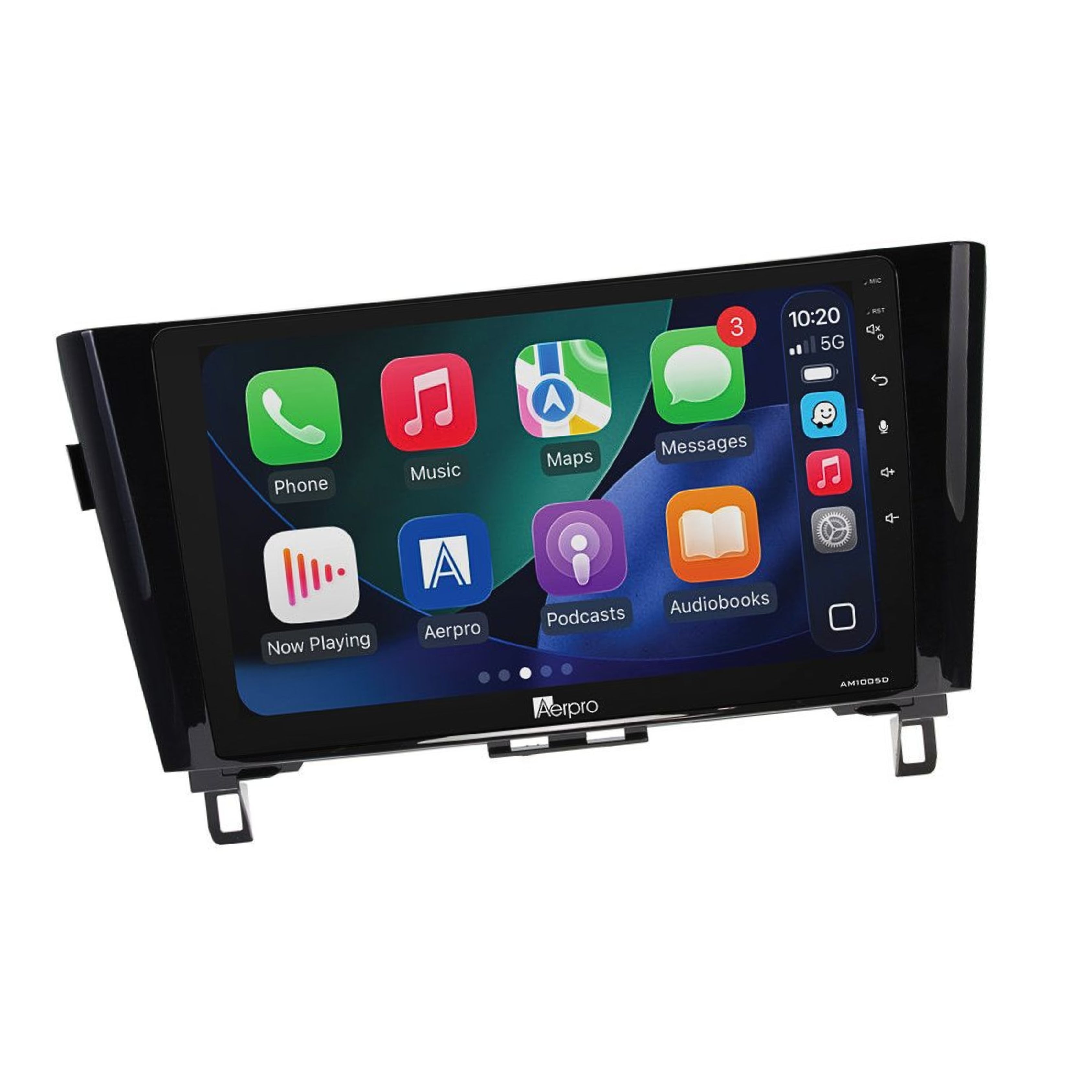

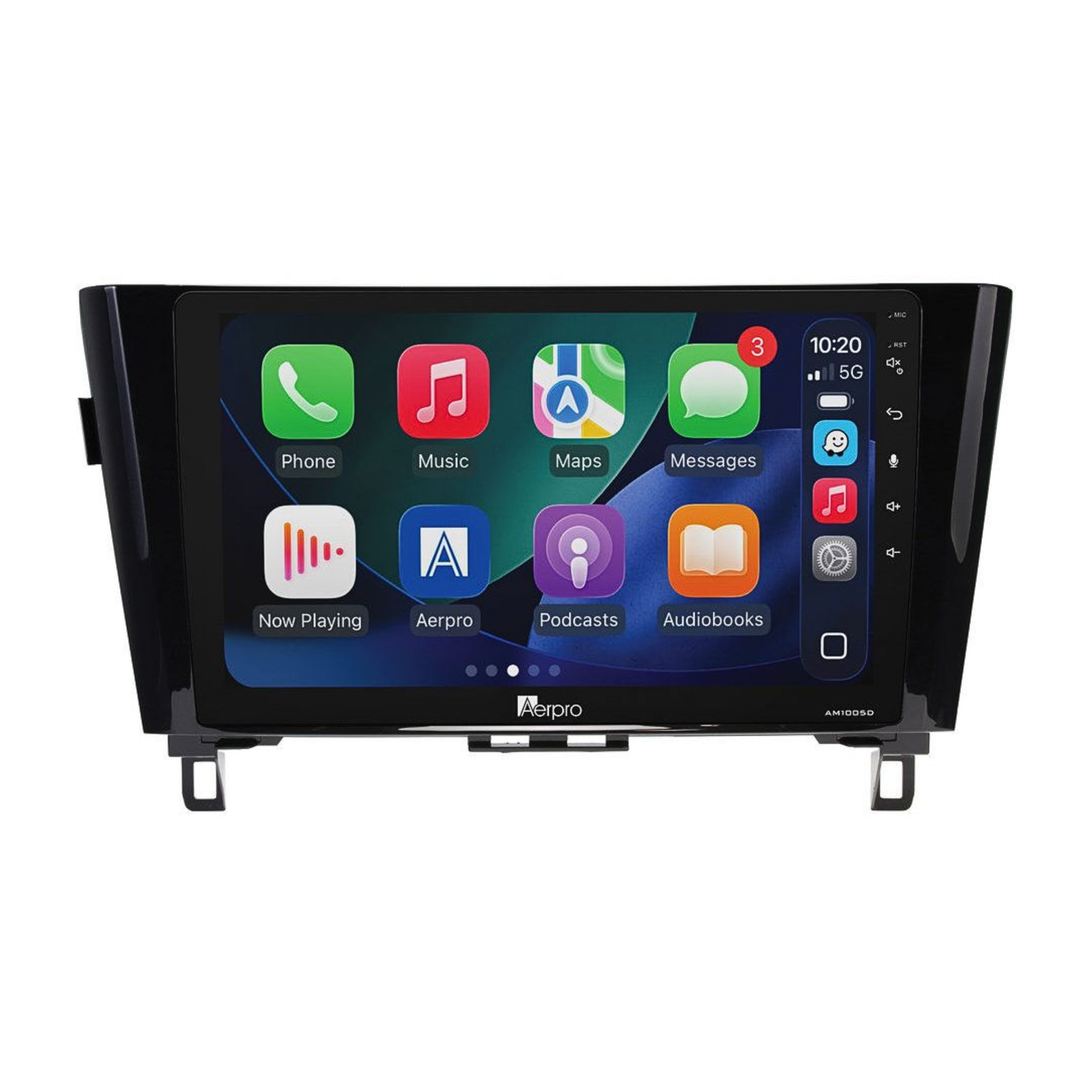

The Aerpro AMDNI17 is a complete head unit upgrade kit specifically designed for the Nissan Qashqai (2021-on) and X-Trail T32 (2021-on) non-amplified models with factory navigation and 360° camera system. This kit uses the AM1005D 10" multimedia receiver larger than the 9" AM905D used in other kits and is one of the most comprehensively retaining kits in this session, preserving SWC (including phone button), USB, AUX, the full factory 360° camera system with switchable viewing modes, and clock settings via the vehicle menu.
Everything required for installation is included the AM1005D multimedia receiver, gloss black fascia kit, steering wheel control interface harness (with camera, AUX & USB retention), SWC patch lead, antenna adaptor, and a 720P AHD universal rear camera.
Important: Suits non-amplified vehicles only. Factory Bose amplified systems require the APP7220 Amp Retention Harness (sold separately). Intelligent Park Assist is not retained. 360° camera retention uses the reverse camera input of the head unit. USB retention uses the rear USB input. AUX retention uses the RCA AUX input on the rear of the head unit.
Kit Inclusions
- AM1005D 10" Multimedia Receiver
- Gloss Black Fascia Kit
- Steering Wheel Control Interface Harness (with camera, AUX & USB retention)
- SWC Patch Lead
- Antenna Adaptor
- 720P AHD Universal Rear Camera
Vehicle Feature Retention
| Feature |
Retained |
| Steering Wheel Controls |
Yes (including phone button) |
| Factory 360° Camera System |
Yes switchable viewing modes |
| USB Input |
Yes |
| AUX Input |
Yes |
| Vehicle Menu (Clock Settings) |
Yes |
| Factory Amplifier |
No APP7220 required for Bose (sold separately) |
| Intelligent Park Assist |
Not retained |
Key Specifications
- Screen: 10" capacitive touchscreen 1024x600 resolution
- Wireless CarPlay & Android Auto: Yes (wired also supported)
- DAB+ digital radio: Yes (AM/FM with RDS also included)
- Bluetooth: V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP)
- Max power output: 4 x 50W
- RCA preouts: 4V / 5-channel (Front/Rear/Subwoofer)
- 13-band EQ and time alignment: Yes
- USB inputs: 2 x rear USB (FAT32 / 32GB max)
- Reverse camera input: Yes (720P AHD compatible)
- Second camera input: Yes (720P AHD compatible)
- LED button illumination: 6-colour selectable
- Rear camera: 720P AHD universal included
Features & Benefits
-
10" touchscreen: Larger AM1005D 10" display compared to the 9" AM905D used in other kits more screen real estate for maps, media, and menus
-
Factory 360° camera system retained: Full factory 360° camera system retained with switchable camera viewing modes via a factory-style button
-
Switchable camera viewing modes: Factory-style button allows switching between camera views rear, front, left, right
-
Steering wheel controls retained including phone button:Â Full SWC retained via the included harness and patch lead
-
USB and AUX inputs retained: Both retained USB uses rear USB input; AUX uses RCA AUX input on head unit
-
Clock settings retained:Â Vehicle menu clock settings accessible via the aftermarket head unit
-
Bose amplifier compatible:Â Bose amplified models supported with the APP7220 Amp Retention Harness (sold separately)
-
Intelligent Park Assist not retained:Â Confirm this suits your requirements before purchasing
-
Wireless Apple CarPlay & Android Auto:Â Wire-free phone integration; wired connection also supported
-
DAB+ digital radio built-in:Â Crystal-clear digital radio plus AM/FM and RDS
-
720P AHD rear camera included: Additional rear camera additional front or tow camera input also available
-
4x50W output with 5-channel preouts:Â High-power audio with amplifier expansion capability
Technical Specs
| Specification |
Detail |
| SKU |
AMDNI17 |
| Brand |
Aerpro |
| Receiver Model |
AM1005D |
| Screen Size |
10" |
| Resolution |
1024x600 |
| Touchscreen |
Capacitive |
| OS |
Linux |
| DIN Format |
Fixed Screen Trapezoid |
| Max Power |
4CH x 50W |
| RCA Preouts |
4V / 5-channel |
| Wireless CarPlay/Android Auto |
Yes |
| DAB+ |
Yes |
| AM/FM Presets |
AM 12 / FM 18 |
| Bluetooth |
V5 (A2DP, AVRCP, HFP 1.6, PBAP) |
| USB Inputs |
2 x Rear (FAT32 / 32GB max) |
| Reverse Camera Input |
Yes (720P AHD compatible) |
| Second Camera Input |
Yes (720P AHD compatible) |
| EQ |
13-band |
| Time Alignment |
Yes |
| LED Illumination |
6-colour selectable |
| SWC Retained |
Yes (including phone button) |
| 360° Camera System Retained |
Yes switchable viewing modes |
| USB Input Retained |
Yes |
| AUX Input Retained |
Yes |
| Vehicle Menu (Clock) |
Yes |
| Intelligent Park Assist |
Not retained |
| Factory Amplifier |
No APP7220 sold separately for Bose |
| Kit Includes Rear Camera |
Yes 720P AHD universal |
| Suits |
Nissan Qashqai 2021-on, X-Trail T32 2021-on (nav & 360° camera, non-amplified) |
Compatible Vehicles
- Nissan Qashqai 2021-on (factory navigation & 360° camera, non-amplified)
- Nissan X-Trail T32 2021-on (factory navigation & 360° camera, non-amplified)
Frequently Asked Questions
Does this kit work with the factory Bose amplified system?
Not without an additional harness. Factory Bose amplified systems require the APP7220 Amp Retention Harness, sold separately. This kit suits non-amplified models without the APP7220.
Does this retain the factory 360° camera system?
Yes the factory 360° camera system is retained with switchable camera viewing modes via a factory-style button. 360° camera retention uses the reverse camera input of the head unit.
Is Intelligent Park Assist retained?
No this product does not retain any features involving Intelligent Park Assist.
Does this retain clock settings?
Yes clock settings are accessible via the vehicle menu on the aftermarket head unit.
What is the return policy for this product?
Return eligibility is subject to the retailer's policy. Always verify vehicle and system compatibility before purchasing.
