Description
Complete 10" Head Unit Upgrade Kit for Nissan Navara D23 2018–2019 (Factory Navigation & 360° Camera Models) Wireless Apple CarPlay, Android Auto, DAB+, SWC Phone Button, USB, AUX, 360° Camera & Clock Settings Retained, Rear Camera Included.
Product Overview

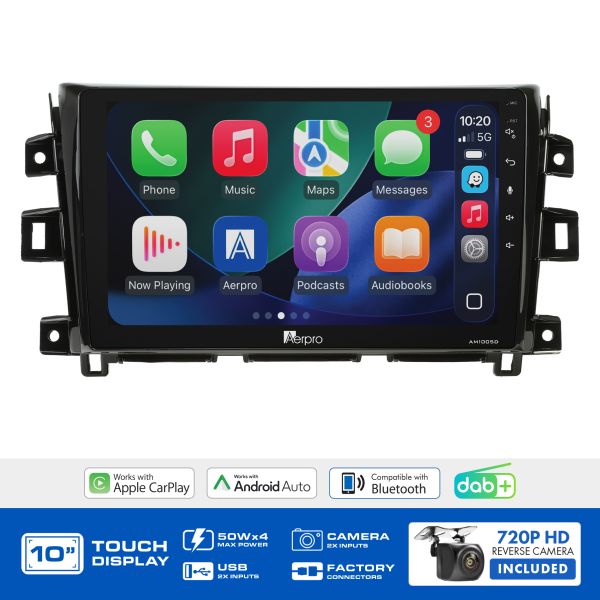

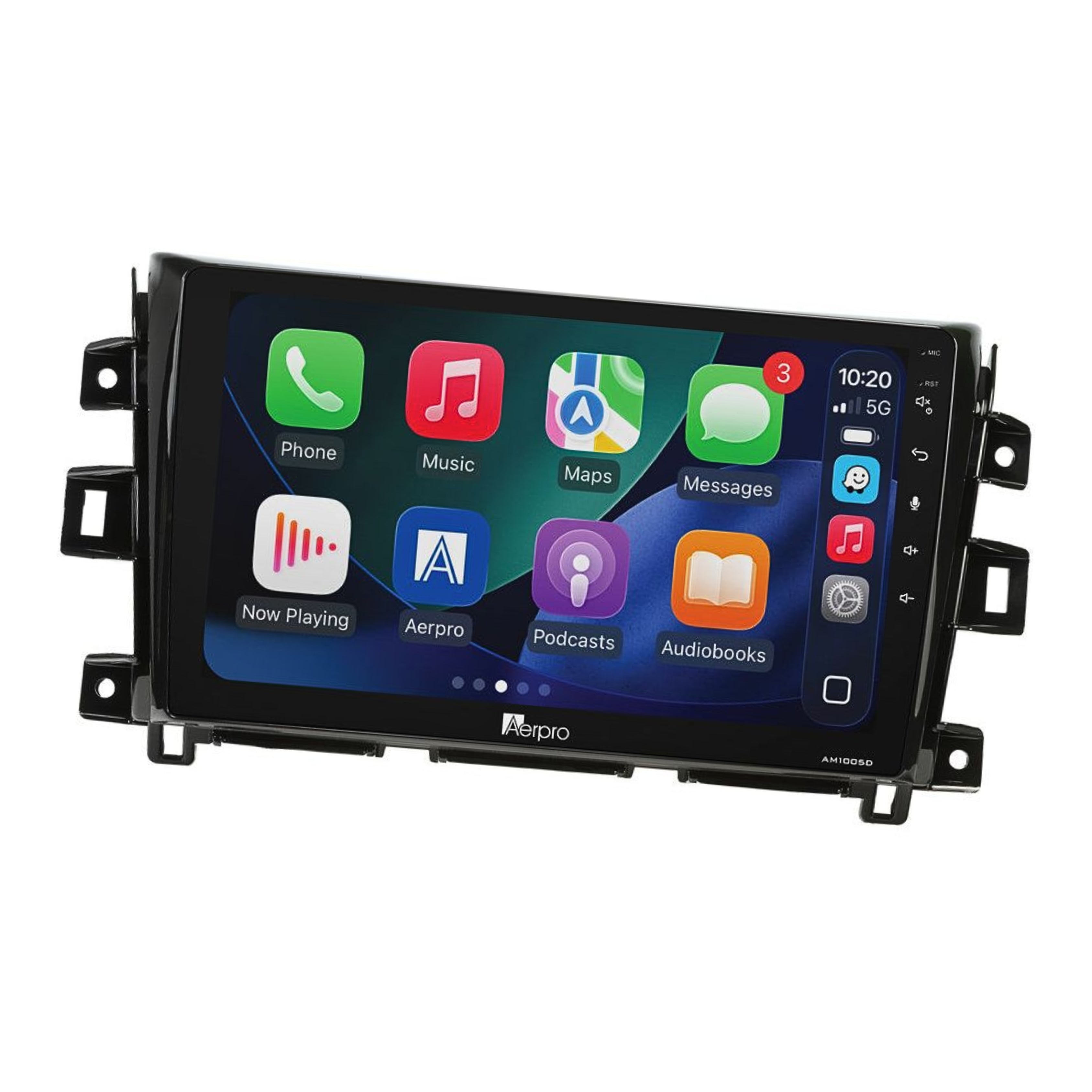

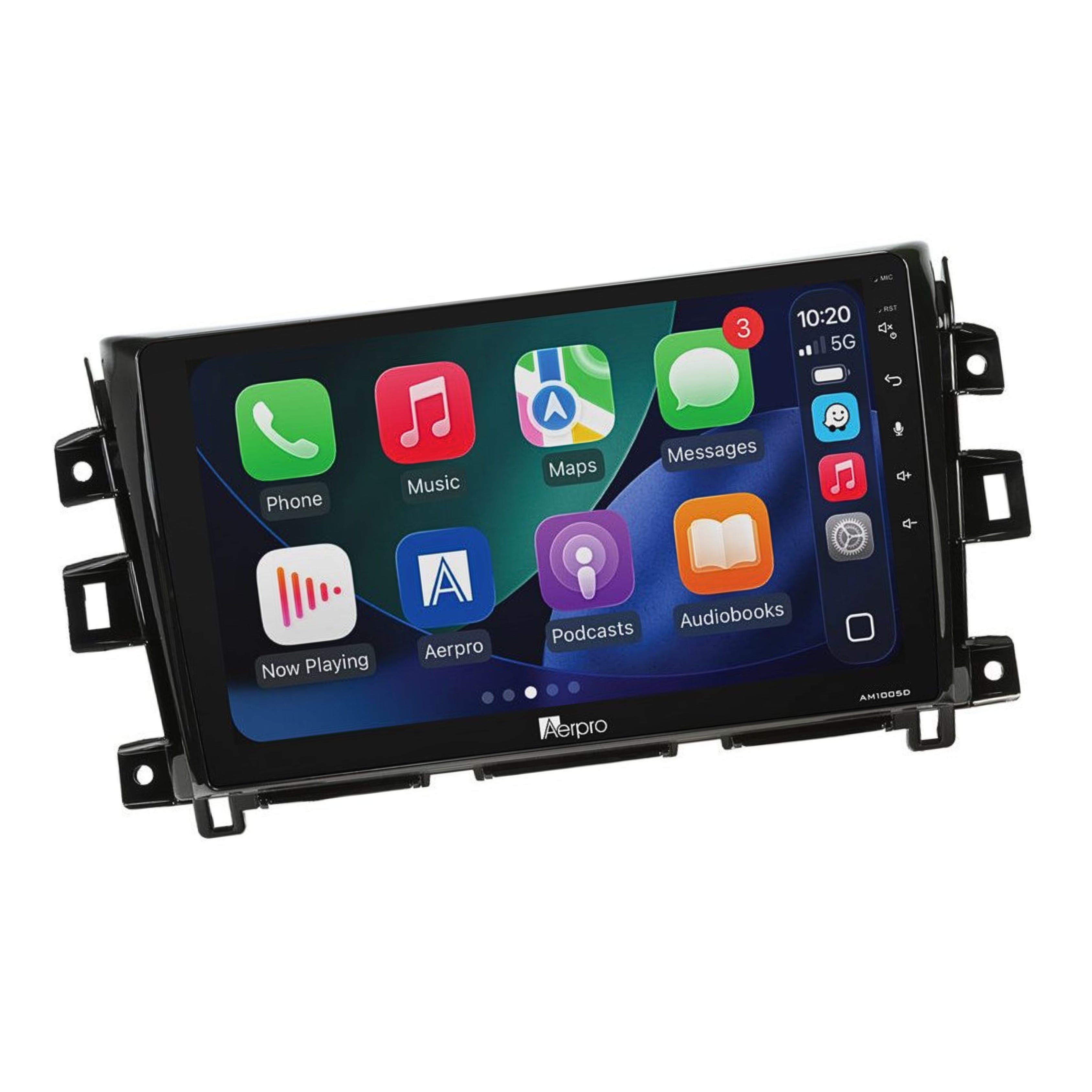

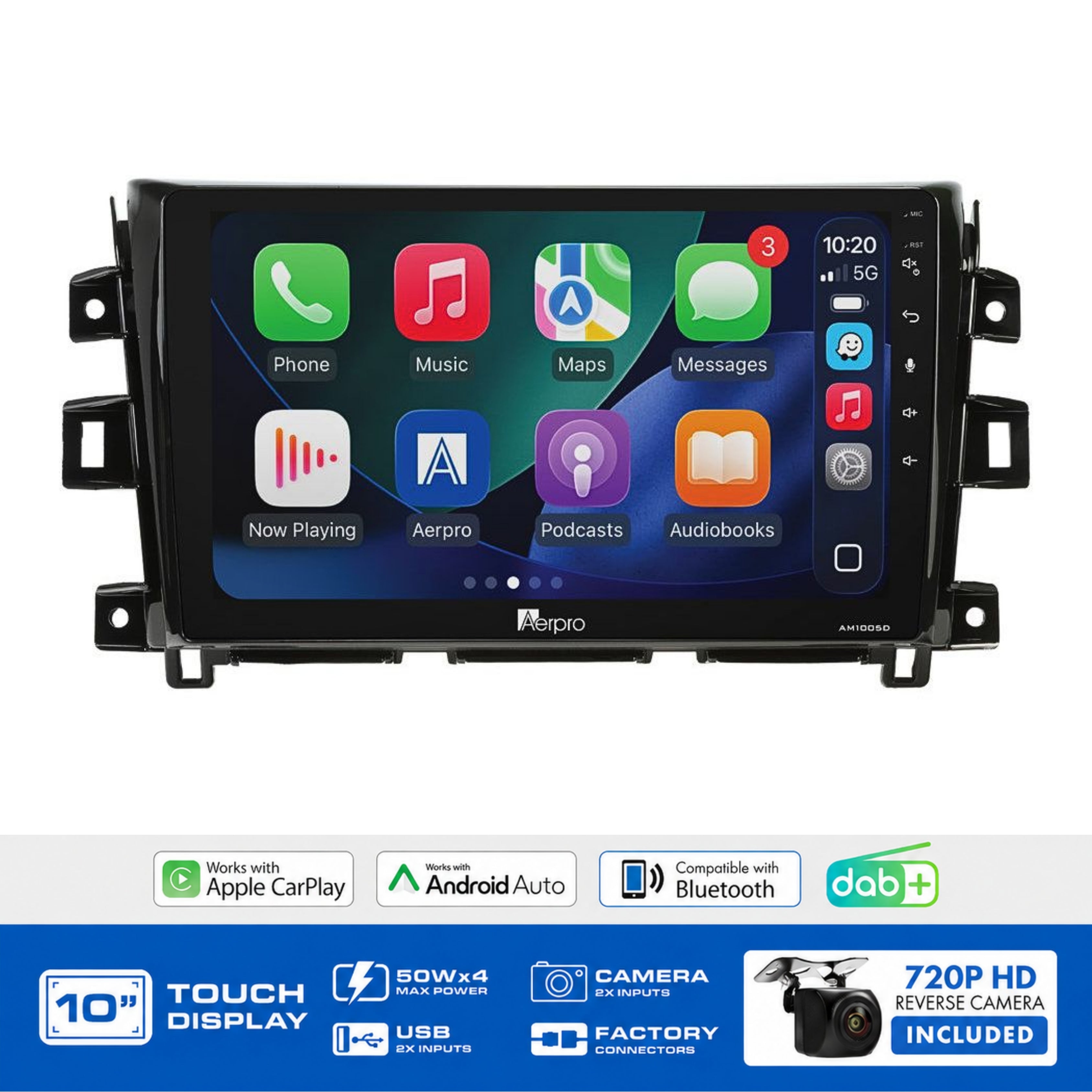

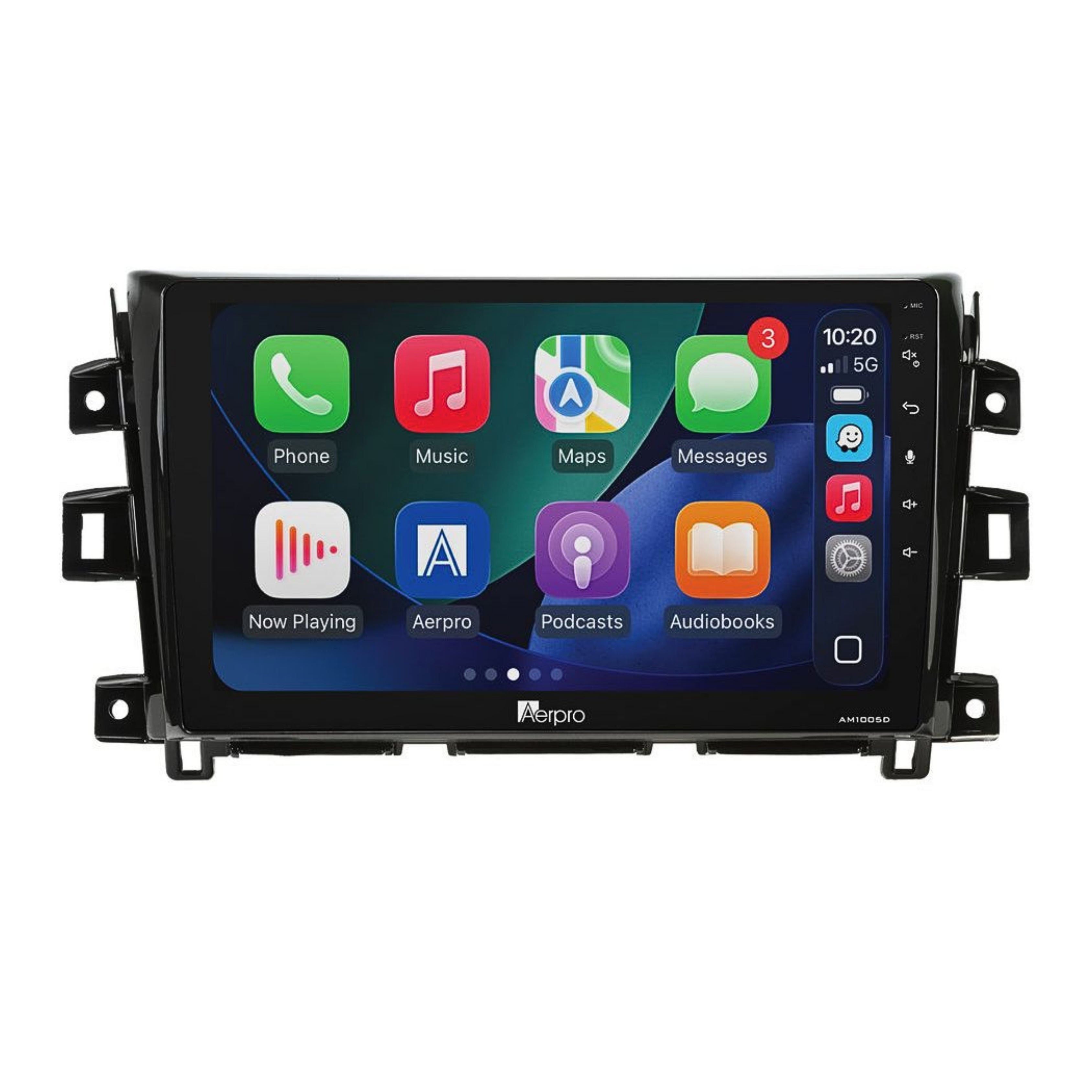

The Aerpro AMDNI3 is a complete head unit upgrade kit designed for the Nissan Navara D23 (2018–2019) with factory navigation and 360° camera system the earlier Navara navigation and 360° camera kit, with the AMDNI27 covering the 2019–2023 models. This kit uses the AM1005D 10" multimedia receiver and retains steering wheel controls (including phone button), factory USB, AUX, the full factory 360° camera system with switchable viewing modes, and clock settings.
Everything required for installation is included the AM1005D multimedia receiver, gloss black fascia kit, steering wheel control interface harness (with camera, AUX & USB retention), SWC patch lead, antenna adaptor, and a 720P AHD universal rear camera.
Important: Suits Nissan Navara D23 2018–2019 with factory navigation and 360° camera only. Aerpro compatible vehicle data extends to Navara D23 2015–2020 verify your model using the Aerpro What Fits Your Car Guide. 360° camera retention uses the reverse camera input. USB retention uses the rear USB input. AUX retention uses the RCA AUX input. Intelligent Park Assist is not retained.
Kit Inclusions
- AM1005D 10" Multimedia Receiver
- Gloss Black Fascia Kit
- Steering Wheel Control Interface Harness (with camera, AUX & USB retention)
- SWC Patch Lead
- Antenna Adaptor
- 720P AHD Universal Rear Camera
Vehicle Feature Retention
| Feature |
Retained |
| Steering Wheel Controls |
Yes (including phone button) |
| Factory 360° Camera System |
Yes switchable viewing modes |
| USB Input |
Yes |
| AUX Input |
Yes |
| Vehicle Menu (Clock Settings) |
Yes |
| Factory Amplifier |
N/A |
| Intelligent Park Assist |
Not retained |
Key Specifications
- Screen: 10" capacitive touchscreen 1024x600 resolution
- Wireless CarPlay & Android Auto: Yes (wired also supported)
- DAB+ digital radio: Yes (AM/FM with RDS also included)
- Bluetooth: V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP)
- Max power output: 4 x 50W
- RCA preouts: 4V / 5-channel (Front/Rear/Subwoofer)
- 13-band EQ and time alignment: Yes
- USB inputs: 2 x rear USB (FAT32 / 32GB max)
- Reverse camera input: Yes (720P AHD compatible)
- Second camera input: Yes (720P AHD compatible)
- LED button illumination: 6-colour selectable
- Rear camera: 720P AHD universal included
Features & Benefits
-
Factory 360° camera system retained: Full factory 360° camera system retained with switchable camera viewing modes via a factory-style button
-
10" touchscreen:Â AM1005D 10" display
-
Steering wheel controls retained including phone button:Â Full SWC retained via the included harness and patch lead
-
USB and AUX inputs retained: Both retained USB uses rear USB input; AUX uses RCA AUX input
-
Clock settings retained:Â Vehicle menu clock settings accessible on the aftermarket head unit
-
Intelligent Park Assist not retained:Â Confirm this suits your requirements before purchasing
-
Wireless Apple CarPlay & Android Auto:Â Wire-free phone integration; wired connection also supported
-
DAB+ digital radio built-in:Â Crystal-clear digital radio plus AM/FM and RDS
-
Bluetooth 5 with HD Voice:Â Crisp hands-free calling and wireless audio streaming
-
720P AHD rear camera included: Immediate reversing visibility additional front or tow camera input also available
-
4x50W output with 5-channel preouts:Â High-power audio with amplifier expansion capability
Technical Specs
| Specification |
Detail |
| SKU |
AMDNI3 |
| Brand |
Aerpro |
| Receiver Model |
AM1005D |
| Screen Size |
10" |
| Resolution |
1024x600 |
| Touchscreen |
Capacitive |
| OS |
Linux |
| DIN Format |
Fixed Screen Trapezoid |
| Max Power |
4CH x 50W |
| RCA Preouts |
4V / 5-channel |
| Wireless CarPlay/Android Auto |
Yes |
| DAB+ |
Yes |
| AM/FM Presets |
AM 12 / FM 18 |
| Bluetooth |
V5 (A2DP, AVRCP, HFP 1.6, PBAP) |
| USB Inputs |
2 x Rear (FAT32 / 32GB max) |
| Reverse Camera Input |
Yes (720P AHD compatible) |
| Second Camera Input |
Yes (720P AHD compatible) |
| EQ |
13-band |
| Time Alignment |
Yes |
| LED Illumination |
6-colour selectable |
| SWC Retained |
Yes (including phone button) |
| 360° Camera System Retained |
Yes switchable viewing modes |
| USB Input Retained |
Yes |
| AUX Input Retained |
Yes |
| Vehicle Menu (Clock) |
Yes |
| Intelligent Park Assist |
Not retained |
| Factory Amplifier |
N/A |
| Kit Includes Rear Camera |
Yes 720P AHD universal |
| Suits |
Nissan Navara D23 2018–2019 (factory nav & 360° camera) |
Compatible Vehicles
- Nissan Navara D23 2018–2019 (factory navigation & 360° camera)
- Aerpro compatible vehicle data: Nissan Navara 2015–2020 D23
Frequently Asked Questions
How does the AMDNI3 differ from the AMDNI27?
Both suit Navara D23 models with factory navigation and 360° camera and use the same AM1005D 10" receiver. The AMDNI3 suits 2018–2019 models while the AMDNI27 suits 2019–2023. Use the Aerpro What Fits Your Car Guide to confirm the correct kit for your year.
Does this retain the factory 360° camera system?
Yes the full factory 360° camera system is retained with switchable camera viewing modes via a factory-style button. 360° camera retention uses the reverse camera input of the head unit.
Is Intelligent Park Assist retained?
No this product does not retain any features involving Intelligent Park Assist.
Does this retain clock settings?
Yes clock settings are accessible via the vehicle menu on the aftermarket head unit.
What is the return policy for this product?
Return eligibility is subject to the retailer's policy. Always verify vehicle and system compatibility before purchasing.
