Description

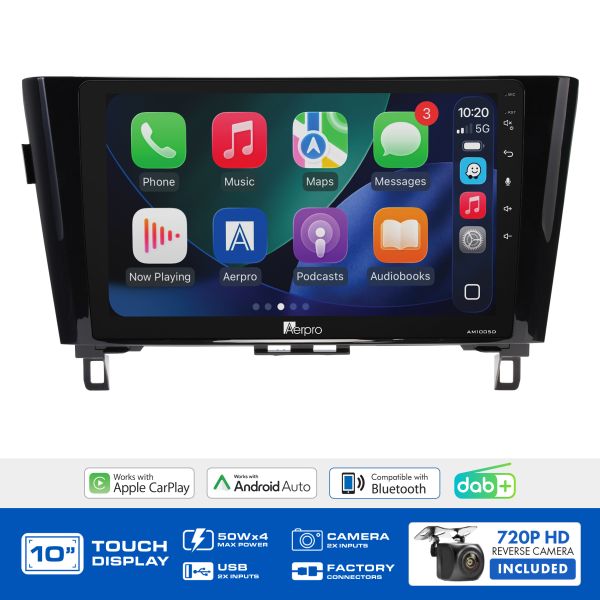

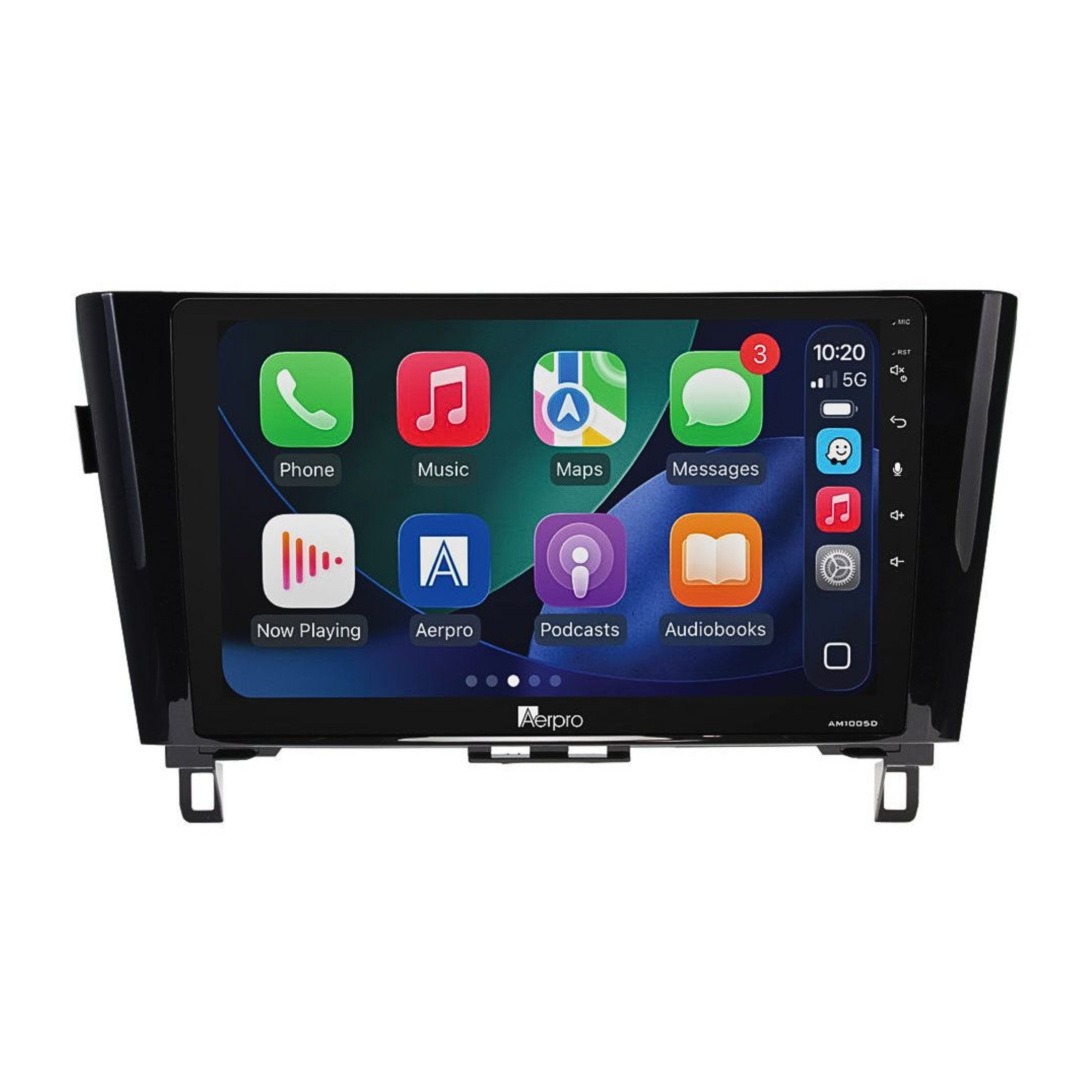

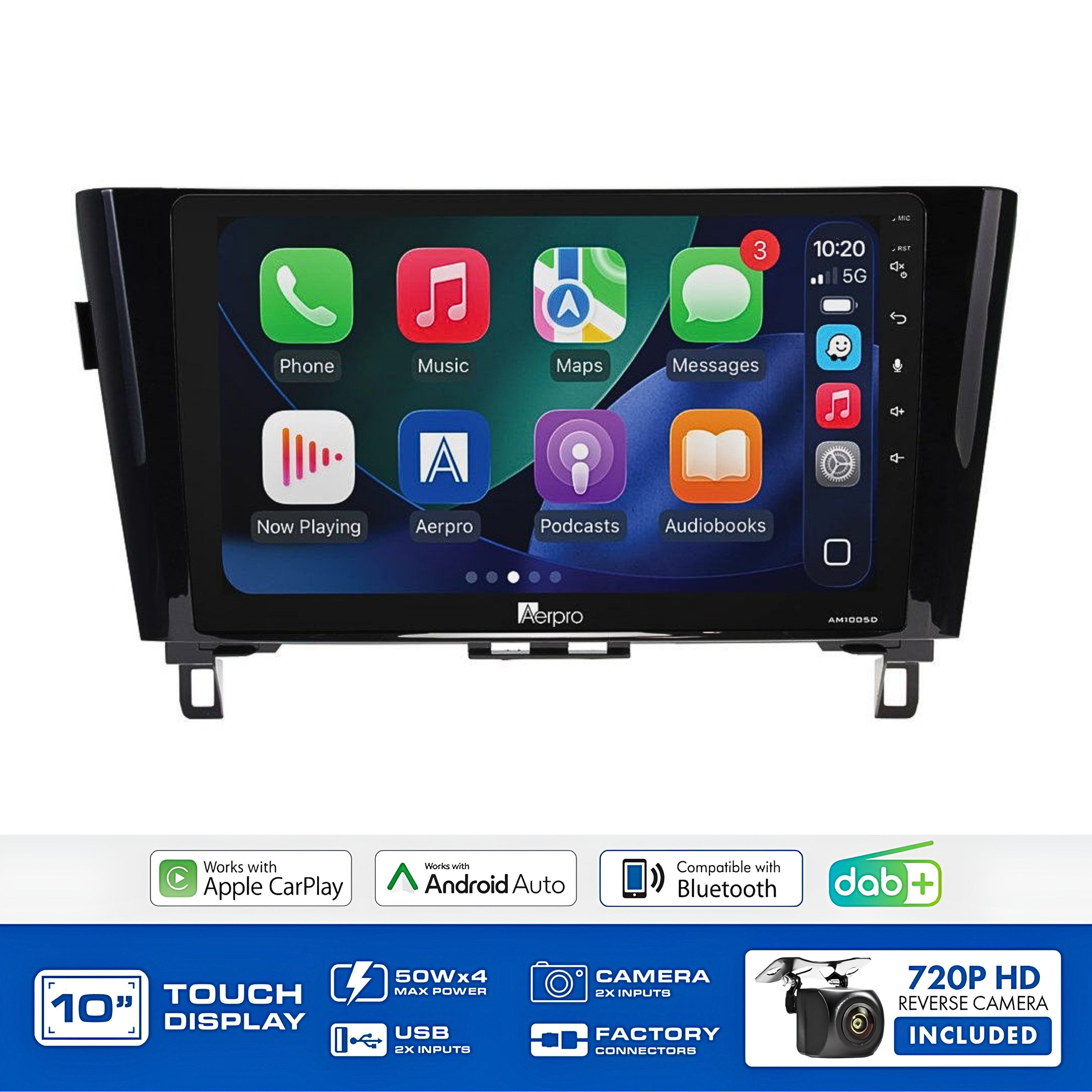

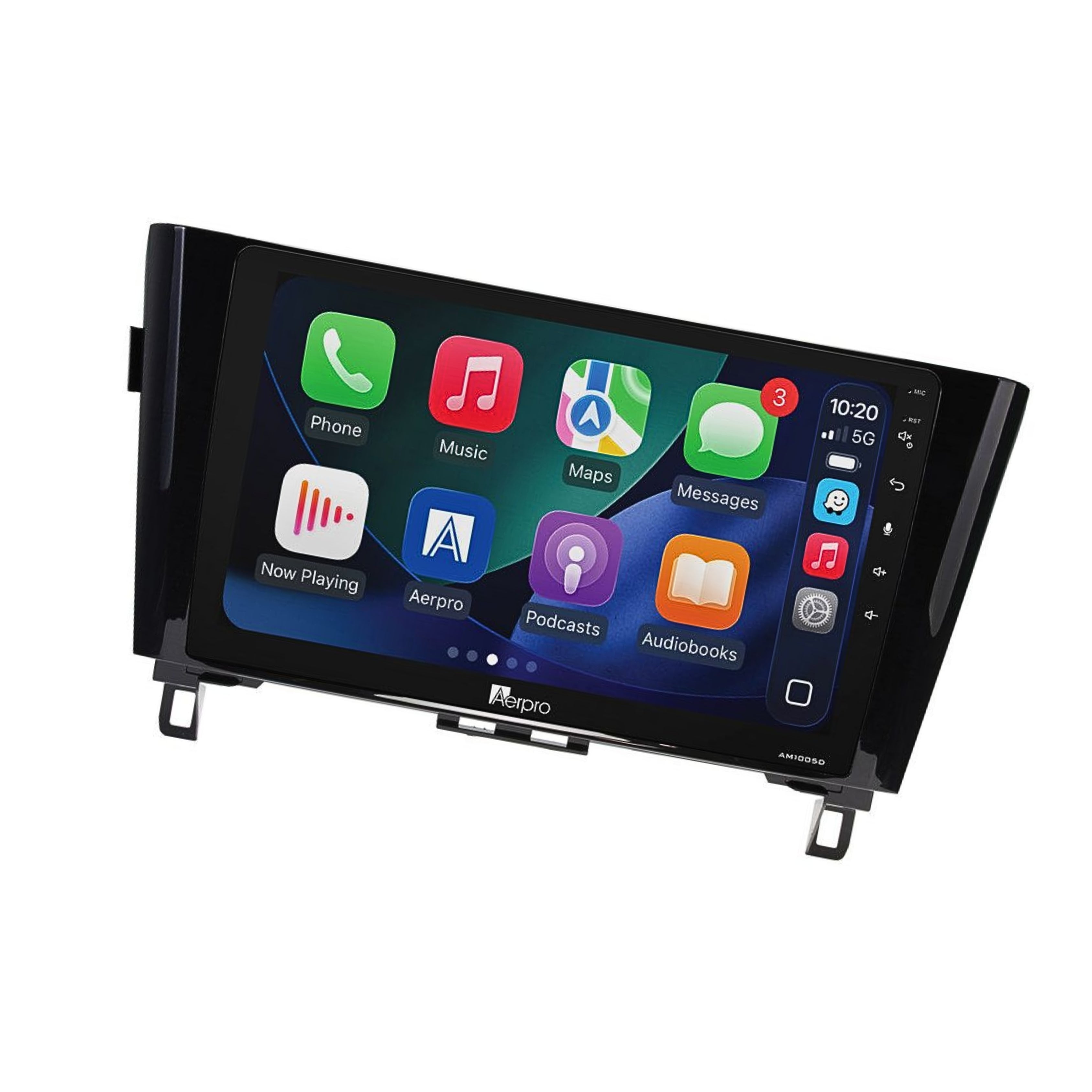

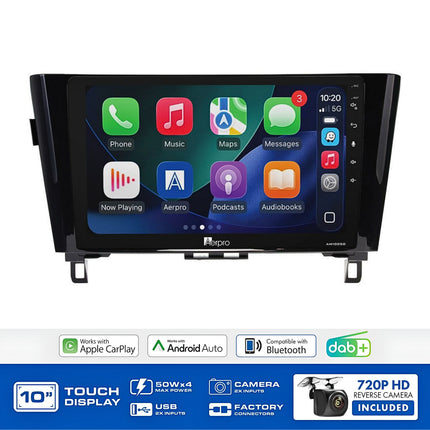

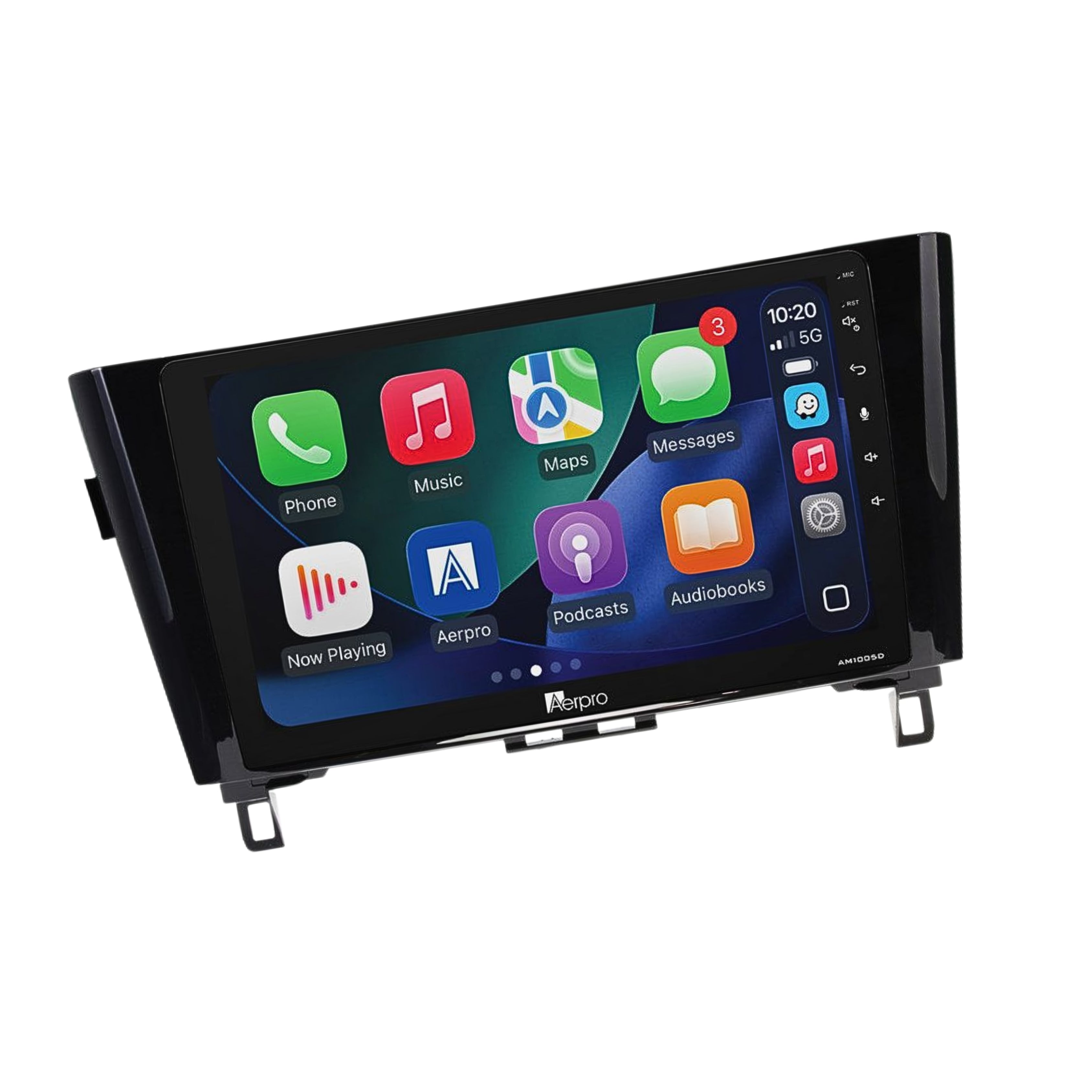

Aerpro AMDNI4 10 Inch Multimedia Receiver Complete Upgrade Kit for Nissan Qashqai 2014 to 2019 and X-Trail T32 2014 to 2022 Without Factory Navigation or 360 Camera
The AMDNI4 from Aerpro is a complete head unit upgrade kit for the Nissan Qashqai from 2014 to 2019 and the Nissan X-Trail T32 from 2014 to 2022, confirmed for models without factory navigation and without a 360-degree camera system. The kit is built around the AM1005D 10 inch multimedia receiver with wireless Apple CarPlay and Android Auto, DAB+ digital radio, Bluetooth V5, and 4 x 50W max output with 5-channel 4V RCA preouts. All parts required to complete the installation and retain steering wheel controls, factory reverse camera, USB input, and vehicle menu are included, along with a 720P AHD universal rear camera.
Product overview
The AMDNI4 is a complete head unit upgrade kit designed specifically for the Nissan Qashqai J11 (2014 to 2019) and Nissan X-Trail T32 (2014 to 2022) without factory navigation or 360-degree camera systems. The kit includes the AM1005D 10 inch multimedia receiver, a gloss black fascia kit, a steering wheel control interface harness with camera and USB retention, an SWC patch lead, an antenna adaptor, and a 720P AHD universal rear camera.
The AM1005D features a 10 inch capacitive touchscreen at 1024x600 resolution on a fixed trapezoid-style screen, dual rear USB inputs, a rear A/V input, second camera input, composite video output, 13-band EQ with time alignment, and six-colour button illumination. Wireless and wired CarPlay and Android Auto are both supported. Built-in DAB+ delivers digital radio without the need for an external module. This kit is not compatible with factory navigation or 360-degree camera equipped variants of these models.
Features and benefits
Complete head unit upgrade kit for Nissan Qashqai 2014 to 2019 and X-Trail T32 2014 to 2022: Confirmed for models without factory navigation and without a 360-degree camera system. Includes the AM1005D multimedia receiver, gloss black fascia kit, SWC interface harness with camera and USB retention, SWC patch lead, antenna adaptor, and 720P AHD universal rear camera.
Vehicle feature retention: Retains steering wheel controls including the phone button, factory reverse camera, USB input, and vehicle menu (clock settings) after installation.
10 inch capacitive touchscreen at 1024x600 resolution: The fixed trapezoid-style screen delivers a large, sharp display for navigation, media, and menu control with smooth, responsive capacitive touch performance.
Wireless Apple CarPlay and Android Auto: Access maps, music, calls, and messages from the head unit without plugging in the phone, or connect via USB for wired operation and device charging.
Built-in DAB+ digital radio: Integrated DAB+ tuner delivers digital radio without an external module, alongside AM/FM tuning with 12 AM and 18 FM presets and RDS support.
Bluetooth V5 with HD Voice: Bluetooth V5 supports hands-free calling with HFP 1.6 HD Voice, audio streaming via A2DP and AVRCP, and phonebook access via PBAP. Both internal and external microphone inputs are provided.
5-channel 4V RCA preouts: Three pairs of RCA preouts at 4V covering front, rear, and subwoofer channels allow amplifiers to be added to the system, with independent subwoofer level control.
13-band EQ with time alignment: Precise audio tuning via 13-band graphic EQ, time alignment, loudness, LPF for subwoofer, and six preset EQ modes plus two custom presets.
720P AHD universal rear camera included: The Sony 225 CMOS sensor rear camera with 150-degree lens angle improves reversing visibility. A second camera input is also available on the head unit for a front or towing camera.
What's in the box
- AM1005D 10 inch Fixed Multimedia Receiver (Trapezoid)
- Gloss Black Fascia Kit
- Steering Wheel Control Interface Harness (with Camera and USB Retention)
- SWC Patch Lead
- Antenna Adaptor
- 720P AHD Universal Rear Camera (wired, surface mount)
- Mounting Hardware Screws
- Wiring Harness with ISO Connection
- AV, USB and Camera Harnesses
- DAB Antenna
- 3 Wire Learning SWC Lead
- External Microphone with Mount
- GPS Antenna with Adhesive Pad
- QR Digital Manual Leaflet
Technical specs
| Specification |
Detail |
| SKU |
AMDNI4 |
| Brand |
Aerpro |
| Included Receiver |
AM1005D |
| Screen Size |
10 inch |
| Resolution |
1024 x 600 |
| Touchscreen Type |
Capacitive |
| Screen Style |
Fixed (Trapezoid) |
| Operating System |
Linux |
| Max Power Output |
4 x 50W |
| RCA Preouts |
4V, 5 Channel (Front, Rear, Subwoofer) |
| Apple CarPlay |
Yes, wireless and wired |
| Android Auto |
Yes, wireless and wired |
| DAB+ |
Yes, built-in |
| AM/FM Presets |
AM 12, FM 18 |
| Bluetooth Version |
V5 |
| HFP Profile |
HFP 1.6 (HD Voice) |
| USB Inputs |
2x rear (CarPlay/Android Auto + Media) |
| USB Max Capacity |
FAT32, 32GB |
| Reverse Camera Input |
Yes, 720P AHD compatible |
| Second Camera Input |
Yes, 720P AHD compatible |
| EQ |
13-band |
| Time Alignment |
Yes |
| Button Illumination |
6-colour (Red, Yellow, Green, Blue, Purple, White) |
| Rear Camera Included |
Yes, 720P AHD universal (Sony 225, 150-degree lens) |
Vehicle feature retention
| Feature |
Retained |
| Steering Wheel Controls (including phone button) |
Yes |
| Factory Reverse Camera |
Yes |
| USB Input |
Yes |
| Vehicle Menu (clock settings) |
Yes |
| AUX Input |
N/A |
| Parking Tones |
N/A |
| Factory Amplifier |
N/A |
Compatible with
This kit is confirmed for the following Nissan vehicles without factory navigation and without a 360-degree camera system only. Confirm your specific variant before ordering.
| Make |
Model |
Variant |
Years |
| Nissan |
Qashqai |
Without factory navigation and 360 camera |
2014 - 2019 |
| Nissan |
X-Trail |
T32, without factory navigation and 360 camera |
2014 - 2022 |
Frequently asked questions
Does the AMDNI4 suit Nissan Qashqai and X-Trail models with factory navigation?
No. The AMDNI4 is confirmed for models without factory navigation and without a 360-degree camera system only. For factory navigation or 360-degree camera equipped variants, a different kit will be required. Use the Aerpro What Fits Your Car Guide or contact us to confirm the correct kit for your specific variant.
Does the AMDNI4 suit the Nissan X-Trail T32 across its full 2014 to 2022 range?
Yes. The AMDNI4 is confirmed for the Nissan X-Trail T32 from 2014 to 2022 without factory navigation and without a 360-degree camera system. Confirm your specific variant before ordering.
Does this kit retain the factory reverse camera?
Yes. The steering wheel control interface harness included in the AMDNI4 retains the factory reverse camera using the reverse camera input on the head unit.
Can I add an external amplifier using this head unit?
Yes. The AM1005D provides 5-channel 4V RCA preouts covering front, rear, and subwoofer channels, allowing one or more external amplifiers to be connected to the system. Contact us for guidance on amplifier selection and wiring for your specific installation.
Is the rear camera included in the AMDNI4 kit?
Yes. A 720P AHD universal rear camera with a Sony 225 CMOS sensor and 150-degree lens angle is included in the kit. The head unit also has a second camera input available for a front or towing camera if required.
