Complete 9" Head Unit Upgrade Kit for Subaru Forester SJ 2013–2014, Impreza GP/GJ 2012–2014 & XV 2012–2015 (Without Factory 6.1" Touchscreen) Wireless Apple CarPlay, Android Auto, DAB+, Bluetooth 5, SWC & USB Retained, Rear Camera Included.
Product Overview

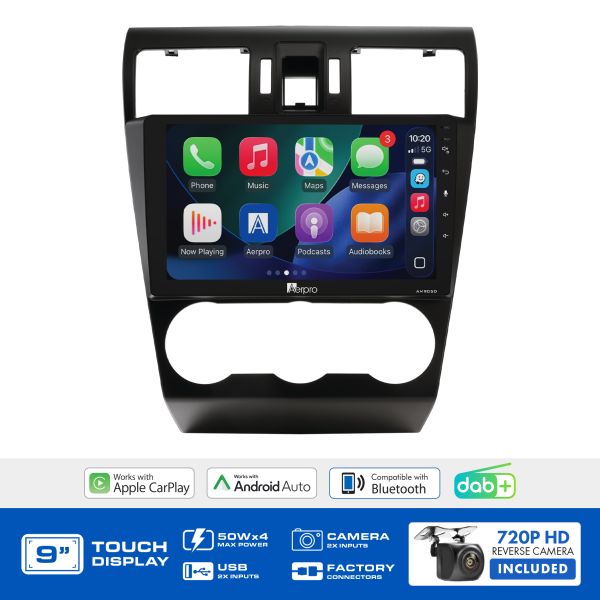

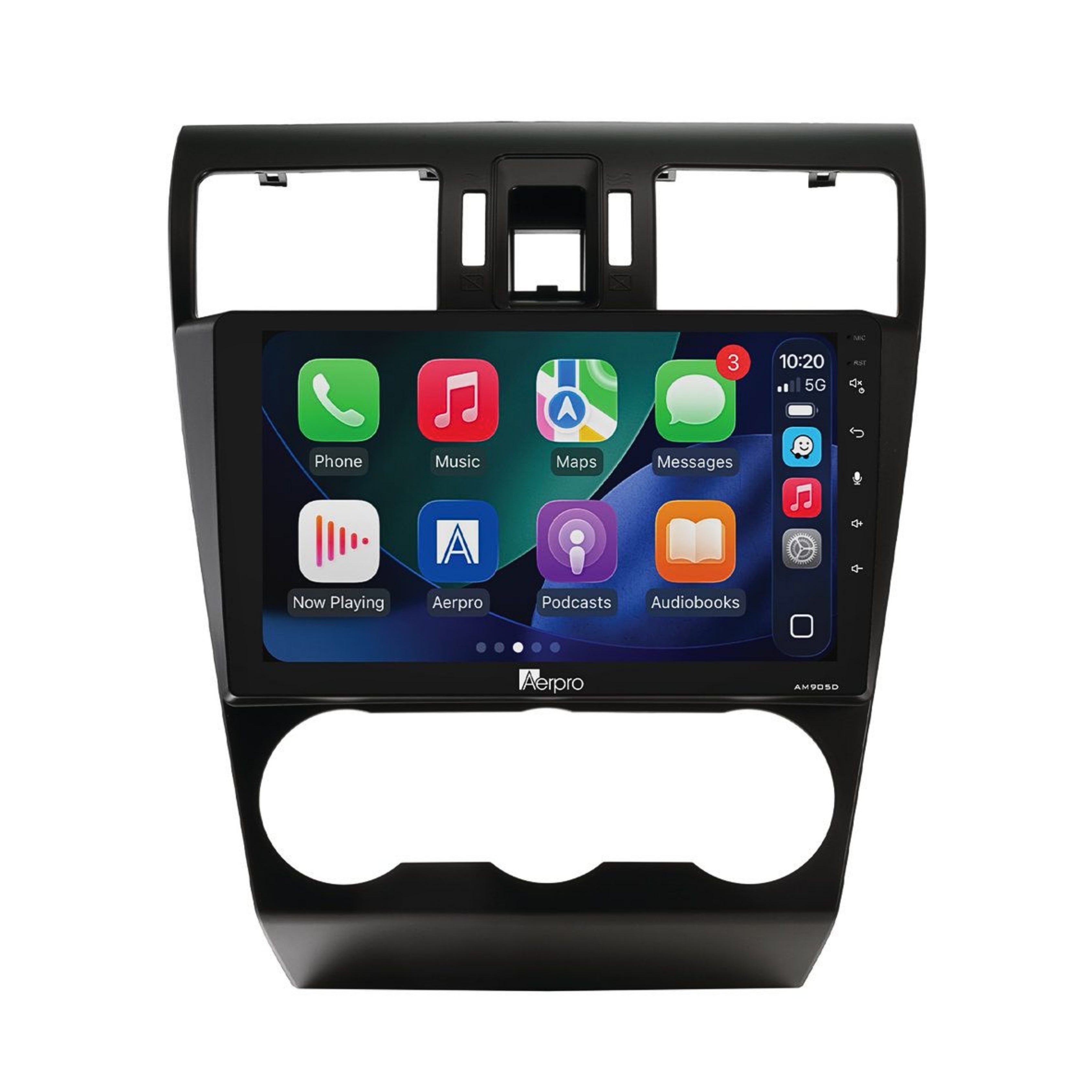

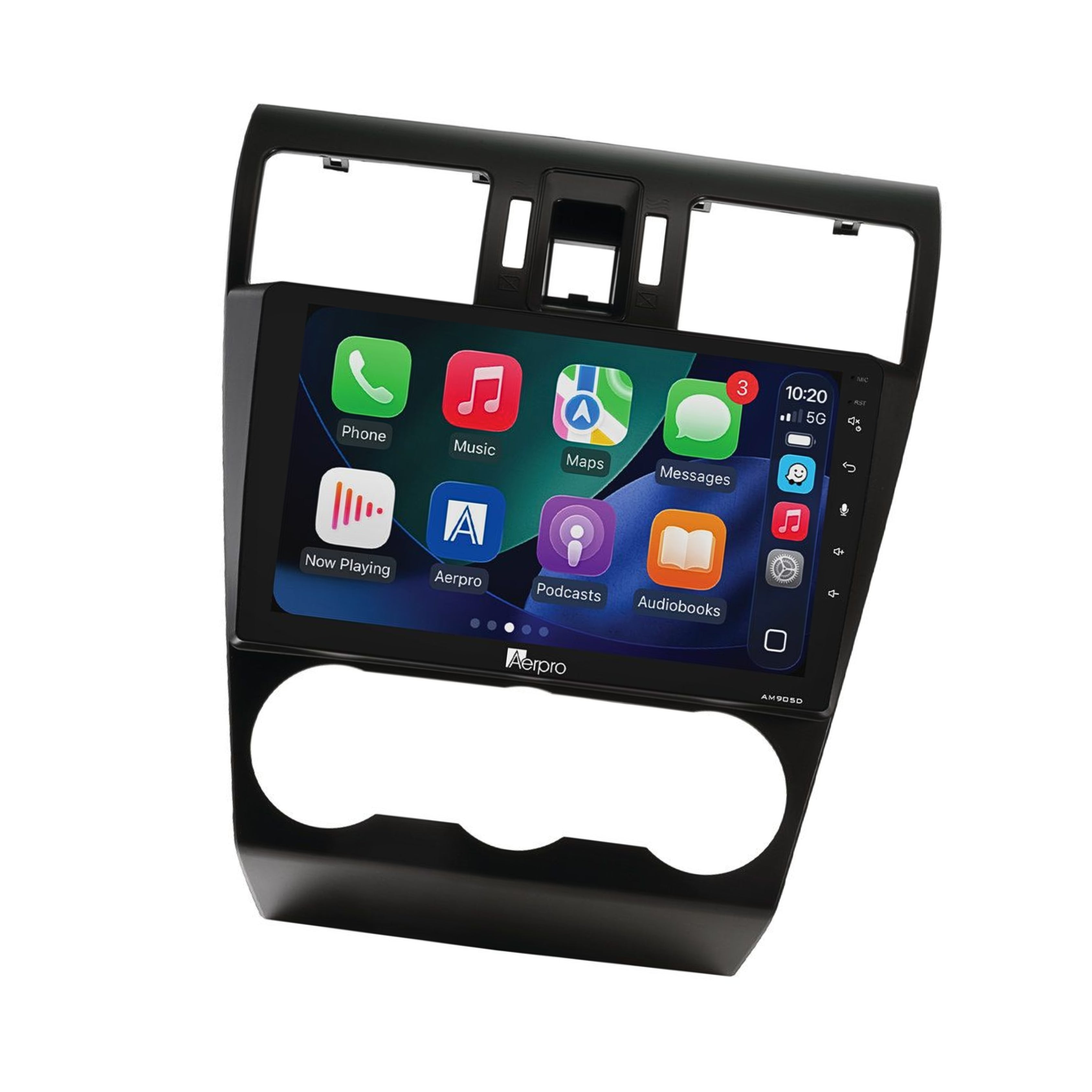

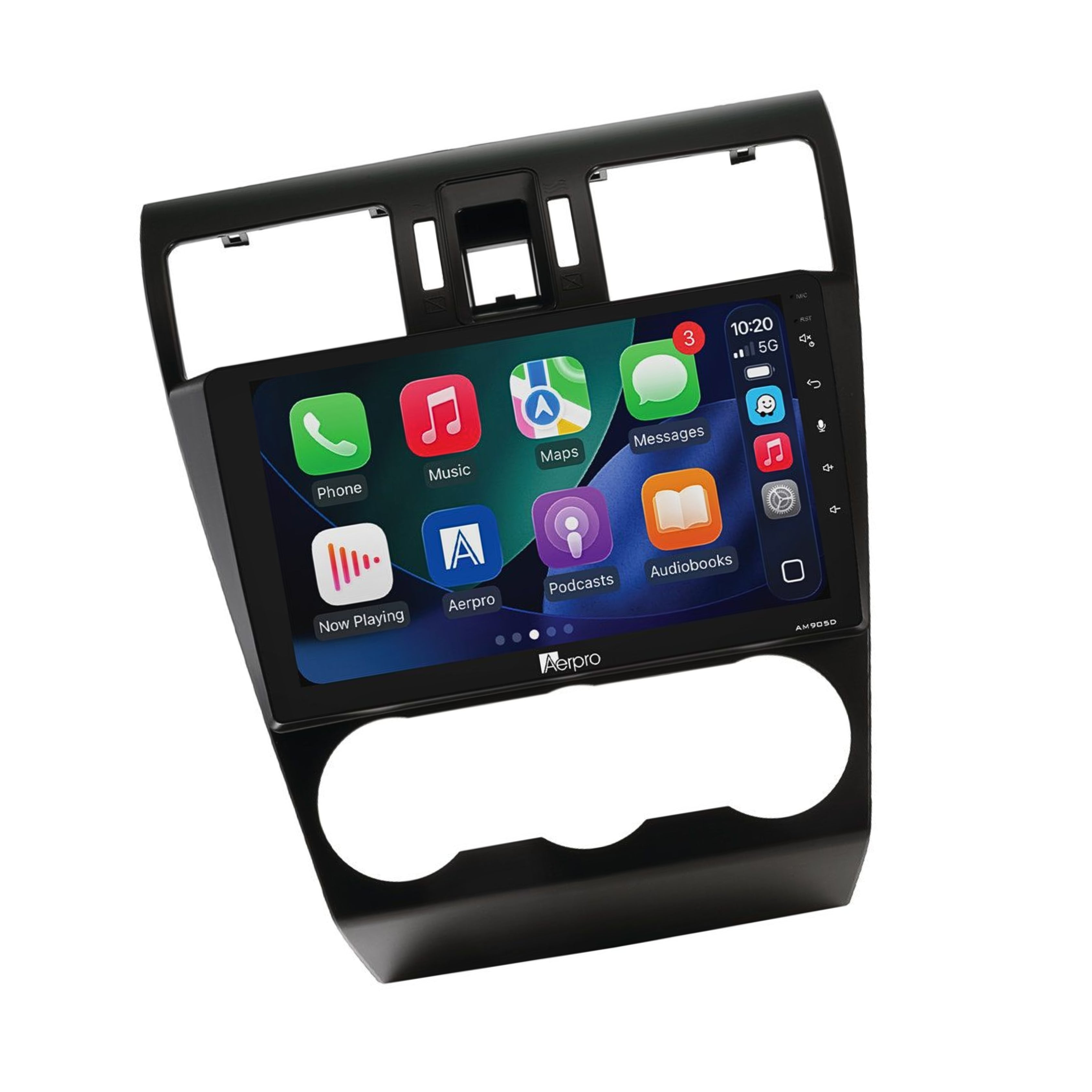

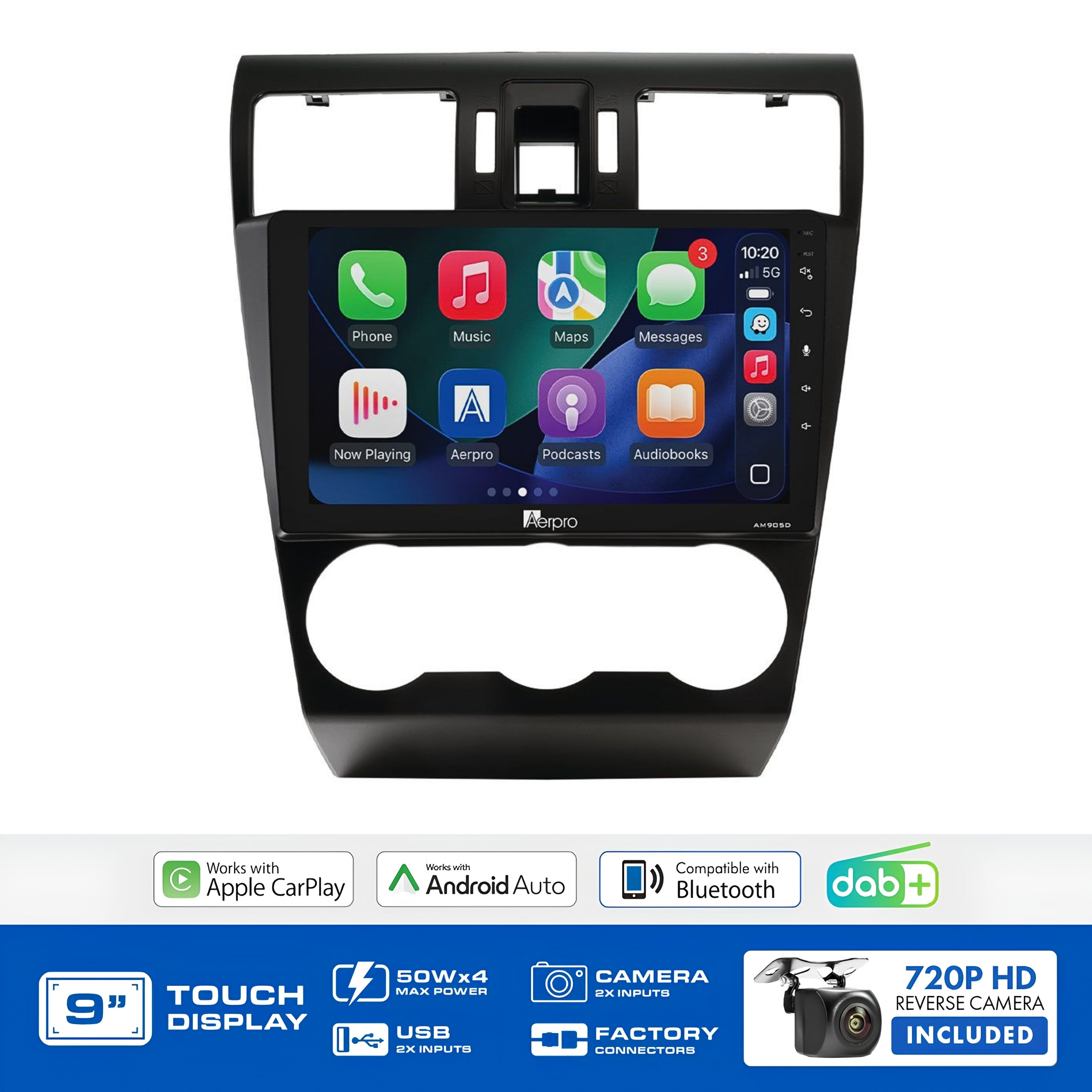

The Aerpro AMDSU1 is a complete head unit upgrade kit designed for Subaru Forester SJ (2013–2014), Impreza GP/GJ (2012–2014), and XV (2012–2015) specifically for vehicles without a factory 6.1" touchscreen (Clarion head unit). For vehicles equipped with the 6.1" factory touchscreen (Fujitsu 10 Denso head unit), the correct kit is the AMDSU2.
Everything required for installation is included the AM905D multimedia receiver, black fascia kit, steering wheel control interface harness, SWC patch lead, antenna adaptor, USB adaptor, and a 720P AHD universal rear camera. Steering wheel controls and factory USB input are both retained.
The AM905D features a 9" capacitive touchscreen (1024x600), wireless Apple CarPlay and Android Auto, built-in DAB+ digital radio, Bluetooth 5, and 4x50W output with 13-band EQ and 4V/5CH RCA preouts.
Kit Inclusions
- AM905D 9" Multimedia Receiver
- Black Fascia Kit
- Steering Wheel Control Interface Harness
- SWC Patch Lead
- Antenna Adaptor
- USB Adaptor
- 720P AHD Universal Rear Camera
Key Specifications
- Screen: 9" capacitive touchscreen 1024x600 resolution
- Wireless CarPlay & Android Auto: Yes (wired also supported)
- DAB+ digital radio: Yes (AM/FM with RDS also included)
- Bluetooth: V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP)
- Max power output: 4 x 50W
- RCA preouts: 4V / 5-channel (Front/Rear/Subwoofer)
- 13-band EQ and time alignment: Yes
- USB inputs: 2 x rear USB (FAT32 / 32GB max)
- Reverse camera input: Yes (720P AHD compatible)
- Second camera input: Yes (720P AHD compatible)
- LED button illumination: 6-colour selectable
- Rear camera: 720P AHD universal included
Features & Benefits
-
Suits Clarion head unit variants: Specifically designed for Subaru models without the factory 6.1" touchscreen if your vehicle has a 6.1" Fujitsu 10 Denso screen, use the AMDSU2 instead
-
Factory USB input retained: Factory USB input retained via the included USB adaptor
-
Steering wheel controls retained: Factory SWC retained via the included harness and patch lead
-
Wireless Apple CarPlay & Android Auto: Wire-free phone integration; wired connection also supported
-
DAB+ digital radio built-in: Crystal-clear digital radio plus AM/FM and RDS
-
Bluetooth 5 with HD Voice: Crisp hands-free calling and wireless audio streaming
-
9" capacitive touchscreen: Large, smooth 1024x600 display
-
720P AHD rear camera included: Immediate reversing visibility additional front or tow camera input also available
-
4x50W output with 5-channel preouts: High-power audio with amplifier expansion capability
-
13-band EQ with time alignment: Precision audio tuning
Technical Specs
| Specification |
Detail |
| SKU |
AMDSU1 |
| Brand |
Aerpro |
| Screen Size |
9" |
| Resolution |
1024x600 |
| Touchscreen |
Capacitive |
| OS |
Linux |
| DIN Format |
Fixed Screen Trapezoid |
| Max Power |
4CH x 50W |
| RCA Preouts |
4V / 5-channel |
| Wireless CarPlay/Android Auto |
Yes |
| DAB+ |
Yes |
| AM/FM Presets |
AM 12 / FM 18 |
| Bluetooth |
V5 (A2DP, AVRCP, HFP 1.6, PBAP) |
| USB Inputs |
2 x Rear (FAT32 / 32GB max) |
| Reverse Camera Input |
Yes (720P AHD compatible) |
| Second Camera Input |
Yes (720P AHD compatible) |
| EQ |
13-band |
| Time Alignment |
Yes |
| LED Illumination |
6-colour selectable |
| SWC Retained |
Yes |
| USB Input Retained |
Yes |
| Kit Includes Rear Camera |
Yes 720P AHD universal |
| Weight |
2.00kg |
| Suits |
Subaru Forester SJ 2013–2014, Impreza GP/GJ 2012–2014, XV 2012–2015 (Clarion no 6.1" screen) |
Compatible Vehicles
- Subaru Forester 2013–2014 SJ (headunit dependent Clarion only)
- Subaru Impreza 2012–2014 GP, GJ (headunit dependent Clarion only)
- Subaru XV 2012–2015 (headunit dependent Clarion only)
Frequently Asked Questions
How do I know if my Subaru has the Clarion or Fujitsu head unit?
The AMDSU1 suits vehicles without a factory 6.1" touchscreen (Clarion head unit). If your vehicle has a factory 6.1" touchscreen (Fujitsu 10 Denso head unit), use the AMDSU2 instead. Check your vehicle's current head unit before ordering.
Does this kit retain the factory USB input?
Yes the factory USB input is retained via the included USB adaptor.
Does this kit retain steering wheel controls?
Yes the included SWC harness and patch lead retain factory steering wheel control function.
Does CarPlay require the park brake to be connected?
Yes the park brake wire must be connected to the park brake for Apple CarPlay and Android Auto to function.
What is the return policy for this product?
Return eligibility is subject to the retailer's policy. Always verify vehicle and system compatibility before purchasing.
