Description
Transform Your Subaru WRX with a Modern 9" Multimedia Upgrade Designed for Factory Integration.
Product Overview

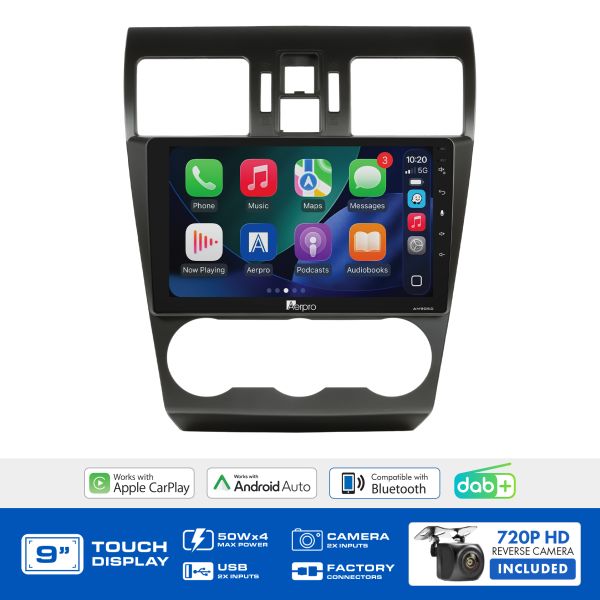

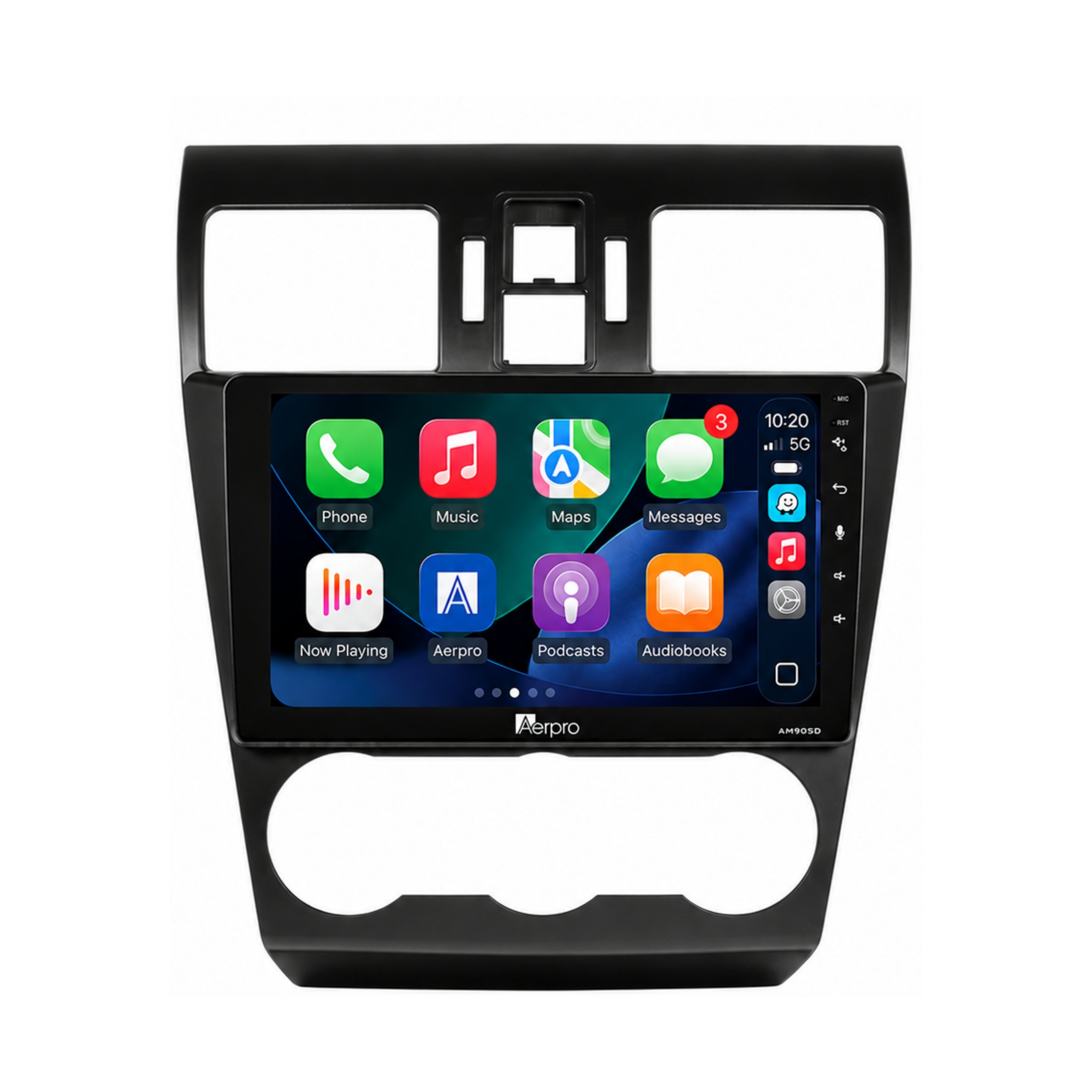

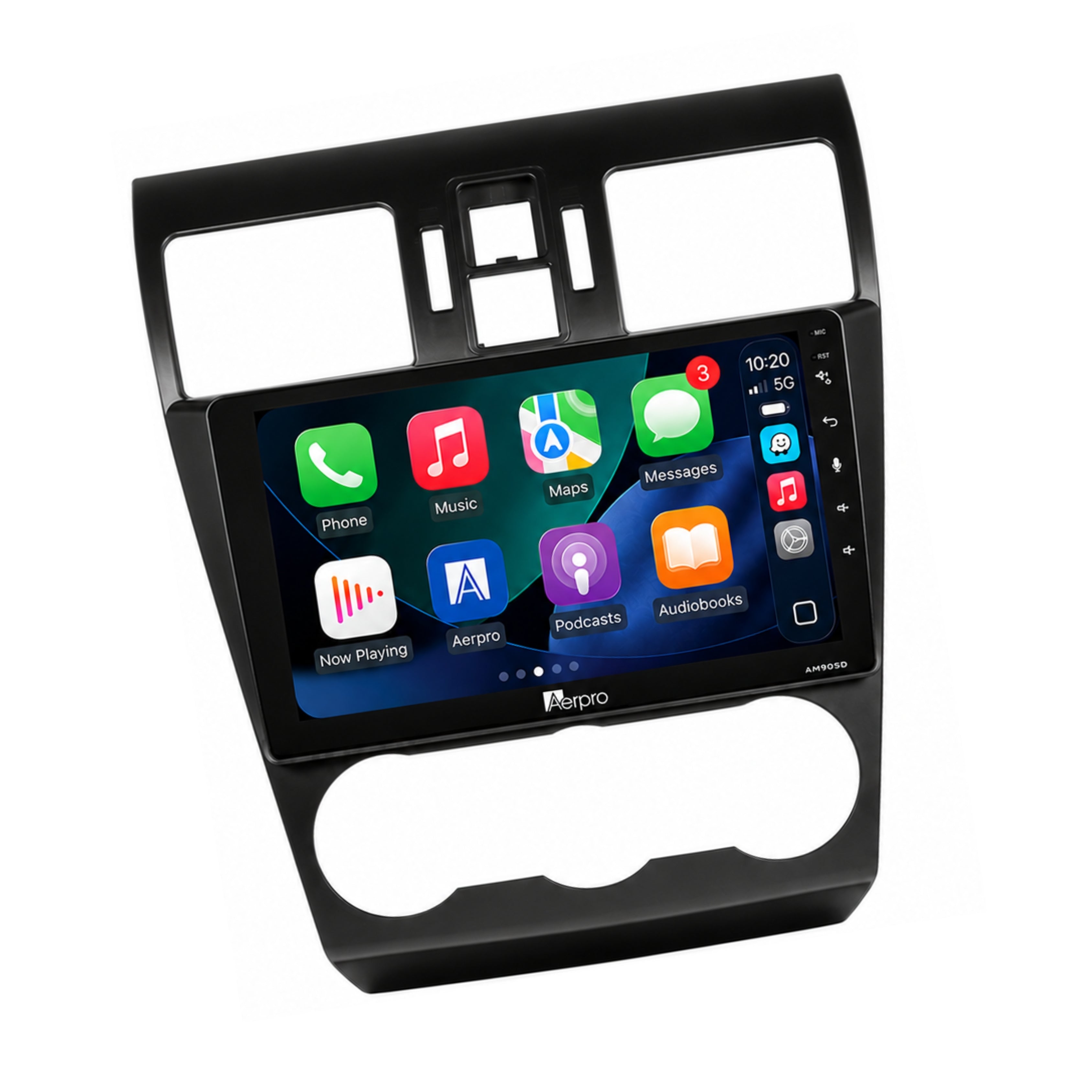

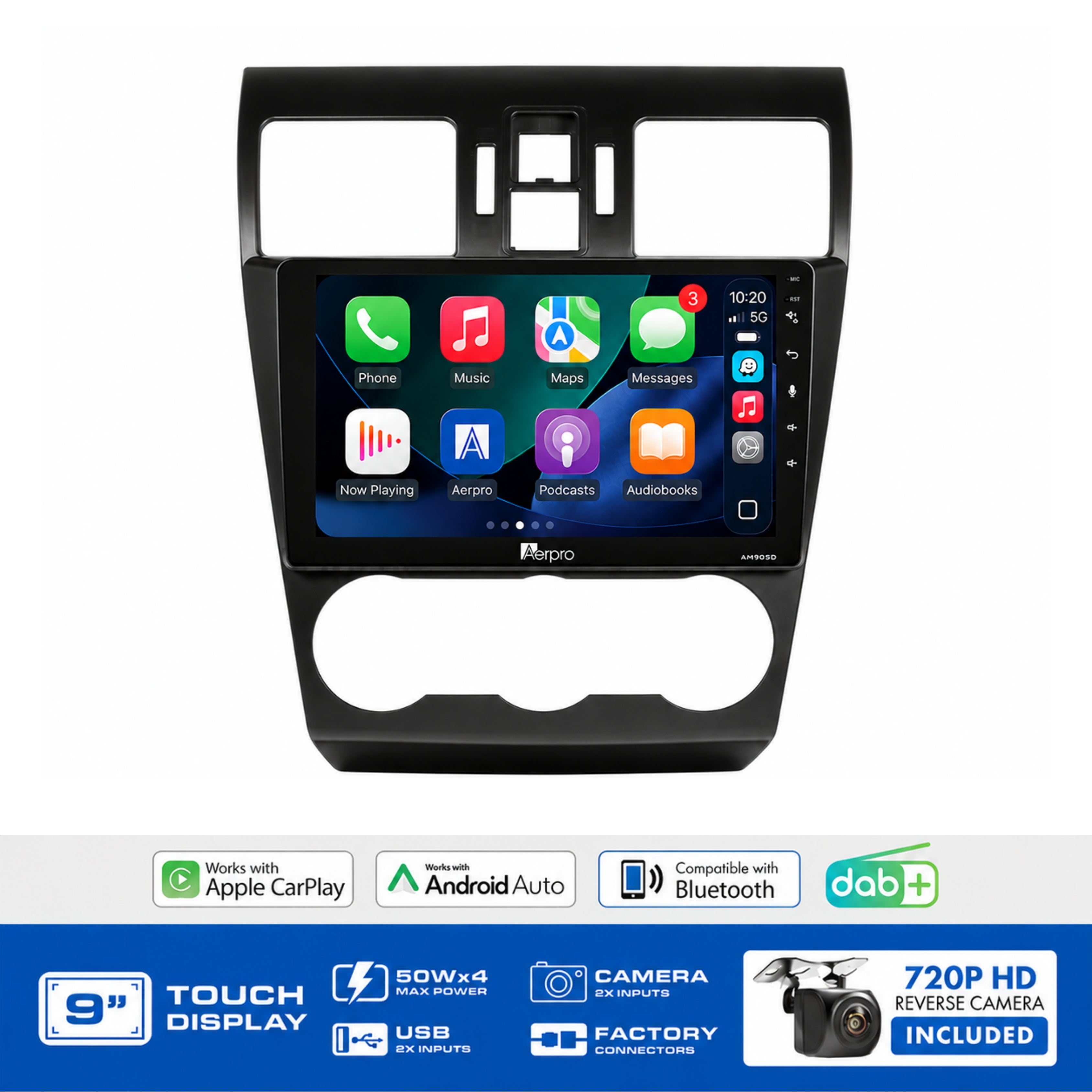

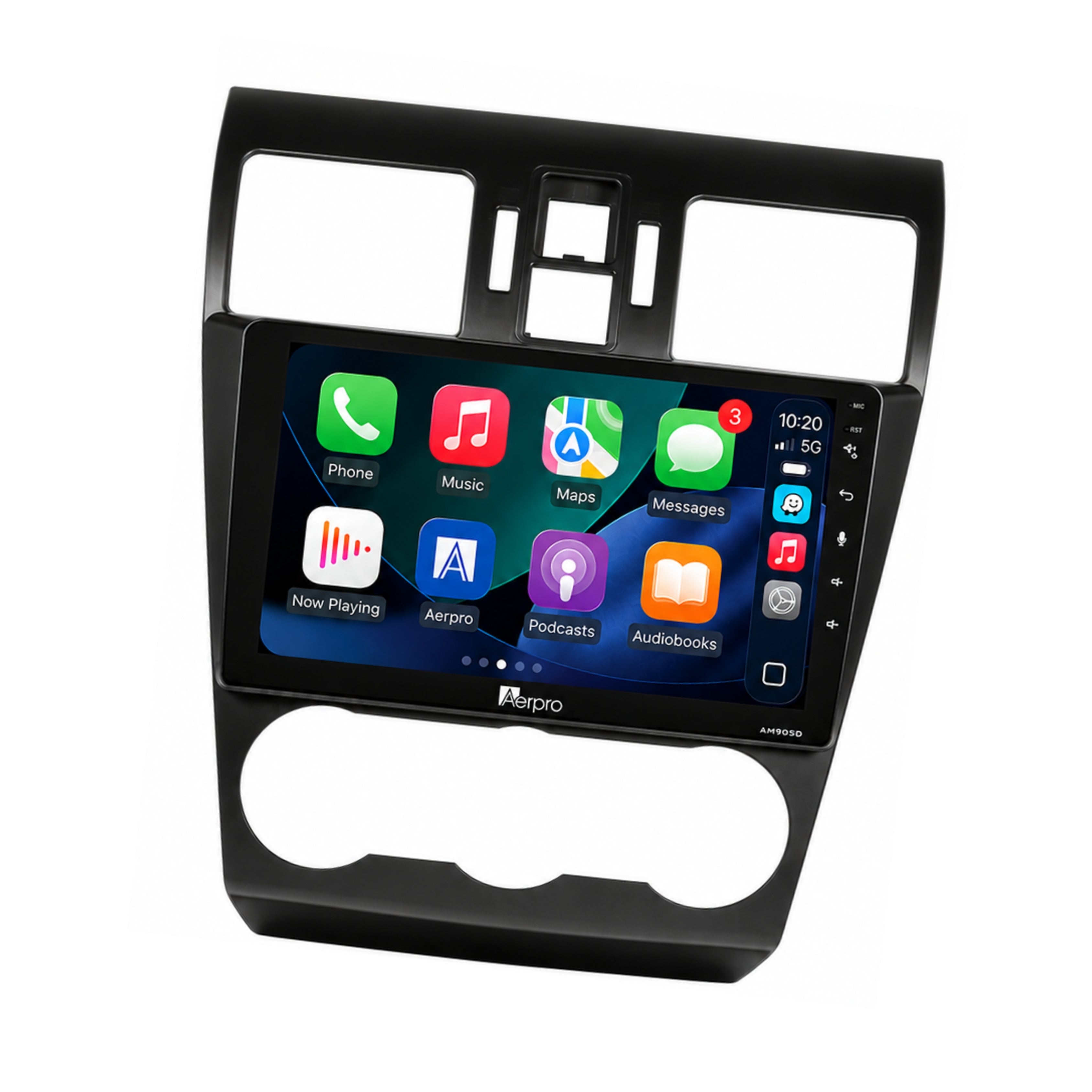

The Aerpro AMDSU12 Head Unit Upgrade Kit is purpose-built for Subaru WRX MY15 (2014–2015) models without factory navigation, providing a complete infotainment upgrade with seamless OEM-style integration. Supplied with the Aerpro AM905D 9-inch multimedia receiver and all required installation accessories, this kit modernises your factory audio system while retaining essential vehicle functions.
Featuring a crisp 9-inch capacitive touchscreen, wireless and wired Apple CarPlay and Android Auto, Bluetooth® V5, built-in DAB+ digital radio, AM/FM tuner, dual USB inputs and premium audio tuning controls, the AMDSU12 delivers an enhanced driving experience. The kit also retains steering wheel controls, factory USB input and the factory reverse camera (displayed in the top MFD). A universal 720P AHD rear camera is included for improved reversing visibility.
Key Specifications
- Designed for Subaru WRX MY15 (2014–2015) without factory navigation
- Complete vehicle-specific multimedia upgrade kit
- 9-inch capacitive touchscreen display
- 1024 × 600 HD screen resolution
- Wireless & wired Apple CarPlay
- Wireless & wired Android Auto
- Bluetooth® Version 5 with HD Voice
- Built-in DAB+ digital radio
- AM/FM tuner with RDS
- Maximum audio output: 4 × 50W
- 13-band graphic equaliser
- Time alignment and subwoofer level control
- 4V 5-channel RCA pre-outs
- Dual rear USB inputs with charging
- Supports MP3, MP4, MKV, FLAC and Xvid playback
- Includes universal 720P AHD reverse camera
- Retains factory steering wheel controls
- Retains factory reverse camera
- Retains factory USB input
Features & Benefits
-
Vehicle-Specific Design – Engineered specifically for Subaru WRX MY15 (2014–2015) models without factory navigation, ensuring excellent fitment and a factory-style finish.
-
Wireless Apple CarPlay & Android Auto – Access maps, music, phone calls and messaging wirelessly or via USB while keeping your focus on the road.
-
Large 9-Inch HD Touchscreen – Responsive capacitive touchscreen with 1024 × 600 resolution provides intuitive control and improved visibility.
-
Retains Factory Vehicle Features – Maintains steering wheel controls, factory USB input and the factory reverse camera for a seamless ownership experience.
-
Crystal-Clear DAB+ Digital Radio – Enjoy digital radio reception with more stations and improved sound quality alongside AM/FM broadcasting.
-
Advanced Audio Processing – Fine-tune your listening experience with a 13-band graphic EQ, time alignment and dedicated subwoofer controls.
-
Expandable Audio System – 4V 5-channel RCA outputs make it easy to integrate aftermarket amplifiers and subwoofers.
-
720P AHD Reverse Camera Included – Enhance reversing safety with a high-definition camera supplied in the kit.
-
Dual USB Connectivity – Rear USB ports support smartphone integration, charging and multimedia playback.
-
Customisable Button Illumination – Choose from six LED button colours to better suit your vehicle's interior lighting.
Technical Specs
| Specification |
Details |
| Vehicle Compatibility |
Subaru WRX MY15 (2014–2015) |
| Factory Navigation Required |
No |
| Screen Size |
9" |
| Screen Resolution |
1024 × 600 |
| Touchscreen |
Capacitive |
| Operating System |
Linux |
| DIN Configuration |
Fixed Screen Style (Trapezoid) |
| Maximum Output Power |
4 × 50W |
| Bluetooth Version |
V5 |
| Bluetooth Profiles |
A2DP, AVRCP, HFP, PBAP |
| HD Voice Support |
HFP 1.6 |
| DAB+ Digital Radio |
Yes |
| AM Presets |
12 |
| FM Presets |
18 |
| FM Frequency |
87.5–108.0 MHz |
| AM Frequency |
522–1710 kHz |
| RDS |
Yes |
| USB Ports |
Dual Rear USB |
| USB Charging Output |
5V / 1.5A |
| USB File System |
FAT32 (Up to 32GB) |
| Apple CarPlay |
Wireless & Wired |
| Android Auto |
Wireless & Wired |
| Reverse Camera Input |
720P AHD Compatible |
| Second Camera Input |
720P AHD Compatible |
| RCA Pre-Outs |
4V, 5-Channel (Front / Rear / Subwoofer) |
| Equaliser |
13-Band Graphic EQ |
| Preset EQ |
6 Presets + 2 Custom |
| Time Alignment |
Yes |
| Steering Wheel Control |
Supported with Aerpro SWC Interface |
| LED Button Colours |
Red, Yellow, Green, Blue, Purple, White |
| Included Rear Camera |
720P AHD Universal Surface Mount |
| Camera Sensor |
Sony 225 1/3 CMOS AHD |
| Camera Viewing Angle |
150° |
