Description
Complete 9" Head Unit Upgrade Kit for Subaru Forester SJ 2013–2014, Impreza GP/GJ 2012–2014 & XV 2012–2015 (With Factory 6.1" Touchscreen) Wireless Apple CarPlay, Android Auto, DAB+, Bluetooth 5, SWC, Factory USB & Reverse Camera Retained, Rear Camera Included.
Product Overview

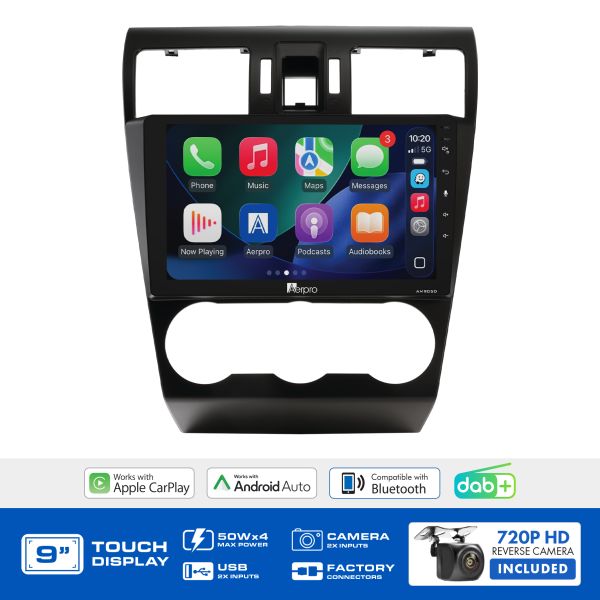

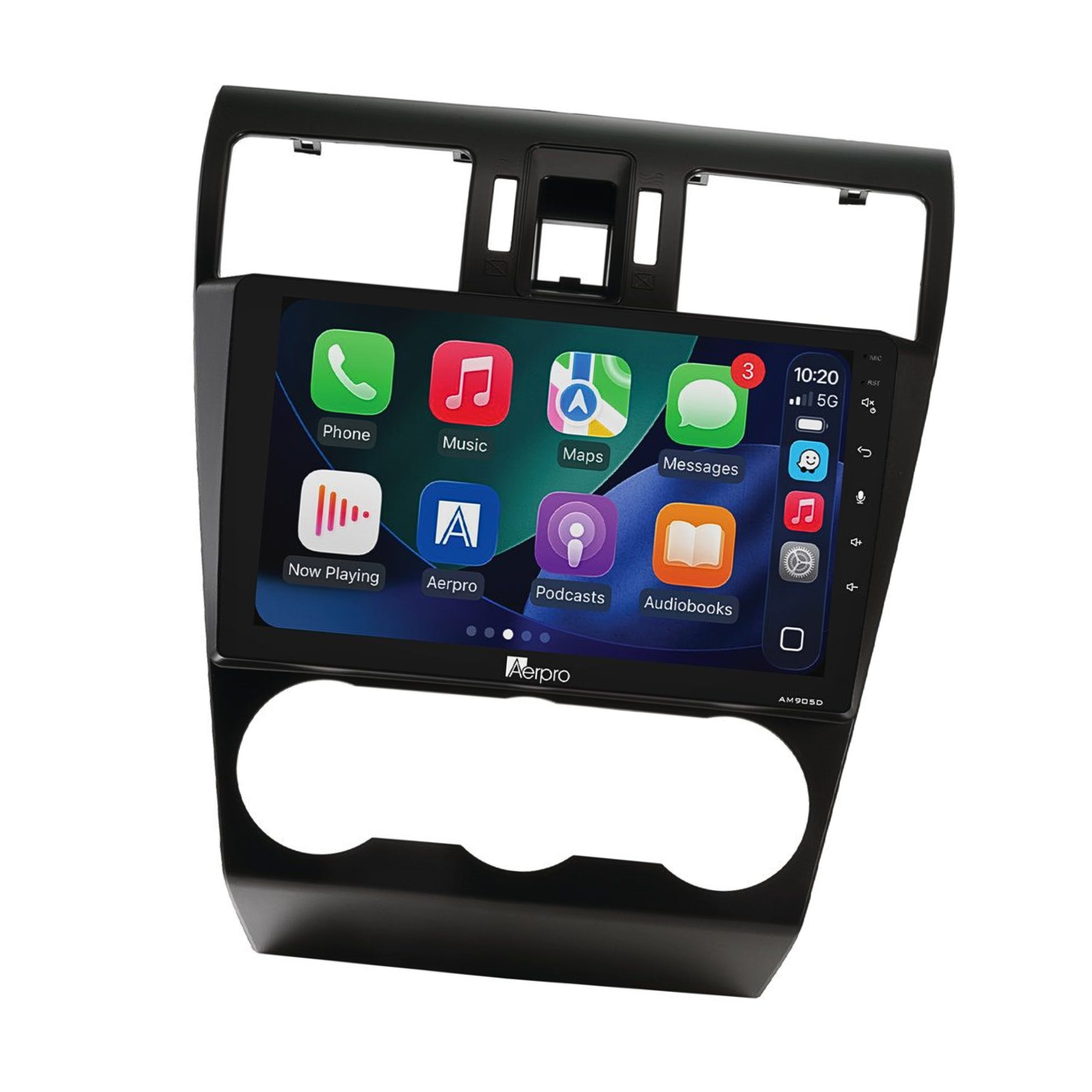

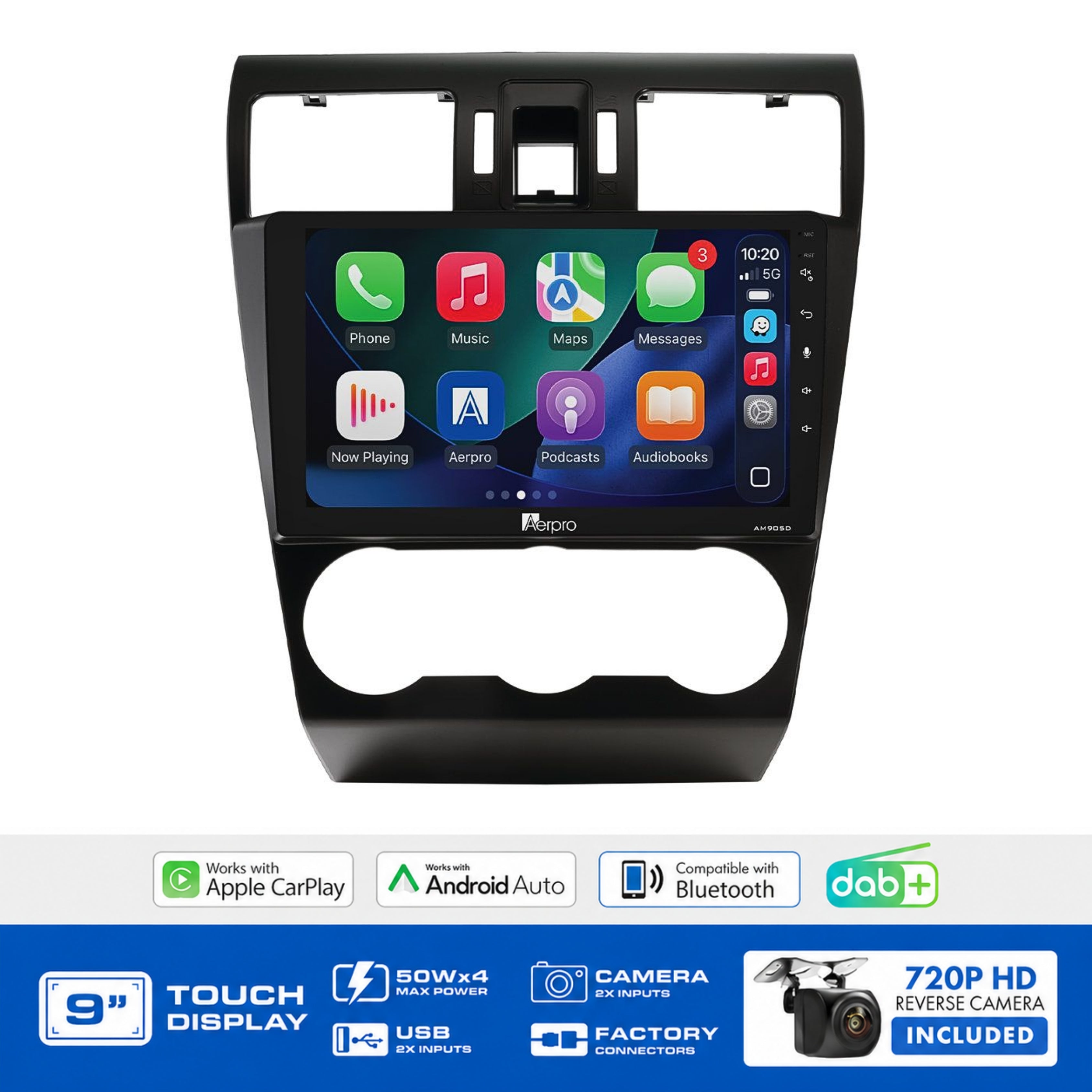

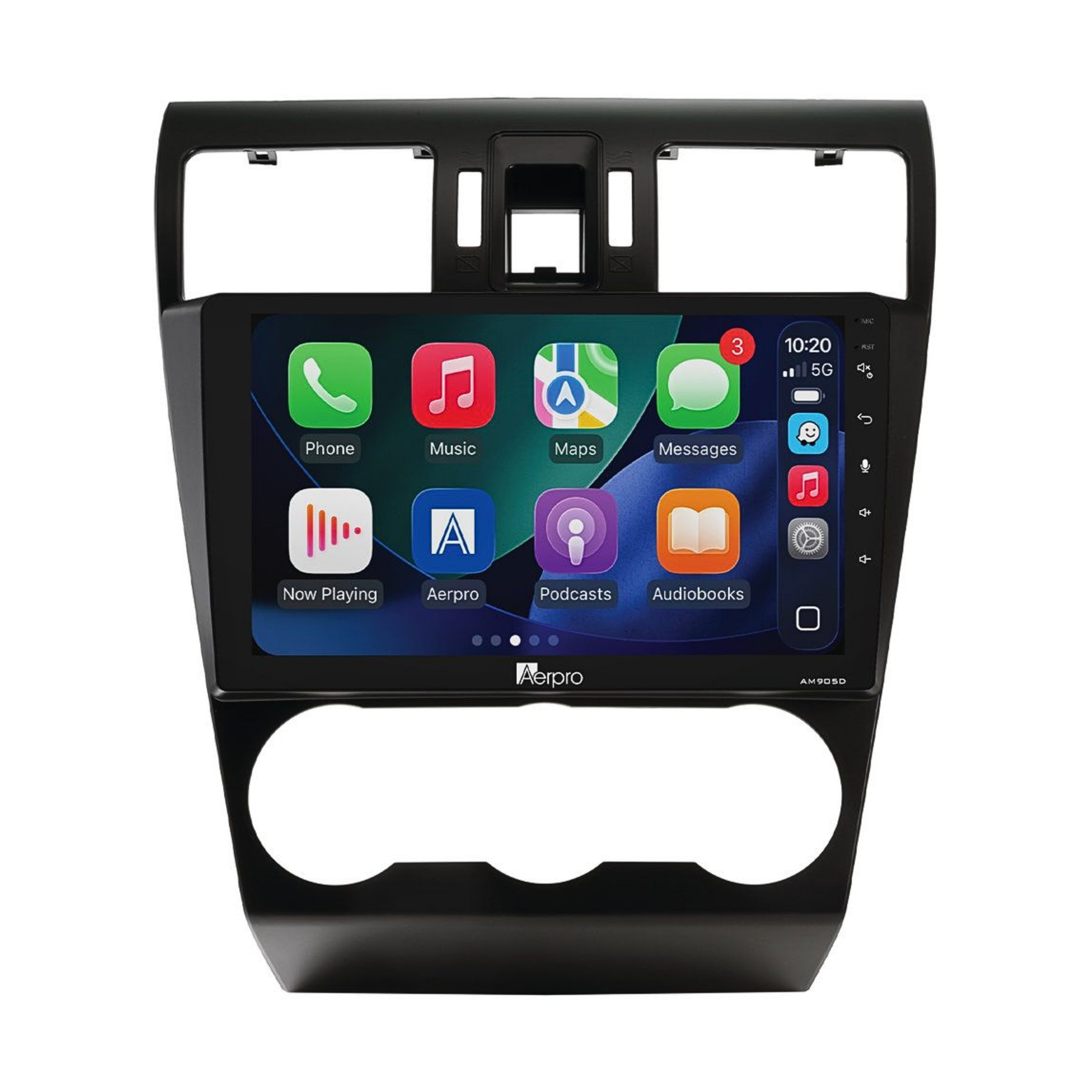

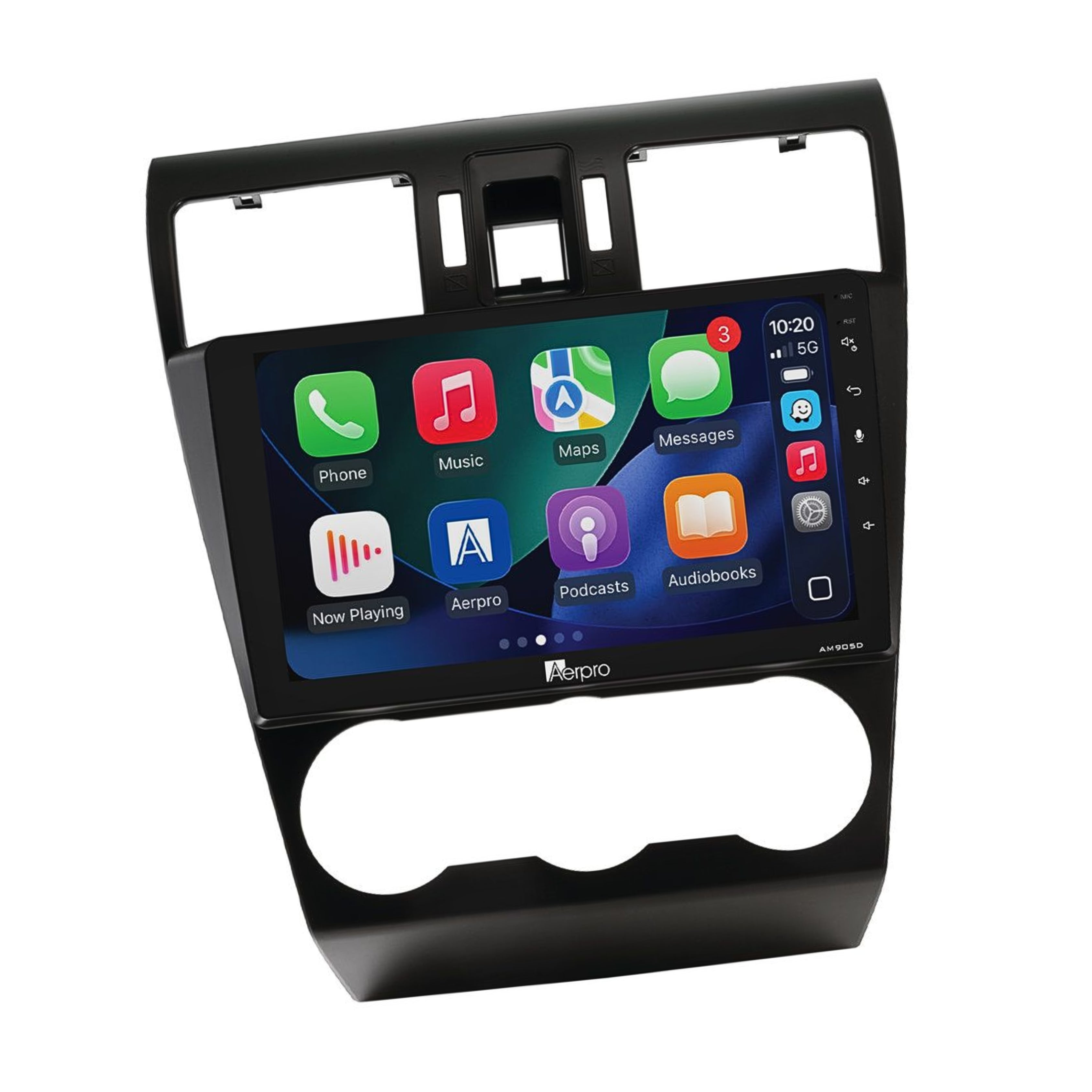

The Aerpro AMDSU2 is a complete head unit upgrade kit designed for Subaru Forester SJ (2013–2014), Impreza GP/GJ (2012–2014), and XV (2012–2015) specifically for vehicles with the factory 6.1" touchscreen (Fujitsu 10 Denso head unit). For vehicles without the 6.1" factory touchscreen (Clarion head unit), the correct kit is the AMDSU1.
Everything required for installation is included the AM905D multimedia receiver, black fascia kit, steering wheel control interface harness, SWC patch lead, antenna adaptor, camera retention adaptor, USB retention adaptor, and a 720P AHD universal rear camera. Steering wheel controls, factory USB input, and factory reverse camera (all if equipped) are retained. Suits non-amplified systems only.
Kit Inclusions
- AM905D 9" Multimedia Receiver
- Black Fascia Kit
- Steering Wheel Control Interface Harness
- SWC Patch Lead
- Antenna Adaptor
- Camera Retention Adaptor
- USB Retention Adaptor
- 720P AHD Universal Rear Camera
Key Specifications
- Screen: 9" capacitive touchscreen 1024x600 resolution
- Wireless CarPlay & Android Auto: Yes (wired also supported)
- DAB+ digital radio: Yes (AM/FM with RDS also included)
- Bluetooth: V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP)
- Max power output: 4 x 50W
- RCA preouts: 4V / 5-channel (Front/Rear/Subwoofer)
- 13-band EQ and time alignment: Yes
- USB inputs: 2 x rear USB (FAT32 / 32GB max)
- Reverse camera input: Yes (720P AHD compatible)
- Second camera input: Yes (720P AHD compatible)
- LED button illumination: 6-colour selectable
- Rear camera: 720P AHD universal included
Features & Benefits
-
Suits Fujitsu 10 Denso 6.1" factory touchscreen variants: Specifically designed for Subaru models with the factory 6.1" screen for non-screen Clarion variants, use the AMDSU1
-
Factory reverse camera retained: Existing factory reverse camera retained via the included camera retention adaptor, if equipped
-
Factory USB input retained: Factory USB input retained via the included USB retention adaptor, if equipped uses the rear USB input of the head unit
-
Steering wheel controls retained: Factory SWC retained via the included harness and patch lead
-
Wireless Apple CarPlay & Android Auto: Wire-free phone integration; wired connection also supported
-
DAB+ digital radio built-in: Crystal-clear digital radio plus AM/FM and RDS
-
Bluetooth 5 with HD Voice: Crisp hands-free calling and wireless audio streaming
-
9" capacitive touchscreen: Large, smooth 1024x600 display
-
720P AHD rear camera included: Immediate reversing visibility additional front or tow camera input also available
-
4x50W output with 5-channel preouts: High-power audio with amplifier expansion capability
-
13-band EQ with time alignment: Precision audio tuning
Technical Specs
| Specification |
Detail |
| SKU |
AMDSU2 |
| Brand |
Aerpro |
| Screen Size |
9" |
| Resolution |
1024x600 |
| Touchscreen |
Capacitive |
| OS |
Linux |
| DIN Format |
Fixed Screen Trapezoid |
| Max Power |
4CH x 50W |
| RCA Preouts |
4V / 5-channel |
| Wireless CarPlay/Android Auto |
Yes |
| DAB+ |
Yes |
| AM/FM Presets |
AM 12 / FM 18 |
| Bluetooth |
V5 (A2DP, AVRCP, HFP 1.6, PBAP) |
| USB Inputs |
2 x Rear (FAT32 / 32GB max) |
| Reverse Camera Input |
Yes (720P AHD compatible) |
| Second Camera Input |
Yes (720P AHD compatible) |
| EQ |
13-band |
| Time Alignment |
Yes |
| LED Illumination |
6-colour selectable |
| SWC Retained |
Yes |
| Factory Reverse Camera Retained |
Yes (if equipped) |
| USB Input Retained |
Yes (if equipped) |
| Factory Amplifier |
No |
| Kit Includes Rear Camera |
Yes 720P AHD universal |
| Weight |
2.00kg |
| Suits |
Subaru Forester SJ 2013–2014, Impreza GP/GJ 2012–2014, XV 2012–2015 (Fujitsu 10 Denso 6.1" screen) |
Compatible Vehicles
- Subaru Forester 2013–2014 SJ (headunit dependent Fujitsu 10 Denso 6.1" screen only)
- Subaru Impreza 2012–2014 GP, GJ (headunit dependent Fujitsu 10 Denso 6.1" screen only)
- Subaru XV 2012–2015 (headunit dependent Fujitsu 10 Denso 6.1" screen only)
Frequently Asked Questions
How do I know if my Subaru has the Fujitsu 10 Denso or Clarion head unit?
The AMDSU2 suits vehicles with the factory 6.1" touchscreen (Fujitsu 10 Denso head unit). If your vehicle does not have a factory touchscreen (Clarion head unit), use the AMDSU1 instead. Check your vehicle's current head unit before ordering.
Does this kit retain the factory reverse camera?
Yes if equipped, the factory reverse camera is retained via the included camera retention adaptor. Reverse camera retention uses the reverse camera input of the head unit.
Does this kit retain the factory USB input?
Yes if equipped, the factory USB input is retained via the included USB retention adaptor. USB input retention uses the rear USB input of the head unit.
Does this suit amplified Subaru models?
No the AMDSU2 does not support factory amplified systems.
What is the return policy for this product?
Return eligibility is subject to the retailer's policy. Always verify vehicle and system compatibility before purchasing.
