Description
Complete 9" Head Unit Upgrade Kit for Subaru Forester SJ 2015–2018, Impreza GP/GJ 2015–2016, Levorg VM 2016–2020, WRX VA 2016–2018 & XV GP 2016–2017 (With Factory Navigation) Wireless Apple CarPlay, Android Auto, DAB+, Bluetooth 5, SWC & Factory Reverse Camera Retained, Rear Camera Included.
Product Overview

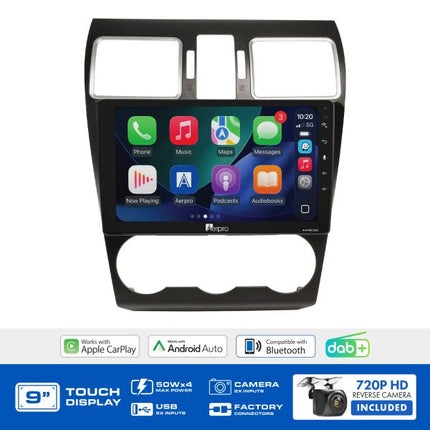

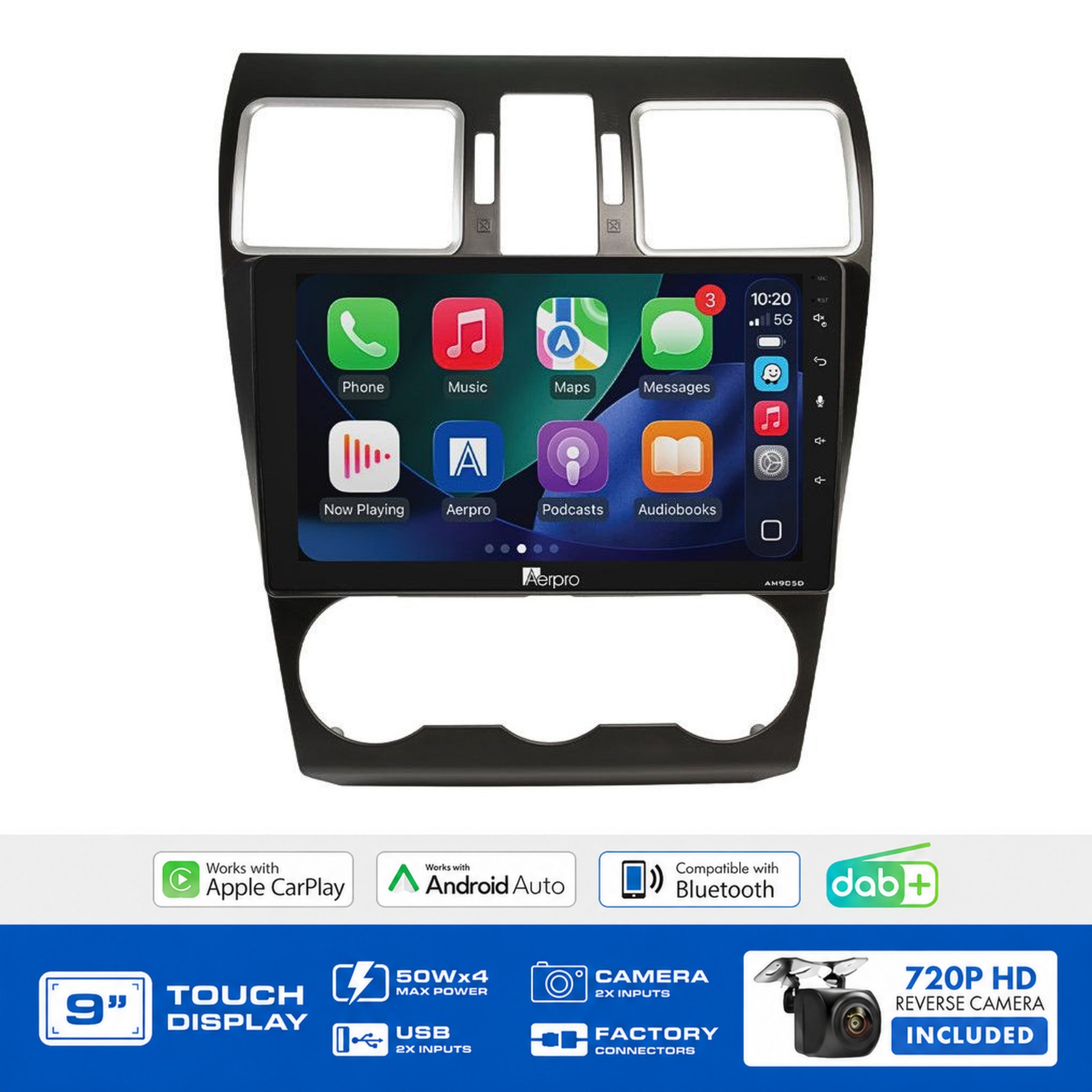

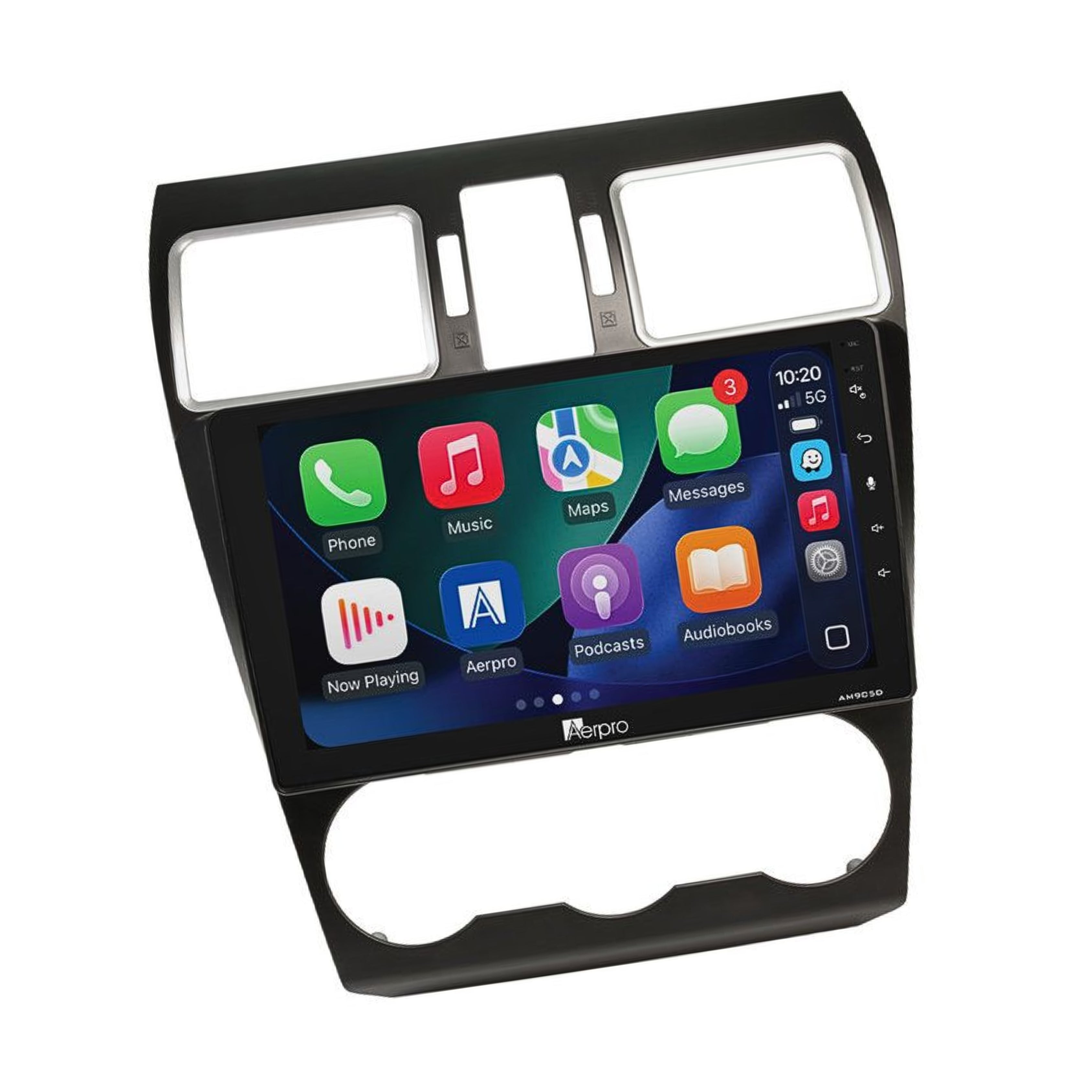

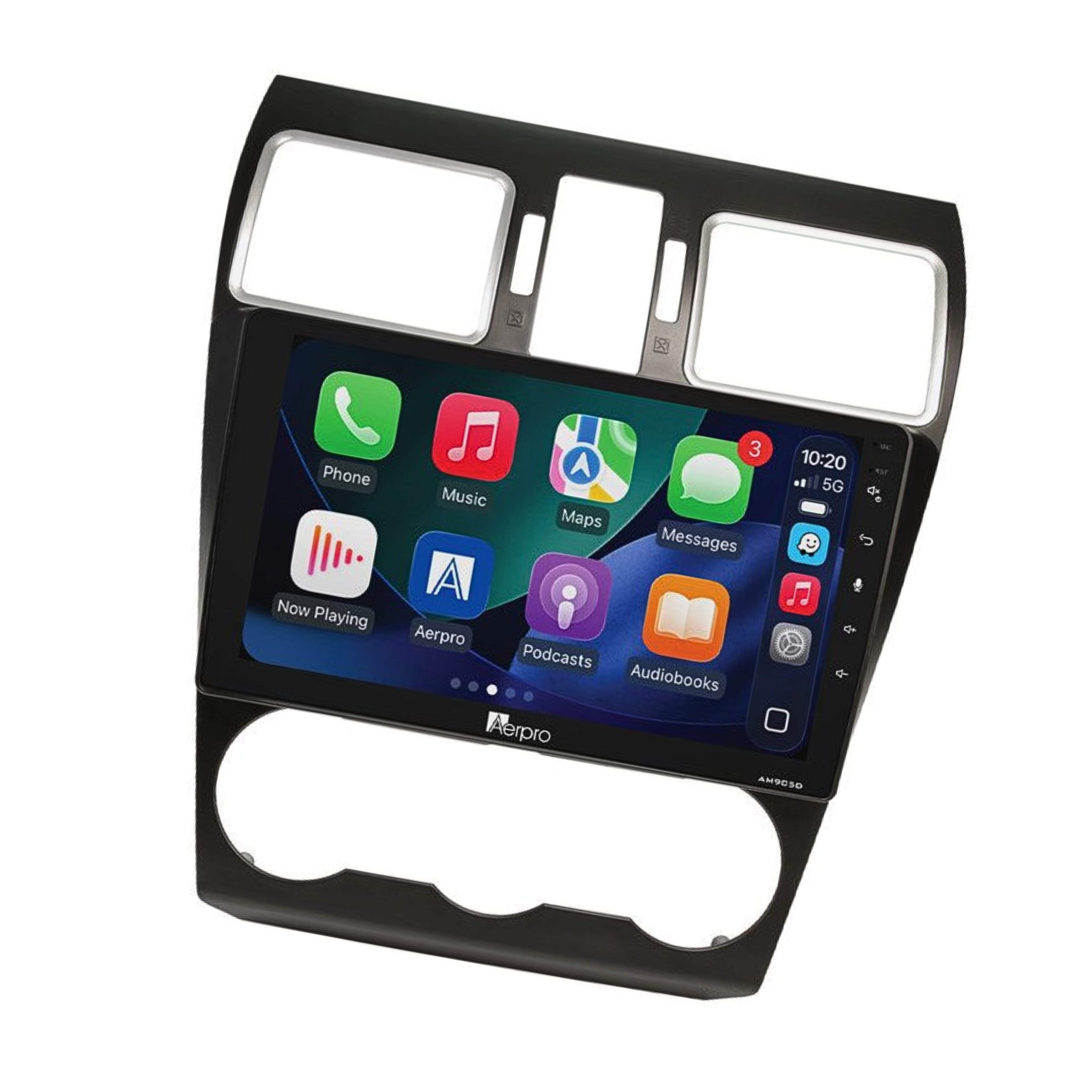

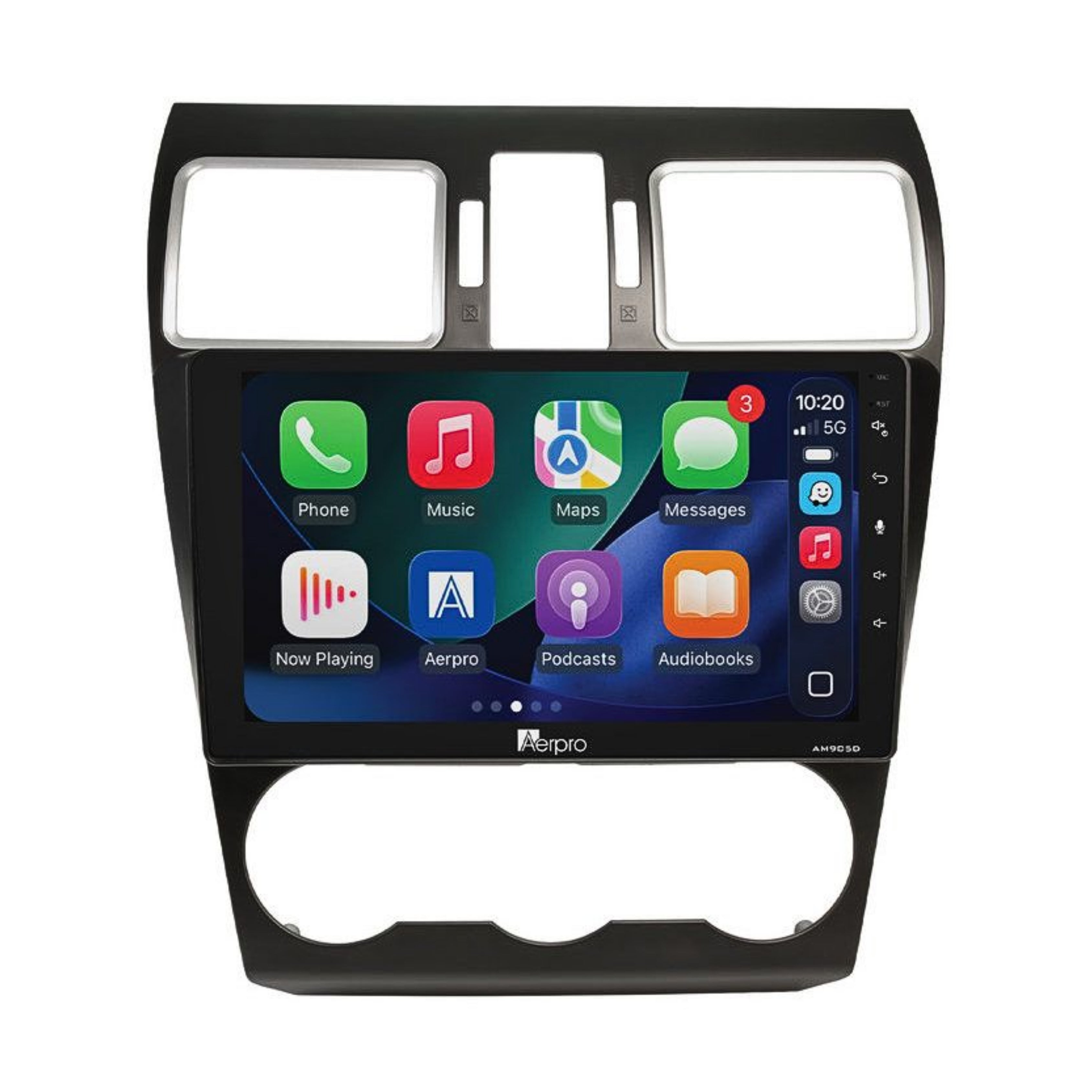

The Aerpro AMDSU4 is a complete head unit upgrade kit designed for five Subaru platforms with factory navigation Forester SJ (2015–2018), Impreza GP/GJ (2015–2016), Levorg VM (2016–2020), WRX VA (2016–2018), and XV GP (2016–2017). This is the navigation variant for the same platforms without navigation, refer to the AMDSU3.
Everything required for installation is included the AM905D multimedia receiver, black fascia kit, hazard button surrounds, steering wheel control interface harness, SWC patch lead, antenna adaptor, camera retention adaptor, and a 720P AHD universal rear camera. Steering wheel controls and factory reverse camera (if equipped) are retained.
Kit Inclusions
- AM905D 9" Multimedia Receiver
- Black Fascia Kit
- Hazard Button Surrounds
- Steering Wheel Control Interface Harness
- SWC Patch Lead
- Antenna Adaptor
- Camera Retention Adaptor
- 720P AHD Universal Rear Camera
Vehicle Feature Retention
| Feature |
Retained |
| Steering Wheel Controls |
Yes |
| Factory Reverse Camera |
Yes (if equipped) |
| USB Input |
No |
| AUX Input |
No |
| Factory Amplifier |
N/A |
| Vehicle Menu |
N/A |
Vehicle Settings Confirm Before Installation
The following settings are stored in the factory navigation head unit and will not be accessible after the aftermarket unit is installed. Record these settings before removing the factory head unit:
- Rear Camera Time Out
- Autolight Sensor
- Welcome Lighting
- Clock
- Interior Light
- Defogger
- Keyless Entry
- One Touch Lane Change
Key Specifications
- Screen: 9" capacitive touchscreen 1024x600 resolution
- Wireless CarPlay & Android Auto: Yes (wired also supported)
- DAB+ digital radio: Yes (AM/FM with RDS also included)
- Bluetooth: V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP)
- Max power output: 4 x 50W
- RCA preouts: 4V / 5-channel (Front/Rear/Subwoofer)
- 13-band EQ and time alignment: Yes
- USB inputs: 2 x rear USB (FAT32 / 32GB max)
- Reverse camera input: Yes (720P AHD compatible)
- Second camera input: Yes (720P AHD compatible)
- LED button illumination: 6-colour selectable
- Rear camera: 720P AHD universal included
Features & Benefits
-
Five-platform navigation variant: Suits Forester SJ, Impreza GP/GJ, Levorg VM, WRX VA, and XV GP all with factory navigation for non-navigation models use AMDSU3
-
Hazard button surrounds included:Â Ensures a clean, factory-finish installation unique to this fascia kit
-
Factory reverse camera retained: If equipped, retained via the included camera retention adaptor uses the reverse camera input of the head unit
-
Steering wheel controls retained:Â Full SWC retained via the included harness and patch lead
-
Not compatible with Harman Kardon systems:Â Confirm your vehicle does not have HK audio before purchasing
-
Wireless Apple CarPlay & Android Auto:Â Wire-free phone integration; wired connection also supported
-
DAB+ digital radio built-in:Â Crystal-clear digital radio plus AM/FM and RDS
-
Bluetooth 5 with HD Voice:Â Crisp hands-free calling and wireless audio streaming
-
9" capacitive touchscreen:Â Large, smooth 1024x600 display
-
720P AHD rear camera included: Immediate reversing visibility additional front or tow camera input also available
-
4x50W output with 5-channel preouts:Â High-power audio with amplifier expansion capability
Technical Specs
| Specification |
Detail |
| SKU |
AMDSU4 |
| Brand |
Aerpro |
| Screen Size |
9" |
| Resolution |
1024x600 |
| Touchscreen |
Capacitive |
| OS |
Linux |
| DIN Format |
Fixed Screen Trapezoid |
| Max Power |
4CH x 50W |
| RCA Preouts |
4V / 5-channel |
| Wireless CarPlay/Android Auto |
Yes |
| DAB+ |
Yes |
| AM/FM Presets |
AM 12 / FM 18 |
| Bluetooth |
V5 (A2DP, AVRCP, HFP 1.6, PBAP) |
| USB Inputs |
2 x Rear (FAT32 / 32GB max) |
| Reverse Camera Input |
Yes (720P AHD compatible) |
| Second Camera Input |
Yes (720P AHD compatible) |
| EQ |
13-band |
| Time Alignment |
Yes |
| LED Illumination |
6-colour selectable |
| SWC Retained |
Yes |
| Factory Reverse Camera Retained |
Yes (if equipped) |
| USB Input Retained |
No |
| AUX Input Retained |
No |
| Kit Includes Rear Camera |
Yes 720P AHD universal |
| Suits |
Subaru Forester SJ 2015–2018, Impreza GP/GJ 2015–2016, Levorg VM 2016–2020, WRX VA 2016–2018, XV GP 2016–2017 (with navigation) |
Compatible Vehicles
- Subaru Forester 2015–2018 SJ (with factory navigation)
- Subaru Impreza 2015–2016 GP, GJ (with factory navigation)
- Subaru Levorg 2016–2020 VM (with factory navigation)
- Subaru WRX 2016–2018 VA (with factory navigation)
- Subaru XV 2016–2017 GP (with factory navigation)
Frequently Asked Questions
How does the AMDSU4 differ from the AMDSU3?
Both suit the same five Subaru platforms. The AMDSU4 is for vehicles with factory navigation while the AMDSU3 is for vehicles without factory navigation. Confirm your vehicle's factory head unit type before purchasing.
What vehicle settings will be lost after installation?
The following settings stored in the factory navigation unit will not be accessible after installation record them before removing the head unit: Rear Camera Time Out, Autolight Sensor, Welcome Lighting, Clock, Interior Light, Defogger, Keyless Entry, and One Touch Lane Change.
Does this suit Harman Kardon amplified models?
No the AMDSU4 will not suit Harman Kardon amplified systems.
Does this retain factory USB or AUX?
No USB and AUX input retention are not supported by the AMDSU4.
What is the return policy for this product?
Return eligibility is subject to the retailer's policy. Always verify vehicle and system compatibility before purchasing.
