Description
Complete 9" Head Unit Upgrade Kit for Subaru Forester 2007–2012, Impreza 2007–2011 & WRX 2007–2014 (With Factory Navigation) Wireless Apple CarPlay, Android Auto, DAB+, Bluetooth 5, SWC & AUX Retained, Rear Camera Included.
Product Overview

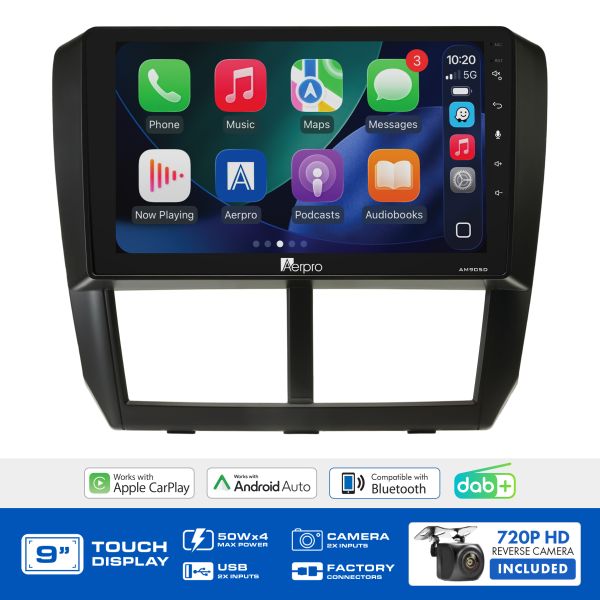

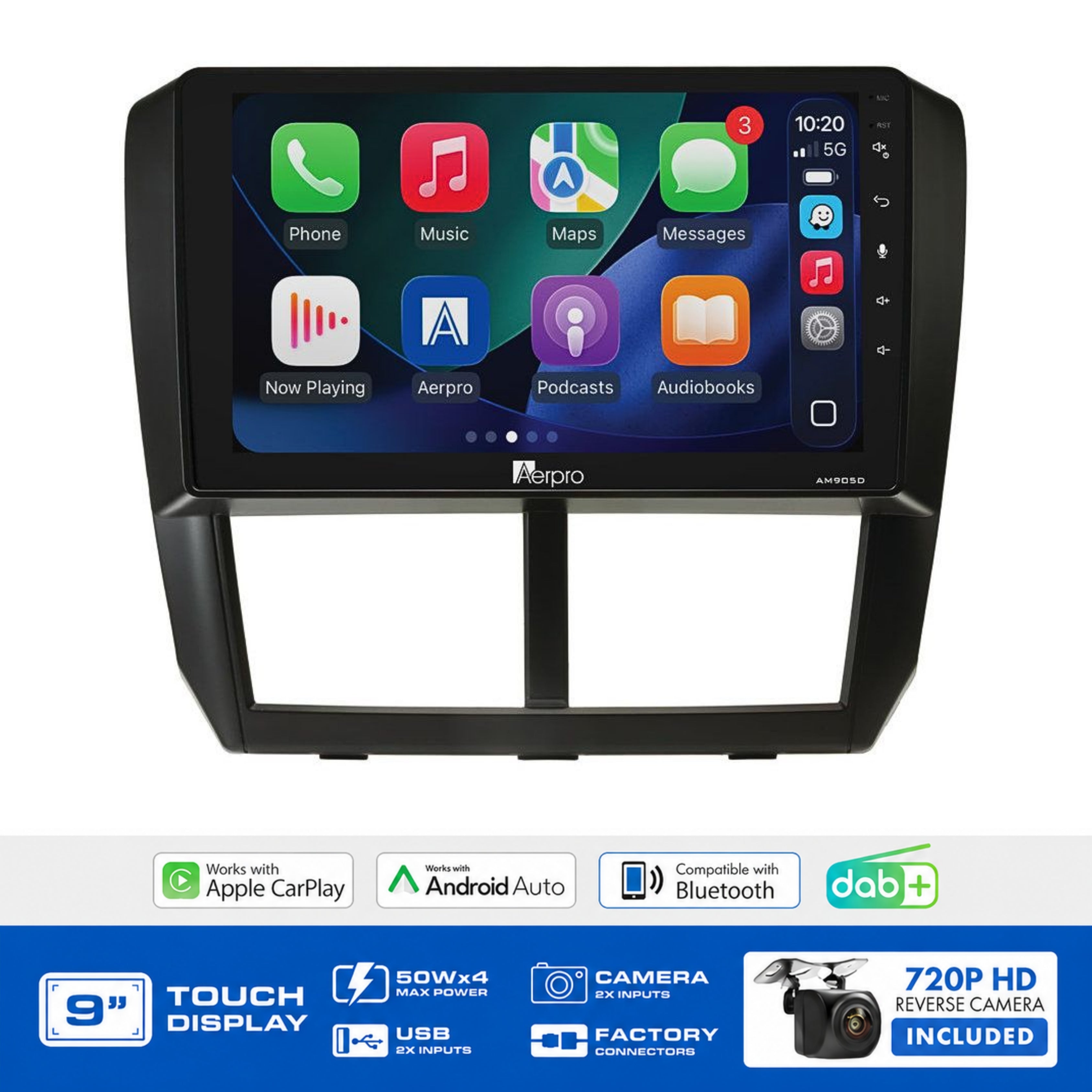

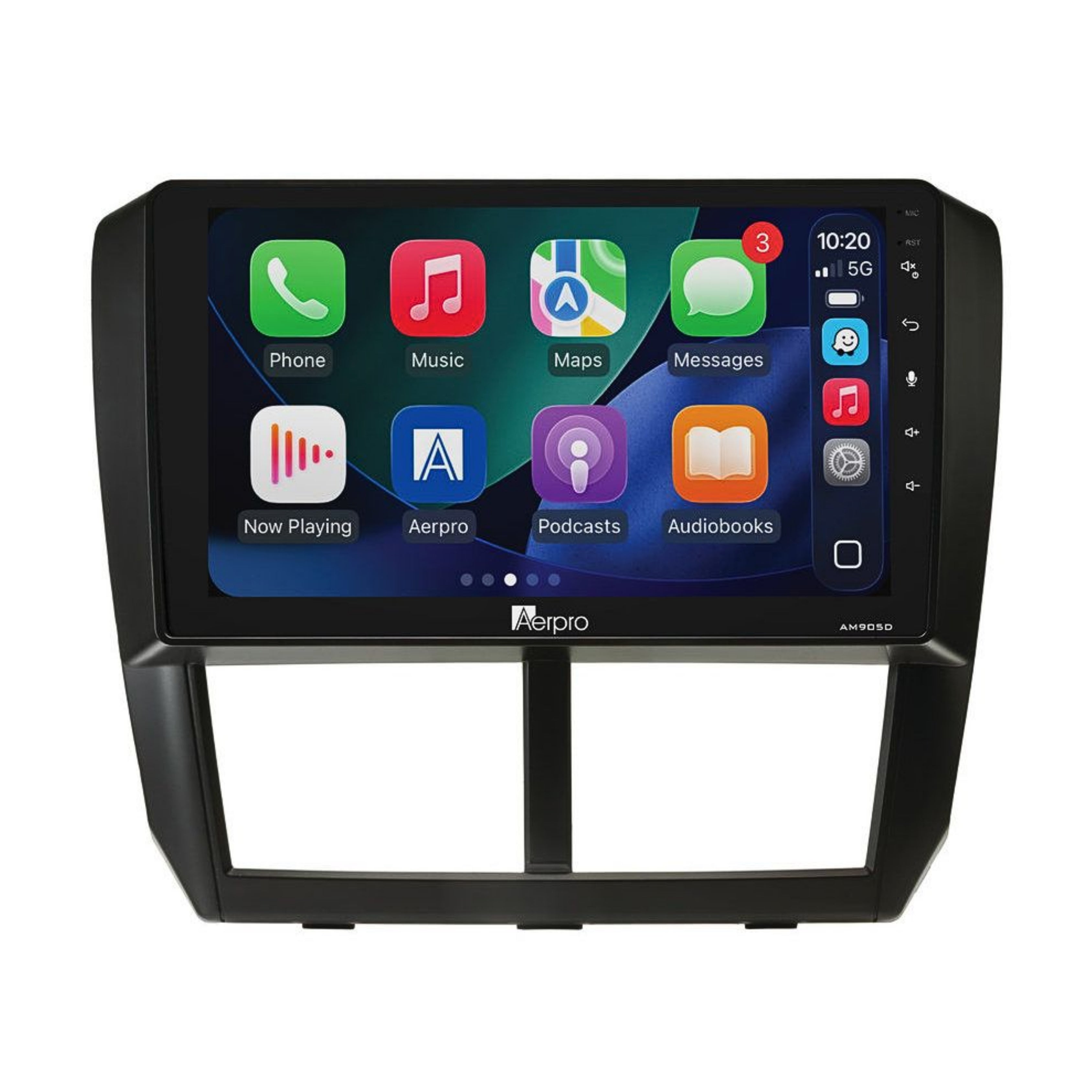

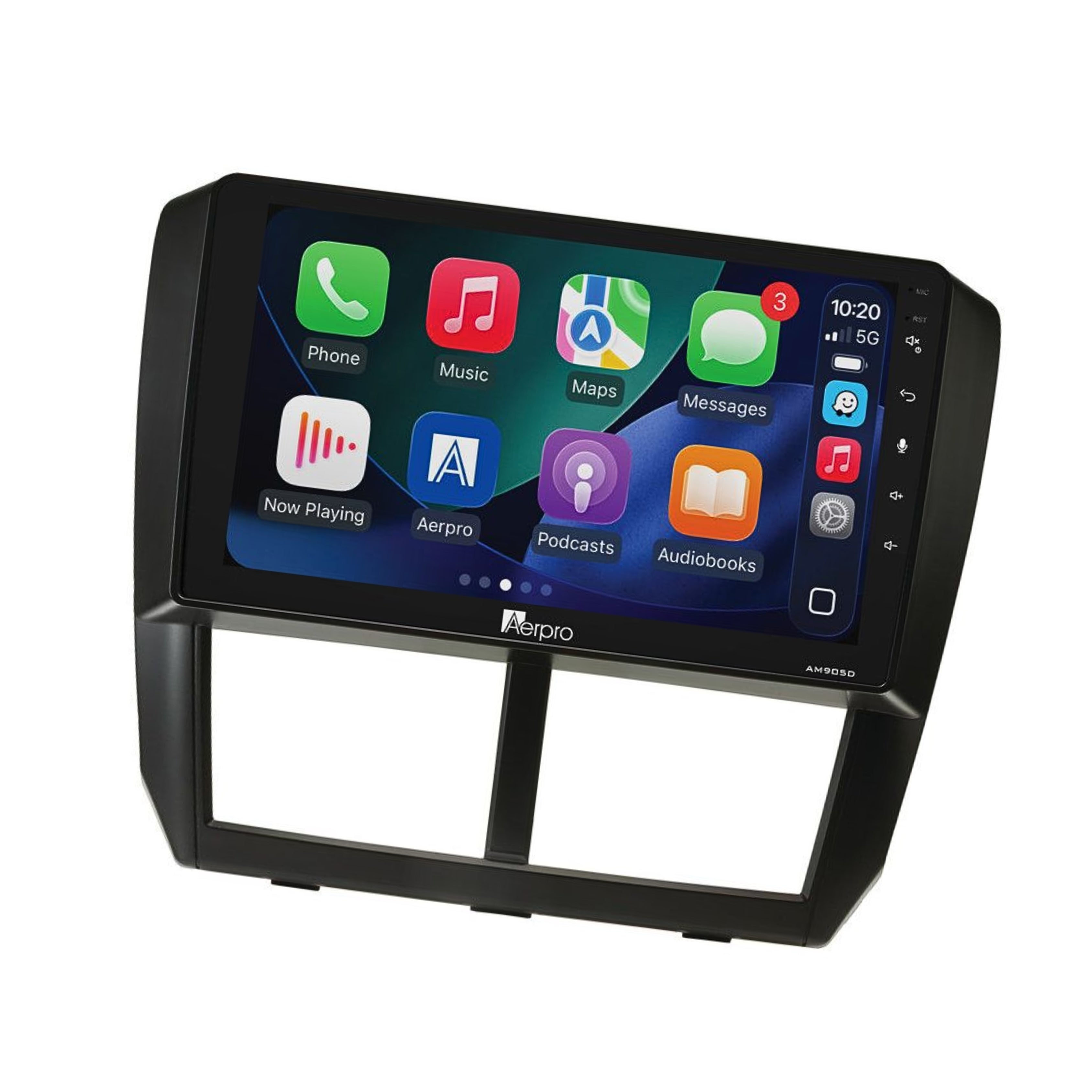

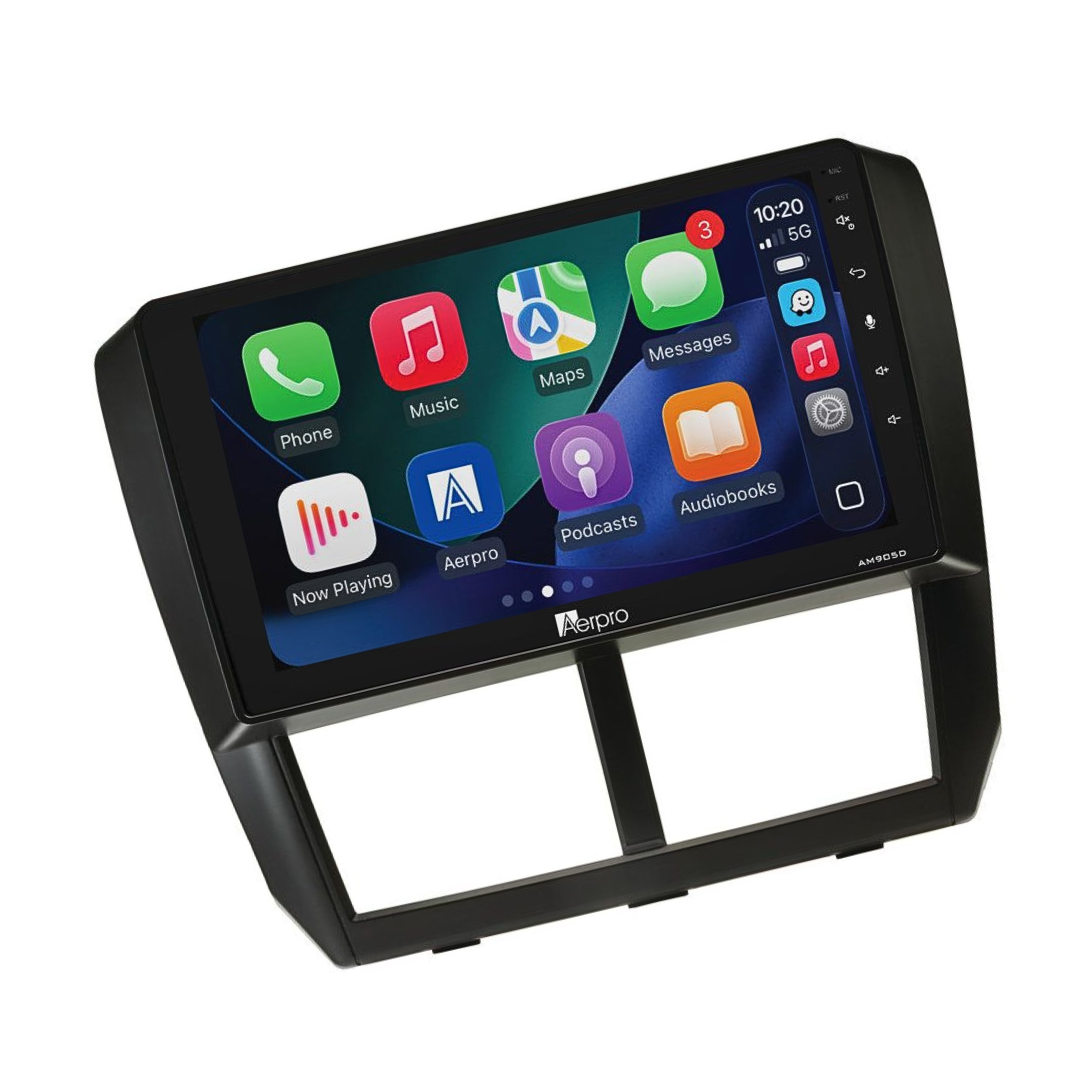

The Aerpro AMDSU7 is a complete head unit upgrade kit designed for the Subaru Forester (2007–2012), Impreza (2007–2011), and WRX (2007–2014) all with factory navigation. Everything required for installation is included the AM905D multimedia receiver, matte black fascia kit, steering wheel control interface harness, antenna adaptor, camera retention adaptor, and a 720P AHD universal rear camera.
Steering wheel controls, factory AUX input, and factory reverse camera (if equipped) are retained. The AM905D features a 9" capacitive touchscreen (1024x600), wireless Apple CarPlay and Android Auto, built-in DAB+ digital radio, Bluetooth 5, and 4x50W output with 13-band EQ and 4V/5CH RCA preouts.
Important: Suits factory navigation models only. AUX input retention uses the RCA AUX input on the rear of the head unit. Reverse camera retention uses the reverse camera input of the head unit. USB input is not retained. Always verify fitment using the Aerpro What Fits Your Car Guide.
Kit Inclusions
- AM905D 9" Multimedia Receiver
- Matte Black Fascia Kit
- Steering Wheel Control Interface Harness
- Antenna Adaptor
- Camera Retention Adaptor
- 720P AHD Universal Rear Camera
Vehicle Feature Retention
| Feature |
Retained |
| Steering Wheel Controls |
Yes |
| Factory Reverse Camera |
Yes (if equipped) |
| AUX Input |
Yes |
| USB Input |
N/A |
| Factory Amplifier |
N/A |
| Vehicle Menu |
N/A |
Key Specifications
- Screen: 9" capacitive touchscreen 1024x600 resolution
- Wireless CarPlay & Android Auto: Yes (wired also supported)
- DAB+ digital radio: Yes (AM/FM with RDS also included)
- Bluetooth: V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP)
- Max power output: 4 x 50W
- RCA preouts: 4V / 5-channel (Front/Rear/Subwoofer)
- 13-band EQ and time alignment: Yes
- USB inputs: 2 x rear USB (FAT32 / 32GB max)
- Reverse camera input: Yes (720P AHD compatible)
- Second camera input: Yes (720P AHD compatible)
- LED button illumination: 6-colour selectable
- Rear camera: 720P AHD universal included
Features & Benefits
-
Suits factory navigation Forester, Impreza & WRX: Covers three platforms across 2007–2014 factory navigation models
-
Factory AUX input retained:Â AUX input retention uses the RCA AUX input on the rear of the head unit
-
Steering wheel controls retained:Â Full SWC retained via the included harness
-
Wireless Apple CarPlay & Android Auto:Â Wire-free phone integration; wired connection also supported
-
DAB+ digital radio built-in:Â Crystal-clear digital radio plus AM/FM and RDS
-
Bluetooth 5 with HD Voice:Â Crisp hands-free calling and wireless audio streaming
-
9" capacitive touchscreen:Â Large, smooth 1024x600 display
-
720P AHD rear camera included: Immediate reversing visibility additional front or tow camera input also available
-
4x50W output with 5-channel preouts:Â High-power audio with amplifier expansion capability
-
13-band EQ with time alignment:Â Precision audio tuning
Technical Specs
| Specification |
Detail |
| SKU |
AMDSU7 |
| Brand |
Aerpro |
| Screen Size |
9" |
| Resolution |
1024x600 |
| Touchscreen |
Capacitive |
| OS |
Linux |
| DIN Format |
Fixed Screen Trapezoid |
| Max Power |
4CH x 50W |
| RCA Preouts |
4V / 5-channel |
| Wireless CarPlay/Android Auto |
Yes |
| DAB+ |
Yes |
| AM/FM Presets |
AM 12 / FM 18 |
| Bluetooth |
V5 (A2DP, AVRCP, HFP 1.6, PBAP) |
| USB Inputs |
2 x Rear (FAT32 / 32GB max) |
| Reverse Camera Input |
Yes (720P AHD compatible) |
| Second Camera Input |
Yes (720P AHD compatible) |
| EQ |
13-band |
| Time Alignment |
Yes |
| LED Illumination |
6-colour selectable |
| SWC Retained |
Yes |
| Factory Reverse Camera |
Yes (if equipped)Â |
| AUX Input Retained |
Yes (RCA AUX on rear of HU) |
| USB Input Retained |
N/A |
| Kit Includes Rear Camera |
Yes 720P AHD universal |
| Suits |
Subaru Forester 2007–2012, Impreza 2007–2011, WRX 2007–2014 (with navigation) |
Compatible Vehicles
- Subaru Forester 2007–2012 (with factory navigation)
- Subaru Impreza 2007–2011 (with factory navigation)
- Subaru WRX 2007–2014 (with factory navigation)
Frequently Asked Questions
Does this kit retain the factory reverse camera?
The kit specification table states yes (if equipped) and a camera retention adaptor is included. However, the supplier's important information note states "Does not retain factory reverse camera." Confirm this with Aerpro or the retailer before purchasing if reverse camera retention is a critical requirement.
Does this kit retain the factory AUX input?
Yes AUX input retention uses the RCA AUX input on the rear of the head unit.
Does this suit non-navigation Subaru models?
No the AMDSU7 suits factory navigation models only.
Is a rear camera included?
Yes a 720P AHD universal rear camera is included. An additional camera input is also available for a front or tow camera.
What is the return policy for this product?
Return eligibility is subject to the retailer's policy. Always verify vehicle and system compatibility before purchasing.
