Complete 10" Head Unit Upgrade Kit for Suzuki Swift 2005–2010 Wireless Apple CarPlay, Android Auto, DAB+, Bluetooth 5, SWC Retained, Rear Camera Included.
Product Overview

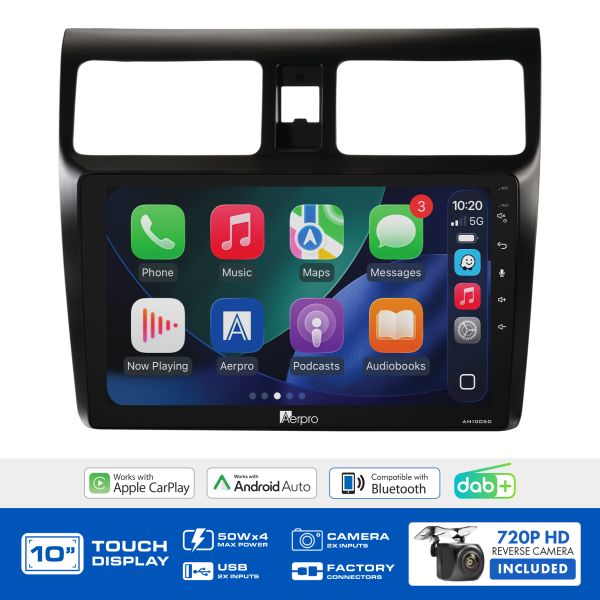

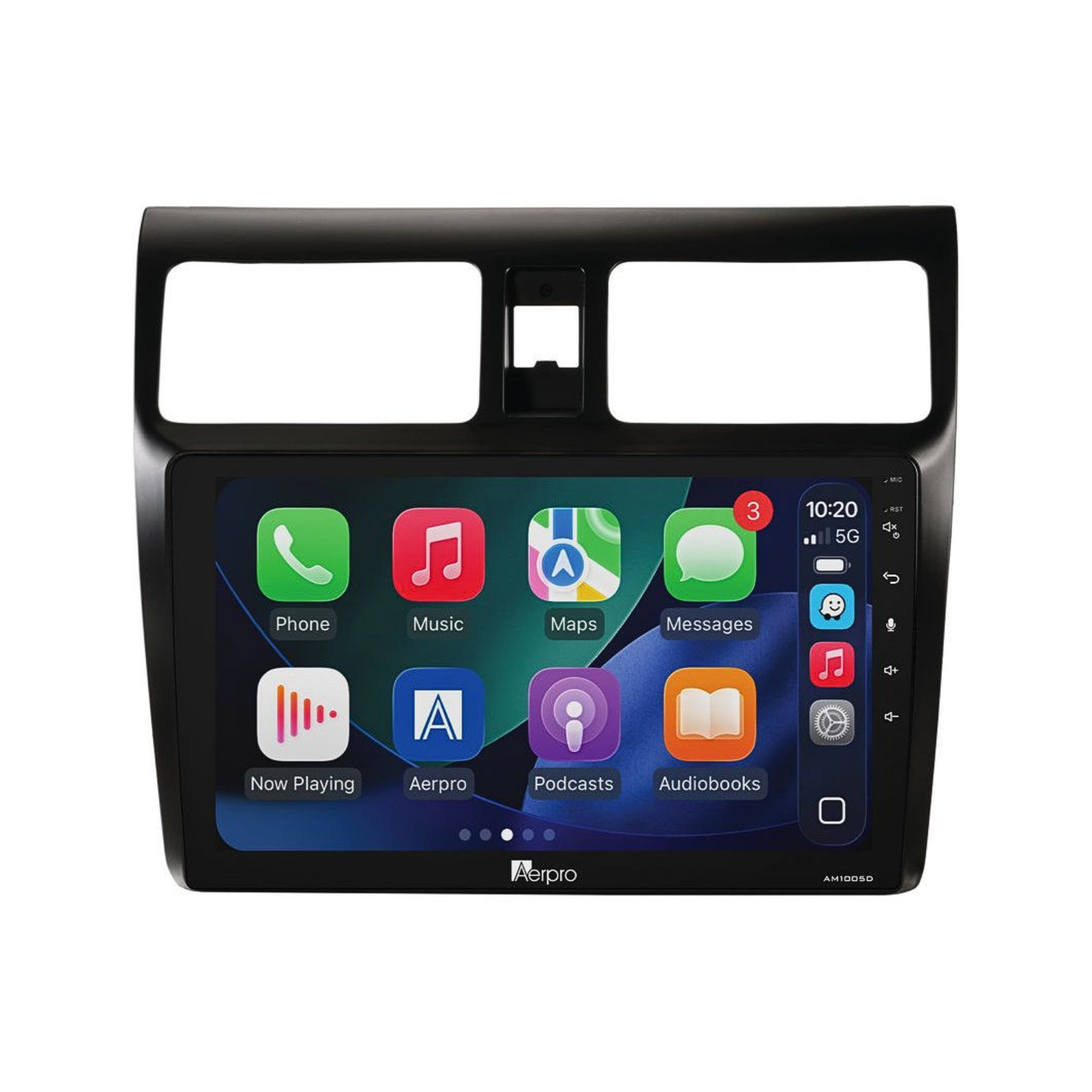

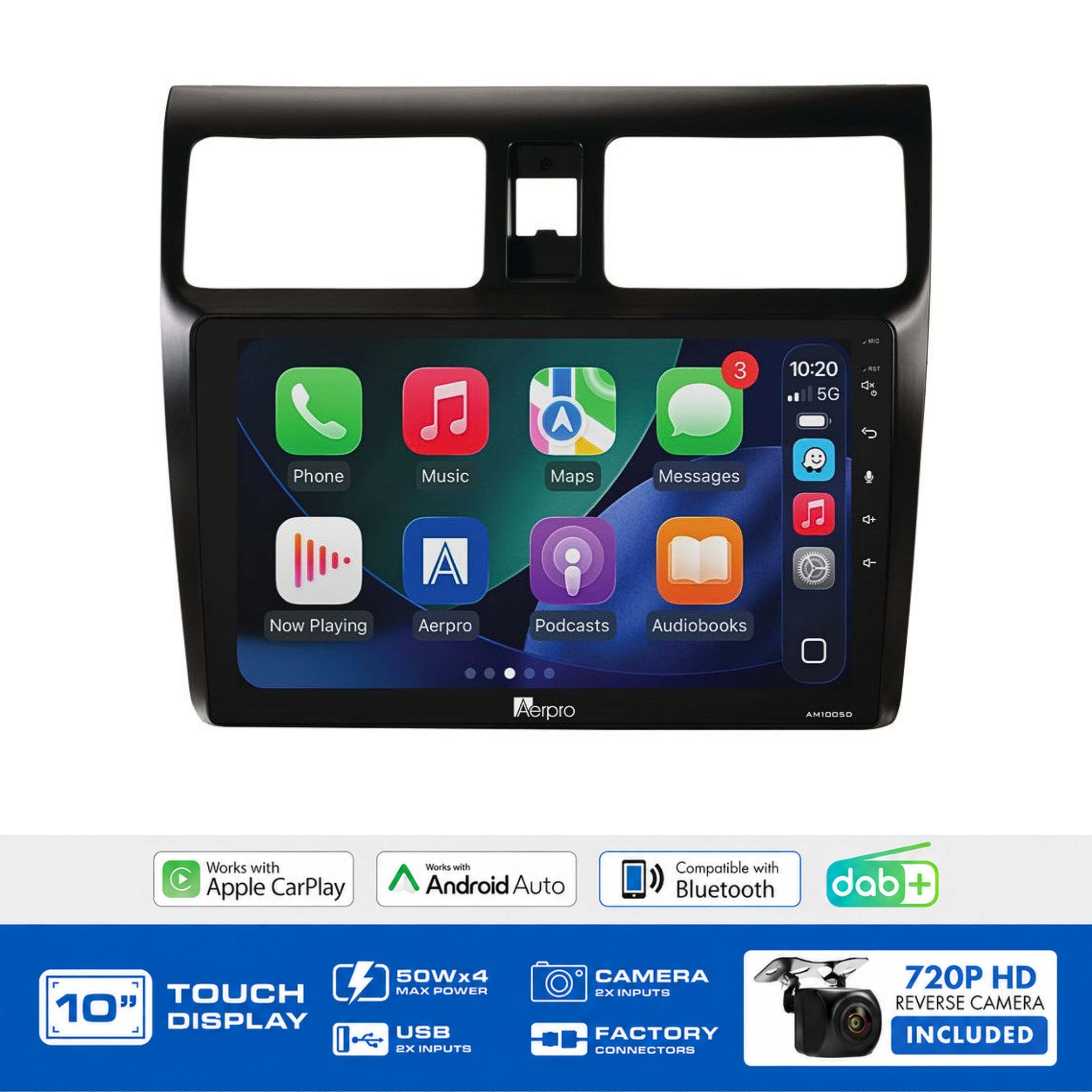

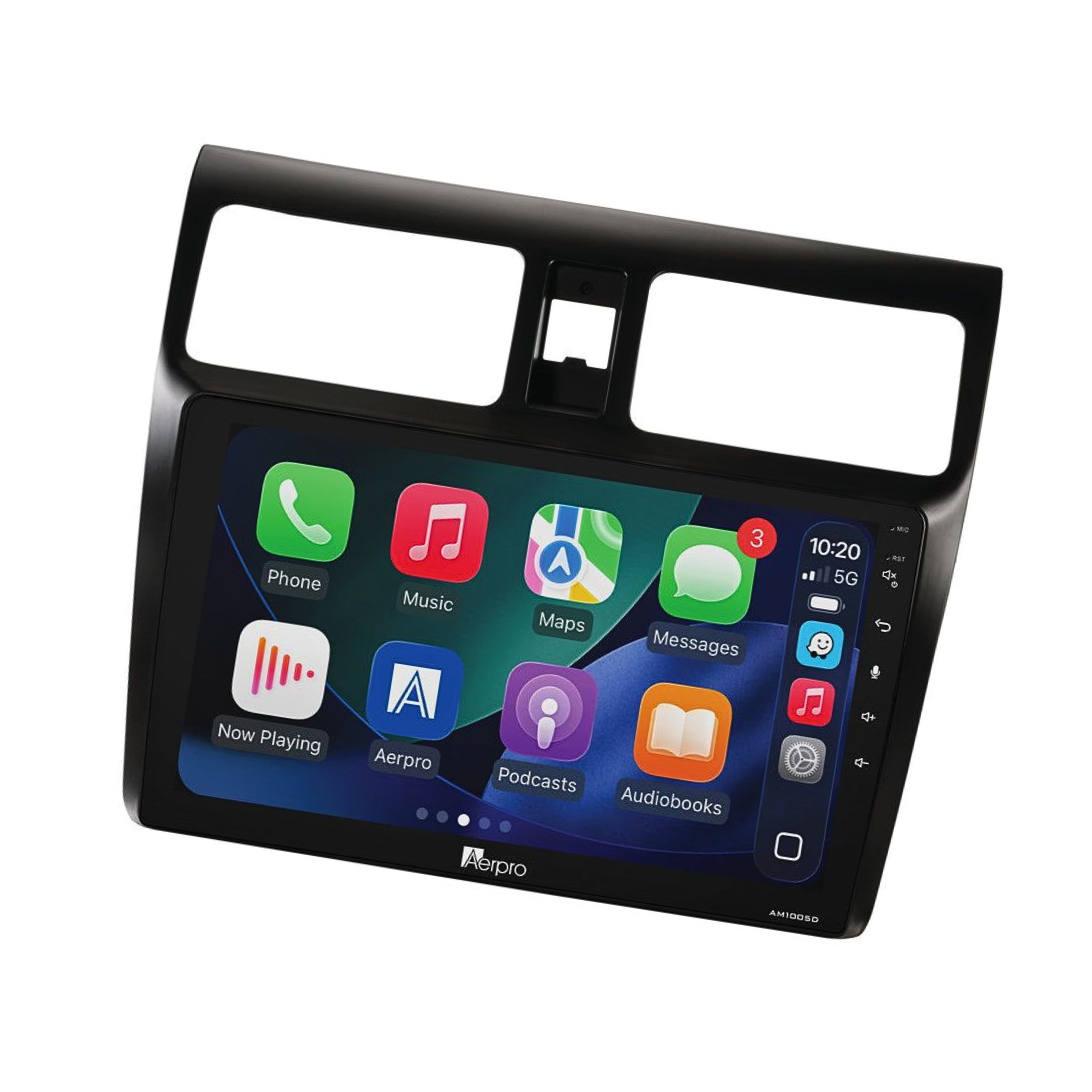

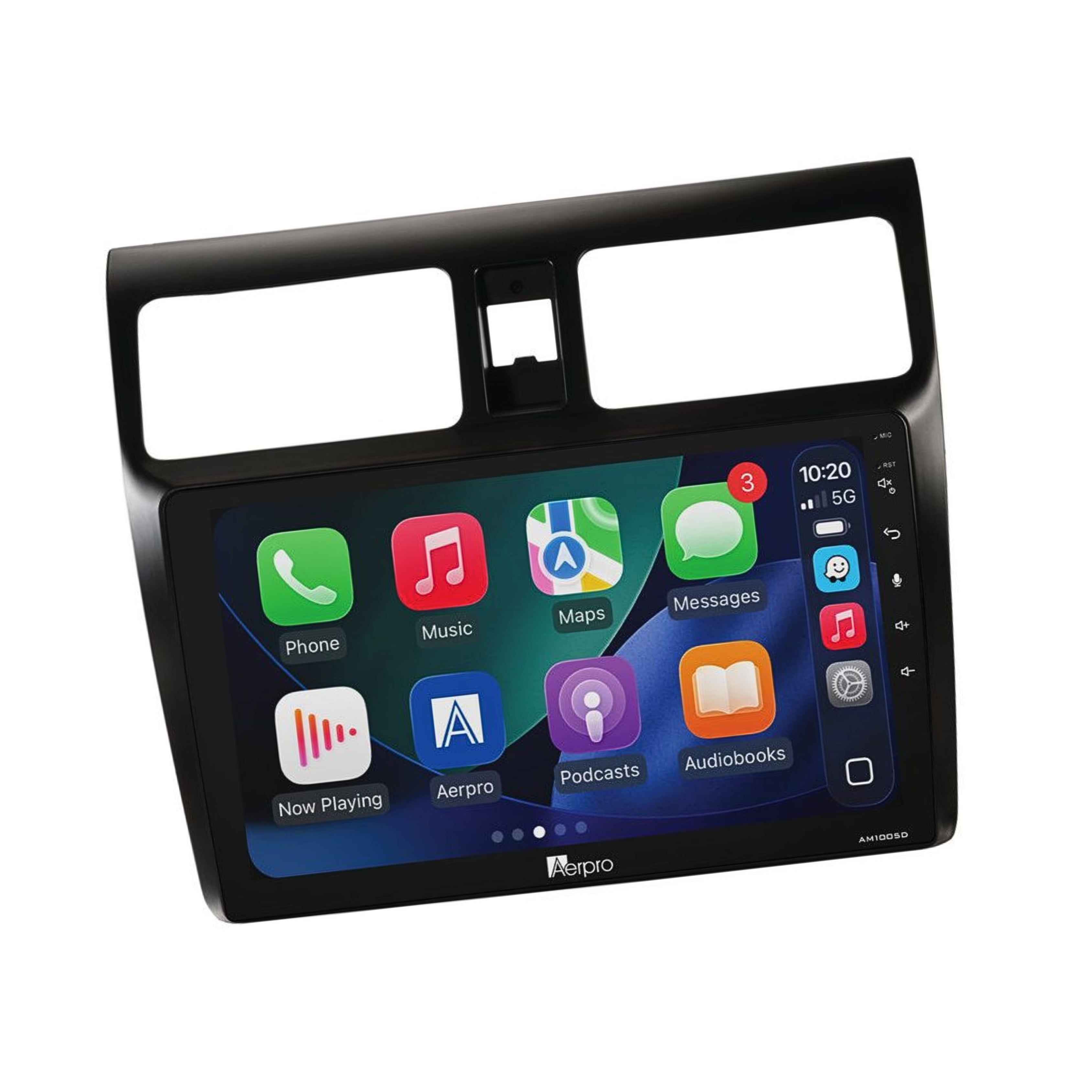

The Aerpro AMDSZ1 is a complete head unit upgrade kit specifically designed for the Suzuki Swift (2005–2010). This kit uses the AM1005D 10" multimedia receiver a larger screen than the 9" kits used for the later Swift variants (AMDSZ4 for 2011–2017 and AMDSZ6 for 2017-on). Everything required for installation is included the AM1005D multimedia receiver, matte black fascia kit, steering wheel control interface harness, SWC patch lead, and a 720P AHD universal rear camera. Steering wheel controls are retained.
The AM1005D features a 10" capacitive touchscreen (1024x600), wireless Apple CarPlay and Android Auto, built-in DAB+ digital radio, Bluetooth 5, and 4x50W output with 13-band EQ and 4V/5CH RCA preouts.
Important: The park brake wire must be connected to the park brake for Apple CarPlay and Android Auto to function. No factory USB, AUX, or reverse camera retention is supported by this kit.
Kit Inclusions
- AM1005D 10" Multimedia Receiver
- Matte Black Fascia Kit
- Steering Wheel Control Interface Harness
- SWC Patch Lead
- 720P AHD Universal Rear Camera
Vehicle Feature Retention
| Feature |
Retained |
| Steering Wheel Controls |
Yes |
| Factory Reverse Camera |
N/A |
| USB Input |
N/A |
| AUX Input |
N/A |
| Factory Amplifier |
N/A |
| Vehicle Menu |
N/A |
Key Specifications
- Screen: 10" capacitive touchscreen 1024x600 resolution
- Wireless CarPlay & Android Auto: Yes (wired also supported)
- DAB+ digital radio: Yes (AM/FM with RDS also included)
- Bluetooth: V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP)
- Max power output: 4 x 50W
- RCA preouts: 4V / 5-channel (Front/Rear/Subwoofer)
- 13-band EQ and time alignment: Yes
- USB inputs: 2 x rear USB (FAT32 / 32GB max)
- Reverse camera input: Yes (720P AHD compatible)
- Second camera input: Yes (720P AHD compatible)
- LED button illumination: 6-colour selectable
- Rear camera: 720P AHD universal included
Features & Benefits
-
10" touchscreen:Â Larger AM1005D 10" display compared to the 9" kits for later Swift models
-
Steering wheel controls retained:Â Factory SWC retained via the included harness and patch lead
-
Wireless Apple CarPlay & Android Auto:Â Wire-free phone integration; wired connection also supported
-
DAB+ digital radio built-in:Â Crystal-clear digital radio plus AM/FM and RDS
-
Bluetooth 5 with HD Voice:Â Crisp hands-free calling and wireless audio streaming
-
720P AHD rear camera included: Immediate reversing visibility additional front or tow camera input also available
-
4x50W output with 5-channel preouts:Â High-power audio with amplifier expansion capability
-
13-band EQ with time alignment:Â Precision audio tuning
Technical Specs
| Specification |
Detail |
| SKU |
AMDSZ1 |
| Brand |
Aerpro |
| Receiver Model |
AM1005D |
| Screen Size |
10" |
| Resolution |
1024x600 |
| Touchscreen |
Capacitive |
| OS |
Linux |
| DIN Format |
Fixed Screen Trapezoid |
| Max Power |
4CH x 50W |
| RCA Preouts |
4V / 5-channel |
| Wireless CarPlay/Android Auto |
Yes |
| DAB+ |
Yes |
| AM/FM Presets |
AM 12 / FM 18 |
| Bluetooth |
V5 (A2DP, AVRCP, HFP 1.6, PBAP) |
| USB Inputs |
2 x Rear (FAT32 / 32GB max) |
| Reverse Camera Input |
Yes (720P AHD compatible) |
| Second Camera Input |
Yes (720P AHD compatible) |
| EQ |
13-band |
| Time Alignment |
Yes |
| LED Illumination |
6-colour selectable |
| SWC Retained |
Yes |
| Factory Reverse Camera |
N/A |
| USB Input Retained |
N/A |
| AUX Input Retained |
N/A |
| Kit Includes Rear Camera |
Yes 720P AHD universal |
| Suits |
Suzuki Swift 2005–2010 |
Compatible Vehicles
Frequently Asked Questions
Does the park brake wire need to be connected?
Yes the park brake wire must be connected to the park brake for Apple CarPlay and Android Auto to function.
Does this kit retain factory USB or AUX?
No USB and AUX input retention are not applicable for this model.
Why does this kit use a 10" screen when later Swift kits use 9"?
The AMDSZ1 uses the AM1005D 10" receiver while the later AMDSZ4 and AMDSZ6 use the 9" AM905D this is a function of the fascia and dash opening specific to each model year rather than a deliberate downgrade. The 10" AM1005D offers a larger display for the older Swift.
Is a rear camera included?
Yes a 720P AHD universal rear camera is included. An additional camera input is also available for a front or tow camera.
What is the return policy for this product?
Return eligibility is subject to the retailer's policy. Always verify vehicle and system compatibility before purchasing.
