Complete Head Unit Upgrade Kit for Suzuki Swift 2011–2017 (Models Without Steering Wheel Controls)
Product Overview

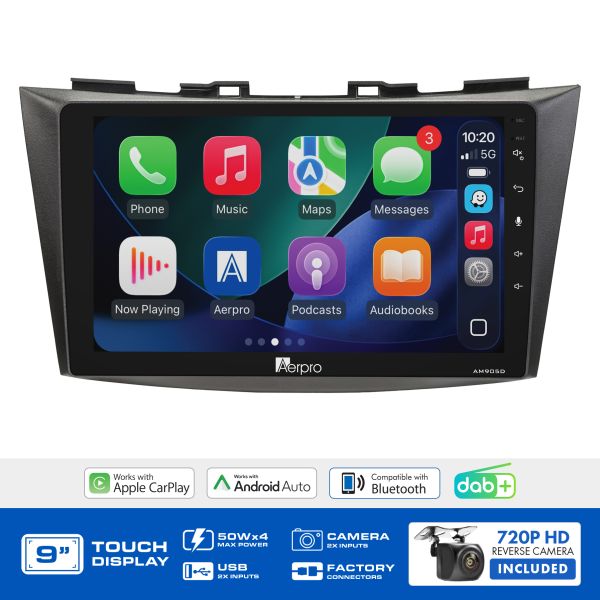

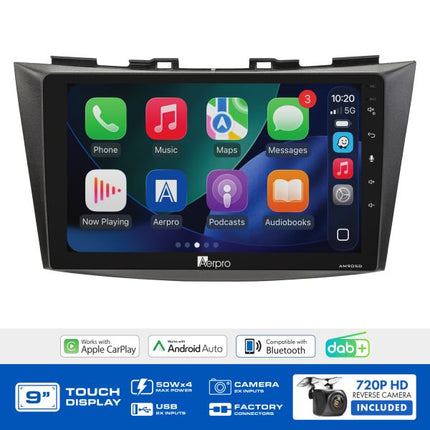

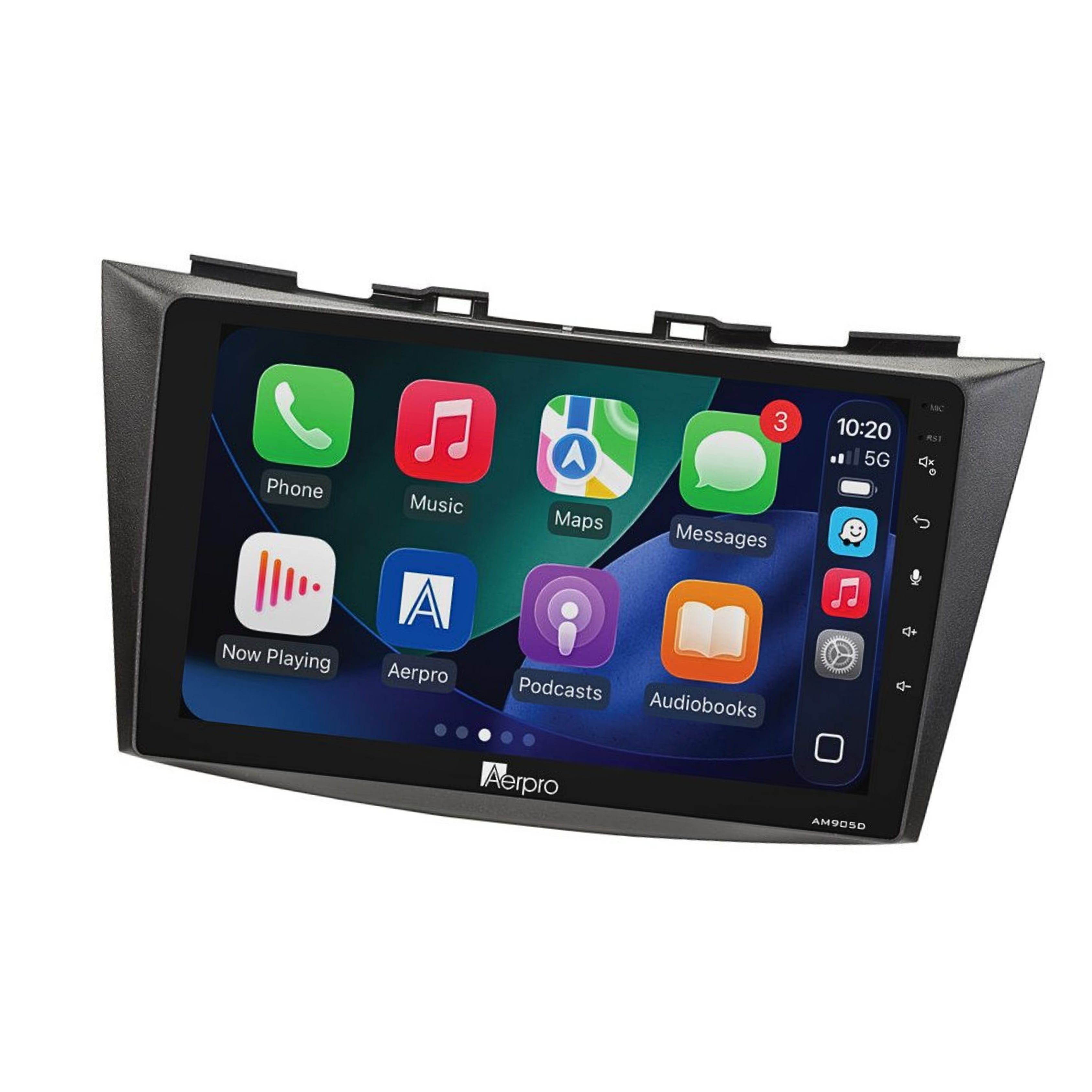

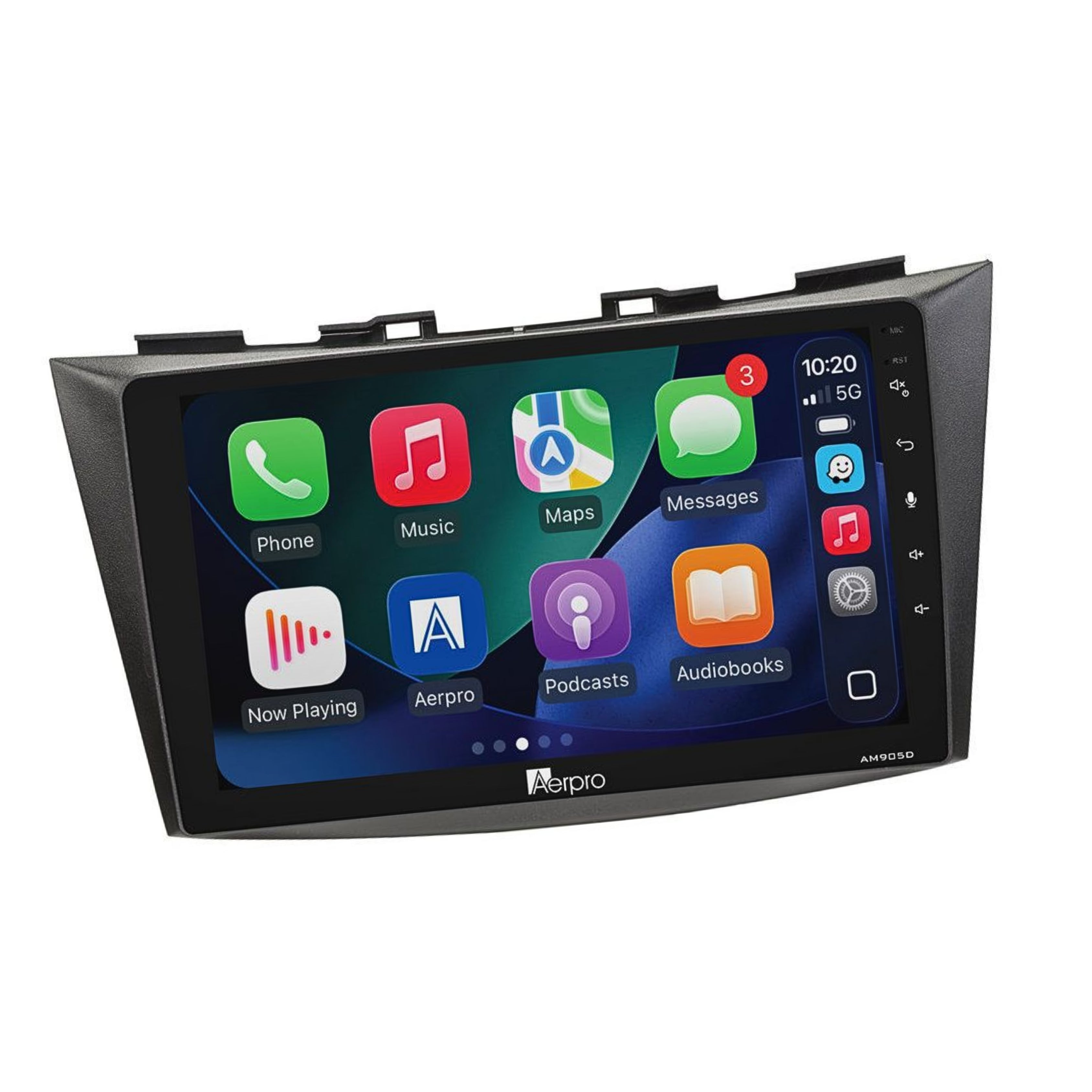

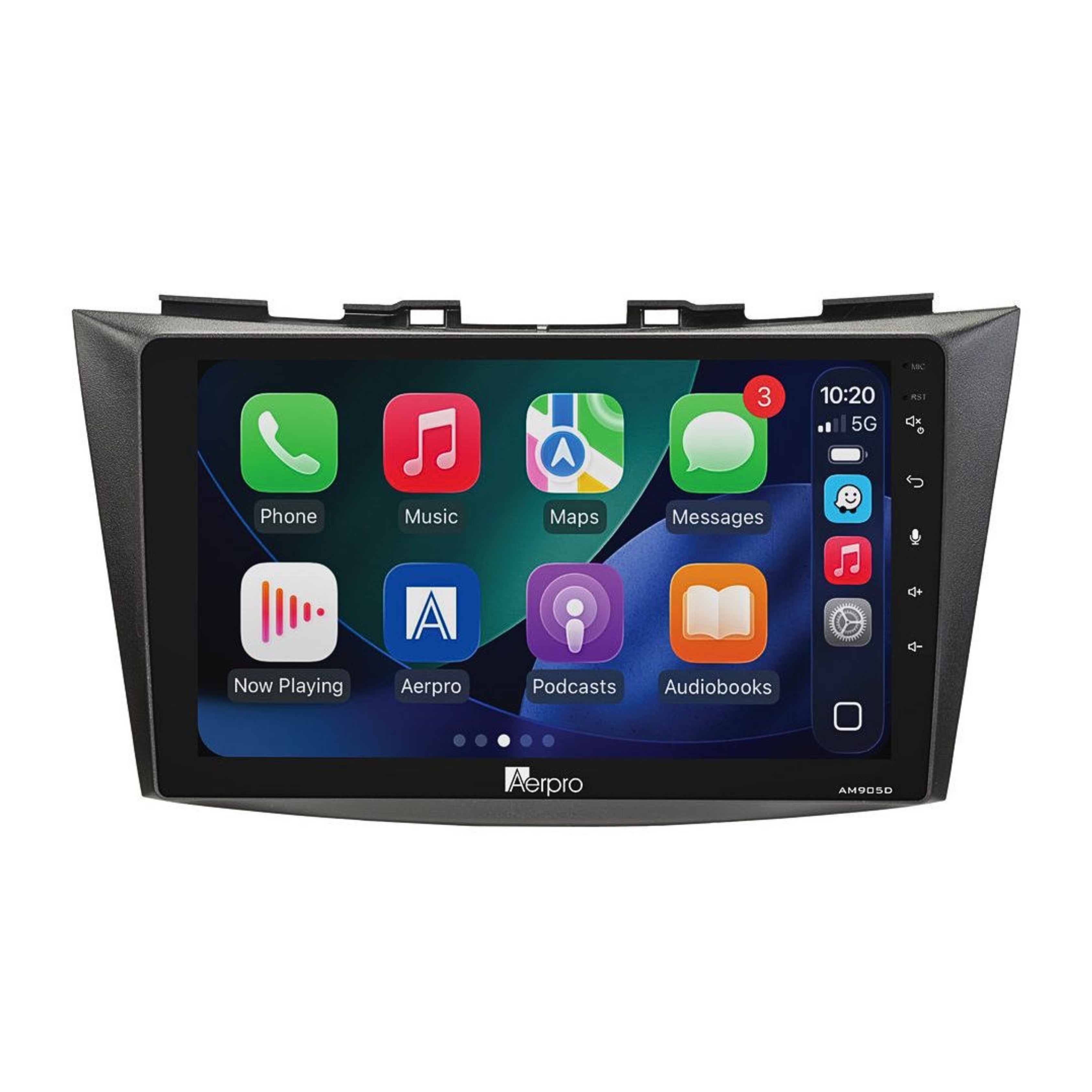

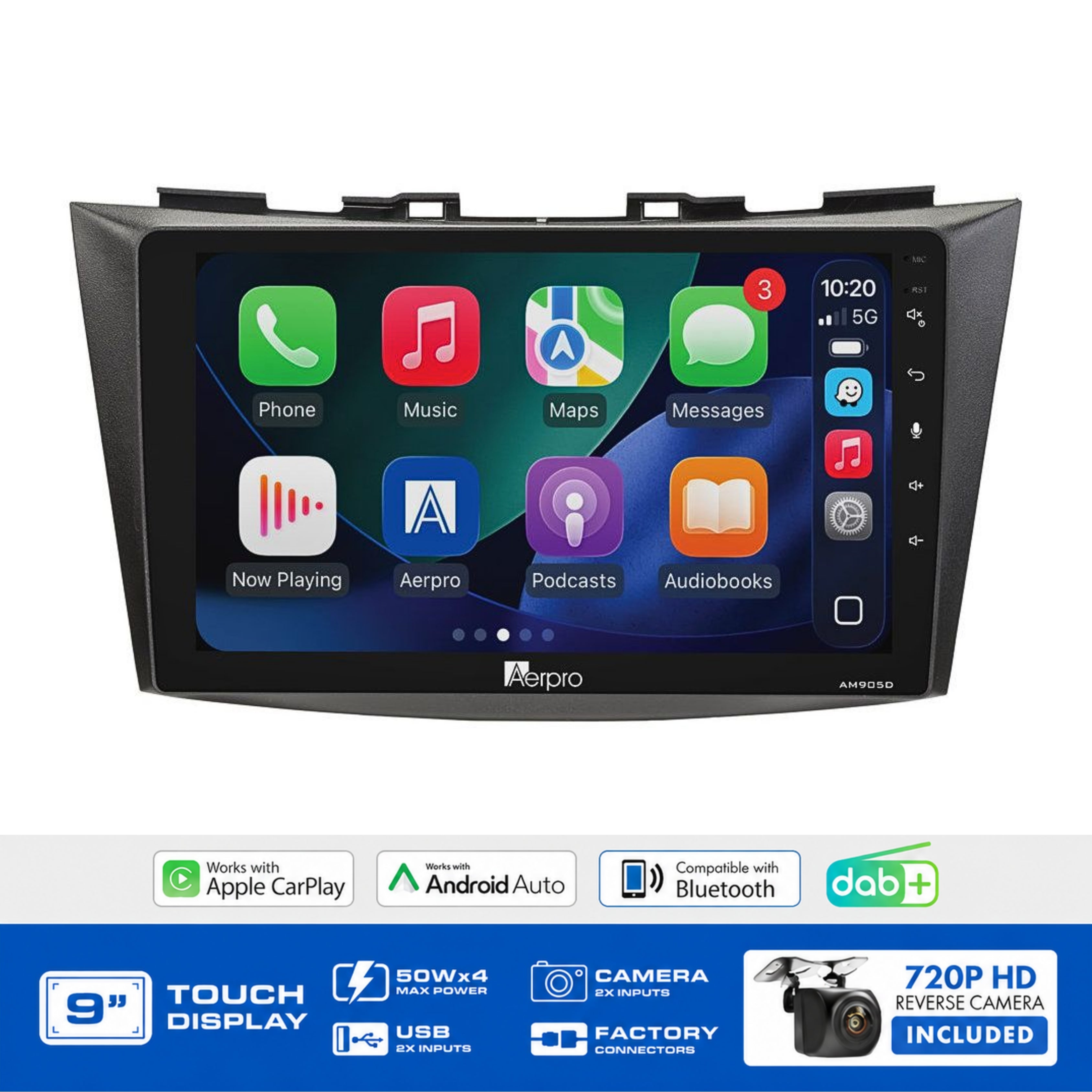

The Aerpro AMDSZ2 is a complete head unit upgrade kit engineered specifically for the Suzuki Swift (2011–2017) in variants without factory steering wheel controls. It pairs the AM905D 9" multimedia receiver with a matte black facia kit, wiring harness, antenna adaptor, USB retention adaptor, and a 720P AHD universal rear camera everything needed for a clean, complete installation in one box.
The AM905D features a 9" capacitive touchscreen at 1024x600 resolution running Linux OS, wireless and wired Apple CarPlay and Android Auto, built-in DAB+ digital radio, Bluetooth V5 with HD Voice, dual rear USB inputs, and 4 x 50W max power output. A 5-channel 4V RCA preout, 13-band graphic EQ, and time alignment capability give installers full flexibility to integrate external amplifiers and tune the system. Factory USB input is retained where the vehicle is equipped with one, using the USB retention adaptor included in the kit.
Features & Benefits
-
Complete kit — includes AM905D receiver, matte black facia kit, harness, antenna adaptor, USB retention adaptor, and 720P AHD universal rear camera
-
Retains factory USB input — USB retention adaptor included; requires vehicle to be equipped with factory USB
-
No SWC — designed for Suzuki Swift variants without factory steering wheel controls
-
9" capacitive touchscreen — 1024x600 resolution with smooth, responsive touch
-
Wireless Apple CarPlay and Android Auto — connect wirelessly or via USB for wired operation and charging
-
Built-in DAB+ digital radio — crystal-clear digital stations plus AM/FM with RDS
-
Bluetooth V5 with HD Voice — hands-free calling, audio streaming, PBAP phonebook, internal and external microphone
-
Dual rear USB inputs — USB1 for CarPlay/Android Auto with charging; USB2 for media playback with charging
-
4 x 50W max power output — strong onboard amplification with 5CH 4V RCA preouts for external amp integration
-
13-band graphic EQ and time alignment — advanced audio tuning with 6+2 custom EQ presets
-
720P AHD universal rear camera included — Sony 1/3" CMOS sensor, 150-degree lens angle, surface mount
-
Second camera input — supports a front or towing camera (720P AHD compatible)
-
6-colour button illumination — red, yellow, green, blue, purple, or white to suit your interior
Technical Specs
| Specification |
Detail |
| Part Number |
AMDSZ2 |
| Brand |
Aerpro |
| Vehicle Fit |
Suzuki Swift 2011–2017 (No SWC variants) |
| Facia Colour |
Matte Black |
| Included Receiver |
AM905D |
| Screen Size |
9" |
| Resolution |
1024 x 600 |
| Touchscreen |
Capacitive |
| OS |
Linux |
| DIN Size |
Fixed Screen Style (Trapezoid) |
| Max Power Output |
4CH x 50W |
| RCA Preouts |
4V, 5 Channel (Front / Rear / Subwoofer) |
| Smartphone Connectivity |
Apple CarPlay & Android Auto (Wireless and Wired) |
| Bluetooth Version |
V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP) |
| Microphone |
Internal + External |
| DAB+ |
Yes |
| AM Presets |
12 |
| FM Presets |
18 |
| RDS |
Yes |
| USB1 (Rear) |
CarPlay / Android Auto + Charging (5V/1.5A) |
| USB2 (Rear) |
Media Playback + Charging (5V/1.5A) |
| USB Max Capacity |
FAT32, 32GB |
| Media Formats |
MP3, MP4, MKV, FLAC, Xvid |
| Reverse Camera Input |
Yes (720P AHD compatible) |
| Second Camera Input |
Yes (720P AHD compatible) |
| EQ |
13-Band Graphic EQ |
| Time Alignment |
Yes |
| Button Illumination |
6 Colours (Red, Yellow, Green, Blue, Purple, White) |
| SWC Retention |
N/A — no SWC variants only |
| Factory USB Retention |
Yes (if equipped) — via USB retention adaptor |
| Factory Amplifier Retention |
N/A |
| Factory Reverse Camera Retention |
N/A |
| Camera (Included) |
|
| Camera Model |
720P AHD Universal Rear Camera |
| Image Sensor |
Sony 225, 1/3" CMOS AHD |
| Lens Angle |
150° |
| Mount Type |
Surface Mount |
Compatible With
- Suzuki Swift 2011–2017 (models without factory steering wheel controls only)
Use the Aerpro What Fits Your Car Guide to confirm fitment for your specific vehicle before purchasing. This kit is designed for Swift variants without factory SWC. If your Swift has steering wheel controls, a different kit will be required.
Weight
Confirm with supplier.
Frequently Asked Questions
How do I know if my Suzuki Swift has steering wheel controls?
Check your steering wheel for audio control buttons — typically volume, track, and source buttons on the left or right spoke. If none are present, this AMDSZ2 kit is designed for your variant. If your Swift does have steering wheel controls, use the Aerpro What Fits Your Car Guide to find the correct kit.
Will this kit retain my factory USB input?
Yes, if your Swift is equipped with a factory USB input. A USB retention adaptor is included in the kit. Note that the factory USB connects via the USB input on the rear of the head unit.
Does wireless CarPlay and Android Auto require any special setup?
Wireless CarPlay and Android Auto connect over Wi-Fi and Bluetooth. The park brake wire must be connected to the park brake for CarPlay and Android Auto to function. Initial pairing is required on first use.
Can I add an external amplifier to this system?
Yes. The AM905D features 5-channel 4V RCA preouts (front, rear, subwoofer) for connecting external amplifiers. The onboard 4 x 50W max output is sufficient for most factory speaker setups without an external amp.
Is a rear camera included?
Yes. A 720P AHD universal rear camera with a 150-degree lens angle and Sony CMOS sensor is included in the kit. The head unit also has a second camera input for a front or towing camera, sold separately.
