Description
Complete 9" Head Unit Upgrade Kit for Suzuki Vitara 2015-On Wireless Apple CarPlay, Android Auto, DAB+, Bluetooth 5, SWC, USB & Factory Reverse Camera Retained, Gloss Black Fascia, Rear Camera Included.
Product Overview

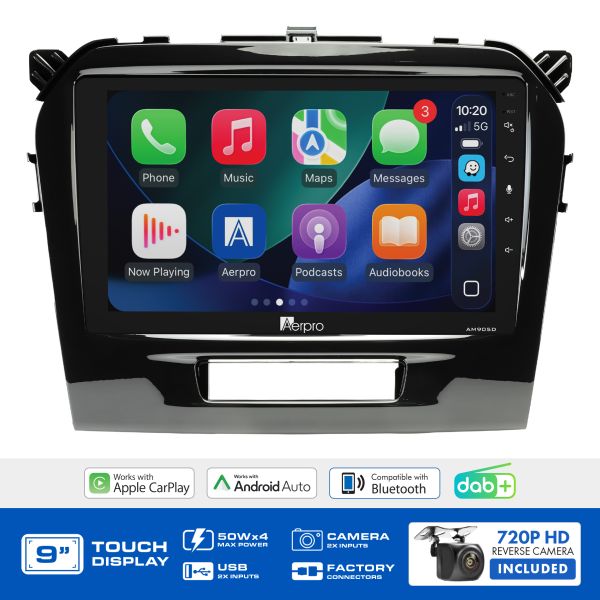

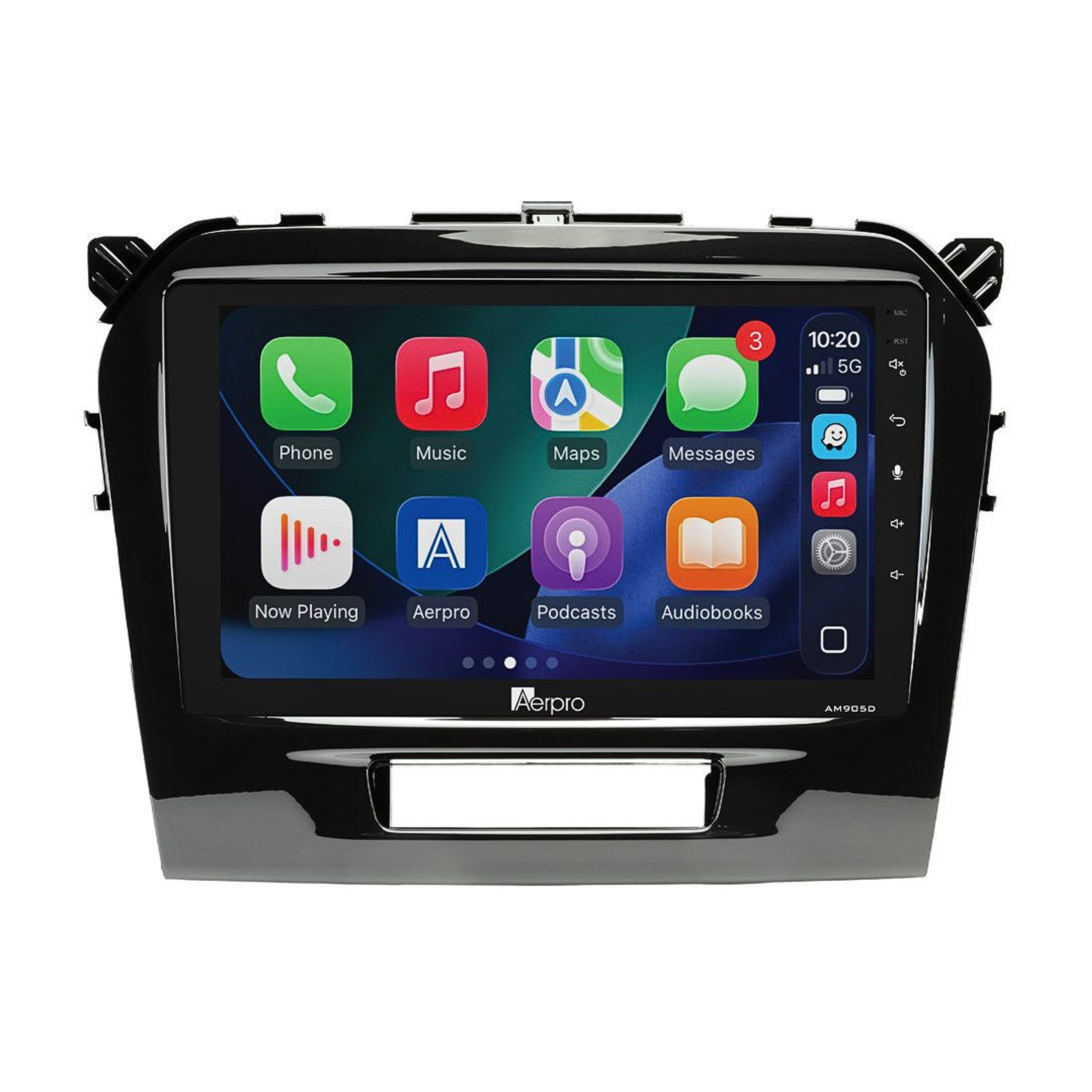

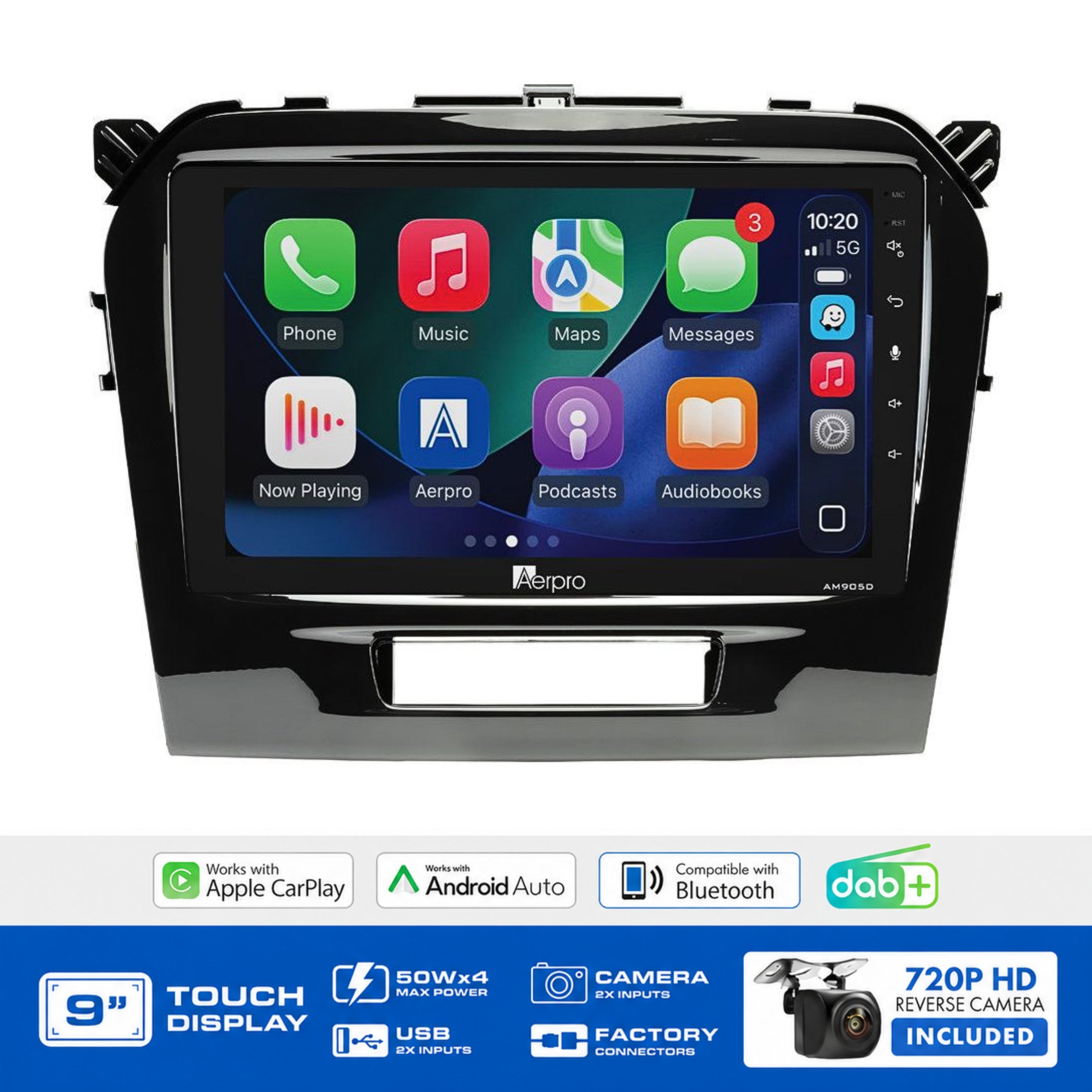

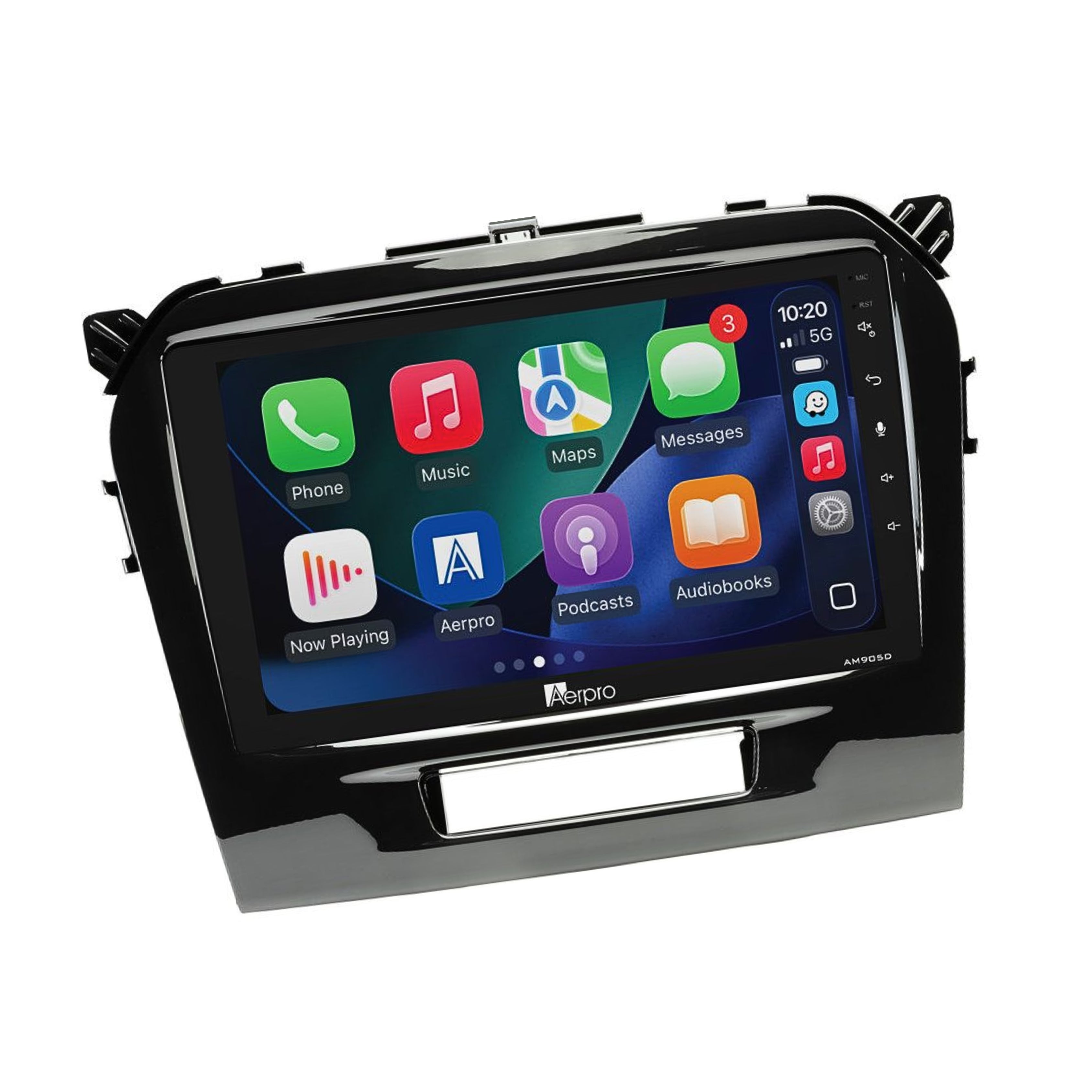

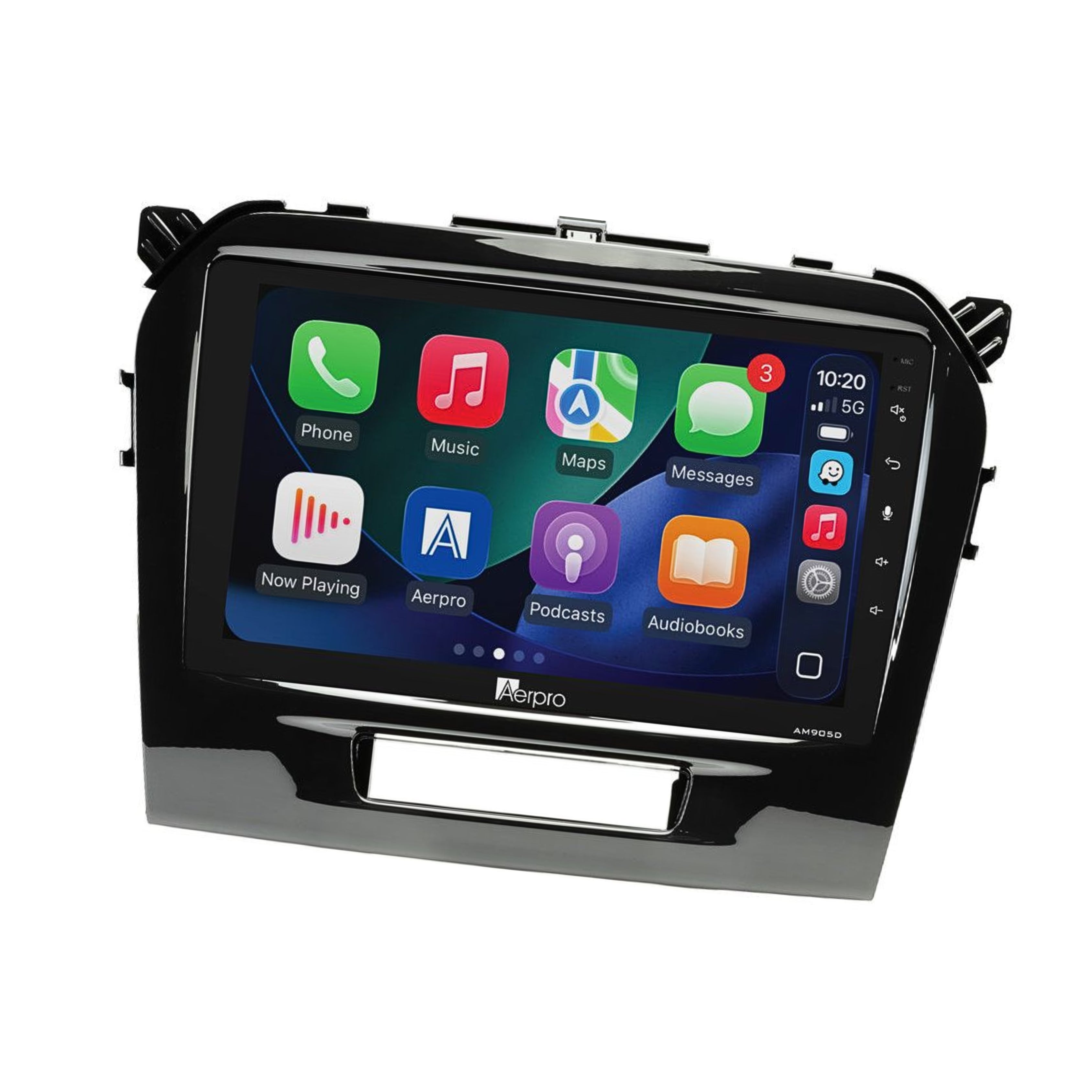

The Aerpro AMDSZ5 is a complete head unit upgrade kit specifically designed for the Suzuki Vitara (2015-on). Everything required for installation is included the AM905D multimedia receiver, gloss black fascia kit, steering wheel control interface harness, SWC patch lead, antenna adaptor, camera retention adaptor, USB retention adaptor, and a 720P AHD universal rear camera.
Steering wheel controls, factory USB input, and factory reverse camera are all retained. The AM905D features a 9" capacitive touchscreen (1024x600), wireless Apple CarPlay and Android Auto, built-in DAB+ digital radio, Bluetooth 5, and 4x50W output with 13-band EQ and 4V/5CH RCA preouts.
Important: Reverse camera retention uses the reverse camera input of the head unit. USB input retention uses the rear USB input of the head unit. AUX input is not retained. Always verify fitment using the Aerpro What Fits Your Car Guide.
Kit Inclusions
- AM905D 9" Multimedia Receiver
- Gloss Black Fascia Kit
- Steering Wheel Control Interface Harness
- SWC Patch Lead
- Antenna Adaptor
- Camera Retention Adaptor
- USB Retention Adaptor
- 720P AHD Universal Rear Camera
Vehicle Feature Retention
| Feature |
Retained |
| Steering Wheel Controls |
Yes |
| Factory Reverse Camera |
Yes |
| USB Input |
Yes |
| AUX Input |
No |
| Factory Amplifier |
N/A |
| Vehicle Menu |
N/A |
Key Specifications
- Screen: 9" capacitive touchscreen 1024x600 resolution
- Wireless CarPlay & Android Auto: Yes (wired also supported)
- DAB+ digital radio: Yes (AM/FM with RDS also included)
- Bluetooth: V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP)
- Max power output: 4 x 50W
- RCA preouts: 4V / 5-channel (Front/Rear/Subwoofer)
- 13-band EQ and time alignment: Yes
- USB inputs: 2 x rear USB (FAT32 / 32GB max)
- Reverse camera input: Yes (720P AHD compatible)
- Second camera input: Yes (720P AHD compatible)
- LED button illumination: 6-colour selectable
- Rear camera: 720P AHD universal included
Features & Benefits
-
Factory reverse camera retained: Retained via the included camera retention adaptor uses the reverse camera input of the head unit
-
Factory USB input retained: Retained via the included USB retention adaptor uses the rear USB input of the head unit
-
Steering wheel controls retained:Â Full factory SWC retained via the included harness and patch lead
-
Gloss black fascia:Â Premium gloss black finish suited to the Vitara interior
-
Wireless Apple CarPlay & Android Auto:Â Wire-free phone integration; wired connection also supported
-
DAB+ digital radio built-in:Â Crystal-clear digital radio plus AM/FM and RDS
-
Bluetooth 5 with HD Voice:Â Crisp hands-free calling and wireless audio streaming
-
9" capacitive touchscreen:Â Large, smooth 1024x600 display
-
720P AHD rear camera included: Additional reversing camera additional front or tow camera input also available
-
4x50W output with 5-channel preouts:Â High-power audio with amplifier expansion capability
-
13-band EQ with time alignment:Â Precision audio tuning
Technical Specs
| Specification |
Detail |
| SKU |
AMDSZ5 |
| Brand |
Aerpro |
| Screen Size |
9" |
| Resolution |
1024x600 |
| Touchscreen |
Capacitive |
| OS |
Linux |
| DIN Format |
Fixed Screen Trapezoid |
| Max Power |
4CH x 50W |
| RCA Preouts |
4V / 5-channel |
| Wireless CarPlay/Android Auto |
Yes |
| DAB+ |
Yes |
| AM/FM Presets |
AM 12 / FM 18 |
| Bluetooth |
V5 (A2DP, AVRCP, HFP 1.6, PBAP) |
| USB Inputs |
2 x Rear (FAT32 / 32GB max) |
| Reverse Camera Input |
Yes (720P AHD compatible) |
| Second Camera Input |
Yes (720P AHD compatible) |
| EQ |
13-band |
| Time Alignment |
Yes |
| LED Illumination |
6-colour selectable |
| SWC Retained |
Yes |
| Factory Reverse Camera Retained |
Yes |
| USB Input Retained |
Yes |
| AUX Input Retained |
No |
| Kit Includes Rear Camera |
Yes 720P AHD universal |
| Suits |
Suzuki Vitara 2015-on |
Compatible Vehicles
Frequently Asked Questions
Does this kit retain the factory reverse camera?
Yes the factory reverse camera is retained via the included camera retention adaptor. Reverse camera retention uses the reverse camera input of the head unit.
Does this kit retain the factory USB input?
Yes retained via the included USB retention adaptor. USB input retention uses the rear USB input of the head unit.
Is the AUX input retained?
No AUX input retention is not supported by the AMDSZ5.
Is a rear camera included?
Yes a 720P AHD universal rear camera is included in addition to the retained factory reverse camera. An additional camera input is also available for a front or tow camera.
What is the return policy for this product?
Return eligibility is subject to the retailer's policy. Always verify vehicle and system compatibility before purchasing.
