Description

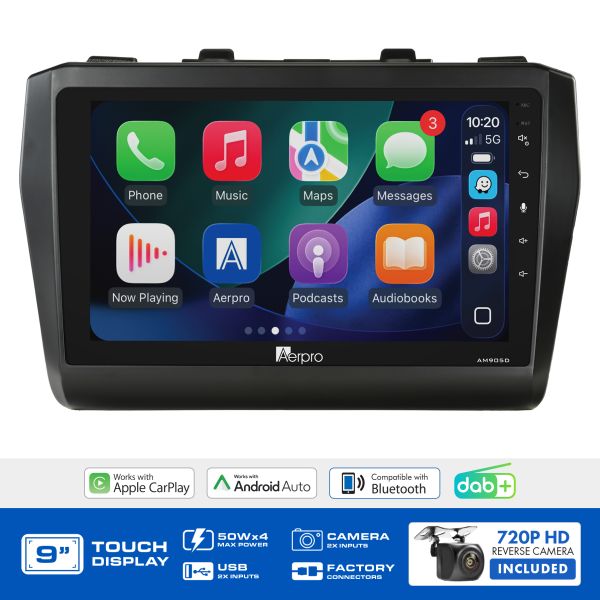

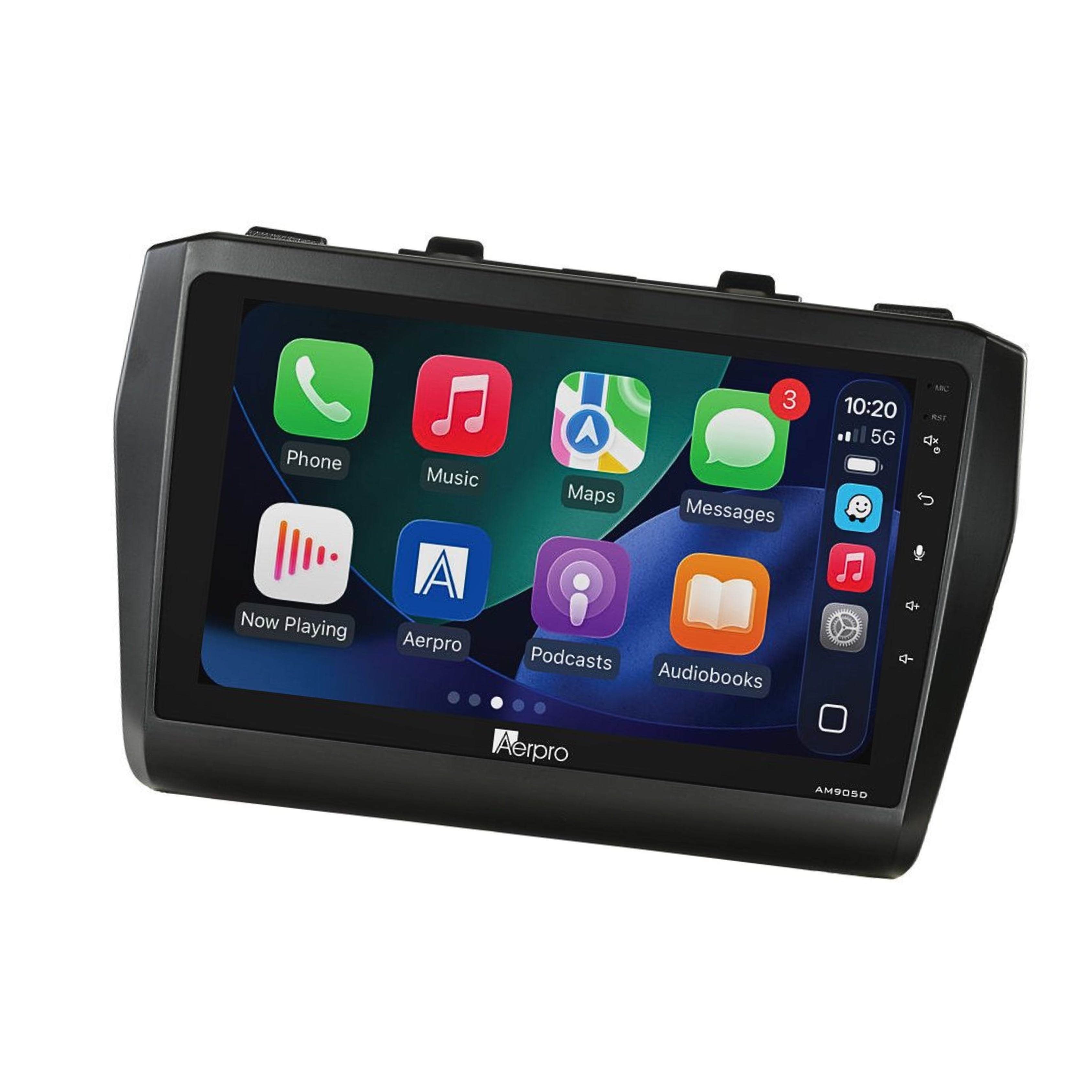

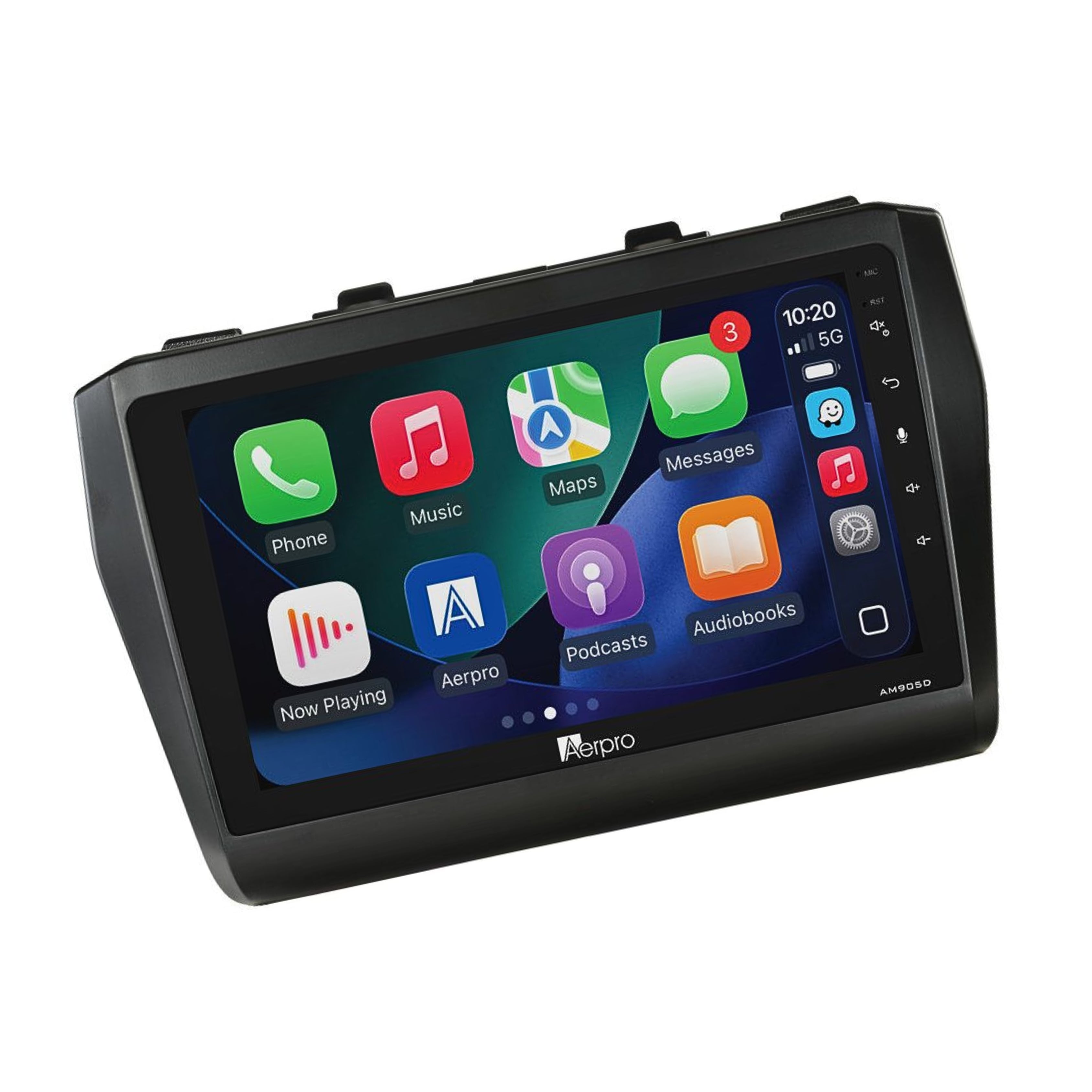

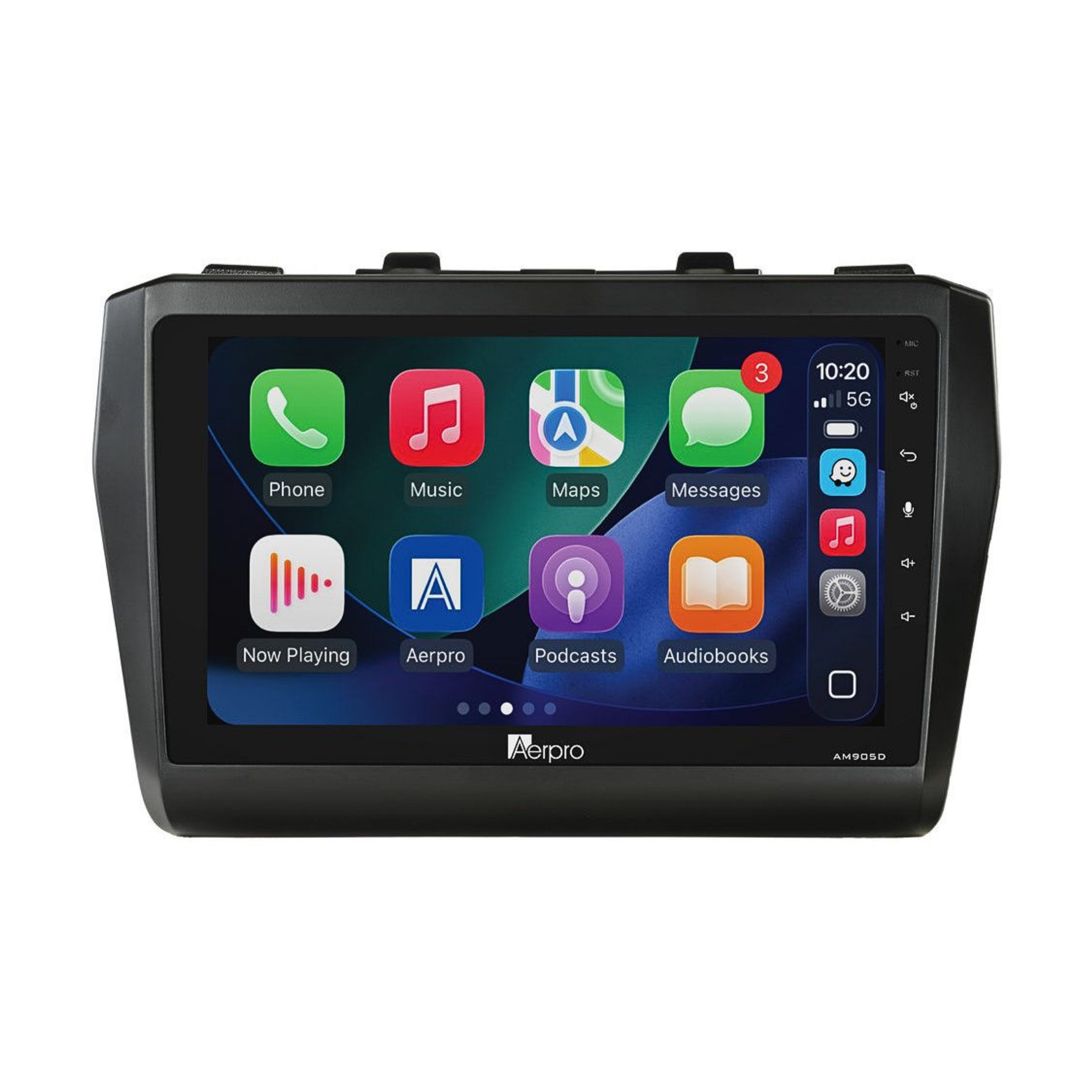

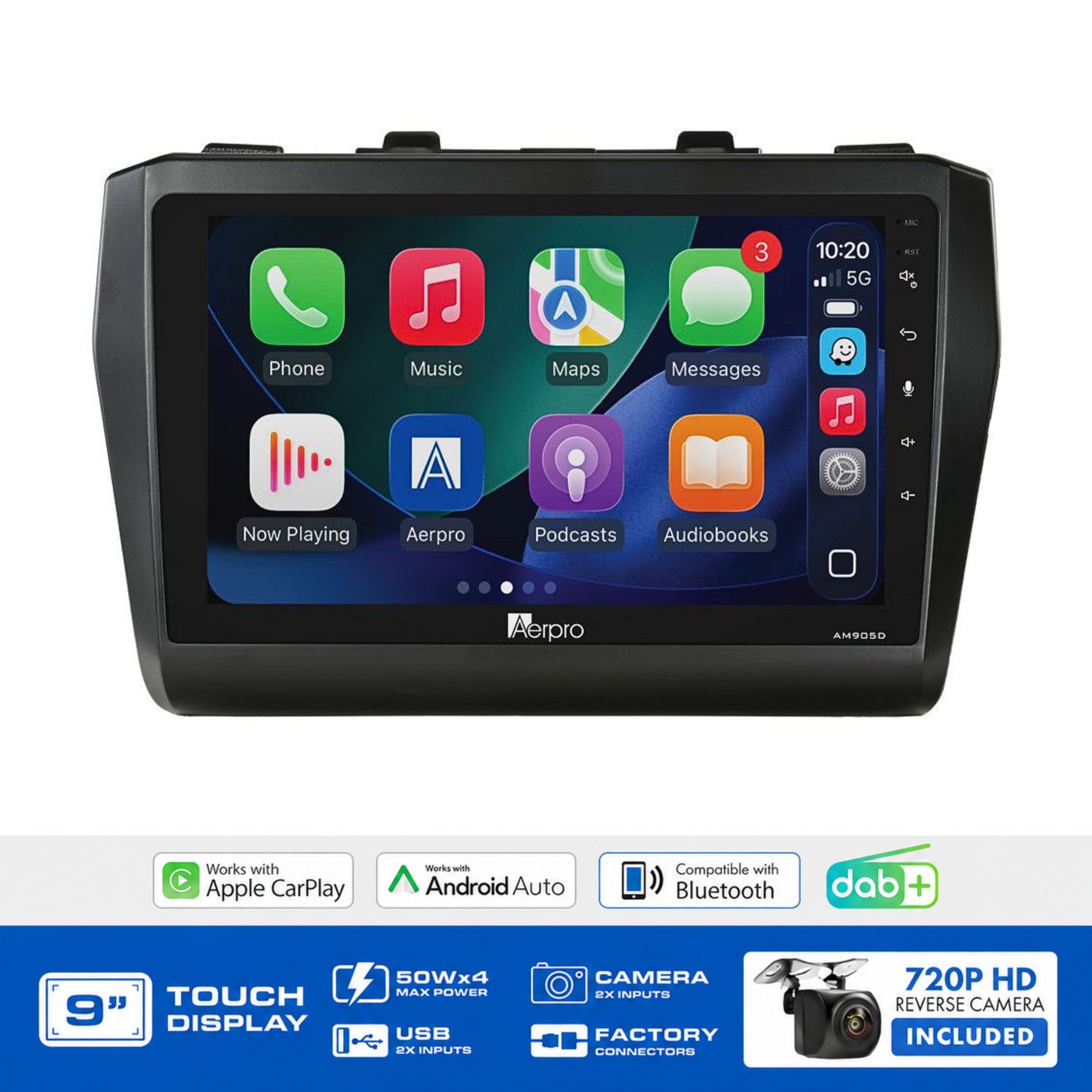

Complete 9" Head Unit Upgrade Kit for Suzuki Swift 2017-On Wireless Apple CarPlay, Android Auto, DAB+, Bluetooth 5, SWC Including Phone Button, USB, AUX & Factory Reverse Camera Retained, Rear Camera Included.
Product Overview
The Aerpro AMDSZ6 is a complete head unit upgrade kit specifically designed for the Suzuki Swift (2017-on) the later Swift variant offering significantly more factory feature retention than the earlier AMDSZ4 (2011–2017). Where the AMDSZ4 retains SWC and USB only, the AMDSZ6 adds AUX input retention and factory reverse camera retention, making it the more comprehensive upgrade kit for the newer Swift.
Everything required for installation is included the AM905D multimedia receiver, matte black fascia kit, steering wheel control interface harness, SWC patch lead, antenna adaptor, camera retention adaptor, and a 720P AHD universal rear camera. Steering wheel controls (including phone button), factory USB, AUX input, and factory reverse camera are all retained where equipped.
Important: Reverse camera retention uses the reverse camera input of the head unit. USB input retention uses the rear USB input of the head unit. AUX input retention uses the RCA AUX input on the rear of the head unit. All retention features are subject to the vehicle being equipped with that feature.
Kit Inclusions
- AM905D 9" Multimedia Receiver
- Matte Black Fascia Kit
- Steering Wheel Control Interface Harness
- SWC Patch Lead
- Antenna Adaptor
- Camera Retention Adaptor
- 720P AHD Universal Rear Camera
Vehicle Feature Retention
| Feature |
Retained |
| Steering Wheel Controls |
Yes (including phone button) |
| Factory Reverse Camera |
Yes (if equipped) |
| USB Input |
Yes (if equipped) |
| AUX Input |
Yes (if equipped) |
| Factory Amplifier |
N/A |
| Vehicle Menu |
N/A |
Swift Kit Comparison (this session)
| Model |
Suits |
Camera |
USB |
AUX |
| AMDSZ4 |
Swift 2011–2017 |
No |
Yes (if equipped) |
N/A |
| AMDSZ6 |
Swift 2017-on |
Yes (if equipped) |
Yes (if equipped) |
Yes (if equipped) |
Key Specifications
- Screen: 9" capacitive touchscreen 1024x600 resolution
- Wireless CarPlay & Android Auto: Yes (wired also supported)
- DAB+ digital radio: Yes (AM/FM with RDS also included)
- Bluetooth: V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP)
- Max power output: 4 x 50W
- RCA preouts: 4V / 5-channel (Front/Rear/Subwoofer)
- 13-band EQ and time alignment: Yes
- USB inputs: 2 x rear USB (FAT32 / 32GB max)
- Reverse camera input: Yes (720P AHD compatible)
- Second camera input: Yes (720P AHD compatible)
- LED button illumination: 6-colour selectable
- Rear camera: 720P AHD universal included
Features & Benefits
-
Most comprehensive Swift retention kit: Compared to the AMDSZ4 (2011–2017), the AMDSZ6 adds factory reverse camera and AUX input retention for the newer Swift platform
-
Factory reverse camera retained: If equipped, retained via the included camera retention adaptor uses the reverse camera input of the head unit
-
Factory USB and AUX inputs retained: Both retained if equipped USB uses rear USB input; AUX uses RCA AUX input on head unit
-
Steering wheel controls retained including phone button:Â Full SWC including phone button retained via the included harness and patch lead
-
Wireless Apple CarPlay & Android Auto:Â Wire-free phone integration; wired connection also supported
-
DAB+ digital radio built-in:Â Crystal-clear digital radio plus AM/FM and RDS
-
Bluetooth 5 with HD Voice:Â Crisp hands-free calling and wireless audio streaming
-
9" capacitive touchscreen:Â Large, smooth 1024x600 display
-
720P AHD rear camera included: Immediate reversing visibility additional front or tow camera input also available
-
4x50W output with 5-channel preouts:Â High-power audio with amplifier expansion capability
Technical Specs
| Specification |
Detail |
| SKU |
AMDSZ6 |
| Brand |
Aerpro |
| Screen Size |
9" |
| Resolution |
1024x600 |
| Touchscreen |
Capacitive |
| OS |
Linux |
| DIN Format |
Fixed Screen Trapezoid |
| Max Power |
4CH x 50W |
| RCA Preouts |
4V / 5-channel |
| Wireless CarPlay/Android Auto |
Yes |
| DAB+ |
Yes |
| AM/FM Presets |
AM 12 / FM 18 |
| Bluetooth |
V5 (A2DP, AVRCP, HFP 1.6, PBAP) |
| USB Inputs |
2 x Rear (FAT32 / 32GB max) |
| Reverse Camera Input |
Yes (720P AHD compatible) |
| Second Camera Input |
Yes (720P AHD compatible) |
| EQ |
13-band |
| Time Alignment |
Yes |
| LED Illumination |
6-colour selectable |
| SWC Retained |
Yes (including phone button) |
| Factory Reverse Camera Retained |
Yes (if equipped) |
| USB Input Retained |
Yes (if equipped) |
| AUX Input Retained |
Yes (if equipped) |
| Kit Includes Rear Camera |
Yes 720P AHD universal |
| Suits |
Suzuki Swift 2017-on |
Compatible Vehicles
Frequently Asked Questions
How does the AMDSZ6 differ from the AMDSZ4?
The AMDSZ6 suits the newer Suzuki Swift (2017-on) while the AMDSZ4 suits the earlier Swift (2011–2017). The AMDSZ6 adds factory reverse camera retention and AUX input retention features not available with the AMDSZ4.
Does this kit retain the factory reverse camera?
Yes if equipped, retained via the camera retention adaptor. Reverse camera retention uses the reverse camera input of the head unit.
Does this retain the factory AUX input?
Yes if equipped. AUX input retention uses the RCA AUX input on the rear of the head unit.
Does this retain the factory USB input?
Yes if equipped. USB input retention uses the rear USB input of the head unit.
What is the return policy for this product?
Return eligibility is subject to the retailer's policy. Always verify vehicle and system compatibility before purchasing.
