Description
Complete 9" Head Unit Upgrade Kit for Suzuki Jimny 2018-On Wireless Apple CarPlay, Android Auto, DAB+, Bluetooth 5, SWC Including Phone Button, USB, AUX & Factory Reverse Camera Retained, Gloss Black Fascia, Rear Camera Included.
Product Overview

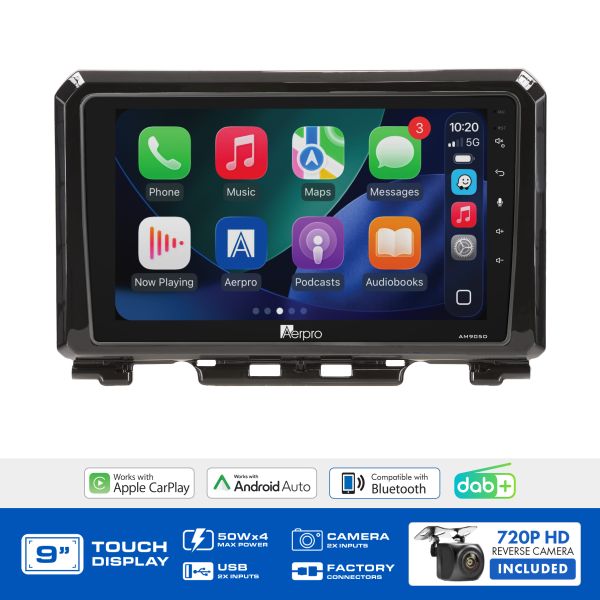

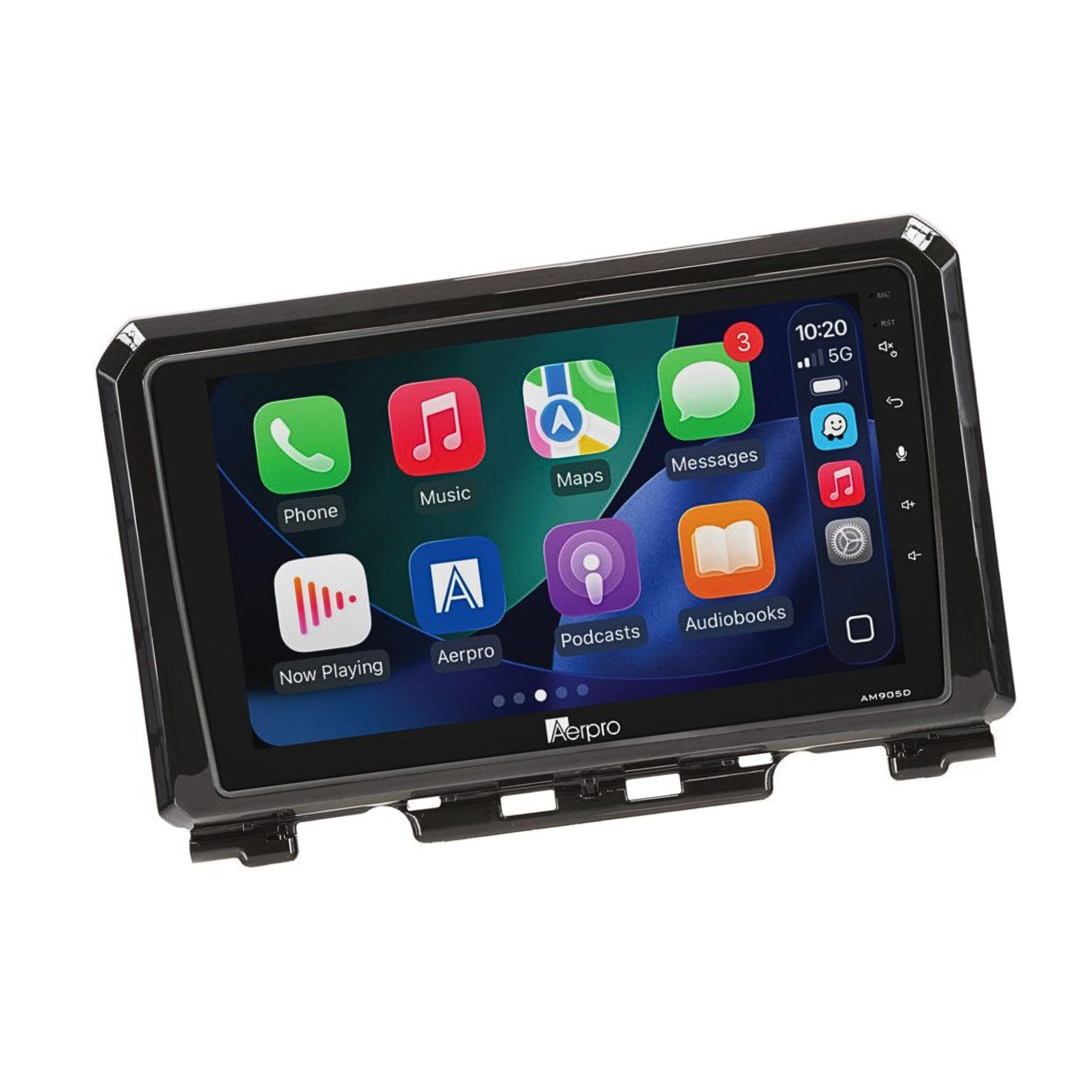

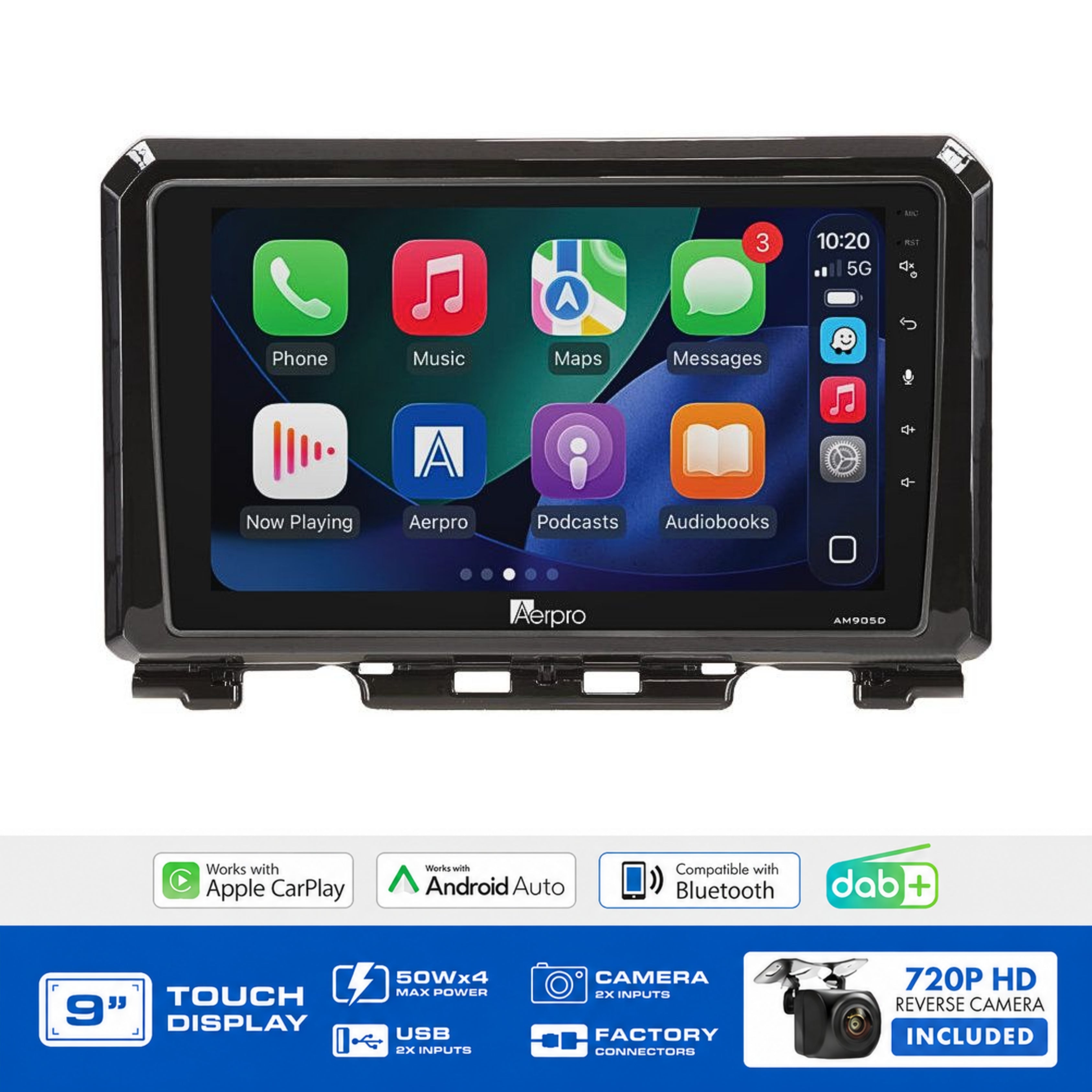

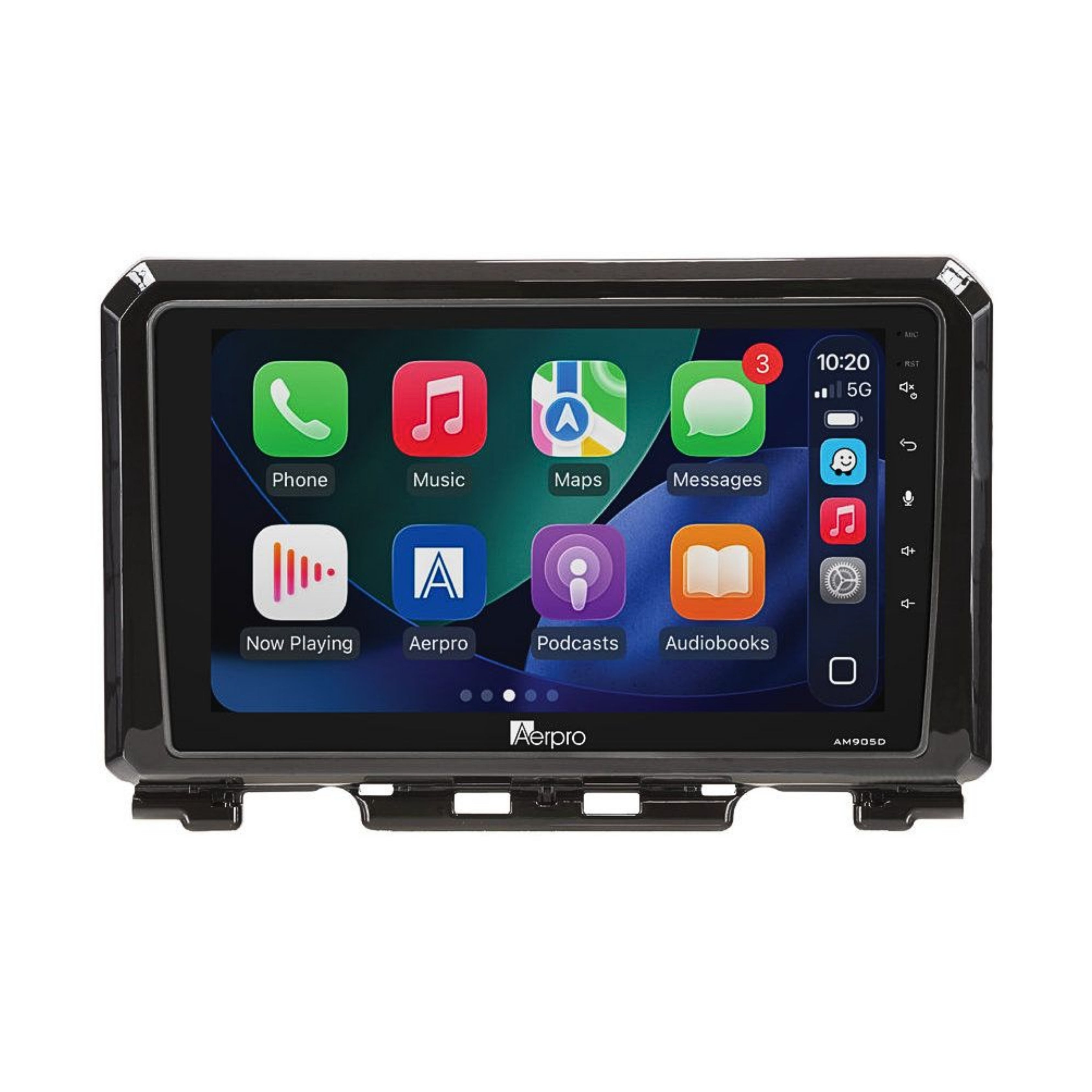

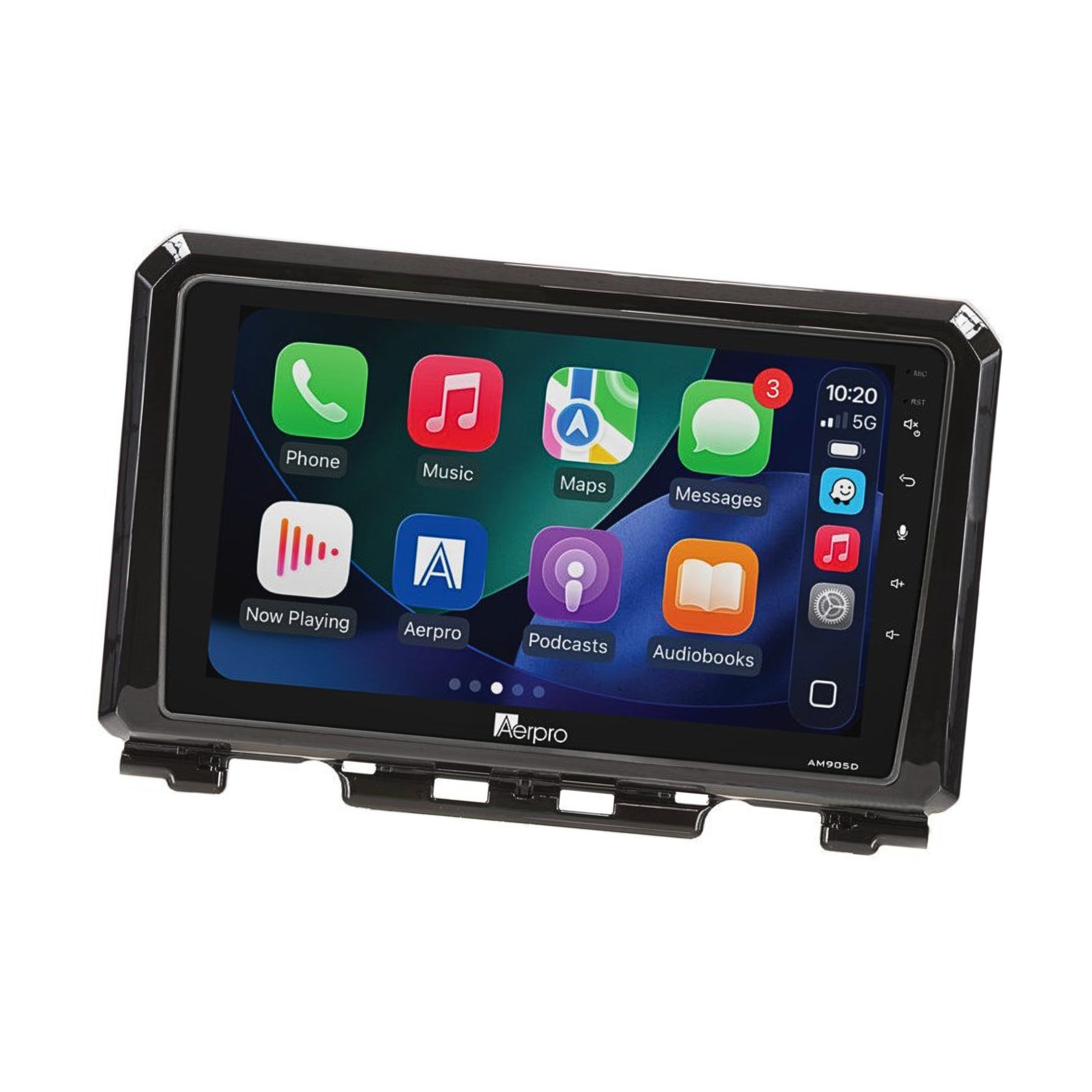

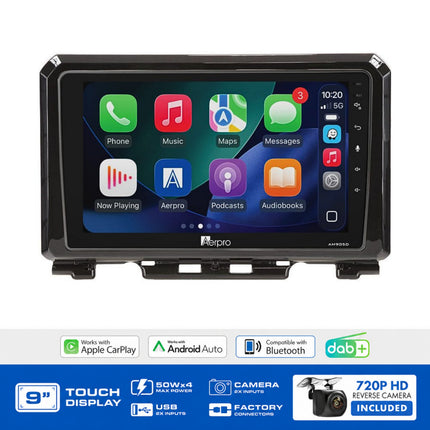

The Aerpro AMDSZ7 is a complete head unit upgrade kit specifically designed for the Suzuki Jimny (2018-on). Everything required for installation is included the AM905D multimedia receiver, gloss black fascia kit, steering wheel control interface harness, SWC patch lead, antenna adaptor, camera retention adaptor, and a 720P AHD universal rear camera.
Steering wheel controls (including phone button), factory USB, AUX input, and factory reverse camera are all retained where equipped. The AM905D features a 9" capacitive touchscreen (1024x600), wireless Apple CarPlay and Android Auto, built-in DAB+ digital radio, Bluetooth 5, and 4x50W output with 13-band EQ and 4V/5CH RCA preouts.
Kit Inclusions
- AM905D 9" Multimedia Receiver
- Gloss Black Fascia Kit
- Steering Wheel Control Interface Harness
- SWC Patch Lead
- Antenna Adaptor
- Camera Retention Adaptor
- 720P AHD Universal Rear Camera
Vehicle Feature Retention
| Feature |
Retained |
| Steering Wheel Controls |
Yes (including phone button) |
| Factory Reverse Camera |
Yes (if equipped) |
| USB Input |
Yes (if equipped) |
| AUX Input |
Yes (if equipped) |
| Factory Amplifier |
N/A |
| Vehicle Menu |
N/A |
Key Specifications
- Screen: 9" capacitive touchscreen 1024x600 resolution
- Wireless CarPlay & Android Auto: Yes (wired also supported)
- DAB+ digital radio: Yes (AM/FM with RDS also included)
- Bluetooth: V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP)
- Max power output: 4 x 50W
- RCA preouts: 4V / 5-channel (Front/Rear/Subwoofer)
- 13-band EQ and time alignment: Yes
- USB inputs: 2 x rear USB (FAT32 / 32GB max)
- Reverse camera input: Yes (720P AHD compatible)
- Second camera input: Yes (720P AHD compatible)
- LED button illumination: 6-colour selectable
- Rear camera: 720P AHD universal included
Features & Benefits
-
Gloss black fascia: Premium gloss black finish suited to the Jimny interior aesthetic distinct from the matte black fascia used in the AMDSZ6 (Swift 2017-on)
-
Factory reverse camera retained: If equipped, retained via the included camera retention adaptor uses the reverse camera input of the head unit
-
Factory USB and AUX inputs retained: Both retained if equipped USB uses rear USB input; AUX uses RCA AUX input on head unit
-
Steering wheel controls retained including phone button:Â Full SWC including phone button retained via the included harness and patch lead
-
Wireless Apple CarPlay & Android Auto:Â Wire-free phone integration; wired connection also supported
-
DAB+ digital radio built-in:Â Crystal-clear digital radio plus AM/FM and RDS
-
Bluetooth 5 with HD Voice:Â Crisp hands-free calling and wireless audio streaming
-
9" capacitive touchscreen:Â Large, smooth 1024x600 display
-
720P AHD rear camera included: Immediate reversing visibility additional front or tow camera input also available
-
4x50W output with 5-channel preouts:Â High-power audio with amplifier expansion capability
Technical Specs
| Specification |
Detail |
| SKU |
AMDSZ7 |
| Brand |
Aerpro |
| Screen Size |
9" |
| Resolution |
1024x600 |
| Touchscreen |
Capacitive |
| OS |
Linux |
| DIN Format |
Fixed Screen Trapezoid |
| Max Power |
4CH x 50W |
| RCA Preouts |
4V / 5-channel |
| Wireless CarPlay/Android Auto |
Yes |
| DAB+ |
Yes |
| AM/FM Presets |
AM 12 / FM 18 |
| Bluetooth |
V5 (A2DP, AVRCP, HFP 1.6, PBAP) |
| USB Inputs |
2 x Rear (FAT32 / 32GB max) |
| Reverse Camera Input |
Yes (720P AHD compatible) |
| Second Camera Input |
Yes (720P AHD compatible) |
| EQ |
13-band |
| Time Alignment |
Yes |
| LED Illumination |
6-colour selectable |
| SWC Retained |
Yes (including phone button) |
| Factory Reverse Camera Retained |
Yes (if equipped) |
| USB Input Retained |
Yes (if equipped) |
| AUX Input Retained |
Yes (if equipped) |
| Kit Includes Rear Camera |
Yes 720P AHD universal |
| Suits |
Suzuki Jimny 2018-on |
Compatible Vehicles
Frequently Asked Questions
Does this kit retain the factory reverse camera?
Yes if equipped, retained via the camera retention adaptor. Reverse camera retention uses the reverse camera input of the head unit.
Does this retain the factory AUX input?
Yes if equipped. AUX input retention uses the RCA AUX input on the rear of the head unit.
Does this retain the factory USB input?
Yes if equipped. USB input retention uses the rear USB input of the head unit.
Is the phone button on the steering wheel retained?
Yes where applicable, the phone button is retained via the included SWC harness and patch lead.
What is the return policy for this product?
Return eligibility is subject to the retailer's policy. Always verify vehicle and system compatibility before purchasing.
