Complete Head Unit Upgrade Kit for Toyota Camry/Aurion 2006–2011 (Non-Amplified, Silver)
Product Overview

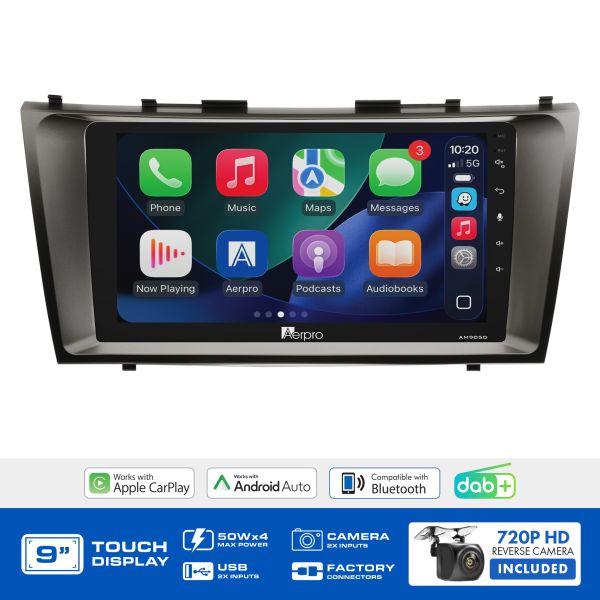

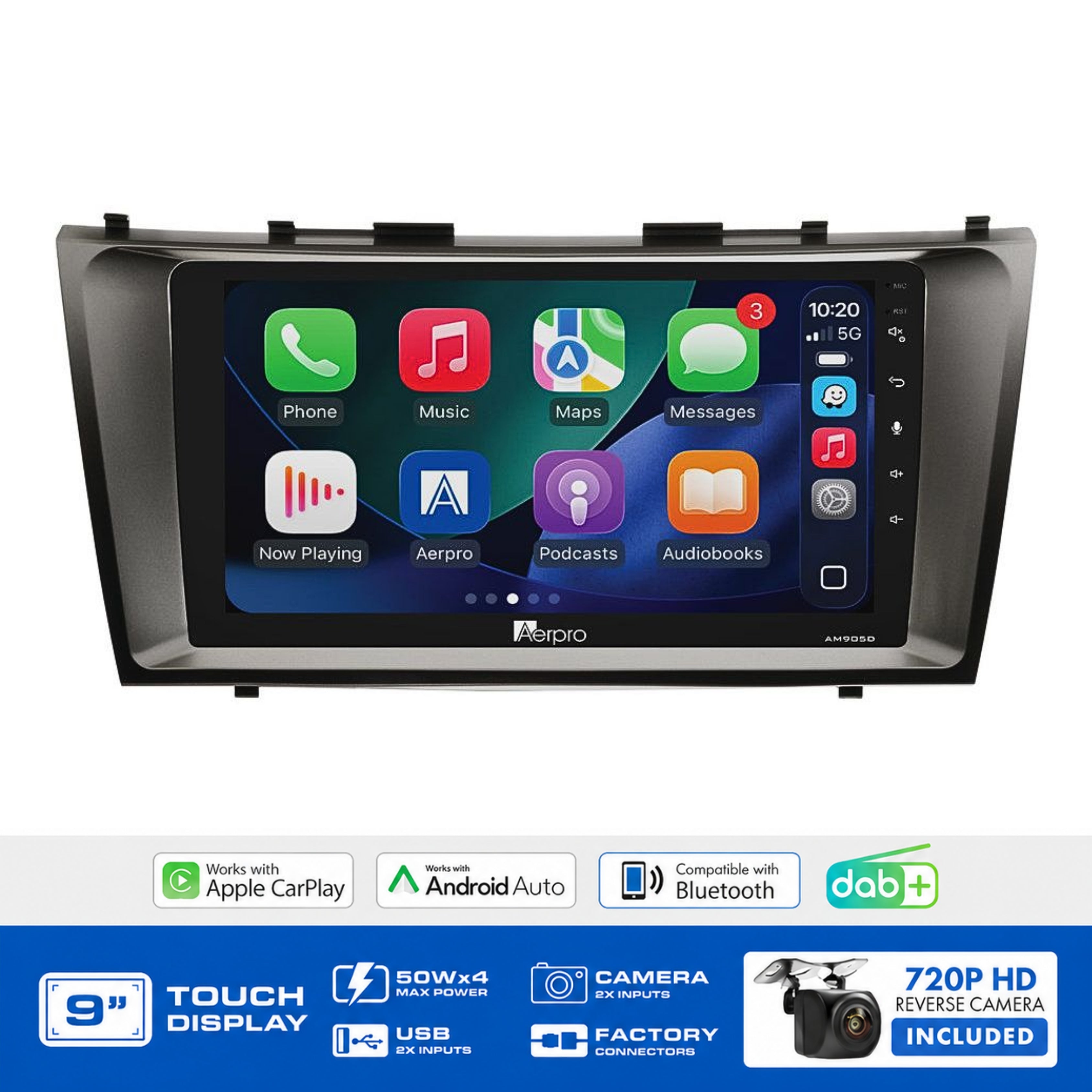

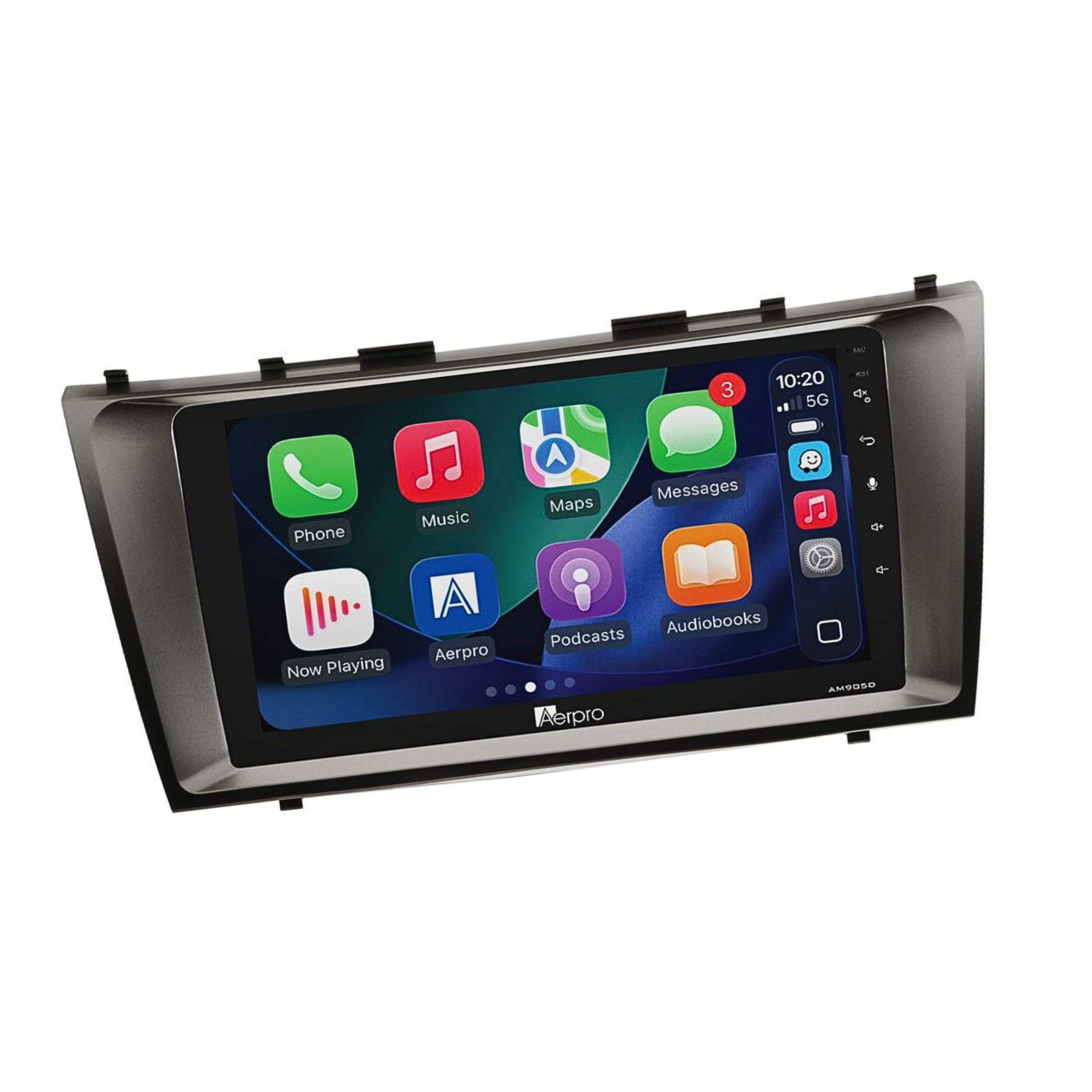

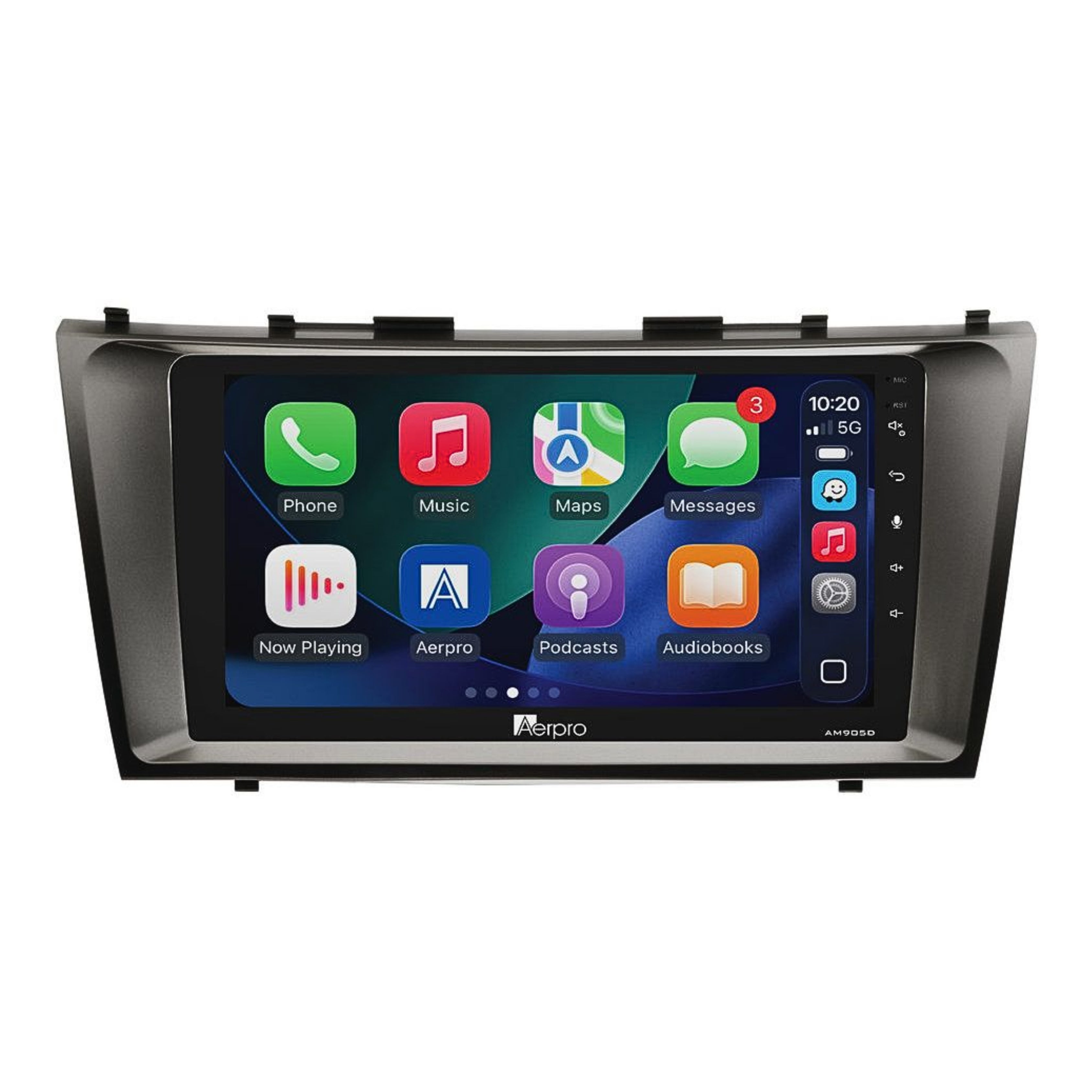

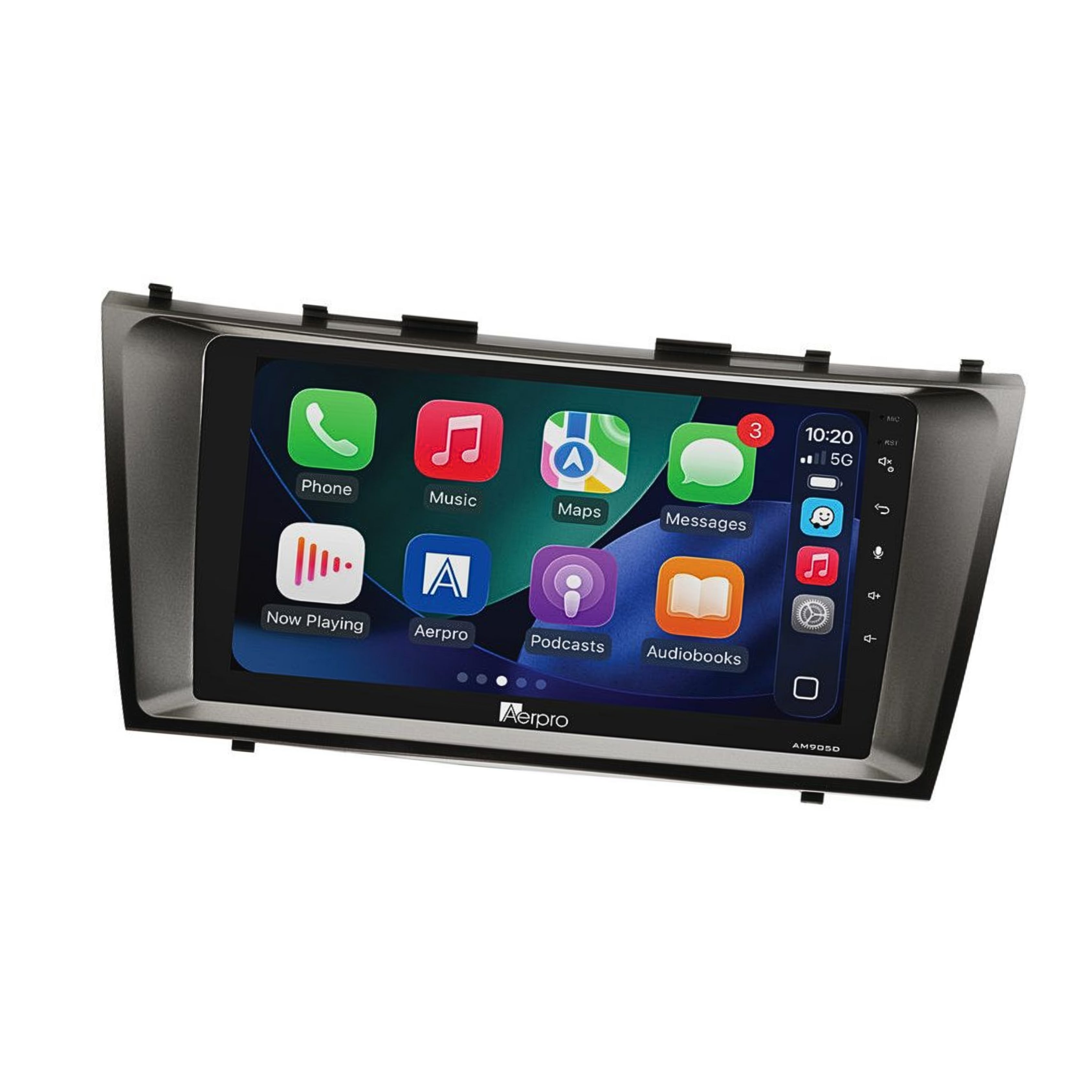

The Aerpro AMDTO1 is a complete head unit upgrade kit engineered specifically for the Toyota Camry and Aurion (2006–2011) in non-amplified variants. It pairs the AM905D 9" multimedia receiver with a matching silver facia kit, steering wheel control interface harness, SWC patch lead, and a 720P AHD universal rear camera everything needed for a clean, complete installation in one box.
The AM905D features a 9" capacitive touchscreen at 1024x600 resolution running Linux OS, wireless and wired Apple CarPlay and Android Auto, built-in DAB+ digital radio, Bluetooth V5 with HD Voice, dual rear USB inputs, and 4 x 50W max power output. A 5-channel 4V RCA preout, 13-band graphic EQ, and time alignment capability give installers full flexibility to integrate external amplifiers and tune the system. Six-colour button illumination allows the display to match the vehicle's interior aesthetic.
Features & Benefits
-
Complete kit — includes AM905D receiver, silver facia kit, SWC interface harness, SWC patch lead, and 720P AHD universal rear camera
-
Retains factory steering wheel controls — SWC interface harness included in the kit
-
Factory reverse camera retention available — requires APVTY17 harness, sold separately
-
9" capacitive touchscreen — 1024x600 resolution with smooth, responsive touch
-
Wireless Apple CarPlay and Android Auto — connect wirelessly or via USB for wired operation and charging
-
Built-in DAB+ digital radio — crystal-clear digital stations plus AM/FM with RDS
-
Bluetooth V5 with HD Voice — hands-free calling, audio streaming, PBAP phonebook, internal and external microphone
-
Dual rear USB inputs — USB1 for CarPlay/Android Auto with charging; USB2 for media playback with charging
-
4 x 50W max power output — strong onboard amplification with 5CH 4V RCA preouts for external amp integration
-
13-band graphic EQ and time alignment — advanced audio tuning with 6+2 custom EQ presets
-
720P AHD universal rear camera included — Sony 1/3" CMOS sensor, 150-degree lens angle, surface mount
-
Second camera input — supports a front or towing camera (720P AHD compatible)
-
6-colour button illumination — red, yellow, green, blue, purple, or white to suit your interior
Technical Specs
| Specification |
Detail |
| Part Number |
AMDTO1 |
| Brand |
Aerpro |
| Vehicle Fit |
Toyota Camry / Aurion 2006–2011 (Non-Amplified) |
| Facia Colour |
Silver |
| Included Receiver |
AM905D |
| Screen Size |
9" |
| Resolution |
1024 x 600 |
| Touchscreen |
Capacitive |
| OS |
Linux |
| DIN Size |
Fixed Screen Style (Trapezoid) |
| Max Power Output |
4CH x 50W |
| RCA Preouts |
4V, 5 Channel (Front / Rear / Subwoofer) |
| Smartphone Connectivity |
Apple CarPlay & Android Auto (Wireless and Wired) |
| Bluetooth Version |
V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP) |
| Microphone |
Internal + External |
| DAB+ |
Yes |
| AM Presets |
12 |
| FM Presets |
18 |
| RDS |
Yes |
| USB1 (Rear) |
CarPlay / Android Auto + Charging (5V/1.5A) |
| USB2 (Rear) |
Media Playback + Charging (5V/1.5A) |
| USB Max Capacity |
FAT32, 32GB |
| Media Formats |
MP3, MP4, MKV, FLAC, Xvid |
| Reverse Camera Input |
Yes (720P AHD compatible) |
| Second Camera Input |
Yes (720P AHD compatible) |
| EQ |
13-Band Graphic EQ |
| Time Alignment |
Yes |
| Button Illumination |
6 Colours (Red, Yellow, Green, Blue, Purple, White) |
| SWC Retention |
Yes |
| Factory Amplifier Retention |
No — non-amplified vehicles only |
| Factory Reverse Camera Retention |
Harness sold separately (APVTY17) |
| Camera (Included) |
|
| Camera Model |
720P AHD Universal Rear Camera |
| Image Sensor |
Sony 225, 1/3" CMOS AHD |
| Lens Angle |
150° |
| Mount Type |
Surface Mount |
Compatible With
- Toyota Camry 2006–2011 (non-amplified variants only)
- Toyota Aurion 2006–2011 (non-amplified variants only)
Use the Aerpro What Fits Your Car Guide to confirm fitment for your specific vehicle before purchasing. This kit is not suitable for factory-amplified variants. Factory reverse camera retention requires the APVTY17 harness, sold separately.
Weight
Confirm with supplier.
Frequently Asked Questions
Does this kit suit the amplified version of the Toyota Camry or Aurion?
No. The AMDTO1 is designed for non-amplified Toyota Camry/Aurion (2006–2011) variants only. Using it in an amplified vehicle will result in poor audio performance. Use the Aerpro What Fits Your Car Guide to find the correct kit for your specific variant.
Can I retain my factory reverse camera?
Factory reverse camera retention is not included in this kit. The APVTY17 retention harness is required and sold separately. The head unit itself is compatible with a 720P AHD camera input, and a universal 720P AHD rear camera is included in the kit.
Does wireless CarPlay and Android Auto require any special setup?
Wireless CarPlay and Android Auto connect over Wi-Fi and Bluetooth. The park brake wire must be connected to the park brake for CarPlay and Android Auto to function. Initial pairing is required on first use.
Can I add an external amplifier to this system?
Yes. The AM905D features 5-channel 4V RCA preouts (front, rear, subwoofer) for connecting external amplifiers. The onboard 4 x 50W max output is sufficient for most factory speaker setups without an external amp.
What steering wheel control retention is included?
A steering wheel control interface harness and SWC patch lead are included in the kit, retaining factory SWC functions when paired with compatible Aerpro SWC adaptors.
