Description
Complete 9" Head Unit Upgrade Kit for Toyota Yaris Sedan 2005–2011 (Without SWC) Wireless Apple CarPlay, Android Auto, DAB+, Bluetooth 5, Rear Camera Included.
Product Overview

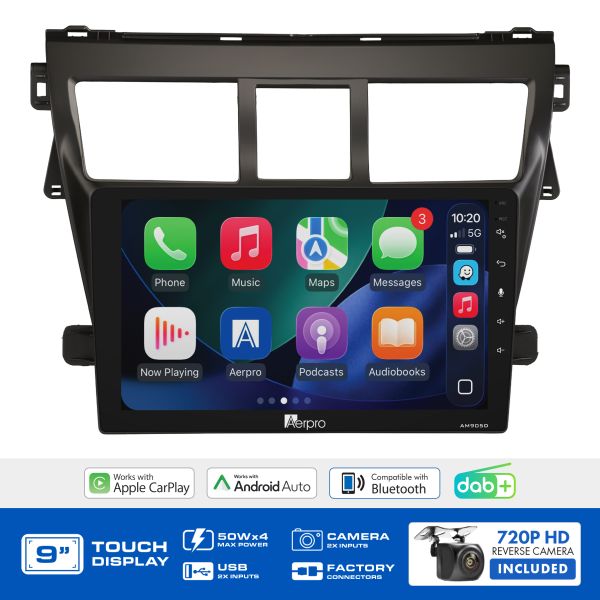

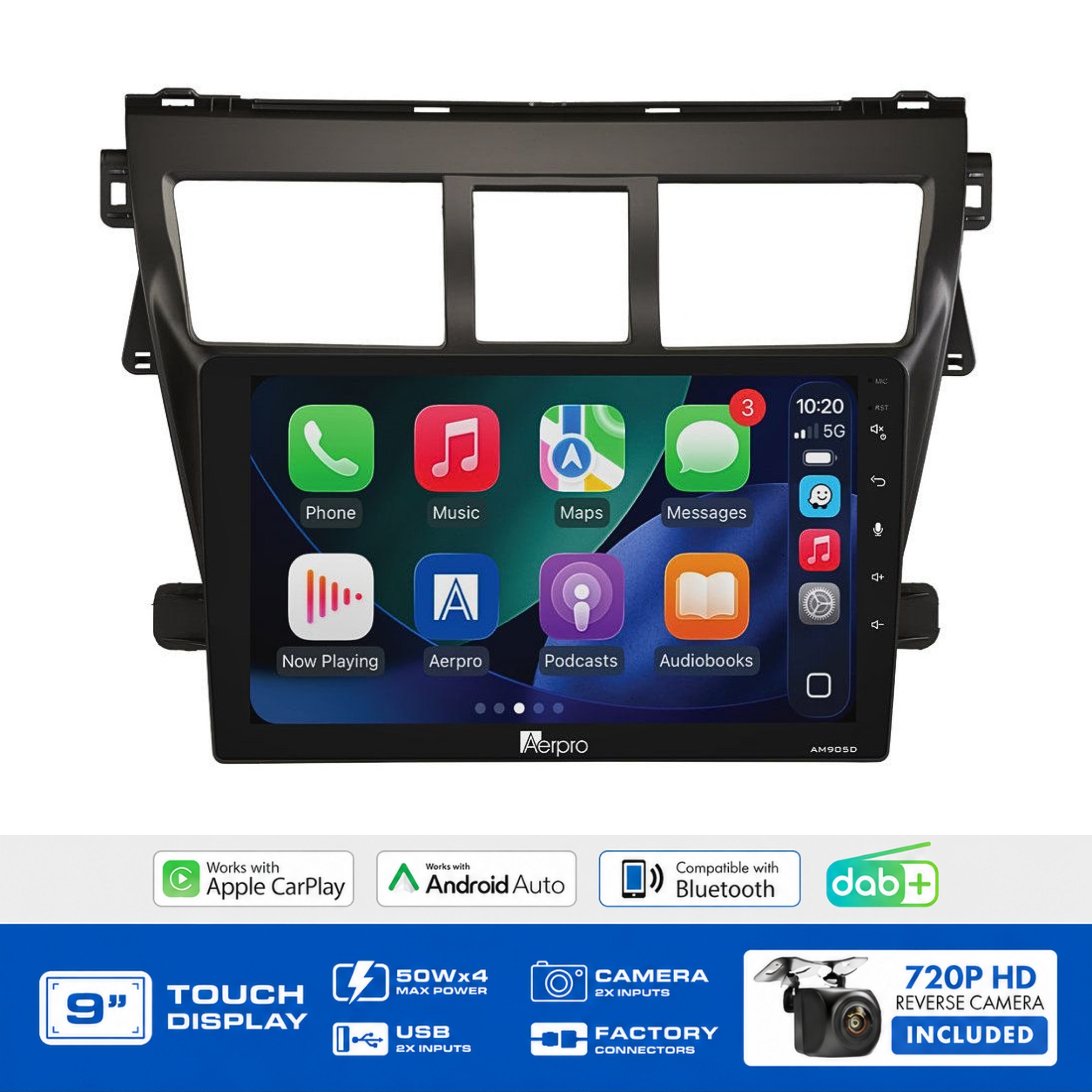

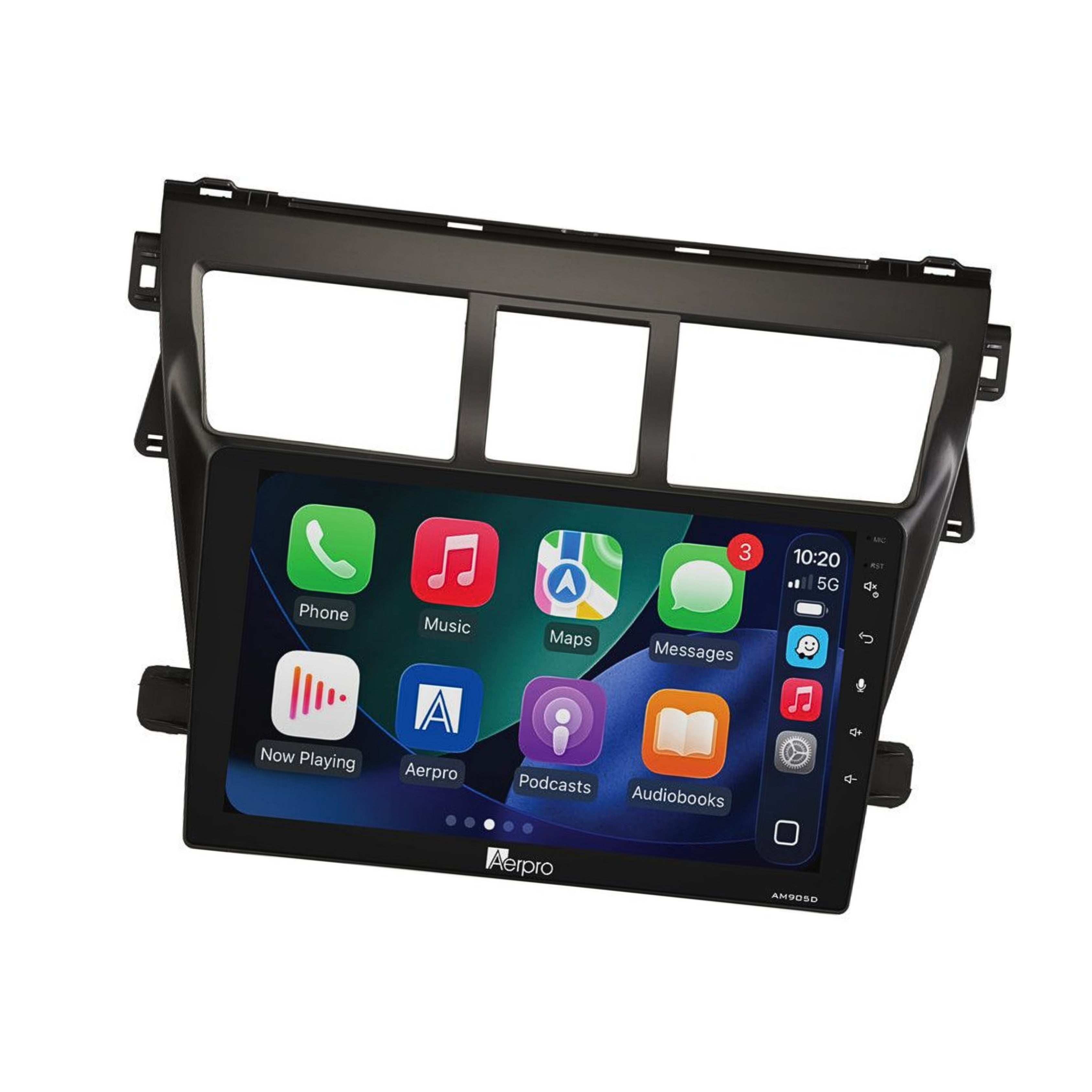

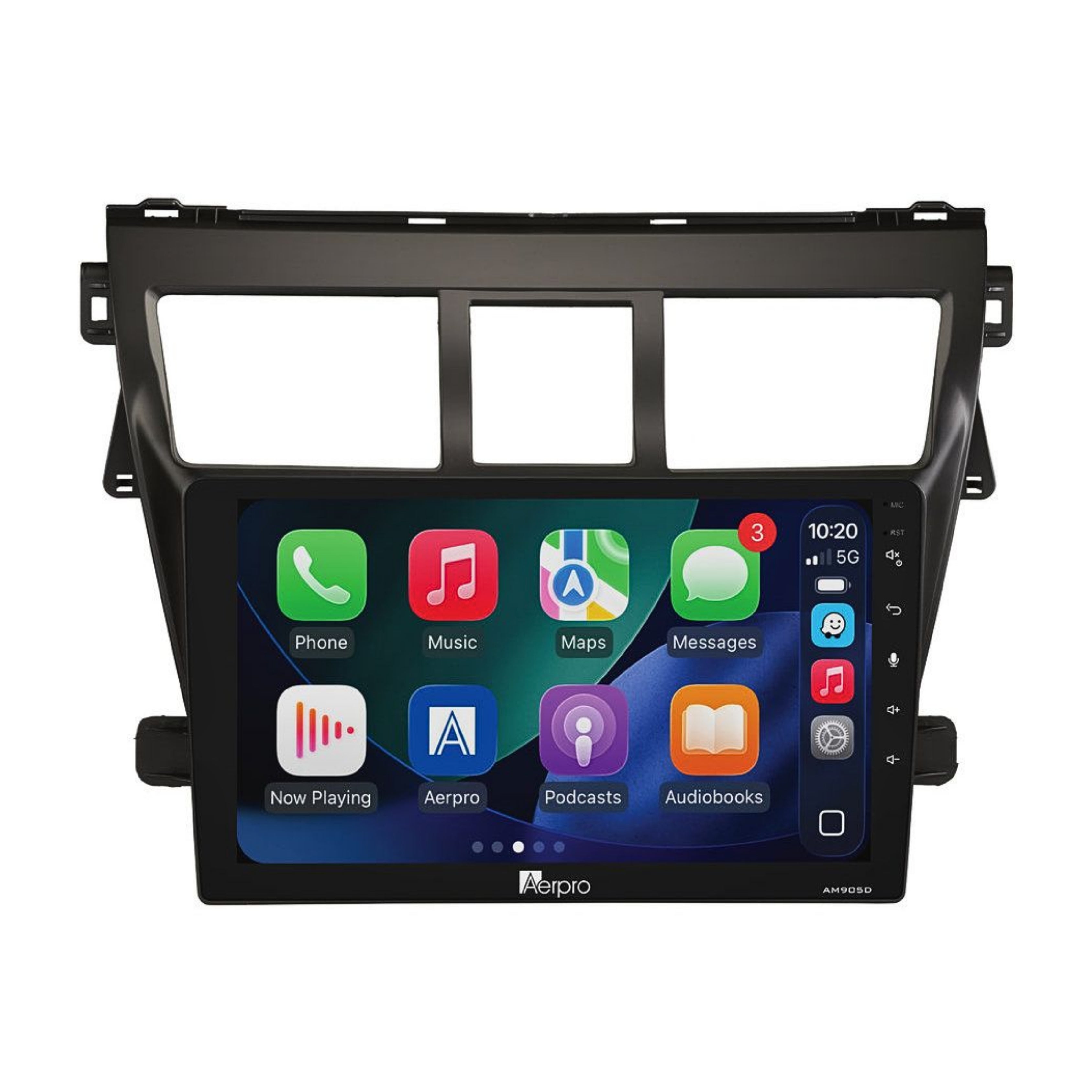

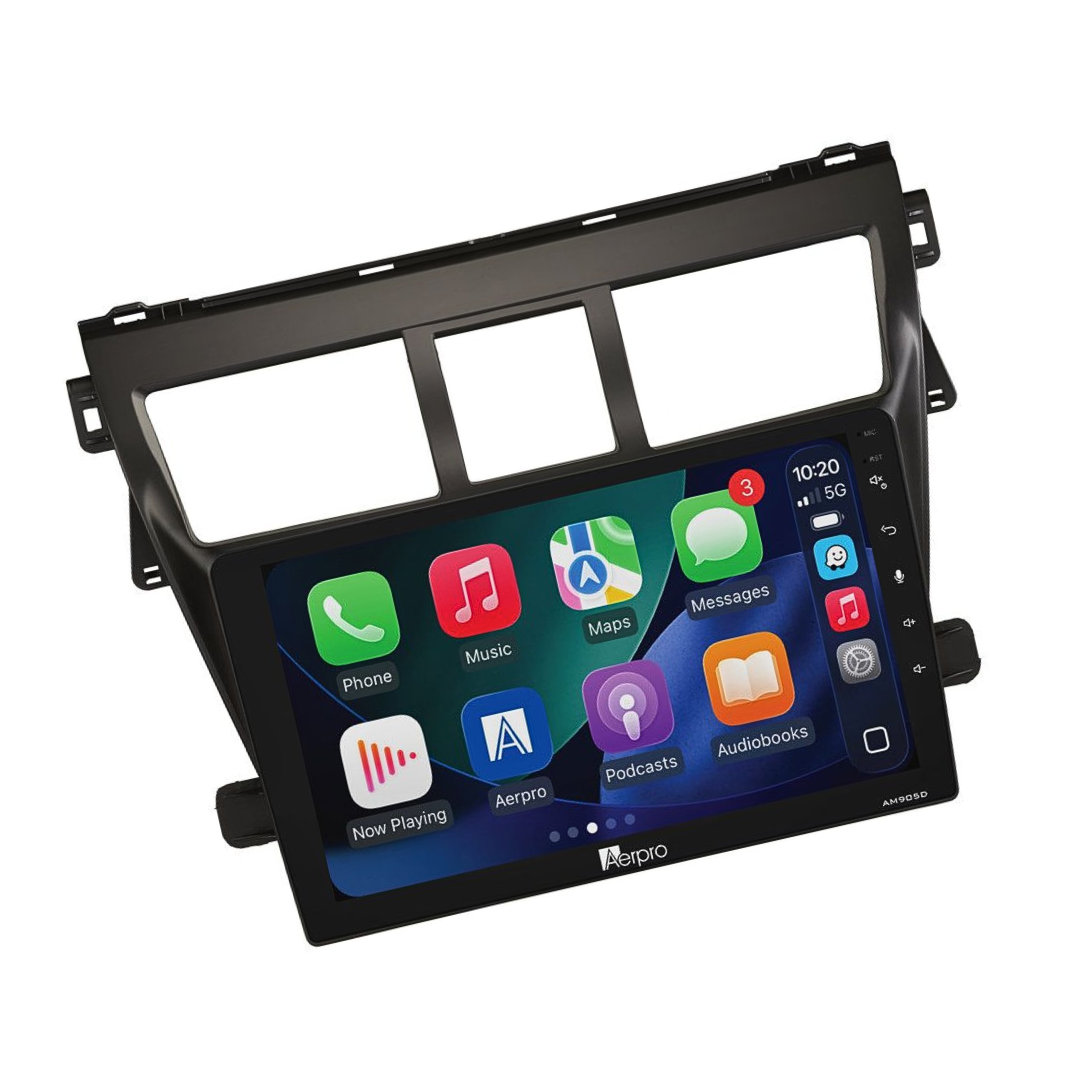

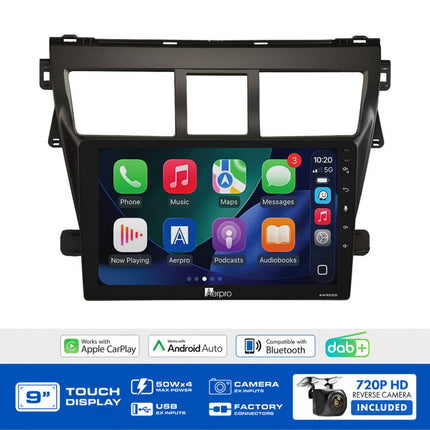

The Aerpro AMDTO15 is a complete head unit upgrade kit specifically designed for the Toyota Yaris Sedan (2005–2011) also known as the Vitz for models without factory steering wheel controls. Everything required for installation is included the AM905D multimedia receiver, matte black fascia kit, harness, and a 720P AHD universal rear camera.
The AM905D features a 9" capacitive touchscreen (1024x600), wireless Apple CarPlay and Android Auto, built-in DAB+ digital radio, Bluetooth 5, and 4x50W output with 13-band EQ and 4V/5CH RCA preouts.
Important: The park brake wire must be connected to the park brake for Apple CarPlay and Android Auto to function. Only selected higher-spec models such as the YRS and YRX had factory steering wheel controls if your Yaris has factory SWC, the SWTO2C Steering Wheel Control Harness is required and sold separately. No factory features are retained by this kit.
Kit Inclusions
- AM905D 9" Multimedia Receiver
- Matte Black Fascia Kit
- Harness
- 720P AHD Universal Rear Camera
Vehicle Feature Retention
| Feature |
Retained |
| Steering Wheel Controls |
N/A (no SWC models) |
| Factory Reverse Camera |
N/A |
| USB Input |
N/A |
| AUX Input |
N/A |
| Factory Amplifier |
N/A |
| Vehicle Menu |
N/A |
Key Specifications
- Screen: 9" capacitive touchscreen 1024x600 resolution
- Wireless CarPlay & Android Auto: Yes (wired also supported)
- DAB+ digital radio: Yes (AM/FM with RDS also included)
- Bluetooth: V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP)
- Max power output: 4 x 50W
- RCA preouts: 4V / 5-channel (Front/Rear/Subwoofer)
- 13-band EQ and time alignment: Yes
- USB inputs: 2 x rear USB (FAT32 / 32GB max)
- Reverse camera input: Yes (720P AHD compatible)
- Second camera input: Yes (720P AHD compatible)
- LED button illumination: 6-colour selectable
- Rear camera: 720P AHD universal included
Features & Benefits
-
Suits no-SWC Yaris Sedan models: Designed for standard Yaris Sedan 2005–2011 models without factory SWC for YRS/YRX models with factory SWC, the SWTO2C harness is required (sold separately)
-
Wireless Apple CarPlay & Android Auto:Â Wire-free phone integration; wired connection also supported
-
DAB+ digital radio built-in:Â Crystal-clear digital radio plus AM/FM and RDS
-
Bluetooth 5 with HD Voice:Â Crisp hands-free calling and wireless audio streaming
-
9" capacitive touchscreen:Â Large, smooth 1024x600 display
-
720P AHD rear camera included: Immediate reversing visibility additional front or tow camera input also available
-
4x50W output with 5-channel preouts:Â High-power audio with amplifier expansion capability
-
13-band EQ with time alignment:Â Precision audio tuning
Technical Specs
| Specification |
Detail |
| SKU |
AMDTO15 |
| Brand |
Aerpro |
| Screen Size |
9" |
| Resolution |
1024x600 |
| Touchscreen |
Capacitive |
| OS |
Linux |
| DIN Format |
Fixed Screen Trapezoid |
| Max Power |
4CH x 50W |
| RCA Preouts |
4V / 5-channel |
| Wireless CarPlay/Android Auto |
Yes |
| DAB+ |
Yes |
| AM/FM Presets |
AM 12 / FM 18 |
| Bluetooth |
V5 (A2DP, AVRCP, HFP 1.6, PBAP) |
| USB Inputs |
2 x Rear (FAT32 / 32GB max) |
| Reverse Camera Input |
Yes (720P AHD compatible) |
| Second Camera Input |
Yes (720P AHD compatible) |
| EQ |
13-band |
| Time Alignment |
Yes |
| LED Illumination |
6-colour selectable |
| SWC |
N/A SWTO2C sold separately for YRS/YRX |
| Factory Reverse Camera |
N/A |
| Kit Includes Rear Camera |
Yes 720P AHD universal |
| Suits |
Toyota Yaris Sedan 2005–2011 (no SWC) |
Compatible Vehicles
- Toyota Yaris Sedan (Vitz) 2005–2011 without factory steering wheel controls
Frequently Asked Questions
Does this kit suit Yaris YRS or YRX models with factory SWC?
The AMDTO15 suits Yaris Sedan models without factory SWC. If your Yaris YRS or YRX has factory steering wheel controls, the SWTO2C Steering Wheel Control Harness is required and sold separately the AMDTO15 does not include SWC retention.
Does the park brake wire need to be connected?
Yes the park brake wire must be connected to the park brake for Apple CarPlay and Android Auto to function.
Is a rear camera included?
Yes a 720P AHD universal rear camera is included. An additional camera input is also available for a front or tow camera.
Does this also suit the Toyota Vitz?
Yes the Toyota Yaris Sedan is sold as the Vitz in some markets. Confirm your vehicle using the Aerpro What Fits Your Car Guide.
What is the return policy for this product?
Return eligibility is subject to the retailer's policy. Always verify vehicle and system compatibility before purchasing.
