Description

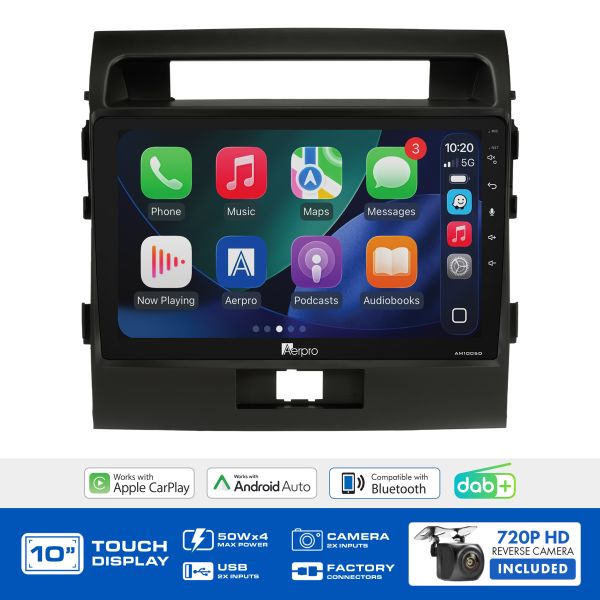

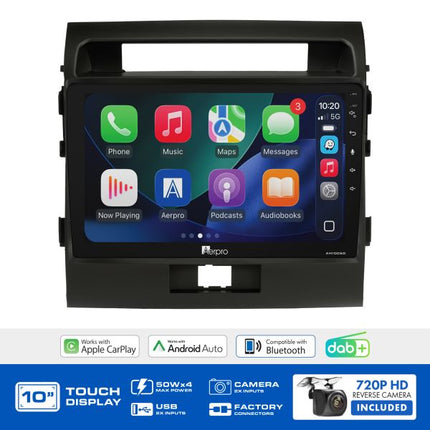

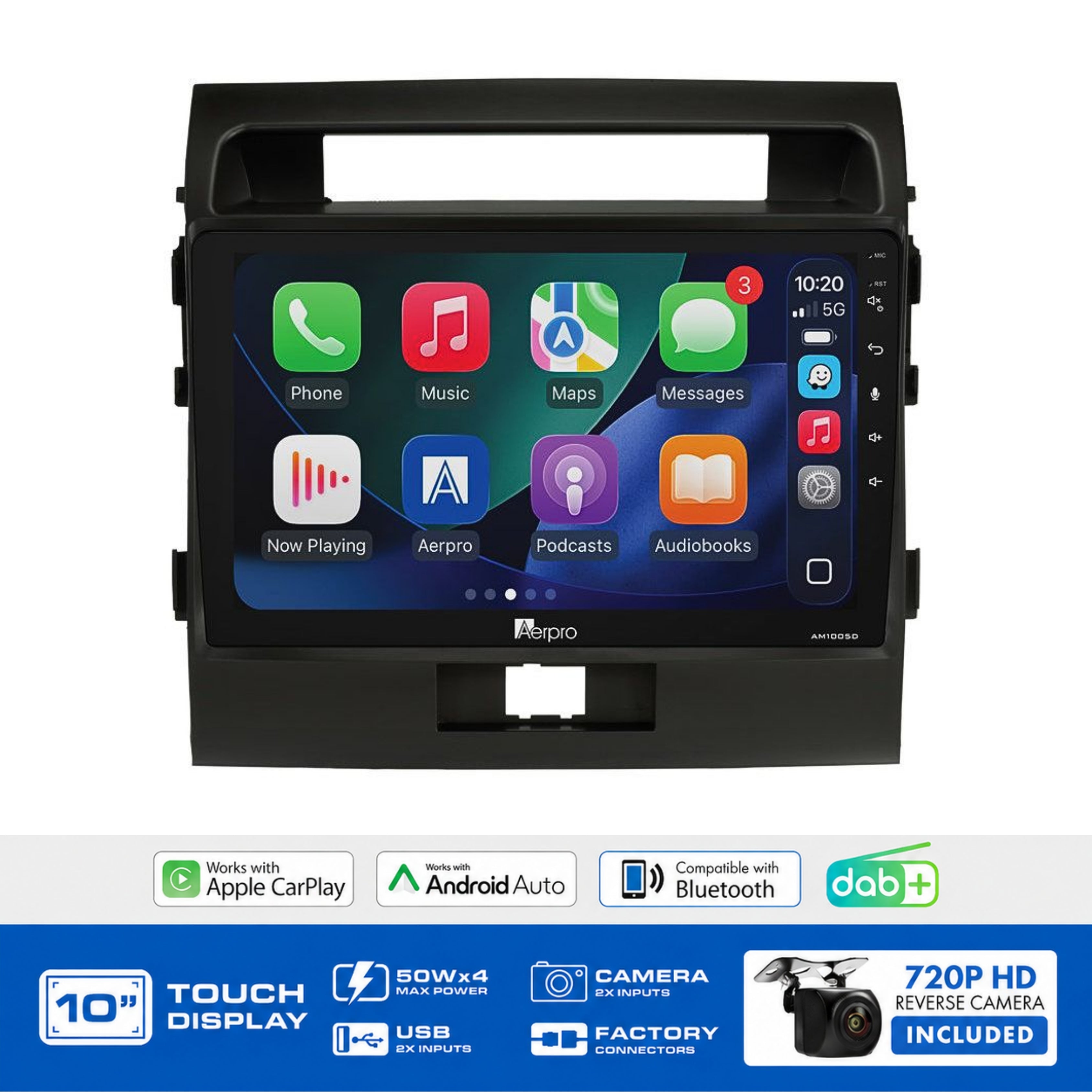

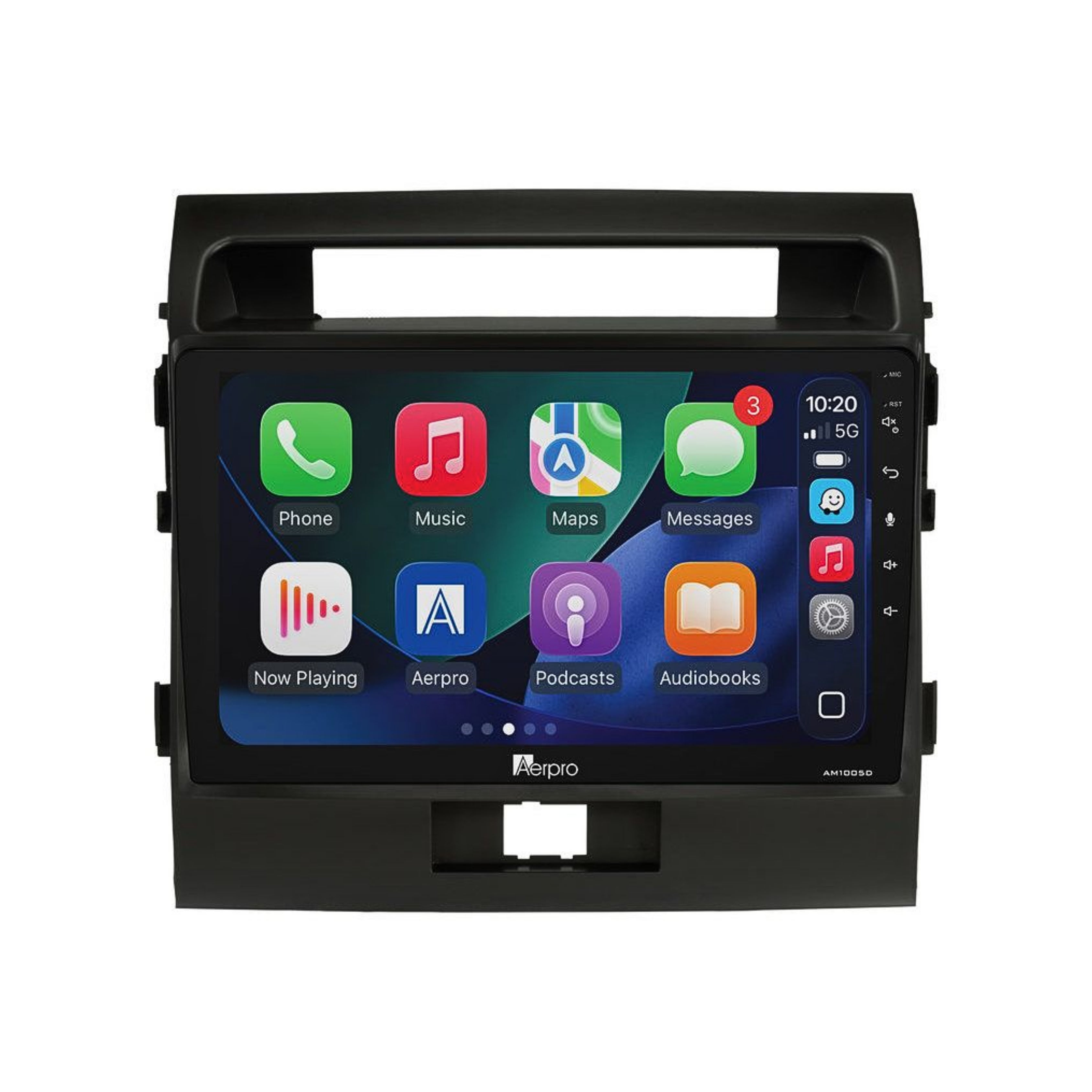

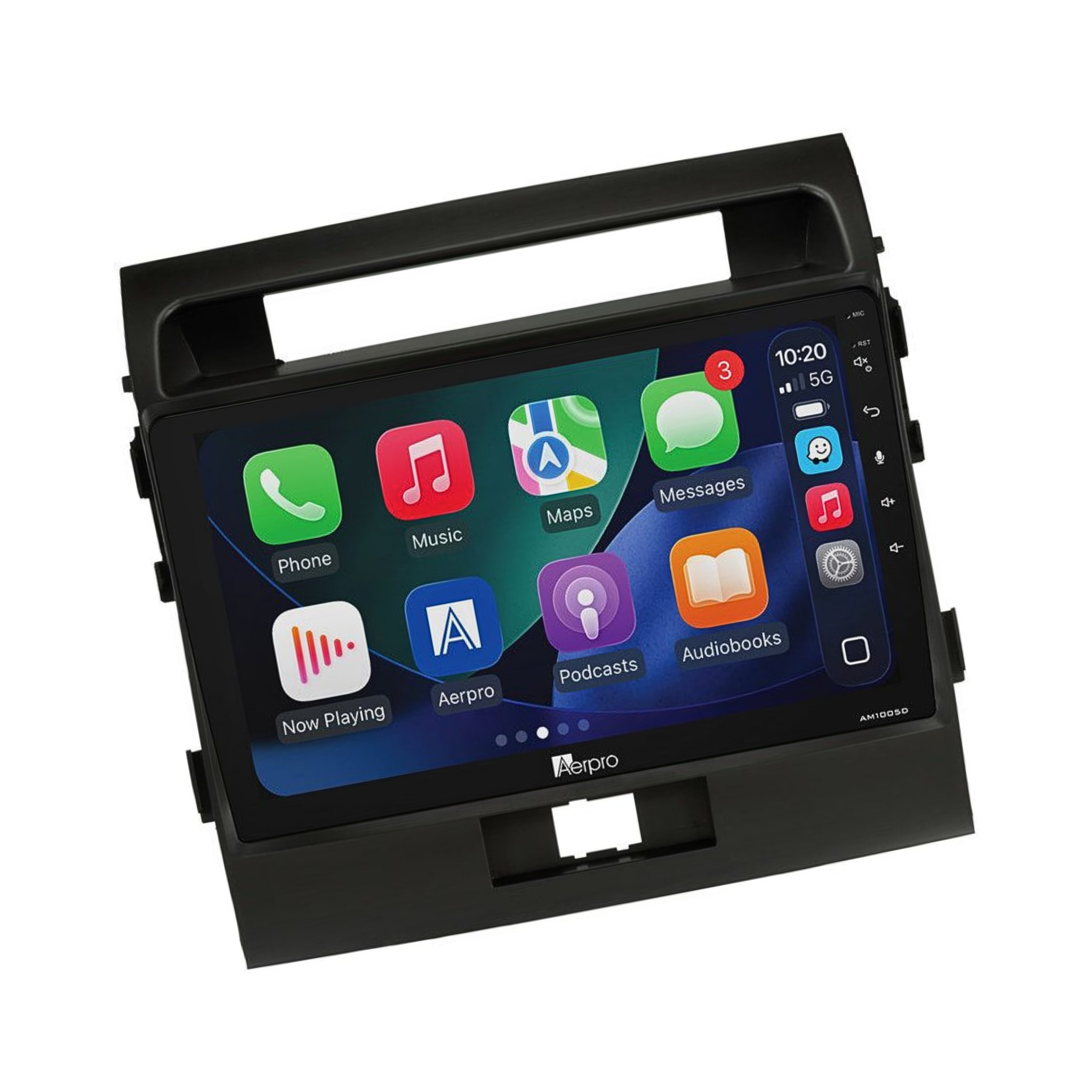

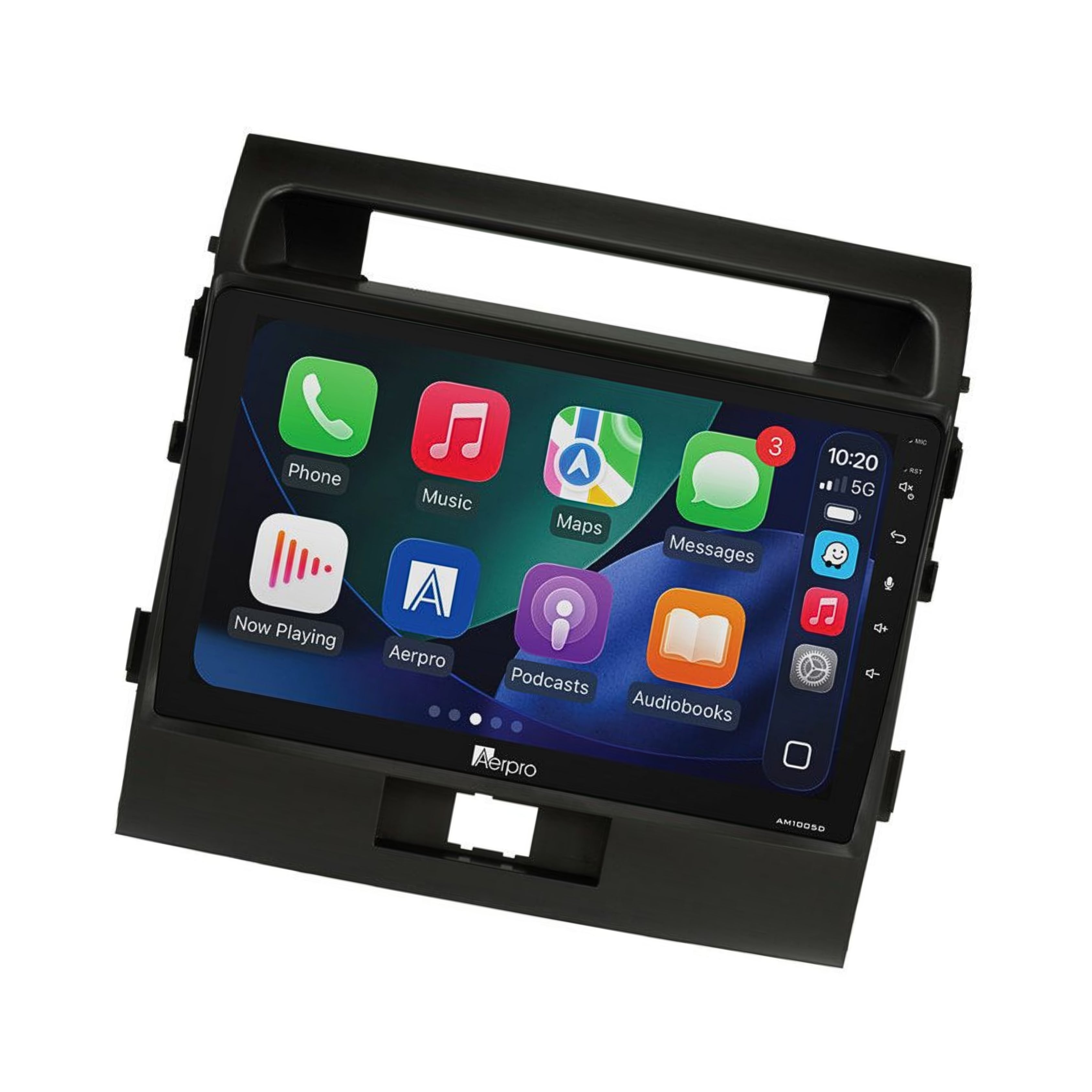

Complete 10" Head Unit Upgrade Kit for Toyota LandCruiser 200 Series GXL/VX 2007–2011 (With SWC) Wireless Apple CarPlay, Android Auto, DAB+, Bluetooth 5, SWC & Factory Reverse Camera Retained, Rear Camera Included.
Product Overview
The Aerpro AMDTO17 is a complete head unit upgrade kit specifically designed for the Toyota LandCruiser 200 Series GXL and VX (2007–2011) with factory steering wheel controls. This kit uses the AM1005D 10" multimedia receiver and retains steering wheel controls and factory reverse camera (if equipped, model dependent).
Everything required for installation is included the AM1005D multimedia receiver, matte black fascia kit, steering wheel control interface harness, SWC patch lead, antenna adaptor, camera retention adaptor, and a 720P AHD universal rear camera.
Important: Does not suit Sahara models. Suits GXL and VX models with steering wheel controls only. The park brake wire must be connected to the park brake for Apple CarPlay and Android Auto to function. Reverse camera retention uses the reverse camera input of the head unit and only suits selected vehicle models. Factory amplifier is not supported.
Kit Inclusions
- AM1005D 10" Multimedia Receiver
- Matte Black Fascia Kit
- Steering Wheel Control Interface Harness
- SWC Patch Lead
- Antenna Adaptor
- Camera Retention Adaptor
- 720P AHD Universal Rear Camera
Vehicle Feature Retention
| Feature |
Retained |
| Steering Wheel Controls |
Yes |
| Factory Reverse Camera |
Yes (if equipped, model dependent) |
| USB Input |
N/A |
| AUX Input |
N/A |
| Factory Amplifier |
No |
| Vehicle Menu |
N/A |
Key Specifications
- Screen: 10" capacitive touchscreen 1024x600 resolution
- Wireless CarPlay & Android Auto: Yes (wired also supported)
- DAB+ digital radio: Yes (AM/FM with RDS also included)
- Bluetooth: V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP)
- Max power output: 4 x 50W
- RCA preouts: 4V / 5-channel (Front/Rear/Subwoofer)
- 13-band EQ and time alignment: Yes
- USB inputs: 2 x rear USB (FAT32 / 32GB max)
- Reverse camera input: Yes (720P AHD compatible)
- Second camera input: Yes (720P AHD compatible)
- LED button illumination: 6-colour selectable
- Rear camera: 720P AHD universal included
Features & Benefits
-
Suits GXL and VX with SWC not Sahara:Â Specifically designed for LandCruiser 200 Series GXL and VX variants with factory SWC; does not suit Sahara models
-
Factory reverse camera retained: If equipped and model dependent, retained via the included camera retention adaptor uses the reverse camera input of the head unit
-
Steering wheel controls retained:Â Full SWC retained via the included harness and patch lead
-
10" touchscreen:Â Large AM1005D 10" display
-
Wireless Apple CarPlay & Android Auto:Â Wire-free phone integration; wired connection also supported
-
DAB+ digital radio built-in:Â Crystal-clear digital radio plus AM/FM and RDS
-
Bluetooth 5 with HD Voice:Â Crisp hands-free calling and wireless audio streaming
-
720P AHD rear camera included: Immediate reversing visibility additional front or tow camera input also available
-
4x50W output with 5-channel preouts:Â High-power audio with amplifier expansion capability
Technical Specs
| Specification |
Detail |
| SKU |
AMDTO17 |
| Brand |
Aerpro |
| Receiver Model |
AM1005D |
| Screen Size |
10" |
| Resolution |
1024x600 |
| Touchscreen |
Capacitive |
| OS |
Linux |
| DIN Format |
Fixed Screen Trapezoid |
| Max Power |
4CH x 50W |
| RCA Preouts |
4V / 5-channel |
| Wireless CarPlay/Android Auto |
Yes |
| DAB+ |
Yes |
| AM/FM Presets |
AM 12 / FM 18 |
| Bluetooth |
V5 (A2DP, AVRCP, HFP 1.6, PBAP) |
| USB Inputs |
2 x Rear (FAT32 / 32GB max) |
| Reverse Camera Input |
Yes (720P AHD compatible) |
| Second Camera Input |
Yes (720P AHD compatible) |
| EQ |
13-band |
| Time Alignment |
Yes |
| LED Illumination |
6-colour selectable |
| SWC Retained |
Yes |
| Factory Reverse Camera |
Yes (if equipped, model dependent) |
| Factory Amplifier |
No |
| Kit Includes Rear Camera |
Yes 720P AHD universal |
| Suits |
Toyota LandCruiser 200 Series GXL/VX 2007–2011 (with SWC) |
Compatible Vehicles
- Toyota LandCruiser 200 Series GXL 2007–2011 (with SWC)
- Toyota LandCruiser 200 Series VX 2007–2011 (with SWC)
Frequently Asked Questions
Does this kit suit the LandCruiser 200 Series Sahara?
No the AMDTO17 does not suit Sahara models. It suits GXL and VX variants with factory steering wheel controls only.
Does this kit retain the factory reverse camera?
Yes if equipped and model dependent, the factory reverse camera is retained via the camera retention adaptor. Reverse camera retention uses the reverse camera input and only suits selected vehicle models confirm your specific model before purchasing.
Does the park brake wire need to be connected?
Yes the park brake wire must be connected to the park brake for Apple CarPlay and Android Auto to function.
Is the factory amplifier retained?
No factory amplifier is not supported by the AMDTO17.
What is the return policy for this product?
Return eligibility is subject to the retailer's policy. Always verify vehicle and system compatibility before purchasing.
