Description
Complete 10" Head Unit Upgrade Kit for Toyota Hilux 2020-On (Non-Amplified) Wireless Apple CarPlay, Android Auto, DAB+, Bluetooth 5, SWC Including Phone Button, AUX & Factory Reverse Camera Retained, Rear Camera Included.
Product Overview

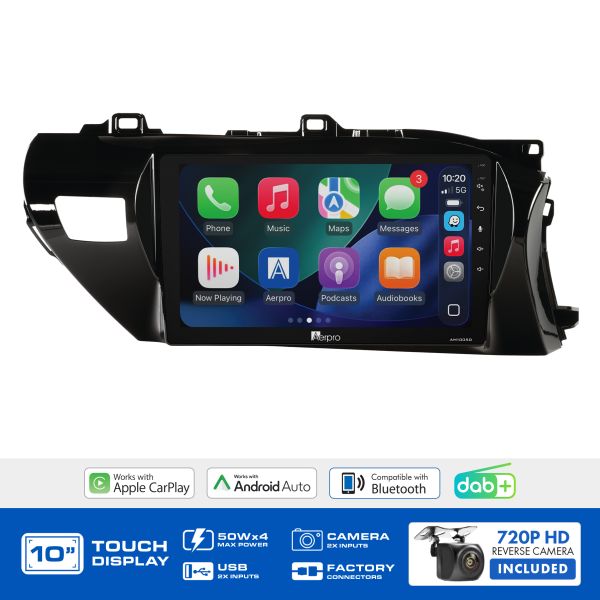

The Aerpro AMDTO3 is a complete head unit upgrade kit specifically designed for the Toyota Hilux (2020-on) without a factory amplified system. This kit uses the AM1005D 10" multimedia receiver. Everything required for installation is included the AM1005D multimedia receiver, gloss black fascia kit, steering wheel control interface harness (with camera retention), SWC patch lead, antenna adaptor, and a 720P AHD universal rear camera.
Steering wheel controls (including phone button), AUX input, and factory reverse camera (if equipped) are retained. Note that AUX retention requires an additional 3.5mm to RCA adaptor (sold separately) and factory USB input is not retained.
Important: Suits non-amplified vehicles only. The park brake wire must be connected to the park brake for Apple CarPlay and Android Auto to function. Reverse camera retention uses the reverse camera input of the head unit. AUX input retention requires a 3.5mm to RCA adaptor (sold separately).
Kit Inclusions
- AM1005D 10" Multimedia Receiver
- Gloss Black Fascia Kit
- Steering Wheel Control Interface Harness (with camera retention)
- SWC Patch Lead
- Antenna Adaptor
- 720P AHD Universal Rear Camera
Vehicle Feature Retention
| Feature |
Retained |
| Steering Wheel Controls |
Yes (including phone button) |
| Factory Reverse Camera |
Yes (if equipped) |
| AUX Input |
Yes (3.5mm to RCA adaptor required sold separately) |
| USB Input |
No |
| Factory Amplifier |
No |
| Vehicle Menu |
N/A |
Key Specifications
- Screen: 10" capacitive touchscreen 1024x600 resolution
- Wireless CarPlay & Android Auto: Yes (wired also supported)
- DAB+ digital radio: Yes (AM/FM with RDS also included)
- Bluetooth: V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP)
- Max power output: 4 x 50W
- RCA preouts: 4V / 5-channel (Front/Rear/Subwoofer)
- 13-band EQ and time alignment: Yes
- USB inputs: 2 x rear USB (FAT32 / 32GB max)
- Reverse camera input: Yes (720P AHD compatible)
- Second camera input: Yes (720P AHD compatible)
- LED button illumination: 6-colour selectable
- Rear camera: 720P AHD universal included
Features & Benefits
-
Suits non-amplified Hilux 2020-on: Specifically for non-amplified models factory amplifier is not supported
-
Factory reverse camera retained: If equipped, retained via the SWC harness (camera retention integrated) uses the reverse camera input of the head unit
-
AUX input retained: AUX retained a 3.5mm to RCA adaptor is required and sold separately
-
Steering wheel controls retained including phone button:Â Full SWC including phone button retained via the included harness and patch lead
-
Factory USB not retained:Â Confirm this suits your requirements before purchasing
-
Gloss black fascia:Â Premium gloss black finish suited to the Hilux interior
-
Wireless Apple CarPlay & Android Auto:Â Wire-free phone integration; wired connection also supported
-
DAB+ digital radio built-in:Â Crystal-clear digital radio plus AM/FM and RDS
-
Bluetooth 5 with HD Voice:Â Crisp hands-free calling and wireless audio streaming
-
10" capacitive touchscreen:Â Large, smooth 1024x600 display
-
720P AHD rear camera included: Immediate reversing visibility additional front or tow camera input also available
-
4x50W output with 5-channel preouts:Â High-power audio with amplifier expansion capability
Technical Specs
| Specification |
Detail |
| SKU |
AMDTO3 |
| Brand |
Aerpro |
| Receiver Model |
AM1005D |
| Screen Size |
10" |
| Resolution |
1024x600 |
| Touchscreen |
Capacitive |
| OS |
Linux |
| DIN Format |
Fixed Screen Trapezoid |
| Max Power |
4CH x 50W |
| RCA Preouts |
4V / 5-channel |
| Wireless CarPlay/Android Auto |
Yes |
| DAB+ |
Yes |
| AM/FM Presets |
AM 12 / FM 18 |
| Bluetooth |
V5 (A2DP, AVRCP, HFP 1.6, PBAP) |
| USB Inputs |
2 x Rear (FAT32 / 32GB max) |
| Reverse Camera Input |
Yes (720P AHD compatible) |
| Second Camera Input |
Yes (720P AHD compatible) |
| EQ |
13-band |
| Time Alignment |
Yes |
| LED Illumination |
6-colour selectable |
| SWC Retained |
Yes (including phone button) |
| Factory Reverse Camera |
Yes (if equipped) |
| AUX Input Retained |
Yes (3.5mm to RCA adaptor required sold separately) |
| USB Input Retained |
No |
| Factory Amplifier |
No |
| Kit Includes Rear Camera |
Yes 720P AHD universal |
| Suits |
Toyota Hilux 2020-on (non-amplified) |
Compatible Vehicles
- Toyota Hilux 2020–2025 (non-amplified)
Frequently Asked Questions
Does this kit suit amplified Hilux models?
No the AMDTO3 suits non-amplified Toyota Hilux 2020-on models only. Factory amplifier is not supported.
Does AUX input retention require an additional adaptor?
Yes AUX input retention requires an additional 3.5mm to RCA adaptor, sold separately.
Is factory USB input retained?
No factory USB input retention is not supported by the AMDTO3.
Does the park brake wire need to be connected?
Yes the park brake wire must be connected to the park brake for Apple CarPlay and Android Auto to function.
What is the return policy for this product?
Return eligibility is subject to the retailer's policy. Always verify vehicle and system compatibility before purchasing.
