Description
Complete 9" Head Unit Upgrade Kit for Toyota LandCruiser 70 Series 2023-On Wireless Apple CarPlay, Android Auto, DAB+, Bluetooth 5, SWC Retained, Rear Camera Included.
Product Overview

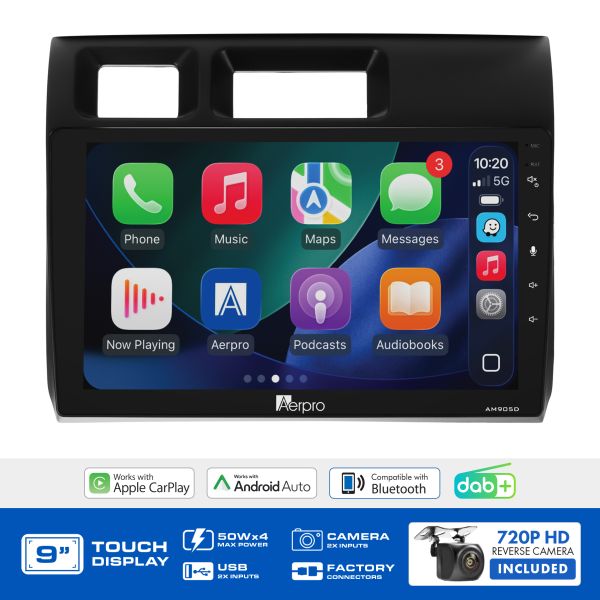

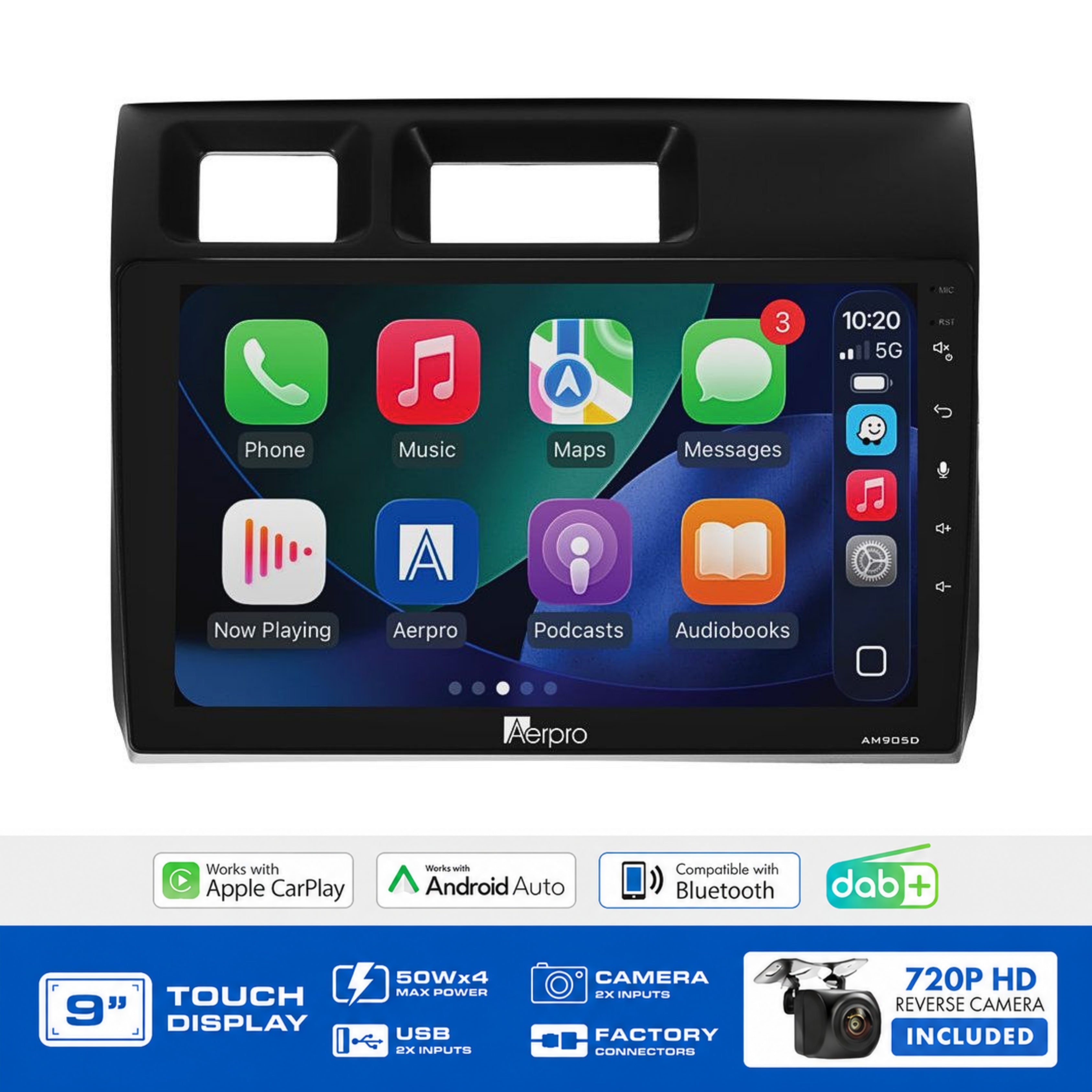

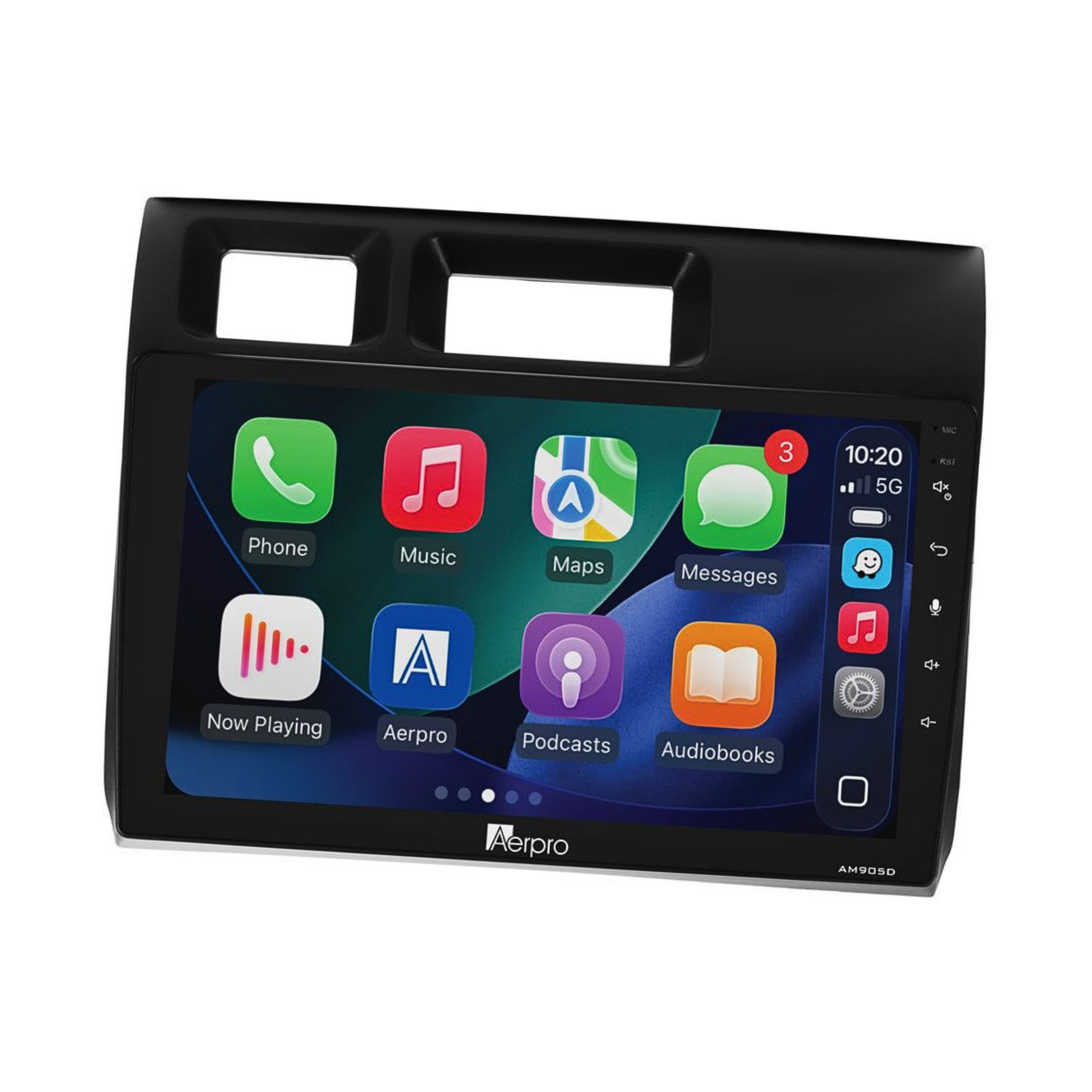

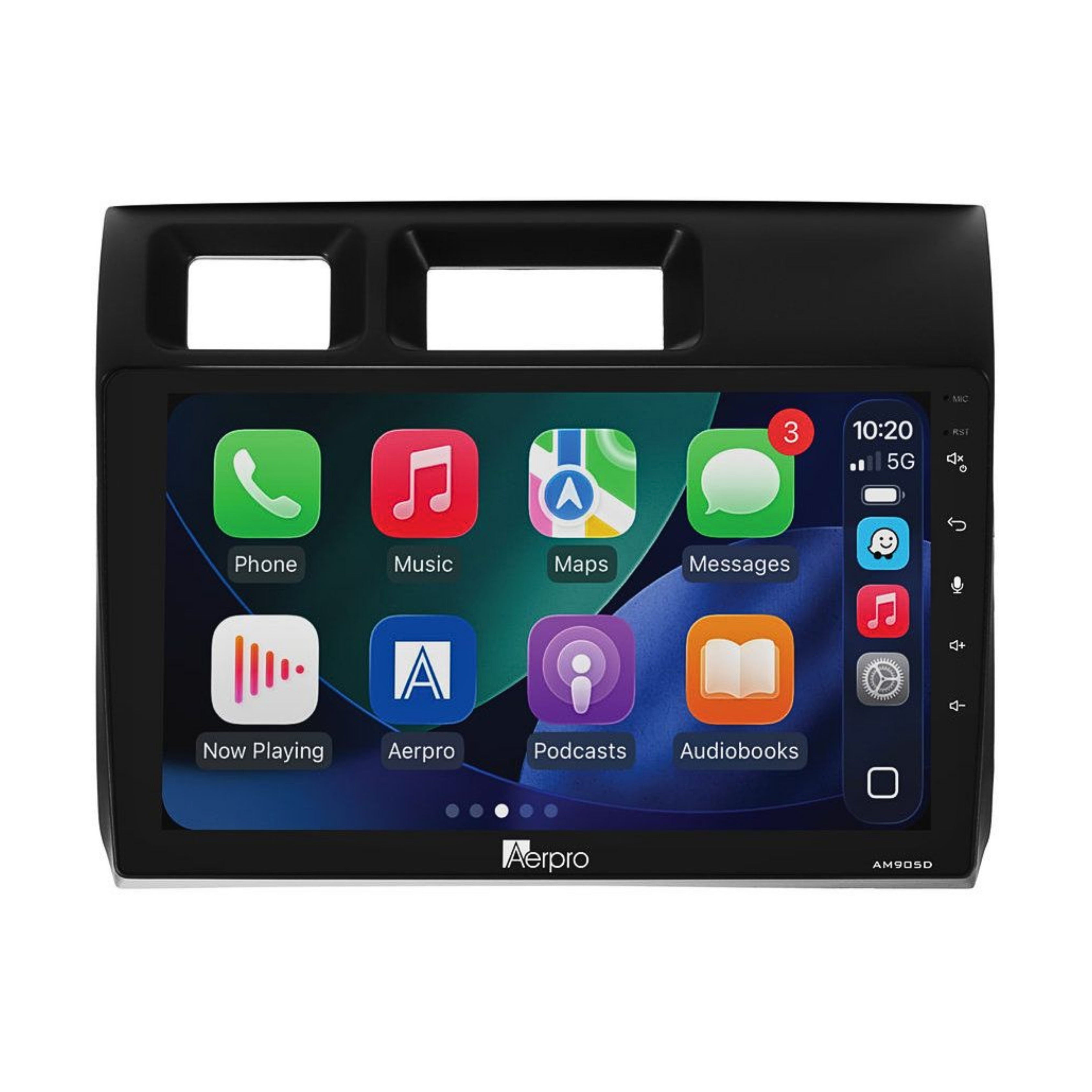

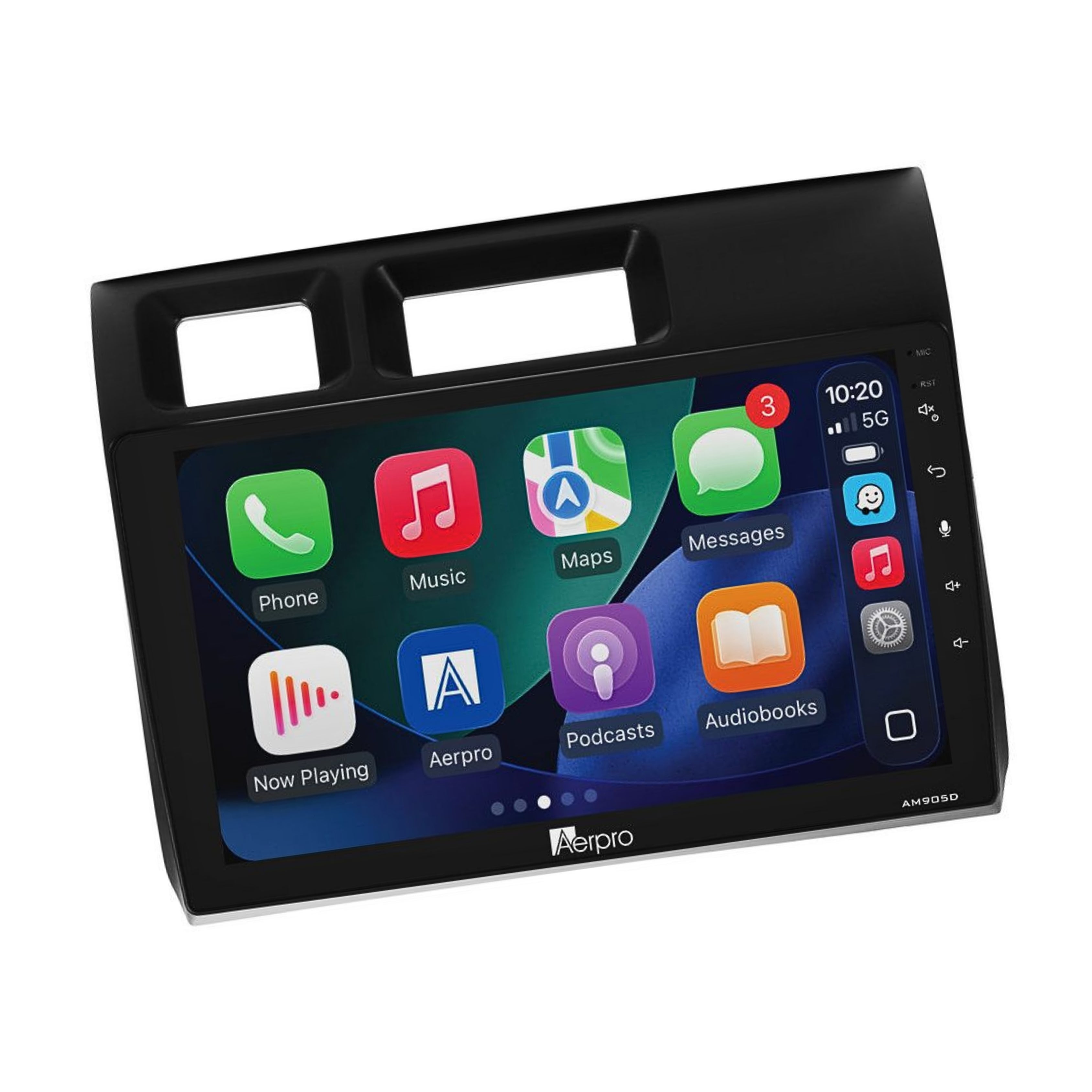

The Aerpro AMDTO35 is a complete head unit upgrade kit specifically designed for the Toyota LandCruiser 70 Series (2023-on). Everything required for installation is included the AM905D multimedia receiver, matte black fascia kit, steering wheel control interface harness, antenna adaptor, and a 720P AHD universal rear camera. Steering wheel controls are retained.
The AM905D features a 9" capacitive touchscreen (1024x600), wireless Apple CarPlay and Android Auto, built-in DAB+ digital radio, Bluetooth 5, and 4x50W output with 13-band EQ and 4V/5CH RCA preouts.
Important: Factory reverse camera and factory USB input are not retained by this kit. The included 720P AHD rear camera provides reversing visibility as a replacement. Always verify fitment using the Aerpro What Fits Your Car Guide.
Kit Inclusions
- AM905D 9" Multimedia Receiver
- Matte Black Fascia Kit
- Steering Wheel Control Interface Harness
- Antenna Adaptor
- 720P AHD Universal Rear Camera
Vehicle Feature Retention
| Feature |
Retained |
| Steering Wheel Controls |
Yes |
| Factory Reverse Camera |
No |
| USB Input |
No |
| AUX Input |
N/A |
| Factory Amplifier |
N/A |
| Vehicle Menu |
N/A |
Key Specifications
- Screen: 9" capacitive touchscreen 1024x600 resolution
- Wireless CarPlay & Android Auto: Yes (wired also supported)
- DAB+ digital radio: Yes (AM/FM with RDS also included)
- Bluetooth: V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP)
- Max power output: 4 x 50W
- RCA preouts: 4V / 5-channel (Front/Rear/Subwoofer)
- 13-band EQ and time alignment: Yes
- USB inputs: 2 x rear USB (FAT32 / 32GB max)
- Reverse camera input: Yes (720P AHD compatible)
- Second camera input: Yes (720P AHD compatible)
- LED button illumination: 6-colour selectable
- Rear camera: 720P AHD universal included
Features & Benefits
-
Steering wheel controls retained:Â Factory SWC retained via the included harness
-
Factory reverse camera not retained:Â The included 720P AHD rear camera provides reversing visibility as a replacement
-
Factory USB not retained:Â Confirm this suits your requirements before purchasing
-
Wireless Apple CarPlay & Android Auto:Â Wire-free phone integration; wired connection also supported
-
DAB+ digital radio built-in:Â Crystal-clear digital radio plus AM/FM and RDS
-
Bluetooth 5 with HD Voice:Â Crisp hands-free calling and wireless audio streaming
-
9" capacitive touchscreen:Â Large, smooth 1024x600 display
-
720P AHD rear camera included: Immediate reversing visibility additional front or tow camera input also available
-
4x50W output with 5-channel preouts:Â High-power audio with amplifier expansion capability
-
13-band EQ with time alignment:Â Precision audio tuning
Technical Specs
| Specification |
Detail |
| SKU |
AMDTO35 |
| Brand |
Aerpro |
| Screen Size |
9" |
| Resolution |
1024x600 |
| Touchscreen |
Capacitive |
| OS |
Linux |
| DIN Format |
Fixed Screen Trapezoid |
| Max Power |
4CH x 50W |
| RCA Preouts |
4V / 5-channel |
| Wireless CarPlay/Android Auto |
Yes |
| DAB+ |
Yes |
| AM/FM Presets |
AM 12 / FM 18 |
| Bluetooth |
V5 (A2DP, AVRCP, HFP 1.6, PBAP) |
| USB Inputs |
2 x Rear (FAT32 / 32GB max) |
| Reverse Camera Input |
Yes (720P AHD compatible) |
| Second Camera Input |
Yes (720P AHD compatible) |
| EQ |
13-band |
| Time Alignment |
Yes |
| LED Illumination |
6-colour selectable |
| SWC Retained |
Yes |
| Factory Reverse Camera |
No 720P AHD camera included as replacement |
| USB Input Retained |
No |
| AUX Input Retained |
N/A |
| Kit Includes Rear Camera |
Yes 720P AHD universal |
| Suits |
Toyota LandCruiser 70 Series 2023-on |
Compatible Vehicles
- Toyota LandCruiser 70 Series 2023-on
Frequently Asked Questions
Does this kit retain the factory reverse camera?
No factory reverse camera retention is not supported. The included 720P AHD universal rear camera provides reversing visibility on the aftermarket head unit.
Does this kit retain the factory USB input?
No factory USB input retention is not supported by the AMDTO35.
Does this kit retain steering wheel controls?
Yes the included steering wheel control interface harness retains factory SWC function.
Is a rear camera included?
Yes a 720P AHD universal rear camera is included. An additional camera input is also available for a front or tow camera.
What is the return policy for this product?
Return eligibility is subject to the retailer's policy. Always verify vehicle and system compatibility before purchasing.
