Description

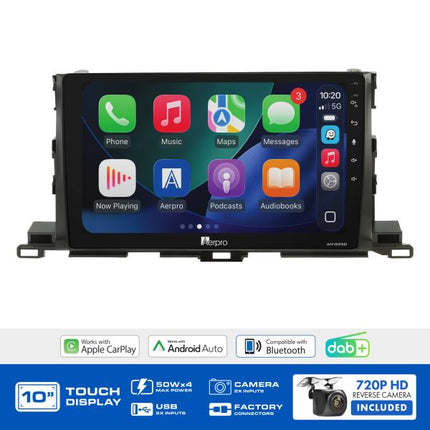

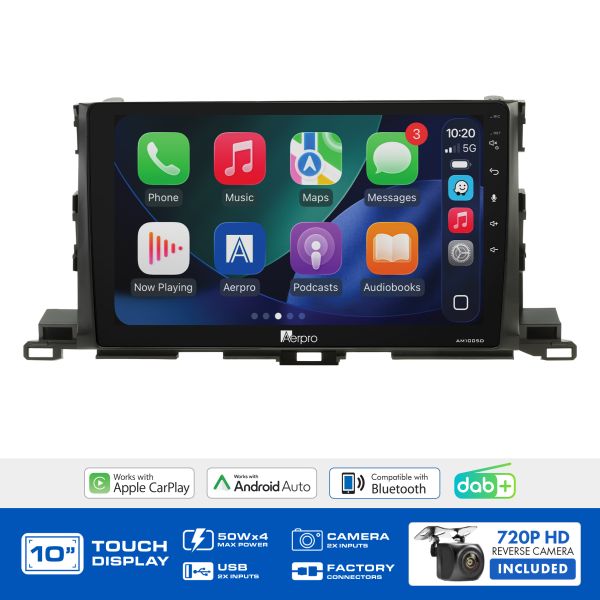

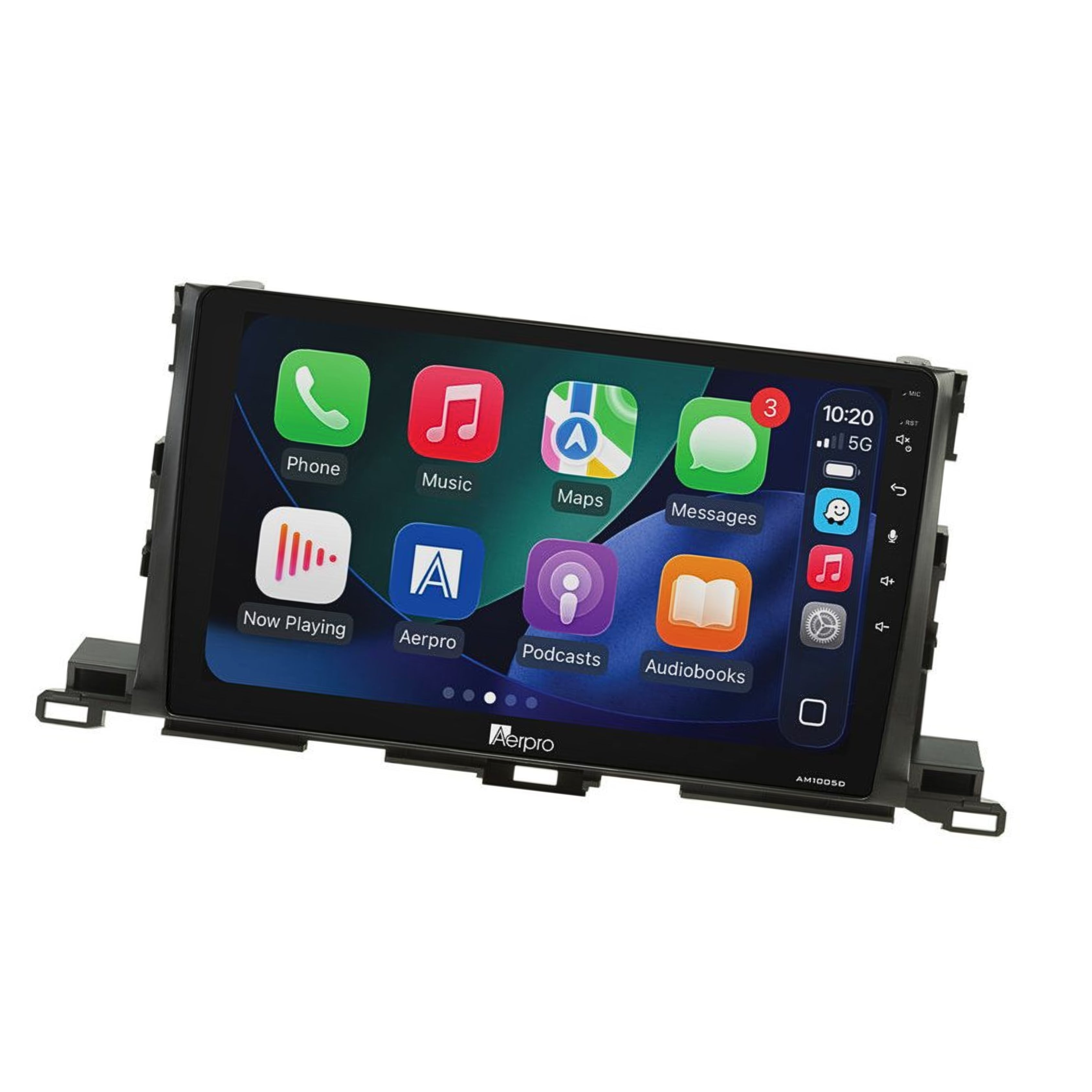

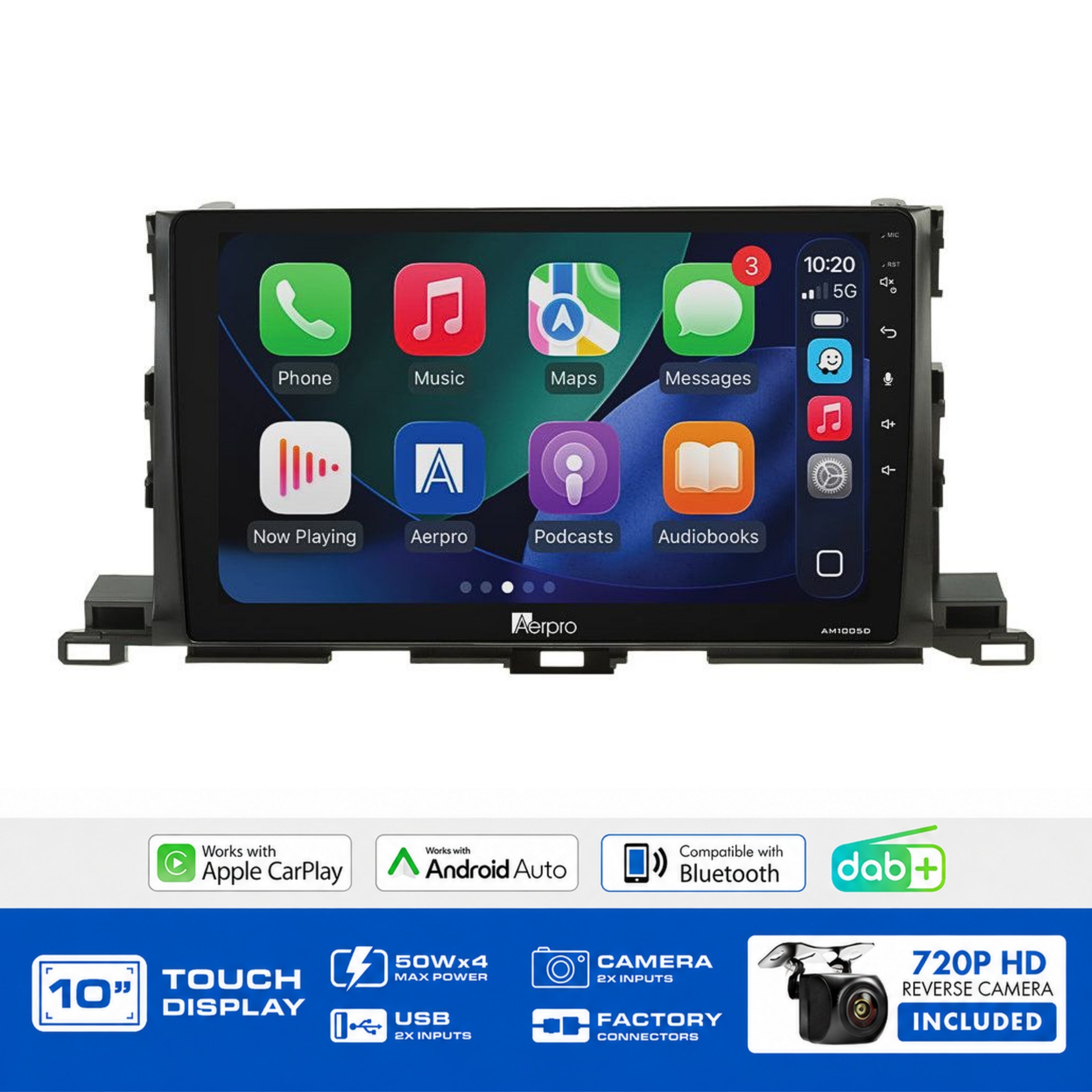

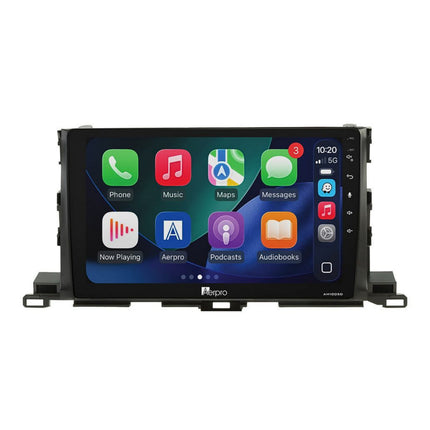

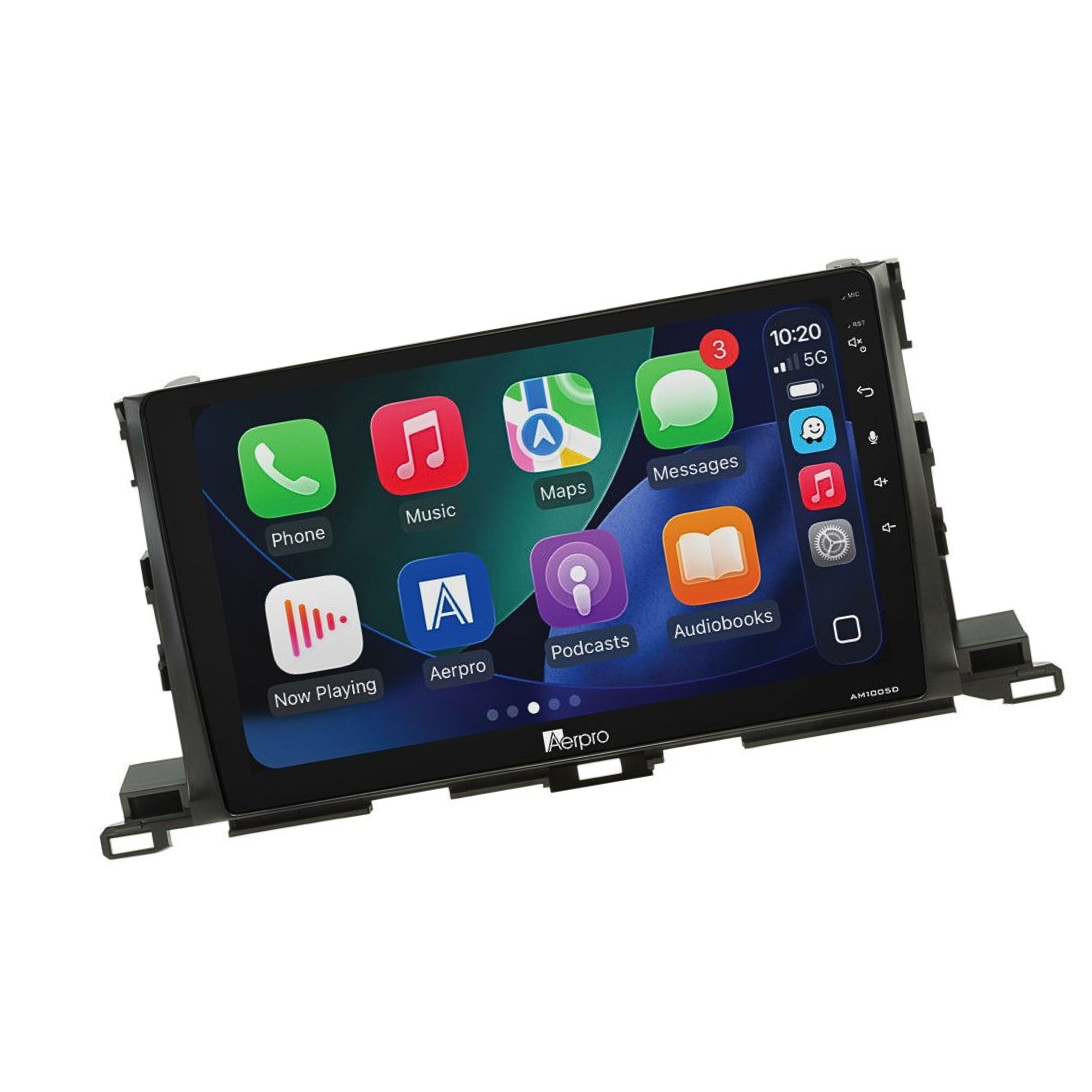

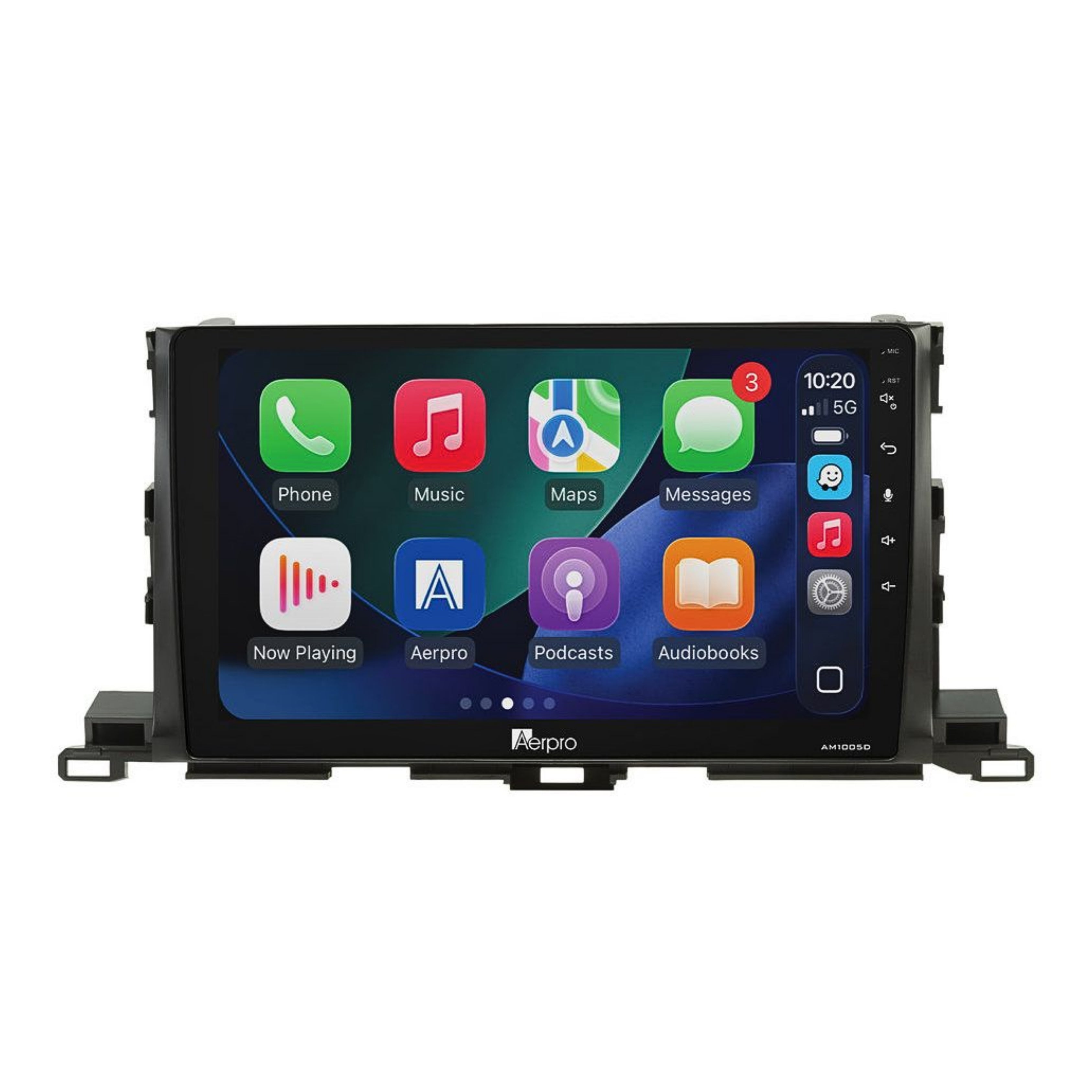

Complete 10" Head Unit Upgrade Kit for Toyota Kluger 2014–2019 (360° Camera Models) Wireless Apple CarPlay, Android Auto, DAB+, Bluetooth 5, SWC Phone Button, USB, AUX, 360° Camera & Factory Amplifier Retained, Rear Camera Included.
Product Overview
The Aerpro AMDTO38 is a complete head unit upgrade kit designed for the Toyota Kluger (2014–2019) with 360° reverse camera one of the most feature-complete Toyota kits in this session, retaining steering wheel controls (including phone button), factory USB, AUX, factory 360° reverse camera, and the factory amplifier. The factory amplifier is retained note that fade control is not supported for amplified vehicles.
Everything required for installation is included the AM1005D multimedia receiver, matte black fascia kit, steering wheel control interface harness, SWC patch lead, antenna adaptor, 360 camera retention adaptor, USB retention adaptor, and a 720P AHD universal rear camera.
Important: The fascia kit included is designed for left-hand drive (LHD) vehicles. It will fit RHD Australian vehicles without modification, but it is recommended to remove the clip at the bottom behind the factory silver trim to prevent the factory panel from bowing slightly. 360° camera retention uses the reverse camera input. USB retention uses the rear USB input. AUX retention uses the RCA AUX input. Amplified vehicles do not support fade control.
Kit Inclusions
- AM1005D 10" Multimedia Receiver
- Matte Black Fascia Kit (LHD design fits RHD without modification)
- Steering Wheel Control Interface Harness
- SWC Patch Lead
- Antenna Adaptor
- 360 Camera Retention Adaptor
- USB Retention Adaptor
- 720P AHD Universal Rear Camera
Vehicle Feature Retention
| Feature |
Retained |
| Steering Wheel Controls |
Yes (including phone button) |
| Factory 360° Reverse Camera |
Yes |
| USB Input |
Yes (if equipped) |
| AUX Input |
Yes (if equipped) |
| Factory Amplifier |
Yes (fade not supported) |
| Parking Tones |
N/A |
| Vehicle Menu |
N/A |
Key Specifications
- Screen: 10" capacitive touchscreen 1024x600 resolution
- Wireless CarPlay & Android Auto: Yes (wired also supported)
- DAB+ digital radio: Yes (AM/FM with RDS also included)
- Bluetooth: V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP)
- Max power output: 4 x 50W
- RCA preouts: 4V / 5-channel (Front/Rear/Subwoofer)
- 13-band EQ and time alignment: Yes
- USB inputs: 2 x rear USB (FAT32 / 32GB max)
- Reverse camera input: Yes (720P AHD compatible)
- Second camera input: Yes (720P AHD compatible)
- LED button illumination: 6-colour selectable
- Rear camera: 720P AHD universal included
Features & Benefits
-
Factory amplifier retained: The factory amplifier is retained the only Toyota kit in this session with factory amplifier retention. Note: fade control is not supported on amplified vehicles
-
Factory 360° reverse camera retained: Full 360° reverse camera system retained via the included 360 camera retention adaptor uses the reverse camera input of the head unit
-
Steering wheel controls retained including phone button:Â Full SWC including phone button retained via the included harness and patch lead
-
Factory USB and AUX retained: Both retained if equipped USB uses rear USB input; AUX uses RCA AUX input
-
LHD fascia with RHD fit note: Fascia is LHD design but fits RHD vehicles without modification recommended to remove the clip at the bottom behind the factory silver trim
-
Wireless Apple CarPlay & Android Auto:Â Wire-free phone integration; wired connection also supported
-
DAB+ digital radio built-in:Â Crystal-clear digital radio plus AM/FM and RDS
-
Bluetooth 5 with HD Voice:Â Crisp hands-free calling and wireless audio streaming
-
10" capacitive touchscreen:Â Large, smooth 1024x600 display
-
720P AHD rear camera included: Immediate reversing visibility additional front or tow camera input also available
-
4x50W output with 5-channel preouts:Â High-power audio with further amplifier expansion capability
Technical Specs
| Specification |
Detail |
| SKU |
AMDTO38 |
| Brand |
Aerpro |
| Receiver Model |
AM1005D |
| Screen Size |
10" |
| Resolution |
1024x600 |
| Touchscreen |
Capacitive |
| OS |
Linux |
| DIN Format |
Fixed Screen Trapezoid |
| Max Power |
4CH x 50W |
| RCA Preouts |
4V / 5-channel |
| Wireless CarPlay/Android Auto |
Yes |
| DAB+ |
Yes |
| AM/FM Presets |
AM 12 / FM 18 |
| Bluetooth |
V5 (A2DP, AVRCP, HFP 1.6, PBAP) |
| USB Inputs |
2 x Rear (FAT32 / 32GB max) |
| Reverse Camera Input |
Yes (720P AHD compatible) |
| Second Camera Input |
Yes (720P AHD compatible) |
| EQ |
13-band |
| Time Alignment |
Yes |
| LED Illumination |
6-colour selectable |
| SWC Retained |
Yes (including phone button) |
| Factory 360° Camera Retained |
Yes |
| USB Input Retained |
Yes (if equipped) |
| AUX Input Retained |
Yes (if equipped) |
| Factory Amplifier Retained |
Yes (fade not supported) |
| Kit Includes Rear Camera |
Yes 720P AHD universal |
| Suits |
Toyota Kluger 2014–2019 (360° camera models) |
Compatible Vehicles
- Toyota Kluger 2014–2019 (360° camera models)
Frequently Asked Questions
Is the fascia compatible with Australian right-hand drive vehicles?
Yes the fascia is designed for LHD vehicles but fits RHD Australian vehicles without modification. It is recommended to remove the clip at the bottom behind the factory silver trim to prevent the factory panel from bowing slightly.
Does this kit suit Kluger models without a 360° camera?
This kit is designed for 360° camera models. Use the Aerpro What Fits Your Car Guide to find the correct kit for non-360° Kluger models.
Is the factory amplifier retained?
Yes the factory amplifier is retained. Note that fade control is not supported on amplified vehicles.
Does this retain the factory 360° reverse camera?
Yes the full factory 360° reverse camera system is retained via the included 360 camera retention adaptor. 360° camera retention uses the reverse camera input of the head unit.
What is the return policy for this product?
Return eligibility is subject to the retailer's policy. Always verify vehicle and system compatibility before purchasing.
