Description

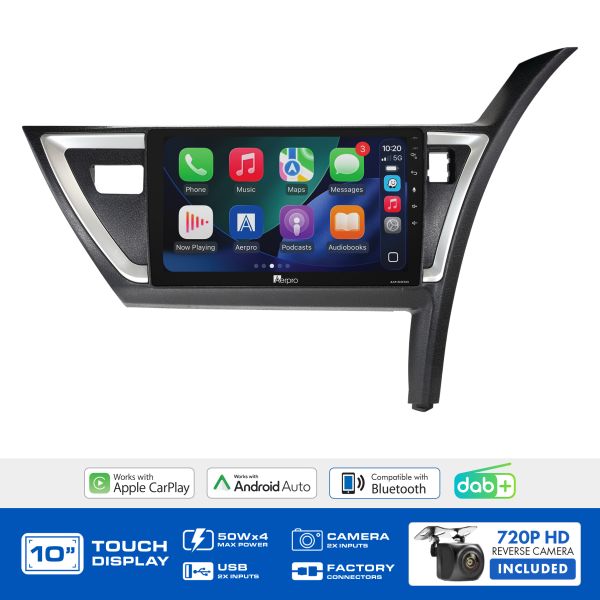

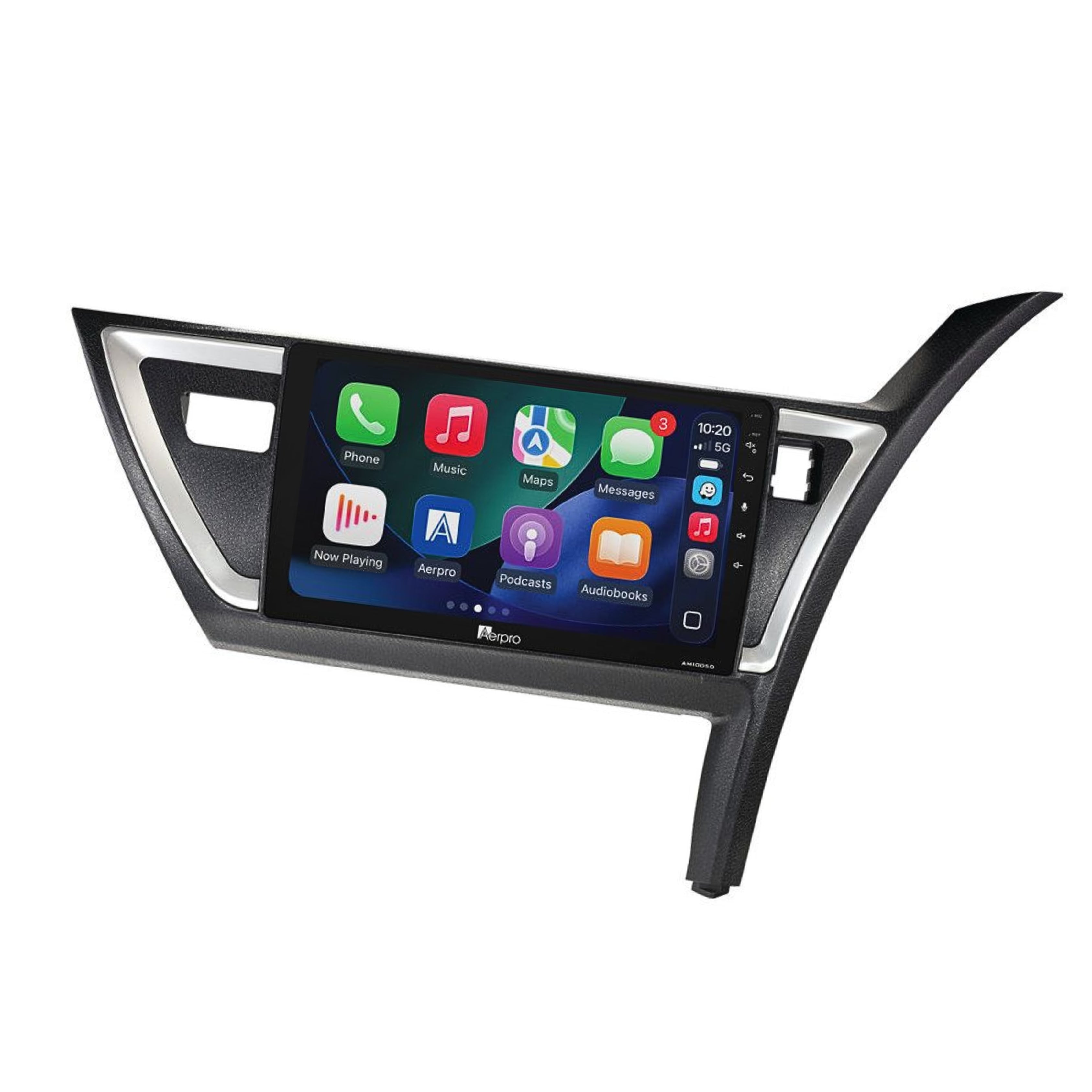

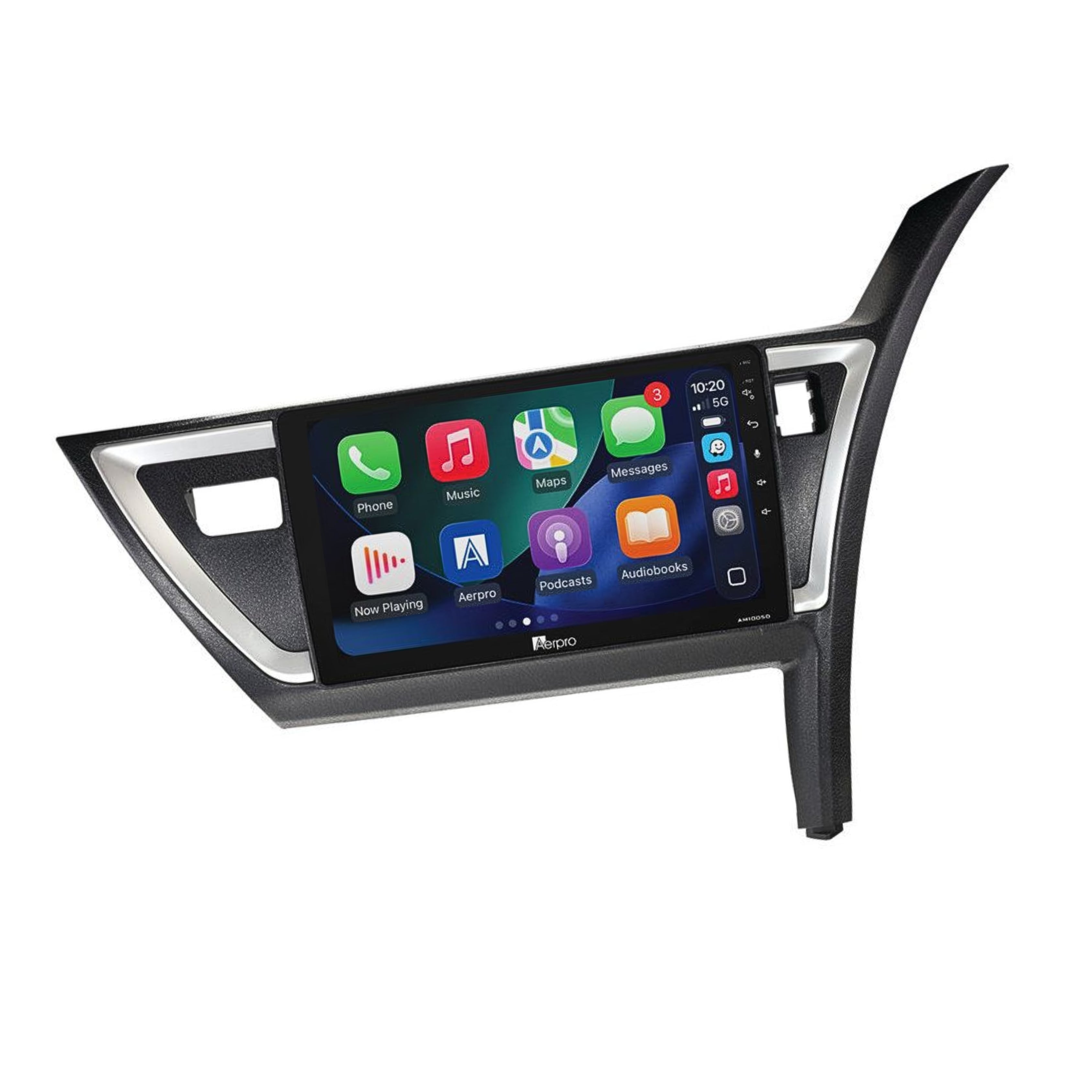

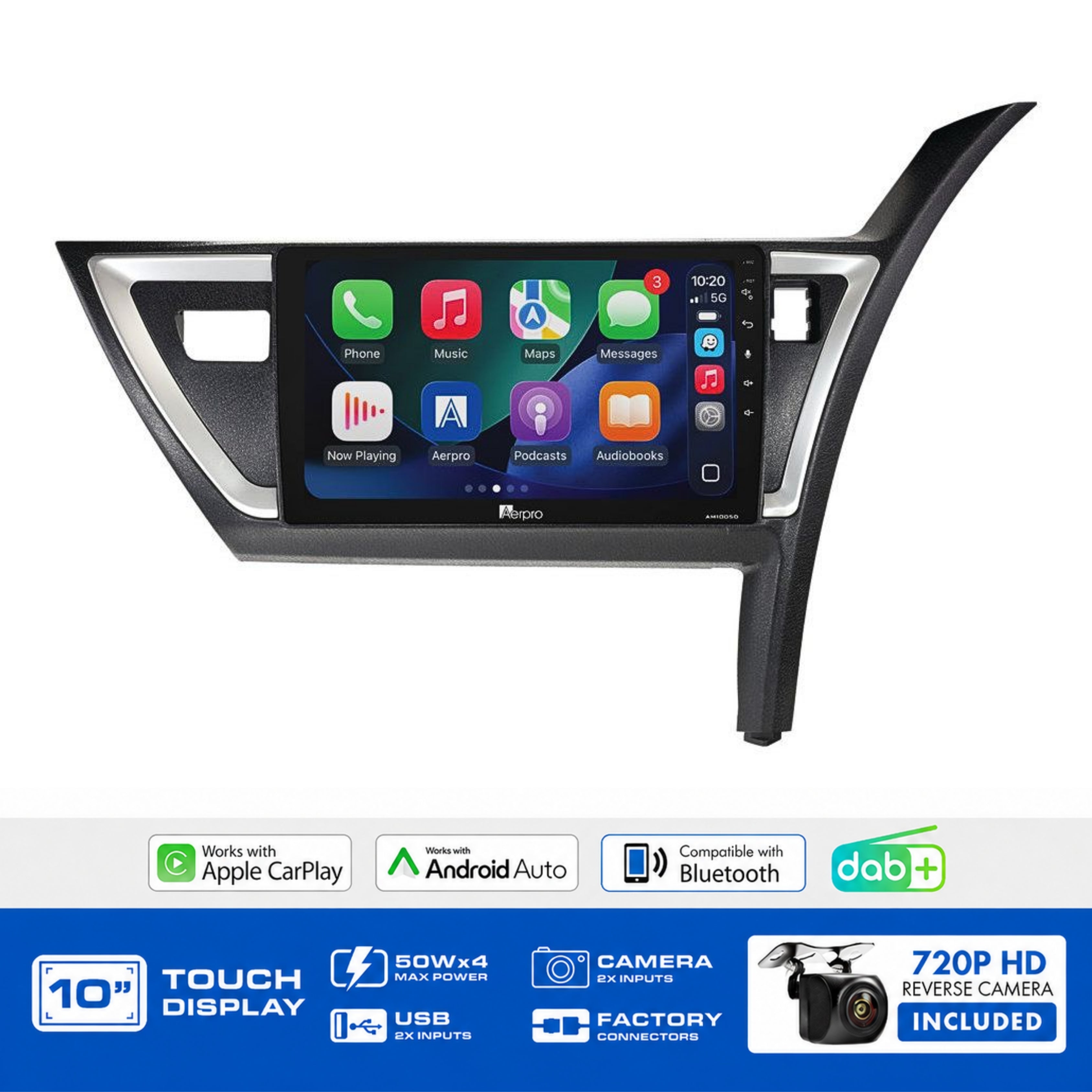

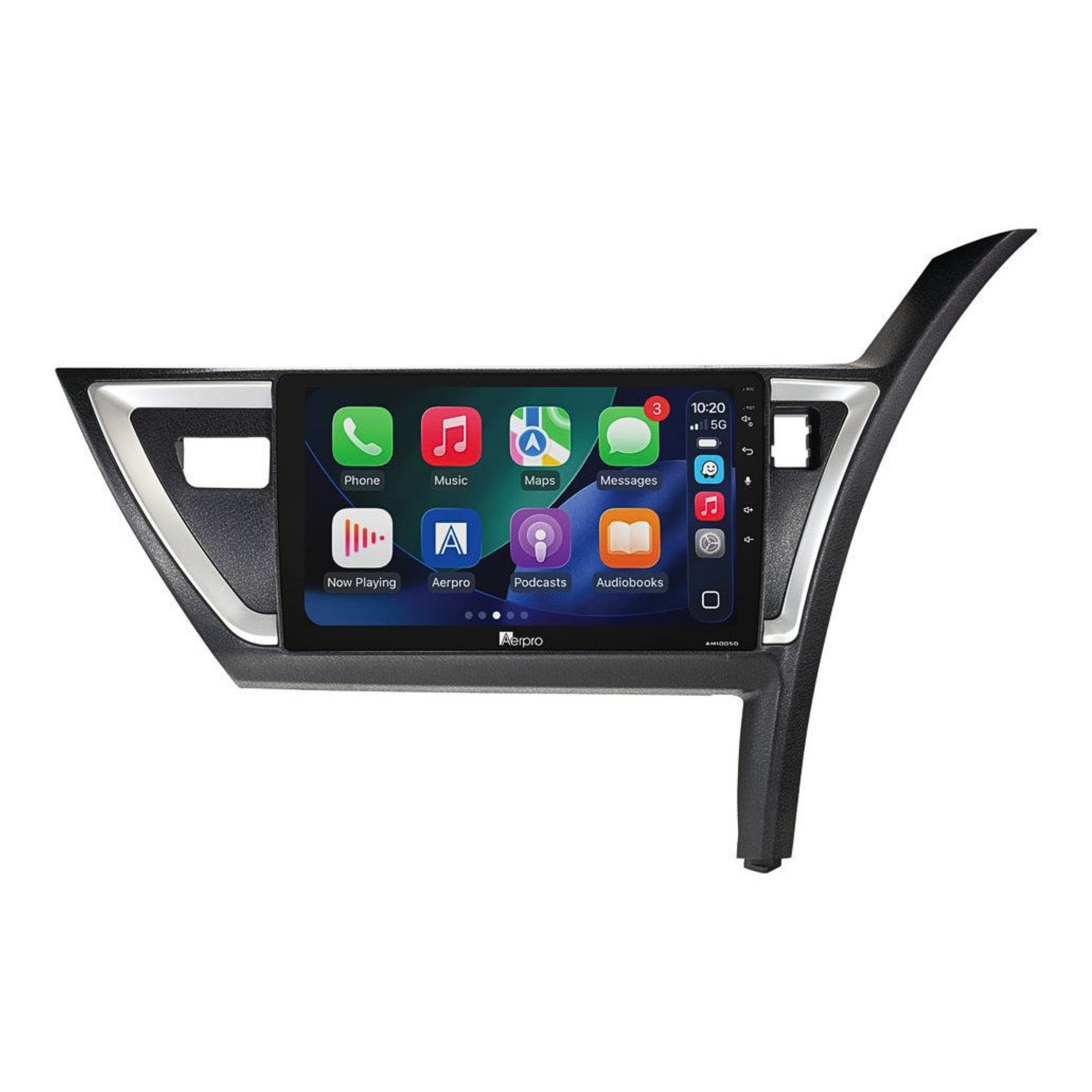

Complete 10" Head Unit Upgrade Kit for Toyota Corolla Hatch 2012–2015 Wireless Apple CarPlay, Android Auto, DAB+, Bluetooth 5, SWC Including Phone Button, USB, AUX & Factory Reverse Camera Retained (Model Dependent), Rear Camera Included.
Product Overview
The Aerpro AMDTO39 is a complete head unit upgrade kit specifically designed for the Toyota Corolla Hatch (2012–2015). Everything required for installation is included the AM1005D multimedia receiver, matte black and silver fascia kit, steering wheel control interface harness, antenna adaptor, camera retention adaptor, USB retention adaptor, and a 720P AHD universal rear camera.
Steering wheel controls (including phone button) are retained. Factory reverse camera, USB, and AUX inputs are also retained where equipped and model dependent. Factory amplifier is not supported.
Important: Reverse camera and USB retention are model dependent. Reverse camera retention uses the reverse camera input. USB retention uses the rear USB input. AUX retention uses the RCA AUX input on the rear of the head unit.
Kit Inclusions
- AM1005D 10" Multimedia Receiver
- Matte Black and Silver Fascia Kit
- Steering Wheel Control Interface Harness
- Antenna Adaptor
- Camera Retention Adaptor
- USB Retention Adaptor
- 720P AHD Universal Rear Camera
Vehicle Feature Retention
| Feature |
Retained |
| Steering Wheel Controls |
Yes (including phone button) |
| Factory Reverse Camera |
Yes (if equipped, model dependent) |
| USB Input |
Yes (if equipped, model dependent) |
| AUX Input |
Yes (if equipped) |
| Factory Amplifier |
No |
| Vehicle Menu |
N/A |
Key Specifications
- Screen: 10" capacitive touchscreen 1024x600 resolution
- Wireless CarPlay & Android Auto: Yes (wired also supported)
- DAB+ digital radio: Yes (AM/FM with RDS also included)
- Bluetooth: V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP)
- Max power output: 4 x 50W
- RCA preouts: 4V / 5-channel (Front/Rear/Subwoofer)
- 13-band EQ and time alignment: Yes
- USB inputs: 2 x rear USB (FAT32 / 32GB max)
- Reverse camera input: Yes (720P AHD compatible)
- Second camera input: Yes (720P AHD compatible)
- LED button illumination: 6-colour selectable
- Rear camera: 720P AHD universal included
Features & Benefits
-
Matte black and silver fascia:Â Two-tone finish to match the Corolla Hatch interior aesthetic
-
Factory reverse camera retained: If equipped and model dependent uses the reverse camera input of the head unit
-
Factory USB input retained: If equipped and model dependent uses the rear USB input
-
Factory AUX input retained: If equipped uses the RCA AUX input on the rear of the head unit
-
Steering wheel controls retained including phone button:Â Full SWC retained via the included harness
-
Factory amplifier not retained:Â Confirm this suits your requirements before purchasing
-
Wireless Apple CarPlay & Android Auto:Â Wire-free phone integration; wired connection also supported
-
DAB+ digital radio built-in:Â Crystal-clear digital radio plus AM/FM and RDS
-
Bluetooth 5 with HD Voice:Â Crisp hands-free calling and wireless audio streaming
-
10" capacitive touchscreen:Â Large, smooth 1024x600 display
-
720P AHD rear camera included: Immediate reversing visibility additional front or tow camera input also available
-
4x50W output with 5-channel preouts:Â High-power audio with amplifier expansion capability
Technical Specs
| Specification |
Detail |
| SKU |
AMDTO39 |
| Brand |
Aerpro |
| Receiver Model |
AM1005D |
| Screen Size |
10" |
| Resolution |
1024x600 |
| Touchscreen |
Capacitive |
| OS |
Linux |
| DIN Format |
Fixed Screen Trapezoid |
| Max Power |
4CH x 50W |
| RCA Preouts |
4V / 5-channel |
| Wireless CarPlay/Android Auto |
Yes |
| DAB+ |
Yes |
| AM/FM Presets |
AM 12 / FM 18 |
| Bluetooth |
V5 (A2DP, AVRCP, HFP 1.6, PBAP) |
| USB Inputs |
2 x Rear (FAT32 / 32GB max) |
| Reverse Camera Input |
Yes (720P AHD compatible) |
| Second Camera Input |
Yes (720P AHD compatible) |
| EQ |
13-band |
| Time Alignment |
Yes |
| LED Illumination |
6-colour selectable |
| SWC Retained |
Yes (including phone button) |
| Factory Reverse Camera |
Yes (if equipped, model dependent) |
| USB Input Retained |
Yes (if equipped, model dependent) |
| AUX Input Retained |
Yes (if equipped) |
| Factory Amplifier |
No |
| Kit Includes Rear Camera |
Yes 720P AHD universal |
| Suits |
Toyota Corolla Hatch 2012–2015 |
Compatible Vehicles
- Toyota Corolla Hatch 2012–2015
Frequently Asked Questions
Does this kit retain the factory reverse camera?
Yes if equipped and model dependent. Reverse camera retention uses the reverse camera input of the head unit. Confirm your Corolla Hatch is equipped before purchasing.
Are USB and AUX inputs retained?
USB is retained if equipped and model dependent. AUX is retained if equipped. USB retention uses the rear USB input; AUX retention uses the RCA AUX input.
Is the factory amplifier retained?
No factory amplifier is not supported by the AMDTO39.
What type of fascia is included?
A matte black and silver two-tone fascia kit to match the Corolla Hatch interior aesthetic.
What is the return policy for this product?
Return eligibility is subject to the retailer's policy. Always verify vehicle and system compatibility before purchasing.
