Description
Complete 10" Head Unit Upgrade Kit for Toyota Hilux 2020-On (JBL Amplified, 360° Camera) Wireless Apple CarPlay, Android Auto, DAB+, Bluetooth 5, SWC Phone Button, USB, AUX, 360° Camera & Factory JBL Amplifier Retained, Rear Camera Included.
Product Overview

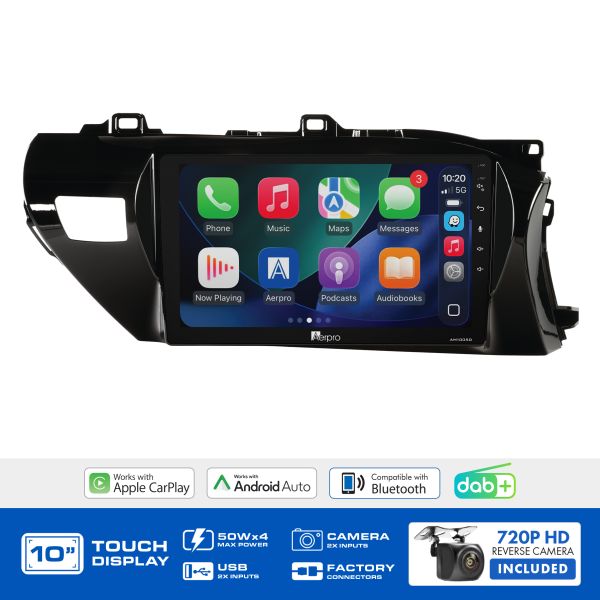

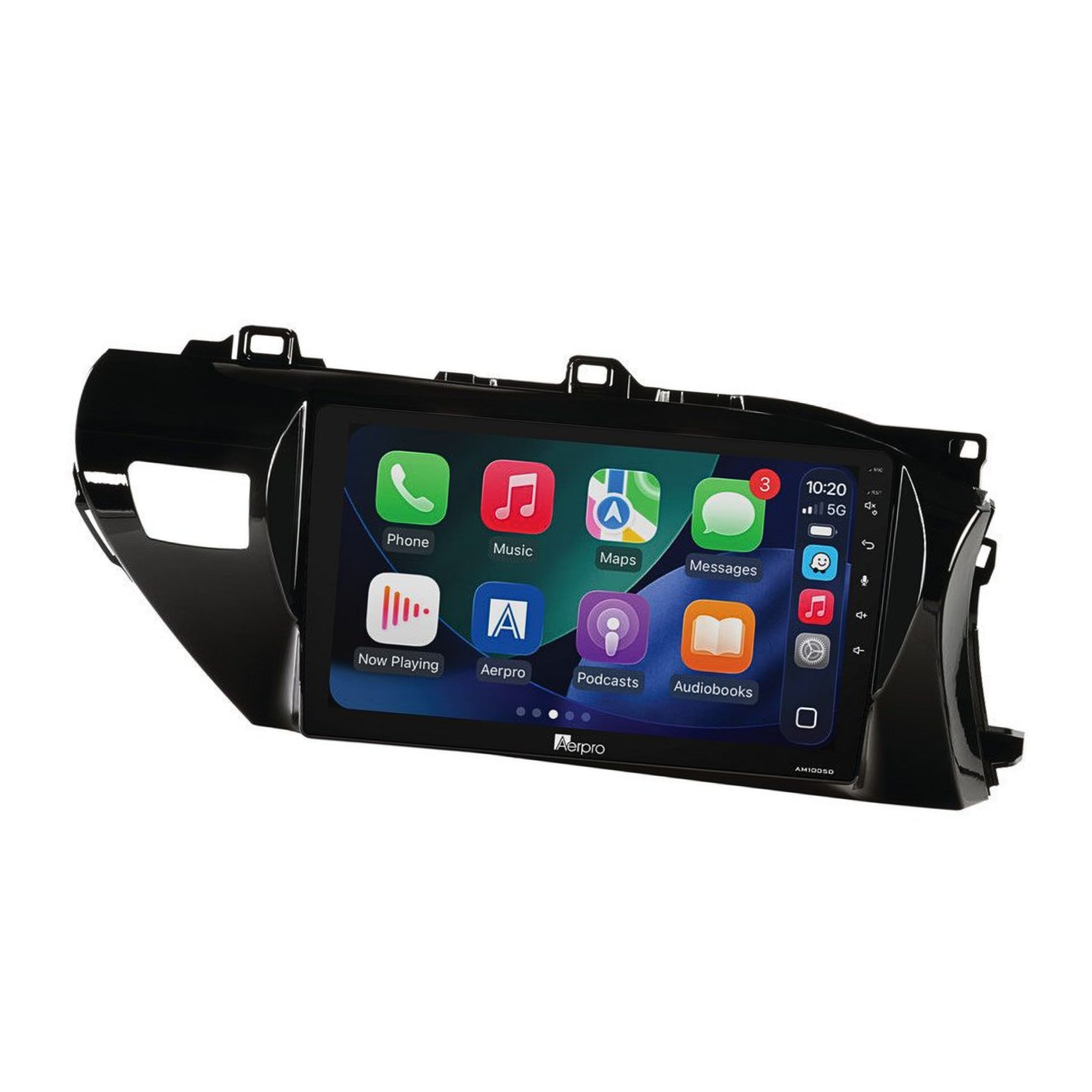

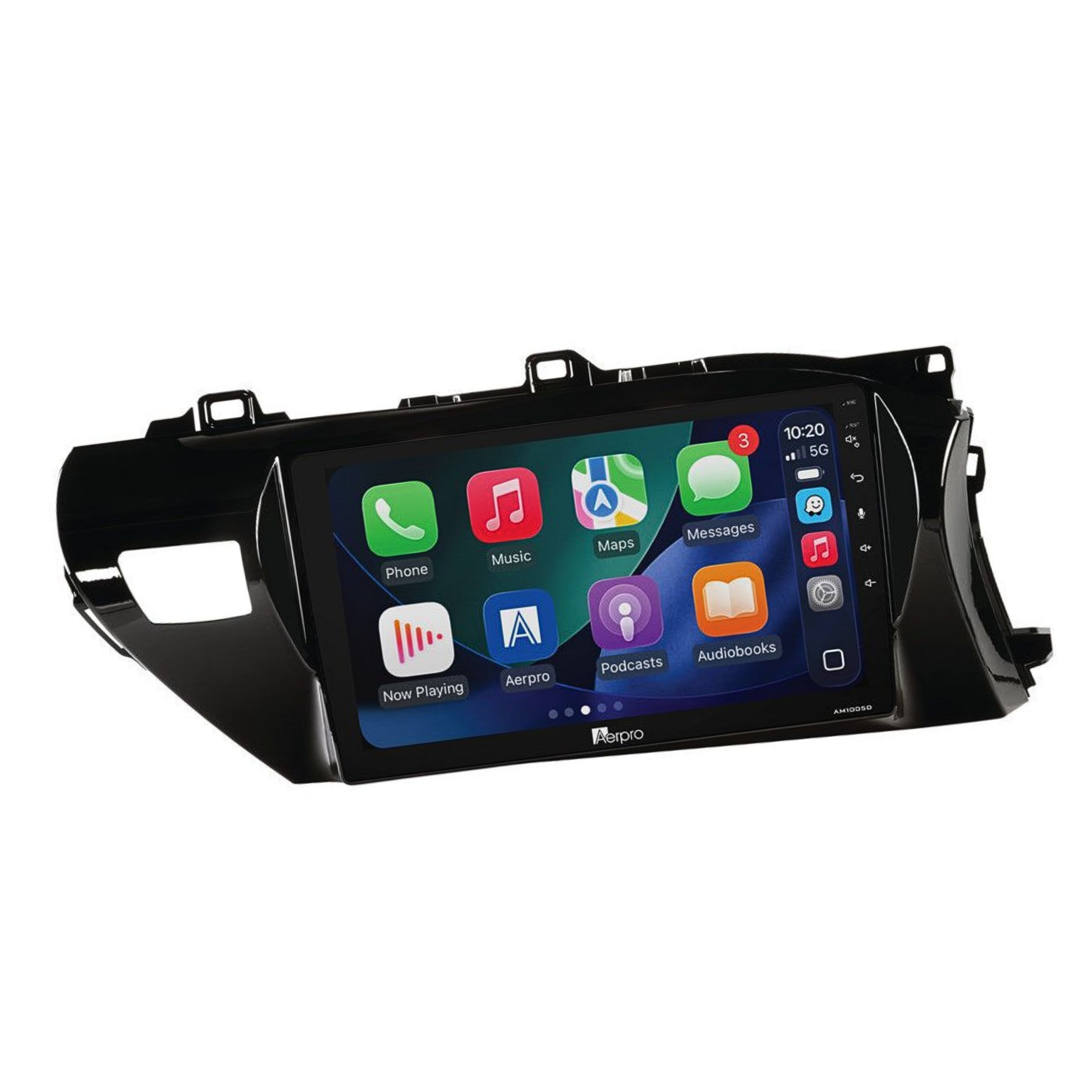

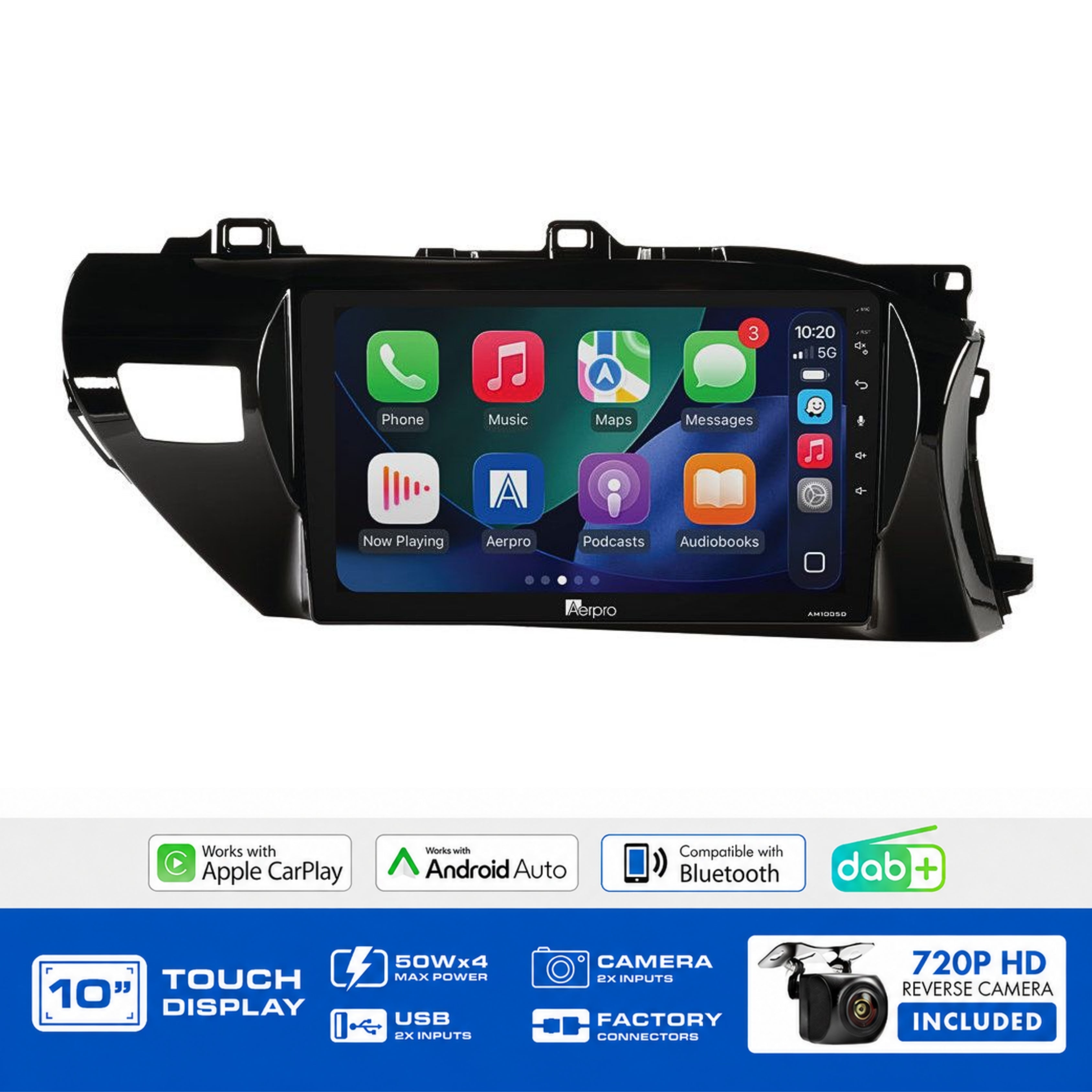

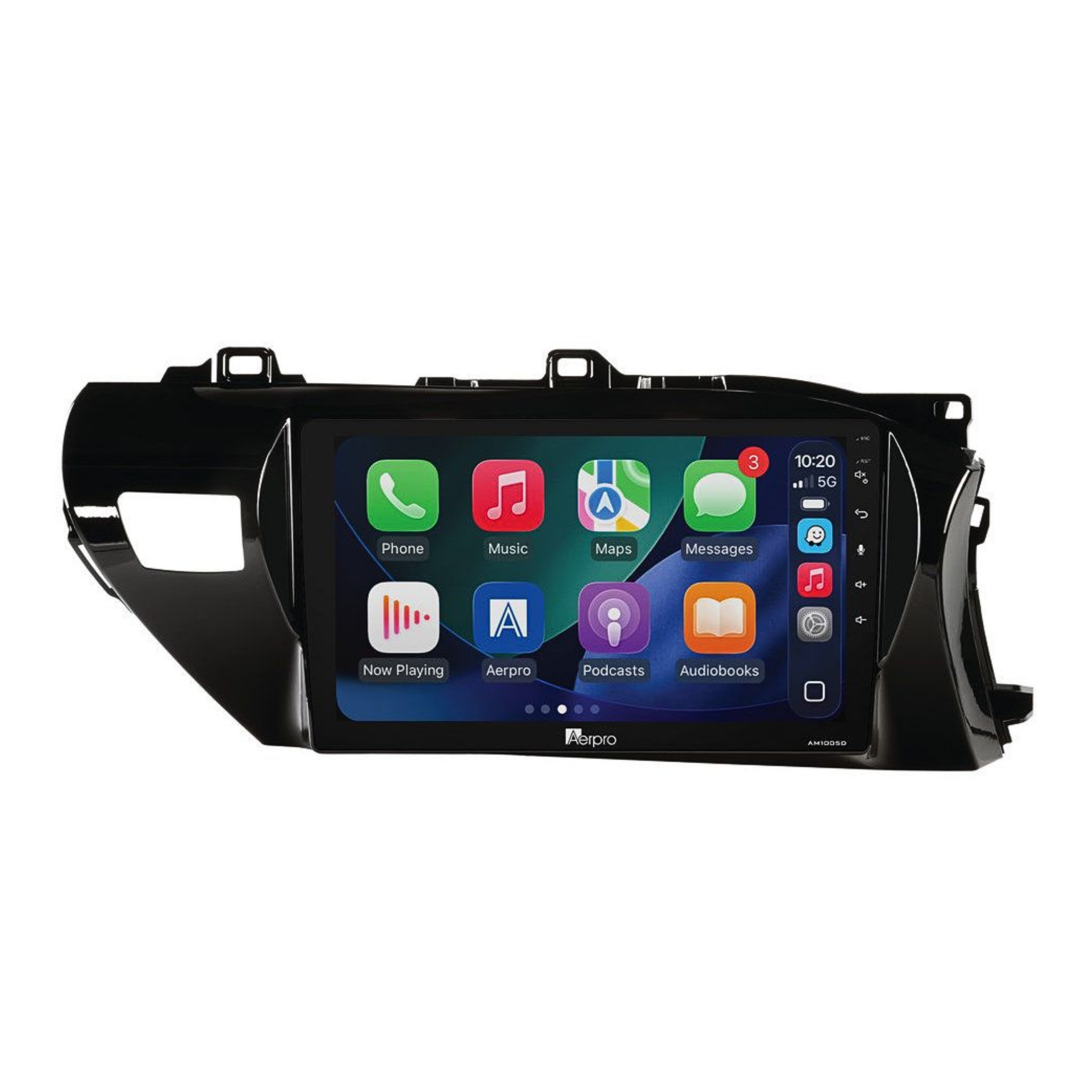

The Aerpro AMDTO4 is a complete head unit upgrade kit designed for the Toyota Hilux (2020-on) with a factory JBL amplified system and 360° degree camera the amplified, 360° camera counterpart to the AMDTO3 (non-amplified). Steering wheel controls (including phone button), factory JBL amplifier, USB, AUX, and the full factory 360° camera system are all retained. Fade control is not supported on amplified vehicles.
Everything required for installation is included the AM1005D multimedia receiver, gloss black fascia kit, steering wheel control interface harness (with AUX and camera retention), SWC patch lead, antenna adaptor, USB retention adaptor, and a 720P AHD universal rear camera.
Important: Suits JBL amplified vehicles only fade is not supported. 360° camera retention uses the reverse camera input. USB retention uses the rear USB input. AUX retention uses the RCA AUX input. For the non-amplified Hilux 2020-on, refer to the AMDTO3.
Kit Inclusions
- AM1005D 10" Multimedia Receiver
- Gloss Black Fascia Kit
- Steering Wheel Control Interface Harness (with AUX and camera retention)
- SWC Patch Lead
- Antenna Adaptor
- USB Retention Adaptor
- 720P AHD Universal Rear Camera
Vehicle Feature Retention
| Feature |
Retained |
| Steering Wheel Controls |
Yes (including phone button) |
| Factory 360° Camera System |
Yes |
| USB Input |
Yes (if equipped) |
| AUX Input |
Yes (if equipped) |
| Factory JBL Amplifier |
Yes (fade not supported) |
| Parking Tones |
N/A |
| Vehicle Menu |
N/A |
Toyota Hilux 2020-On Kit Comparison (this session)
| Model |
Amplifier |
Camera |
USB |
AUX |
| AMDTO3 |
Non-amplified |
Yes (if equip.) |
No |
Yes (3.5mm adaptor req.) |
| AMDTO4 |
JBL amplified |
Yes (360°) |
Yes (if equip.) |
Yes (if equip.) |
Key Specifications
- Screen: 10" capacitive touchscreen 1024x600 resolution
- Wireless CarPlay & Android Auto: Yes (wired also supported)
- DAB+ digital radio: Yes (AM/FM with RDS also included)
- Bluetooth: V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP)
- Max power output: 4 x 50W
- RCA preouts: 4V / 5-channel (Front/Rear/Subwoofer)
- 13-band EQ and time alignment: Yes
- USB inputs: 2 x rear USB (FAT32 / 32GB max)
- Reverse camera input: Yes (720P AHD compatible)
- Second camera input: Yes (720P AHD compatible)
- LED button illumination: 6-colour selectable
- Rear camera: 720P AHD universal included
Features & Benefits
-
Factory JBL amplifier retained: The JBL amplified audio system is fully retained fade control is not supported
-
Factory 360° camera system retained: Full factory 360° camera system retained via the SWC harness uses the reverse camera input of the head unit
-
Steering wheel controls retained including phone button:Â Full SWC including phone button retained via the included harness and patch lead
-
Factory USB and AUX retained: Both retained if equipped USB uses rear USB input; AUX uses RCA AUX input
-
JBL amplified models only:Â For non-amplified Hilux 2020-on, refer to the AMDTO3
-
Wireless Apple CarPlay & Android Auto:Â Wire-free phone integration; wired connection also supported
-
DAB+ digital radio built-in:Â Crystal-clear digital radio plus AM/FM and RDS
-
Bluetooth 5 with HD Voice:Â Crisp hands-free calling and wireless audio streaming
-
10" capacitive touchscreen:Â Large, smooth 1024x600 display
-
720P AHD rear camera included: Immediate reversing visibility additional front or tow camera input also available
-
4x50W output with 5-channel preouts:Â Further amplifier expansion capability
Technical Specs
| Specification |
Detail |
| SKU |
AMDTO4 |
| Brand |
Aerpro |
| Receiver Model |
AM1005D |
| Screen Size |
10" |
| Resolution |
1024x600 |
| Touchscreen |
Capacitive |
| OS |
Linux |
| DIN Format |
Fixed Screen Trapezoid |
| Max Power |
4CH x 50W |
| RCA Preouts |
4V / 5-channel |
| Wireless CarPlay/Android Auto |
Yes |
| DAB+ |
Yes |
| AM/FM Presets |
AM 12 / FM 18 |
| Bluetooth |
V5 (A2DP, AVRCP, HFP 1.6, PBAP) |
| USB Inputs |
2 x Rear (FAT32 / 32GB max) |
| Reverse Camera Input |
Yes (720P AHD compatible) |
| Second Camera Input |
Yes (720P AHD compatible) |
| EQ |
13-band |
| Time Alignment |
Yes |
| LED Illumination |
6-colour selectable |
| SWC Retained |
Yes (including phone button) |
| Factory 360° Camera Retained |
Yes |
| USB Input Retained |
Yes (if equipped) |
| AUX Input Retained |
Yes (if equipped) |
| Factory JBL Amplifier |
Yes (fade not supported) |
| Kit Includes Rear Camera |
Yes 720P AHD universal |
| Suits |
Toyota Hilux 2020-on (JBL amplified, 360° camera) |
Compatible Vehicles
- Toyota Hilux 2020–2025 (JBL amplified, 360° camera models)
Frequently Asked Questions
Does this suit non-amplified Hilux models?
No the AMDTO4 suits JBL amplified Hilux 2020-on models only. For non-amplified models, refer to the AMDTO3.
Is fade control supported?
No fade control is not supported on amplified vehicles.
Does this retain the factory 360° camera system?
Yes the full factory 360° camera system is retained. 360° camera retention uses the reverse camera input of the head unit.
Are USB and AUX inputs retained?
Yes both are retained if equipped. USB uses the rear USB input; AUX uses the RCA AUX input on the rear of the head unit.
What is the return policy for this product?
Return eligibility is subject to the retailer's policy. Always verify vehicle and system compatibility before purchasing.
