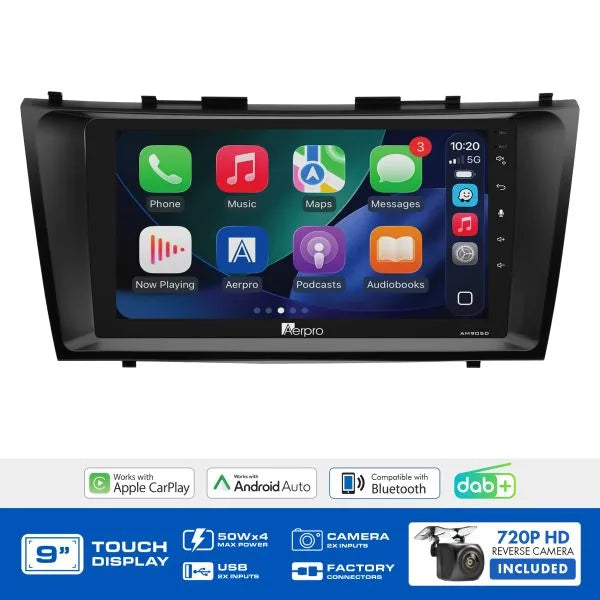

Aerpro AMDTO46 9 Inch Multimedia Receiver Toyota Camry and Aurion 2006-2011 Non-Amplified Black Wireless Apple CarPlay Android Auto DAB+ Bluetooth V5 720P AHD Camera Complete Kit
The Aerpro AMDTO46 is a complete head unit upgrade kit for Toyota Camry and Toyota Aurion (2006-2011) non-amplified vehicles. 9" capacitive touchscreen (1024x600), wireless and wired Apple CarPlay and Android Auto, DAB+ digital radio, Bluetooth V5, 4x50W max output, 5-channel 4V RCA preouts, 13-band EQ, time alignment. Retains steering wheel controls. Includes 720P AHD universal rear camera.
Important: Suits non-amplified vehicles only. Factory reverse camera retention requires the separate APVTY17 retention harness (sold separately). Park brake wire must be connected to activate Apple CarPlay and Android Auto.
Product overview
The AMDTO46 is Aerpro's complete multimedia upgrade solution for Toyota Camry and Toyota Aurion (2006-2011) non-amplified vehicles, replacing the factory head unit with the AM905D 9" receiver and including all hardware, harnesses, and vehicle-specific black facia required for a clean installation. The 9" capacitive touchscreen provides wireless Apple CarPlay and Android Auto, DAB+ digital radio, and Bluetooth V5 for hands-free calling and audio streaming with HD Voice. A 720P AHD universal rear camera is included. Factory reverse camera retention is available via the APVTY17 harness sold separately. Steering wheel controls are retained through the included SWC interface harness and patch lead.
Features and benefits
Complete head unit upgrade kit: Includes all parts for a Toyota Camry/Aurion 2006-2011 non-amplified installation.
9" capacitive touchscreen (1024x600): Large, responsive display for maps, media, and menu navigation.
Wireless and wired Apple CarPlay and Android Auto: Full smartphone integration without cables, or via USB for wired operation and charging.
DAB+ digital radio: Crystal-clear digital audio with a wider range of stations, plus AM/FM with RDS.
Bluetooth V5 with HD Voice: Hands-free calling, audio streaming, phonebook access, and HFP 1.6 HD Voice support.
4x50W max output with 5-channel 4V RCA preouts: High-power audio with front, rear, and subwoofer preamp outputs for amplifier expansion.
13-band graphic EQ, time alignment, and subwoofer control.
Steering wheel control retention: SWC interface harness and patch lead included.
720P AHD universal rear camera included: Sony 225 image sensor, 150-degree lens, surface mount.
Second camera input: For a front or towing camera.
Factory reverse camera retention: Requires separate APVTY17 harness (sold separately).
6-colour customisable button illumination.
Black facia kit.
Suits non-amplified Toyota Camry and Aurion 2006-2011 only.
Technical specs
| Specification |
Detail |
| SKU |
AMDTO46 |
| Brand |
Aerpro |
| Head Unit |
AM905D |
| Display Size |
9 inch |
| Resolution |
1024x600 |
| Touchscreen |
Capacitive |
| OS |
Linux |
| DIN Style |
Fixed screen (trapezoid) |
| Max Power Output |
4 x 50W |
| RCA Preouts |
4V, 5 channel (front, rear, subwoofer) |
| Apple CarPlay |
Yes (wireless and wired) |
| Android Auto |
Yes (wireless and wired) |
| DAB+ |
Yes |
| AM/FM Presets |
AM 12 / FM 18 |
| Bluetooth Version |
V5 (A2DP, AVRCP, HFP, PBAP) |
| HFP Profile |
HFP 1.6 (HD Voice) |
| Microphone |
Internal and external |
| USB1 (Rear) |
CarPlay, Android Auto, charging (5V/1.5A) |
| USB2 (Rear) |
Media, charging (5V/1.5A) |
| USB Max Capacity |
FAT32 32GB |
| Rear A/V Input |
Yes (RCA, 3 connectors) |
| Composite Video Output |
Yes (two) |
| Reverse Camera Input |
Yes (720P AHD compatible) |
| Second Camera Input |
Yes (720P AHD compatible) |
| EQ |
13-band graphic |
| Time Alignment |
Yes |
| Subwoofer Control |
Yes |
| Button Illumination |
6-colour (red, yellow, green, blue, purple, white) |
| SWC Retention |
Yes |
| Factory Reverse Camera |
Requires APVTY17 (sold separately) |
| Factory Amplifier |
Not supported (non-amplified only) |
| Camera |
720P AHD universal rear camera |
| Camera Sensor |
Sony 225, 1/3 CMOS AHD |
| Camera Lens Angle |
150 degrees |
| Camera Mount |
Surface mount |
| Facia |
Black |
| Vehicle |
Toyota Camry 2006-2011 and Toyota Aurion 2006-2011 (non-amplified) |
What's in the box
- AM905D 9" multimedia receiver (trapezoid fixed screen)
- Black facia kit
- Steering wheel control interface harness
- SWC patch lead
- 720P AHD universal rear camera (wired)
- Mounting hardware screws
- Wiring harness with ISO connection
- AV, USB, and camera harnesses
- DAB antenna
- 3-wire learning SWC lead
- External microphone with mount
- GPS antenna with adhesive pad
- QR digital manual leaflet
Frequently asked questions
Does the AMDTO46 suit factory amplified Toyota Camry and Aurion vehicles?
No. The AMDTO46 suits non-amplified vehicles only.
Does the AMDTO46 retain the factory steering wheel controls?
Yes. The kit includes a steering wheel control interface harness and SWC patch lead to retain factory steering wheel controls.
Does the AMDTO46 retain the factory reverse camera?
Factory reverse camera retention requires the APVTY17 retention harness, which is sold separately and not included in the AMDTO46 kit.
Does the park brake need to be connected for Apple CarPlay and Android Auto to work?
Yes. The head unit requires the park brake wire to be connected to the park brake for Apple CarPlay and Android Auto to function.
Does the AMDTO46 suit both Toyota Camry and Toyota Aurion?
Yes. The AMDTO46 suits both Toyota Camry and Toyota Aurion models from 2006 to 2011, non-amplified only.
