Complete 9" Head Unit Upgrade Kit for Toyota Hilux 2005–2011 (With Factory SWC, Non-Amplified) Wireless Apple CarPlay, Android Auto, DAB+, Bluetooth 5, SWC & Factory Reverse Camera Retained, Rear Camera Included.
Product Overview

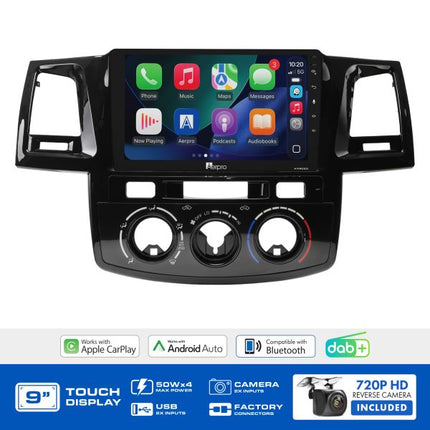

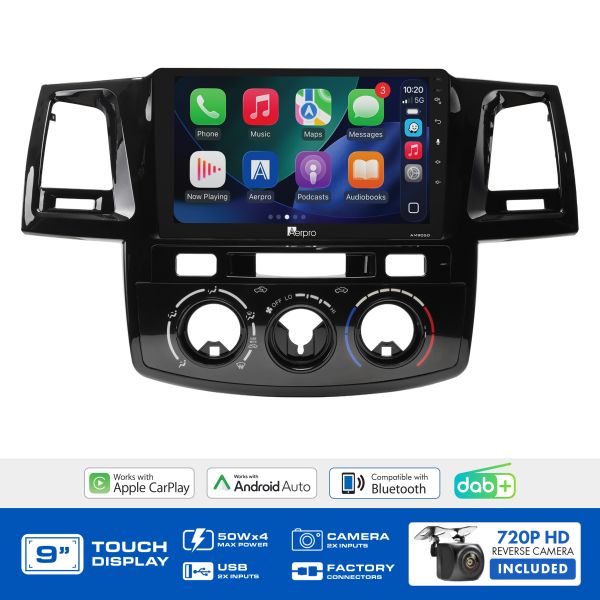

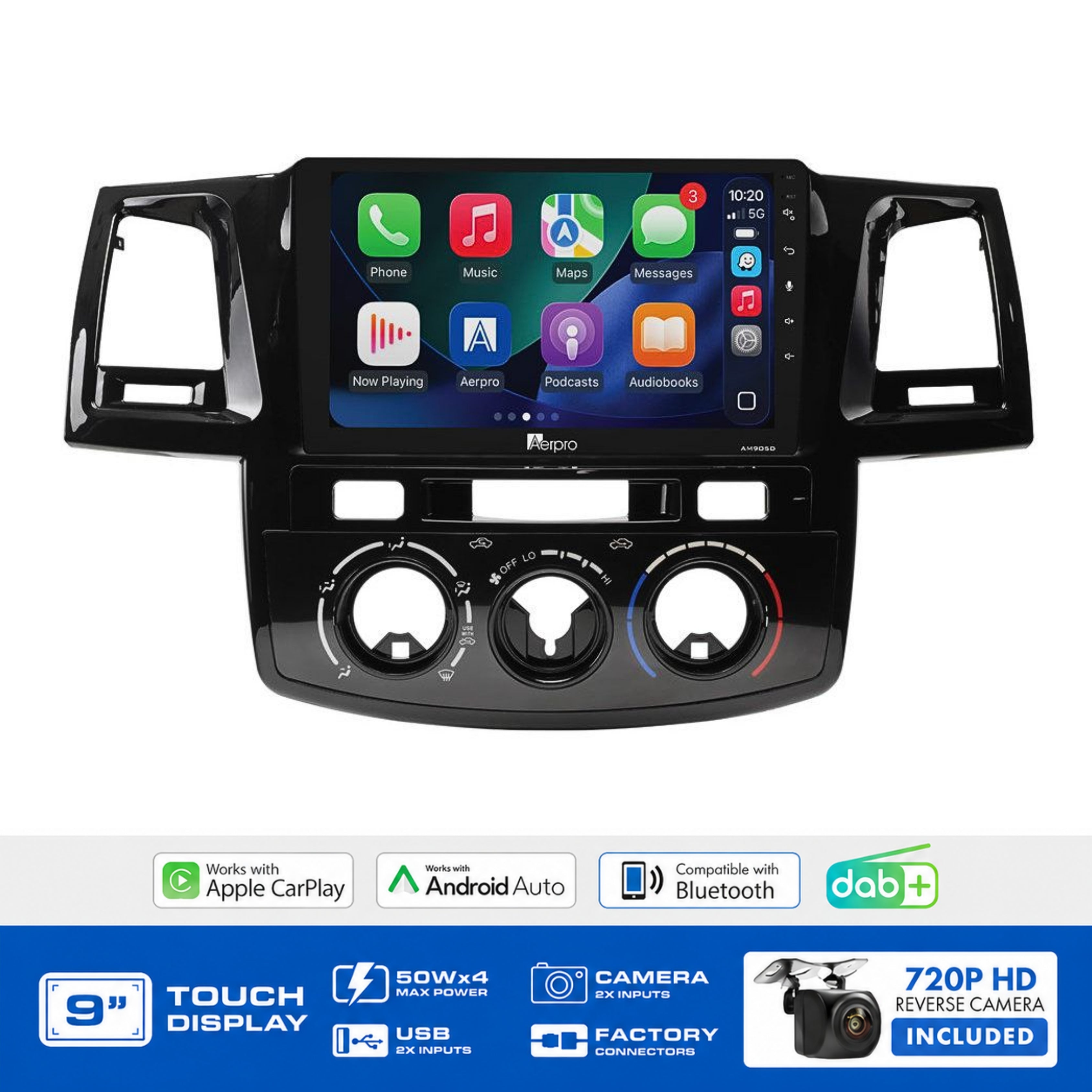

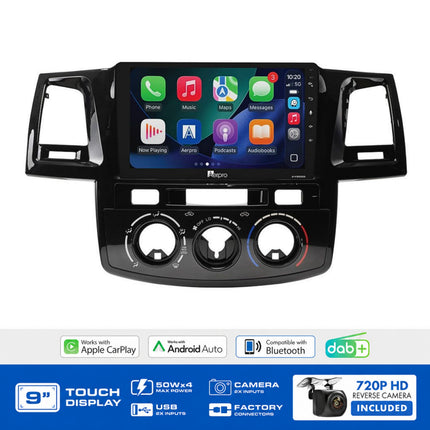

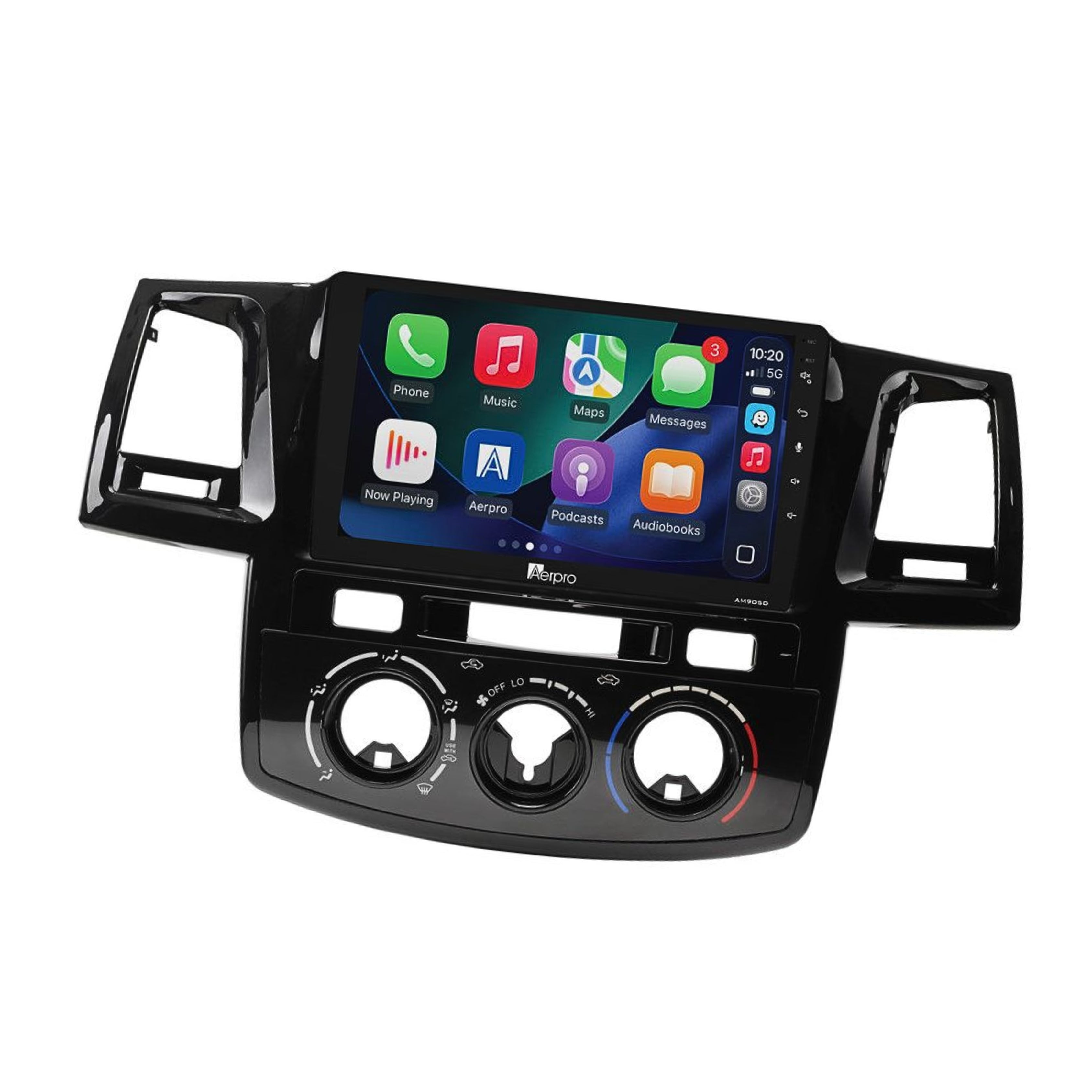

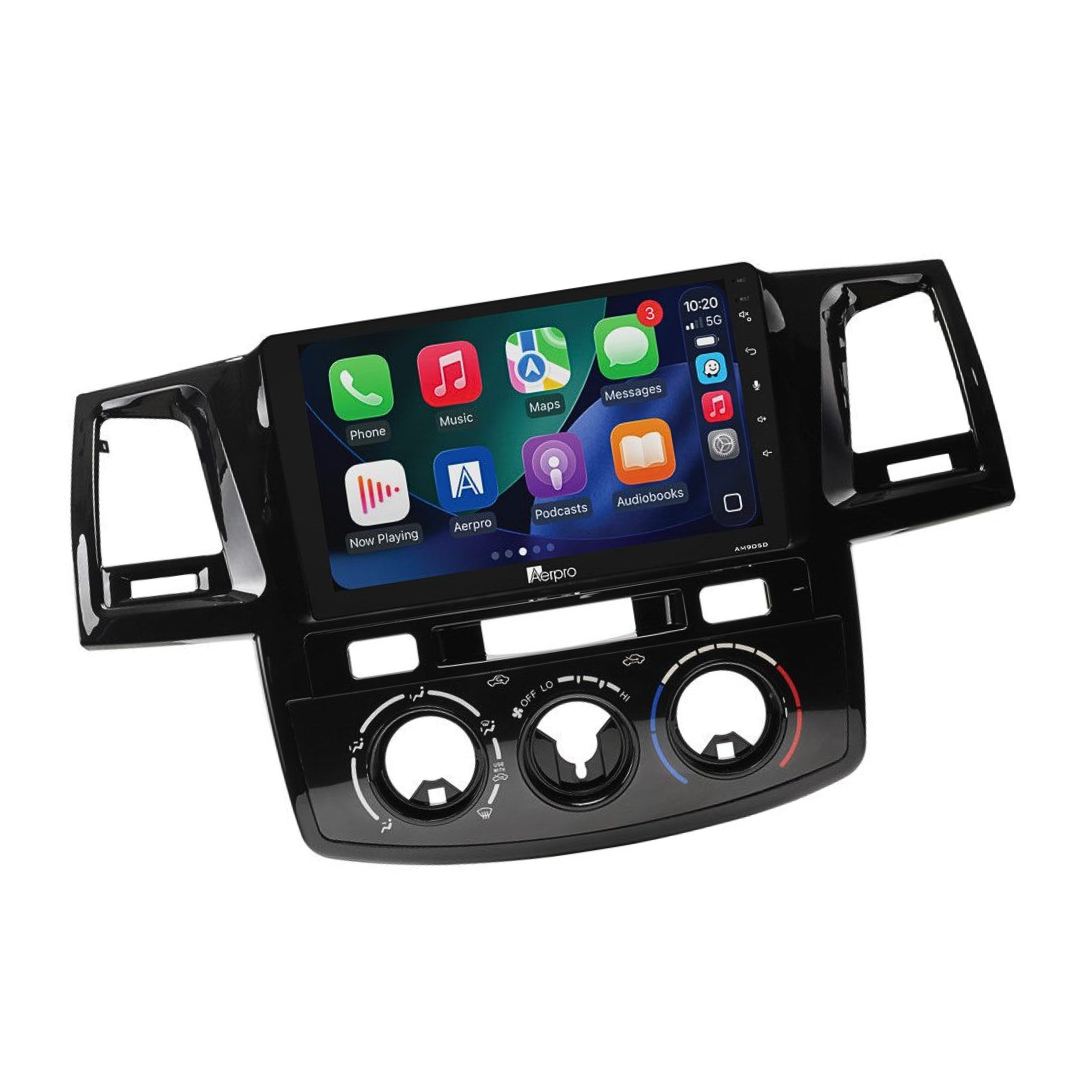

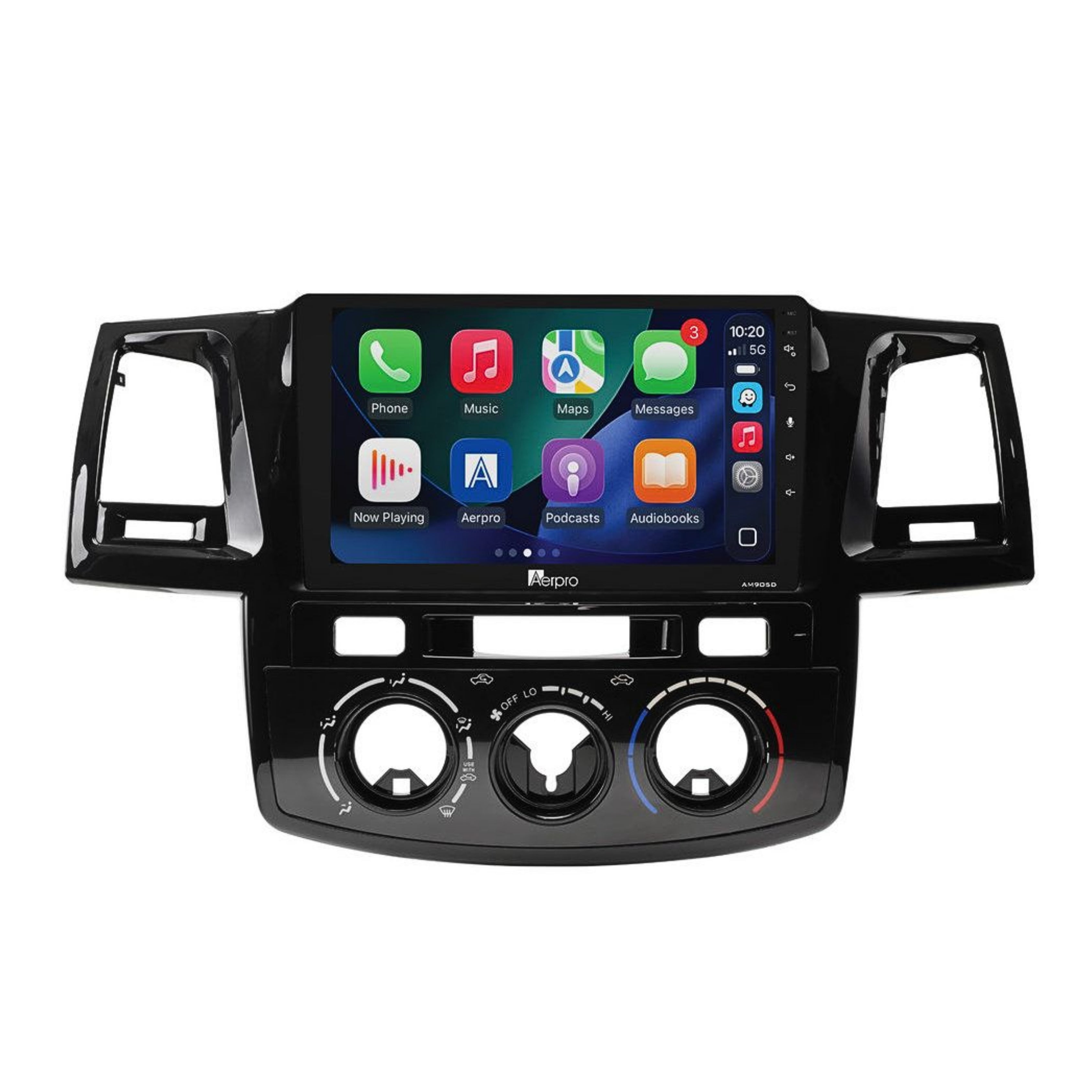

The Aerpro AMDTO9 is a complete head unit upgrade kit specifically designed for the Toyota Hilux (2005–2011) with factory steering wheel controls and without a factory amplified system. Everything required for installation is included the AM905D multimedia receiver, gloss black fascia kit, steering wheel control interface harness, camera retention adaptor, HVAC stickers, and a 720P AHD universal rear camera.
Steering wheel controls and factory reverse camera (if equipped, model dependent) are retained. The AM905D features a 9" capacitive touchscreen (1024x600), wireless Apple CarPlay and Android Auto, built-in DAB+ digital radio, Bluetooth 5, and 4x50W output with 13-band EQ and 4V/5CH RCA preouts.
Kit Inclusions
- AM905D 9" Multimedia Receiver
- Gloss Black Fascia Kit
- Steering Wheel Control Interface Harness
- Camera Retention Adaptor
- Stickers for Manual HVAC
- 720P AHD Universal Rear Camera
Key Specifications
- Screen: 9" capacitive touchscreen 1024x600 resolution
- Wireless CarPlay & Android Auto: Yes (wired also supported)
- DAB+ digital radio: Yes (AM/FM with RDS also included)
- Bluetooth: V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP)
- Max power output: 4 x 50W
- RCA preouts: 4V / 5-channel (Front/Rear/Subwoofer)
- 13-band EQ and time alignment: Yes
- USB inputs: 2 x rear USB (FAT32 / 32GB max)
- Reverse camera input: Yes (720P AHD compatible)
- Second camera input: Yes (720P AHD compatible)
- LED button illumination: 6-colour selectable
- Rear camera: 720P AHD universal included
Features & Benefits
-
Suits factory SWC Hilux models only: Specifically designed for 2005–2011 Hilux with factory steering wheel controls not compatible with non-SWC variants
-
Gloss black fascia kit: Premium gloss black finish suited to the Hilux interior aesthetic
-
HVAC stickers included: Stickers for manual HVAC controls ensure a clean, labelled installation
-
Factory reverse camera retained: If equipped and model dependent, retained via the included camera retention adaptor
-
Not for amplified systems: Specifically for non-amplified Hilux models
-
Wireless Apple CarPlay & Android Auto: Wire-free phone integration; wired connection also supported
-
DAB+ digital radio built-in: Crystal-clear digital radio plus AM/FM and RDS
-
Bluetooth 5 with HD Voice: Crisp hands-free calling and wireless audio streaming
-
9" capacitive touchscreen: Large, smooth 1024x600 display
-
720P AHD rear camera included: Immediate reversing visibility additional front or tow camera input also available
-
4x50W output with 5-channel preouts: High-power audio with amplifier expansion capability
Technical Specs
| Specification |
Detail |
| SKU |
AMDTO9 |
| Brand |
Aerpro |
| Screen Size |
9" |
| Resolution |
1024x600 |
| Touchscreen |
Capacitive |
| OS |
Linux |
| DIN Format |
Fixed Screen Trapezoid |
| Max Power |
4CH x 50W |
| RCA Preouts |
4V / 5-channel |
| Wireless CarPlay/Android Auto |
Yes |
| DAB+ |
Yes |
| AM/FM Presets |
AM 12 / FM 18 |
| Bluetooth |
V5 (A2DP, AVRCP, HFP 1.6, PBAP) |
| USB Inputs |
2 x Rear (FAT32 / 32GB max) |
| Reverse Camera Input |
Yes (720P AHD compatible) |
| Second Camera Input |
Yes (720P AHD compatible) |
| EQ |
13-band |
| Time Alignment |
Yes |
| LED Illumination |
6-colour selectable |
| SWC Retained |
Yes |
| Factory Reverse Camera Retained |
Yes (if equipped, model dependent) |
| USB Input Retained |
N/A |
| AUX Input Retained |
N/A |
| Factory Amplifier |
No |
| Kit Includes Rear Camera |
Yes 720P AHD universal |
| Suits |
Toyota Hilux 2005–2011 (with factory SWC, non-amplified) |
Compatible Vehicles
- Toyota Hilux 2005–2011 with factory steering wheel controls only
Frequently Asked Questions
Does this kit suit all Toyota Hilux 2005–2011 models?
No the AMDTO9 suits Hilux models with factory steering wheel controls only. It is not suitable for Hilux models without SWC or for factory amplified variants.
What are the HVAC stickers included for?
The stickers for manual HVAC are included to label the HVAC controls around the new fascia, ensuring a clean, complete, and clearly labelled installation.
Does this kit retain the factory reverse camera?
Yes if equipped and model dependent, the factory reverse camera is retained via the included camera retention adaptor. Reverse camera retention uses the reverse camera input of the head unit.
Does CarPlay require the park brake to be connected?
Yes the park brake wire must be connected to the park brake for Apple CarPlay and Android Auto to function.
What is the return policy for this product?
Return eligibility is subject to the retailer's policy. Always verify vehicle and system compatibility before purchasing.
