Description
10" Wireless CarPlay Across 11 Volkswagen Models Panasonic Amp Retained, Size Warnings Apply to Several Models
Product Overview

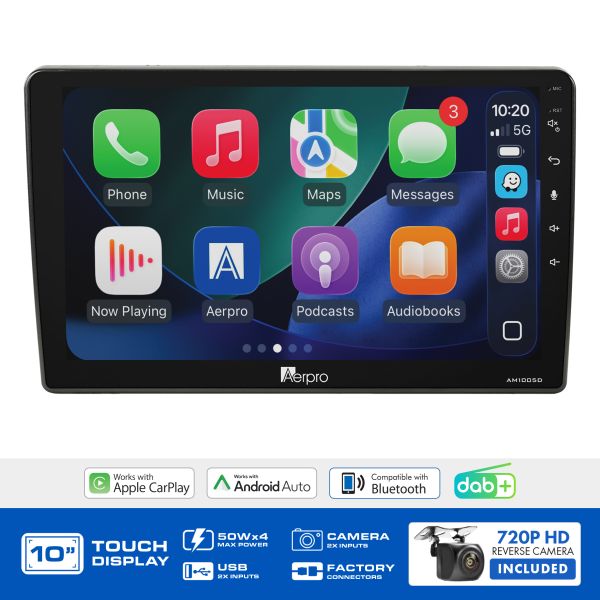

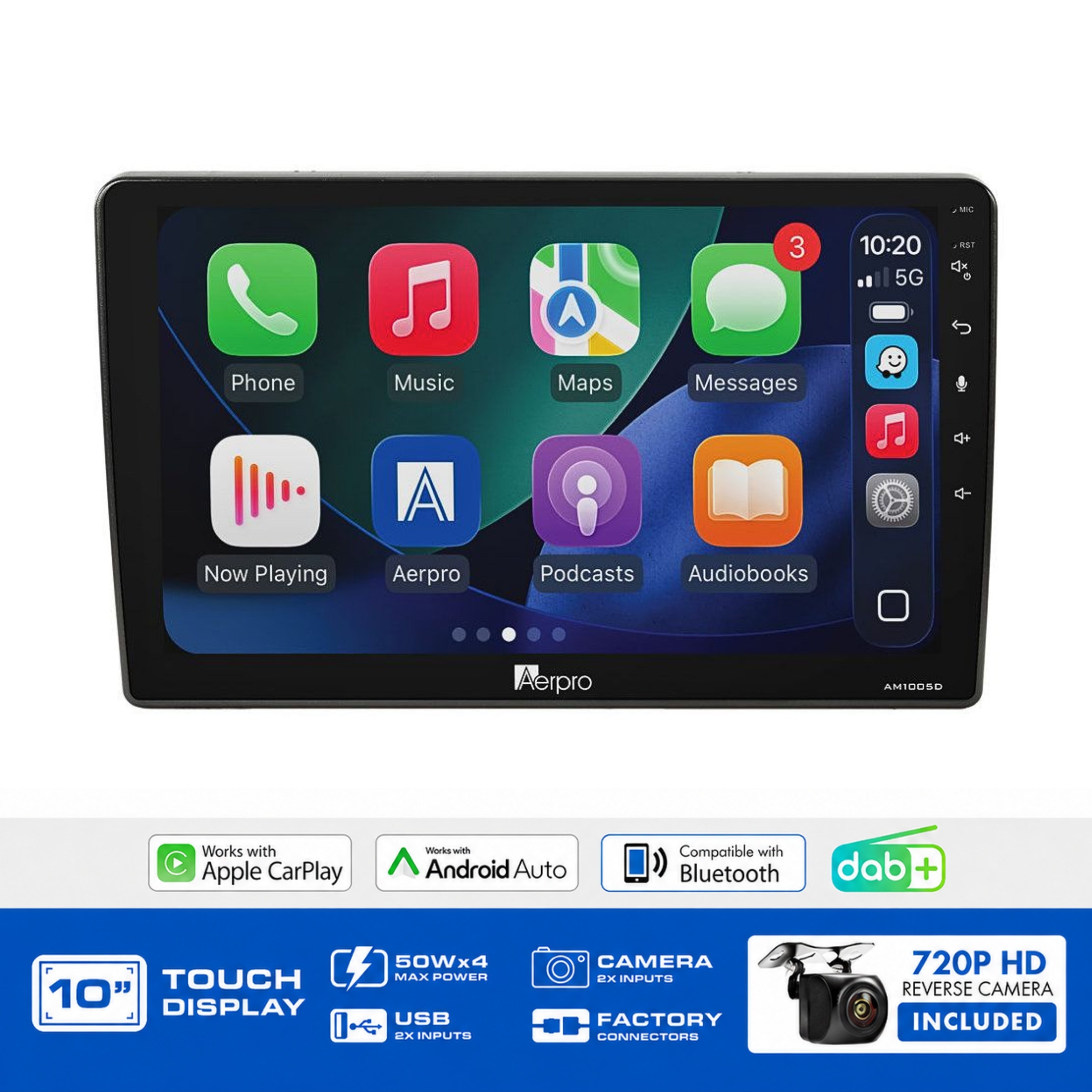

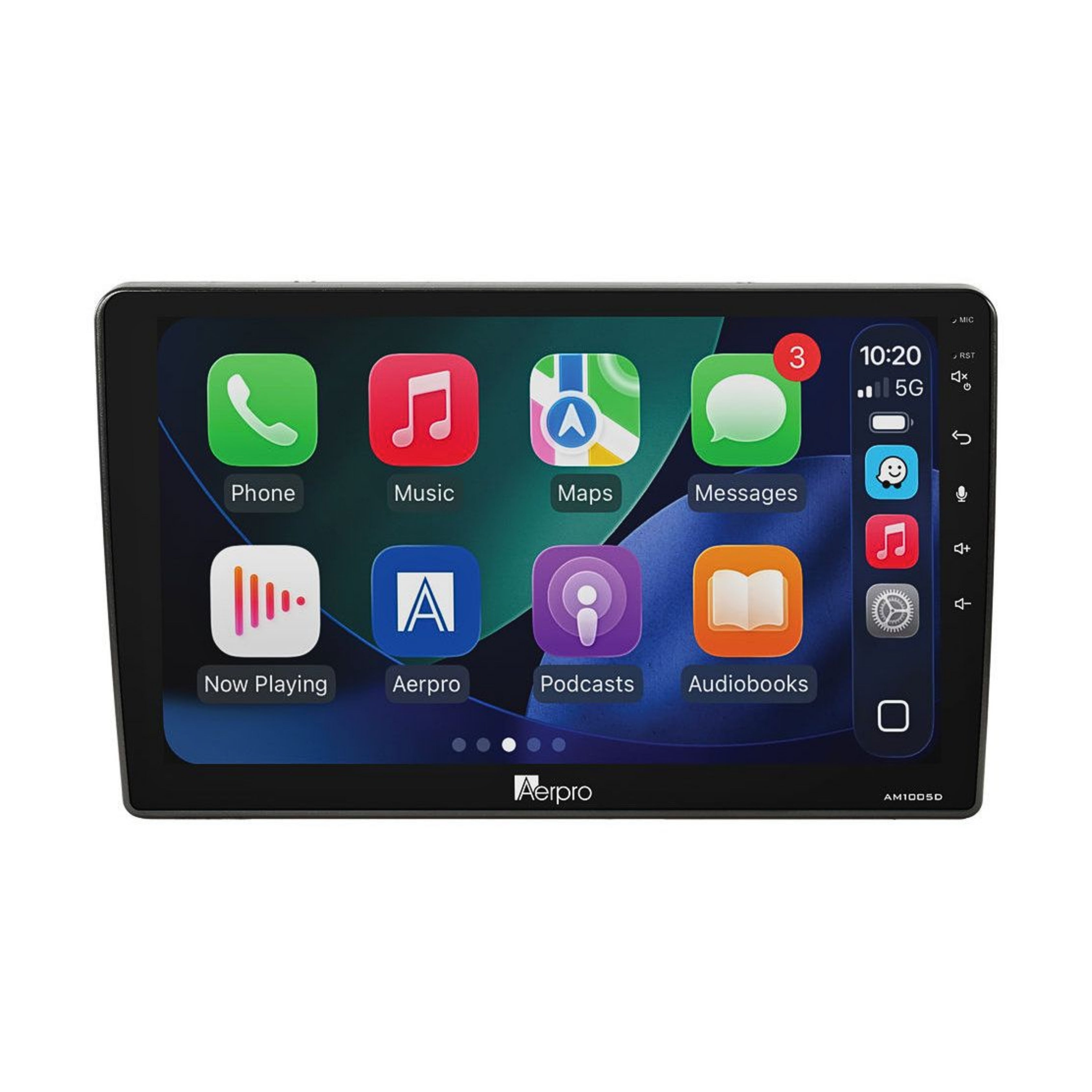

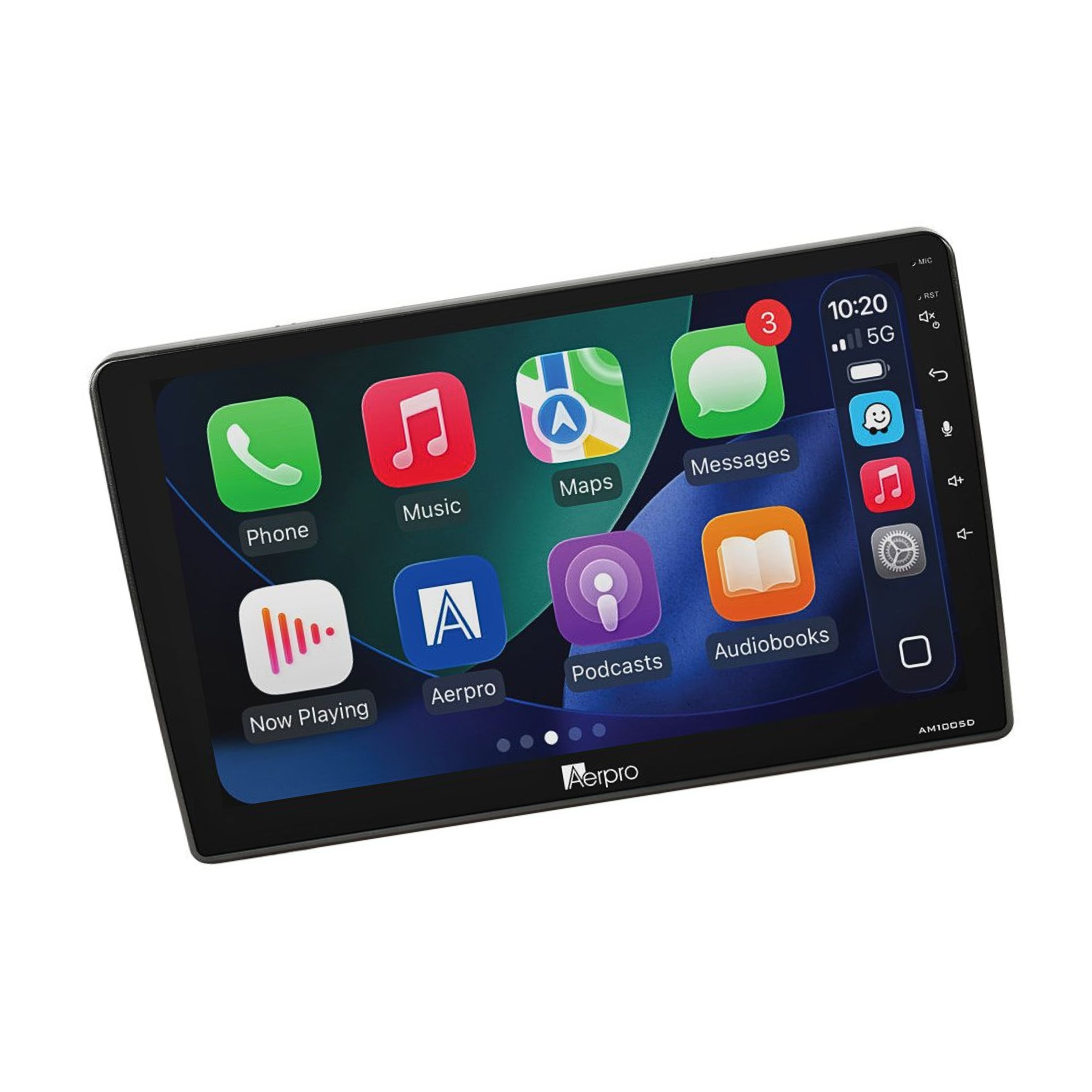

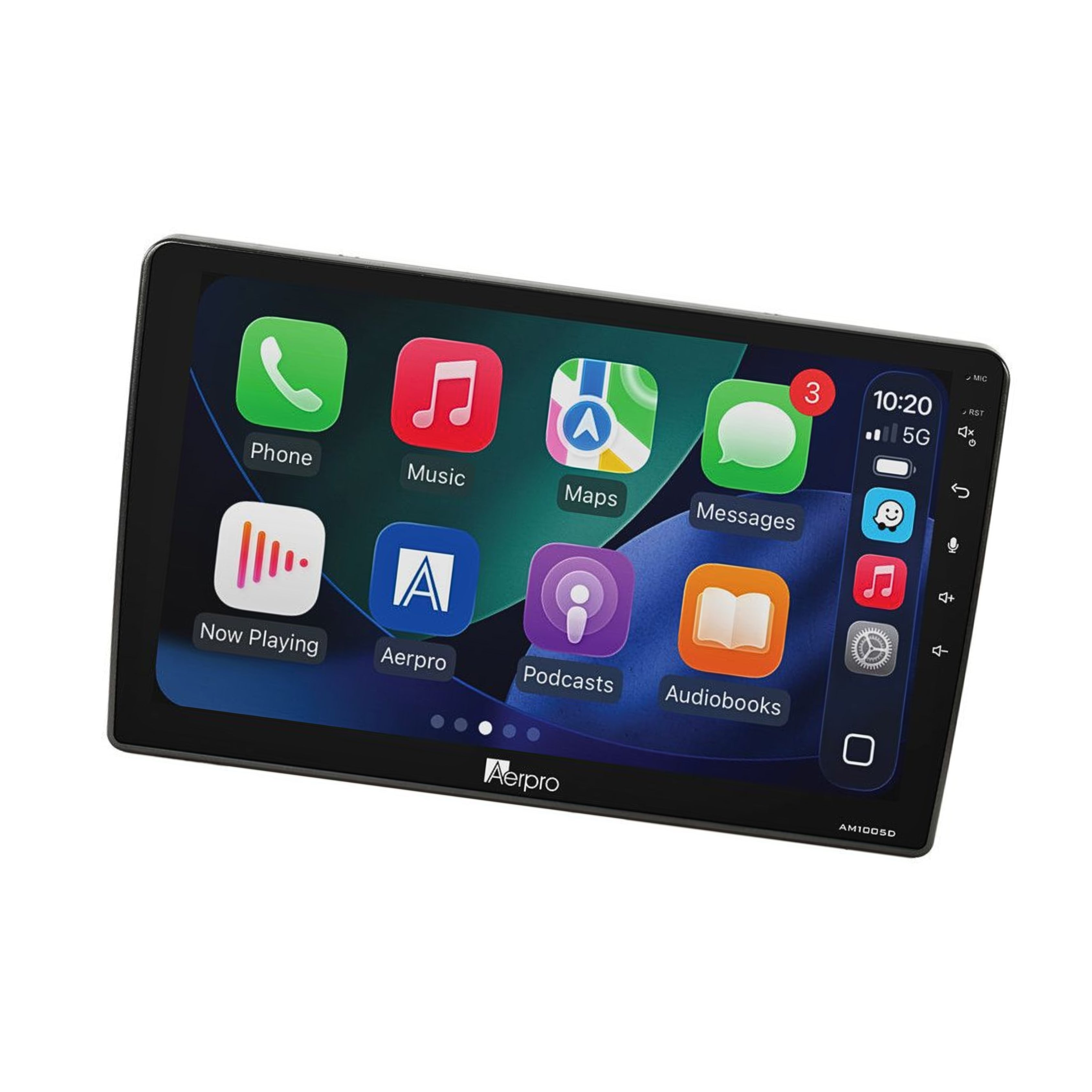

The Aerpro AMDVW2 is a complete head unit upgrade kit covering eleven Volkswagen models across various years, replacing the factory head unit with a 10" capacitive touchscreen at 1024x600 resolution via the AM1005D multimedia receiver. It adds wireless Apple CarPlay and Android Auto, built-in DAB+ digital radio, and Bluetooth V5 retaining factory steering wheel controls (including the phone button) and the factory Panasonic amplified audio system where present.
Covered vehicles:
- Amarok (2011–2016)*
- Beetle (2012–2014)
- Caddy (2005–2015)
- Eos (2007–2014)
- Golf (2004–2013)*
- Jetta (2006–2015)*
- Passat (2006–2015)*
- Polo (2010–2015)*
- Scirocco (2009–2014)*
- Tiguan (2008–2014)*
- Transporter (2010–2015)
Size warning 10" screen obstruction by model:
Due to the physical size of the 10" display, certain factory dash controls are partially covered on starred models. Review the following before purchasing for your vehicle:
-
Amarok (2011–2016): Kit may partially cover top buttons
-
Golf (2004–2009): Kit covers vent dial — may still be accessible but has not been tested
-
Jetta (2006–2011): Kit covers vent dial — may still be accessible but has not been tested
-
Passat (2006–2015): Kit covers part of hazard or clock on some models
-
Polo (2010–2015): Kit covers part of buttons
-
Scirocco (2009–2014): Kit covers vent adjusters
-
Tiguan (2008–2014): Kit partially covers hazard button
Factory amplifier Panasonic only:
The amplifier retention harness in this kit is compatible with factory Panasonic amplified systems only. It is not compatible with factory Blaupunkt amplified systems for Blaupunkt-equipped vehicles, use the Aerpro AMDVW3 instead. An amplifier trigger wire may need to be connected during installation.
The kit includes the AM1005D multimedia receiver, matte black facia kit, SWC interface harness, SWC patch lead, amplifier retention harness, and antenna adaptor. Note that factory reverse camera and parking tones are not retained on this kit.
Features & Benefits
-
11 VW models covered in one kit — Amarok, Beetle, Caddy, Eos, Golf, Jetta, Passat, Polo, Scirocco, Tiguan, and Transporter across various 2004–2016 build years; confirm fitment for your specific model, year, and variant using the Aerpro What Fits Your Car Guide
-
10" size warnings — check your model — for seven of the eleven covered models, the 10" display partially covers factory dash controls; review the model-by-model obstruction notes in the overview before purchasing
-
Factory Panasonic amplifier retained — the included amplifier retention harness preserves Panasonic factory amplified audio systems; a trigger wire may need to be wired in during installation
-
Blaupunkt amplified systems NOT compatible — VW models with factory Blaupunkt amplification require the Aerpro AMDVW3 instead of this kit
-
SWC retained including phone button — all factory VW steering wheel controls carry over via the SWC interface harness and patch lead
-
Factory reverse camera not retained — this kit does not retain the factory reverse camera on any covered model
-
Parking tones not retained — factory parking tone function is not preserved on this kit
-
Matte black vehicle-specific facia kit — matched to the covered VW interior trim; antenna adaptor included for a correct aerial connection
-
Wireless Apple CarPlay & Android Auto — connect over Wi-Fi for maps, music, calls, and messages; wired USB also supported for simultaneous phone charging
-
Built-in DAB+ digital radio — digital audio clarity and expanded station access; AM/FM with RDS, 18 FM and 12 AM presets included
-
Bluetooth V5 with HD Voice — hands-free calling, audio streaming, and phonebook access; internal and external microphone included
-
720P AHD universal rear camera included — Sony 225 1/3" CMOS sensor, 150-degree lens; adds reversing visibility to models where factory camera is not retained
-
4 x 50W max output with 5CH 4V RCA preouts — supports additional external amplifier integration alongside the retained factory system
Technical Specs
| Specification |
Detail |
| Display size |
10" |
| Head unit model |
AM1005D |
| Resolution |
1024x600 |
| Touchscreen type |
Capacitive |
| OS |
Linux |
| DIN size |
Fixed Screen Style (Trapezoid) |
| Max power output |
4CH x 50W (4 ohm) |
| RCA preouts |
4V, 5-channel (Front / Rear / Subwoofer) |
| Preamp voltage |
4V p-p |
| EQ |
13-band (32/63/125/250/500/1K/2K/4K/8K/10K/12K/14K/16K Hz) |
| Preset EQs |
6 + 2 custom |
| Time alignment |
Yes |
| Subwoofer level control |
Yes |
| Smartphone connectivity |
Apple CarPlay & Android Auto (wireless and wired) |
| Bluetooth version |
V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP) |
| Microphone |
Internal + external (with mount) |
| DAB |
Yes |
| FM tuner range |
87.5–108.0MHz (0.05MHz step) / 18 presets |
| AM tuner range |
522–1710KHz (9KHz step) / 12 presets |
| RDS |
Yes |
| USB1 (rear) |
CarPlay / Android Auto + charging (5V / 1.5A) |
| USB2 (rear) |
Media playback + charging (5V / 1.5A) |
| USB max capacity |
FAT32 / 32GB |
| Media formats |
MP3, MP4, MKV, FLAC, Xvid |
| Rear A/V input |
RCA type (3 pcs) |
| Composite video output |
Yes (x2) |
| Reverse camera input |
Yes (720P AHD compatible) |
| Second camera input |
Yes (720P AHD compatible) |
| Button illumination |
6-colour (Red, Yellow, Green, Blue, Purple, White) |
| OSD language |
English |
| Rear Camera (AHD) |
|
| Image sensor |
Sony 225, 1/3" CMOS AHD |
| Lens angle |
150° |
| Mount type |
Surface mount |
| Feature Retention |
|
| Steering wheel controls |
Yes (including phone button) |
| Factory Panasonic amplifier |
Yes (model dependent — trigger wire may be required) |
| Factory Blaupunkt amplifier |
Not compatible — use AMDVW3 |
| Factory reverse camera |
Not retained |
| Parking tones |
Not retained |
| Factory AUX / USB |
N/A |
| Vehicle menu |
N/A |
| Park brake requirement |
Not specified |
| Size Obstructions (*) |
|
| Amarok (2011–2016) |
May partially cover top buttons |
| Golf (2004–2009) |
Covers vent dial — accessibility not tested |
| Jetta (2006–2011) |
Covers vent dial — accessibility not tested |
| Passat (2006–2015) |
Covers part of hazard or clock (some models) |
| Polo (2010–2015) |
Covers part of buttons |
| Scirocco (2009–2014) |
Covers vent adjusters |
| Tiguan (2008–2014) |
Partially covers hazard button |
Compatible With / Goes Well With
- Volkswagen Amarok (2011–2016)* — with Panasonic amp
- Volkswagen Beetle (2012–2014) — with Panasonic amp
- Volkswagen Caddy (2005–2015) — with Panasonic amp
- Volkswagen Eos (2007–2014) — with Panasonic amp
- Volkswagen Golf (2004–2013)* — with Panasonic amp
- Volkswagen Jetta (2006–2015)* — with Panasonic amp
- Volkswagen Passat (2006–2015)* — with Panasonic amp
- Volkswagen Polo (2010–2015)* — with Panasonic amp
- Volkswagen Scirocco (2009–2014)* — with Panasonic amp
- Volkswagen Tiguan (2008–2014)* — with Panasonic amp
- Volkswagen Transporter (2010–2015) — with Panasonic amp
-
Not compatible with any of the above models fitted with factory Blaupunkt amplification — use Aerpro AMDVW3
- Size obstruction warnings apply to starred models — review per-model notes before purchasing
- Use the Aerpro What Fits Your Car Guide to confirm fitment before purchasing
Weight
Not specified
Frequently Asked Questions
How do I know if my VW has a Panasonic or Blaupunkt factory amplifier?
Check the label on your factory head unit or the amplifier itself — the brand name is usually printed clearly. Panasonic and Blaupunkt are both OEM suppliers used across the VW range during these years, often varying by model grade and market. If unsure, a qualified installer can identify the system before purchasing the kit.
What do the (*) size warnings mean — will controls still work?
The 10" display is physically larger than most factory VW head units, and on starred models it extends over adjacent dash controls. Aerpro's guidance is model-specific: on the Golf and Jetta the vent dial may still be reachable but hasn't been tested; on the Tiguan and Passat the hazard button or clock may be partially covered; on the Scirocco the vent adjusters are covered; on the Polo and Amarok various buttons are partially obstructed. Review each model's obstruction note before purchasing.
Is the factory reverse camera retained?
No — this kit does not retain the factory reverse camera on any covered VW model. The 720P AHD universal rear camera included in the kit adds reversing visibility in its place.
What is the amplifier trigger wire and do I need to connect it?
Some factory Panasonic amplifiers in these VW models require a 12V trigger signal to switch on. If your vehicle's Panasonic amp uses a remote trigger, this wire will need to be wired in during installation for the amplifier to function. A professional installer familiar with VW audio systems can confirm whether your specific vehicle requires this step.
Does this suit all VW models from this era — including MK7 Golf or later Passat?
Coverage ends within the 2004–2016 window stated for each model. Later models such as the Golf Mk7 (2013+) and post-2015 Passat use MIB-platform head units and require different kits. Use the Aerpro What Fits Your Car Guide to find the correct kit for your specific model year and generation.
