Description
Built-In Bluetooth For Hands-Free Phone Calls & Wireless Audio Streaming!

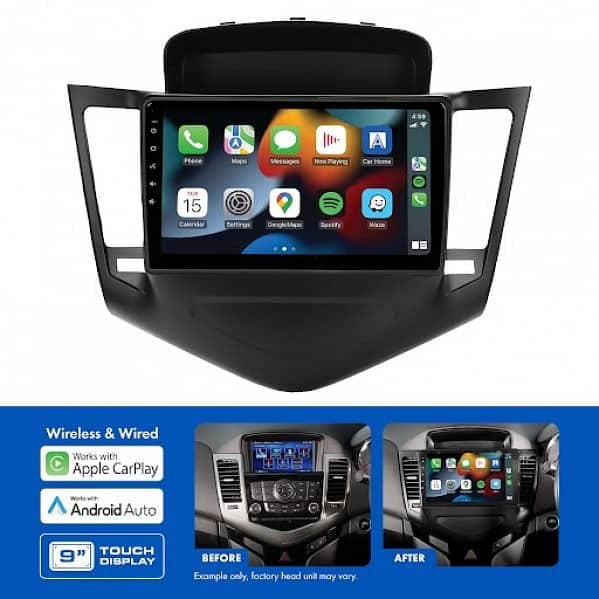

9" Multimedia Receiver With Wireless Apple CarPlay & Android AutoThe Aerpro AMGM2 9" Multimedia Receiver with Wireless Apple CarPlay and Android Auto suits Holden Cruze (2009 - 2016) vehicles with factory MyLink system. Featuring a large 9" capacitive touchscreen display, this Multimedia Receiver has Apple CarPlay and Android Auto which can be used wireless or wired, built-in Bluetooth for hands-free phone calls & wireless audio streaming, dual rear USB inputs as well as an AM/FM radio tuner.Sound quality is superb with 50W x 4 max output, 8 band graphic EQ, and time alignment capabilities, amplifiers can be added to the system via the 4V/5CH RCA pre-outs. Supplied as a complete Head Unit Upgrade Kit, the Aerpro AMGM2 includes all the parts required to complete the installation and retains important vehicle features including steering wheel controls, parking tones, access to the vehicle menu, and the factory reverse camera (If Equipped).
Important Information: - Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
- This kit includes an Infodaptor Interface which allows vehicle information to be displayed & accessed on the aftermarket head unit, retains steering wheel controls, retains parking tones & retains the factory camera (If Equipped). The Interface connects to the rear camera input on the aftermarket head unit and the output for this kit will be low resolution.
Vehicle Feature Retention: - Steering Wheel Controls: Yes (Including Phone Button)
- Factory Reverse Camera: Yes (If Equipped)
- AUX Input: N/A
- USB Input: No
- Parking Tones: Yes (If Equipped)
- Factory Amplifier: N/A
- Vehicle Menu: Yes
- Other: Climate Control & Parking Visualisation on the aftermarket display (If Equipped)
Features: - To suit Holden Cruze (2009-2016) vehicles with factory MyLink system.
- Includes all the parts required to complete the installation and to retain important vehicle features.
- Apple CarPlay & Android Auto (Wireless/Wired)
- Large 9" Capacitive Touchscreen Display
- Steering Wheel Control Retention (Including Phone Button), Access to the vehicle settings, parking tonnes, and factory reverse camera control retention (If Equipped)
- Bluetooth With External Microphone Included (A2DP, AVRCP, HFP, PBAP)
- AM / FM Tuner With RDS & Presets (18FM/12AM)
- Dual Rear USB Inputs (1.5A Max Charging)
- Dual Camera Inputs (AHD 720P Compatible) & Rear A/V Input
- 50Wx4 Max with 8-band graphic EQ and time alignment capabilities.
- 4V/5CH RCA Preout & Subwoofer Level Control
Specifications: - LCD Display:Size: 9"Resolution: 1024 x 600Touch Screen: Capacitive (G+G)
- System Specifications:OS System / CPU: Linux 3.4.5 / SPHE8368URAM/Flash Memory: 128MB/256MB
- DIN Size: 2 DIN Short Body
- Power Output:Rated Power (4-Ohm @ 14.4V, 1 kHz, THD 10 %): 4CH x 25WMAX Power (4-Ohm): 4CH x 50WMedia Playback: MP3 / AAC / FLAC / Xvid / MPEG 1, 2, 4
- Device Ports:USB 1 (Rear) Playback Formats: CP, AA & MediaUSB 2 (Rear) Playback Formats: MediaUSB (Rear) Power - Voltage / Amps: 5V / 1.5A EachUSB MAX Capability: FAT32_32GB
- Aux Inputs / Outputs:Rear A/V Input (RCA Type - 3 Pcs.): YesComposite Video Outputs: YesReverse Camera Input: Yes (720P AHD Compatible)Second Camera Input: Yes (720P AHD Compatible)
- Smartphone Connectivity: CarPlay & Android Auto (Wireless & Wired)
- Bluetooth:Bluetooth Built-In: Yes (A2DP / AVRCP / HFP / PBAP)Bluetooth Version: V4.2+EDRMicrophone: Built-In & External MicrophoneID3 Tag / Information (Artist / Album / Song): YesHFP Profile (1.2 / 1.4 or HD Voice 1.6): HFP 1.6
- Tuner:AM / FM (# of Presets): AM 12 (6X2) / FM 18 (6X3)FM Frequency Span (MHz): 87.5 - 108.0MHz (0.05MHz Step)AM Frequency Span (KHz): 529 - 1629KHz (9KHz Step)RDS: YesFM Antenna Connector Impedance: 50-OhmFM Tuner Connector: Motorola
- RCA Preamp Outputs:RCA Preamp Output: 2-Pair (Front / Rear)Subwoofer RCA Output: YesSubwoofer Level Control: YesPreamp Voltage (1.2 / 2 / 4 / 5 / 6): 4V p-p
- Tone Control:8 Band: 8 Band (50 /200 / 400 / 800 / 1K / 3K / 7K / 15K)Loudness: YesLPF - Frequencies (Sub): Yes8 Preset EQs: Default / Custom / Classic / Rock / Jazz / Electric / Pop / Soft
- Other Features:Steering Wheel Control: Yes, With Aerpro SWC AdaptorOSD Language: EnglishLED Colour (Buttons / Keys): White
- Accessories:Power Harness: Yes With ISO / 3.5mm JackAV-In Cable (RCA With Audio L/R, Video-In): YesReverse Camera Input (With 12V Power Supply to the Camera): Yes4.1CH Audio Out Cable: YesExternal Microphone: Included
- Vehicle Compatibility: Holden Cruze JG/JH (2009 - 2016)
- Weight: 2.00kg
Kit Inclusions: - AM9X Multimedia Receiver
- Black Facia Kit
- Infodaptor Interface Harness
- SWC Patch Lead
- Antenna Adaptor
