Description

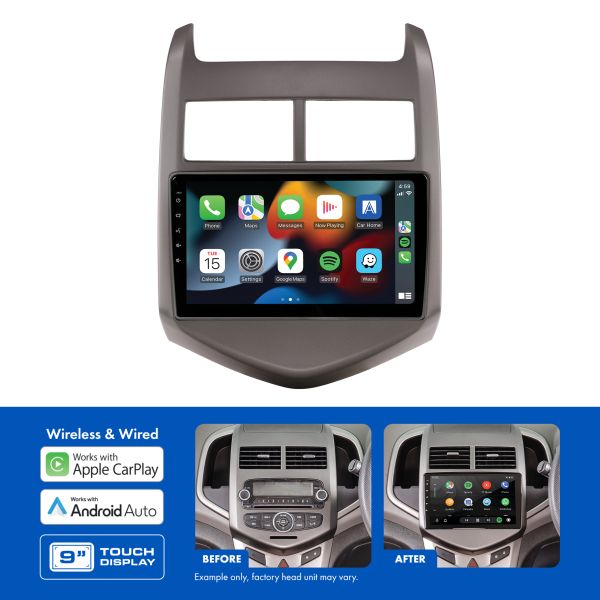

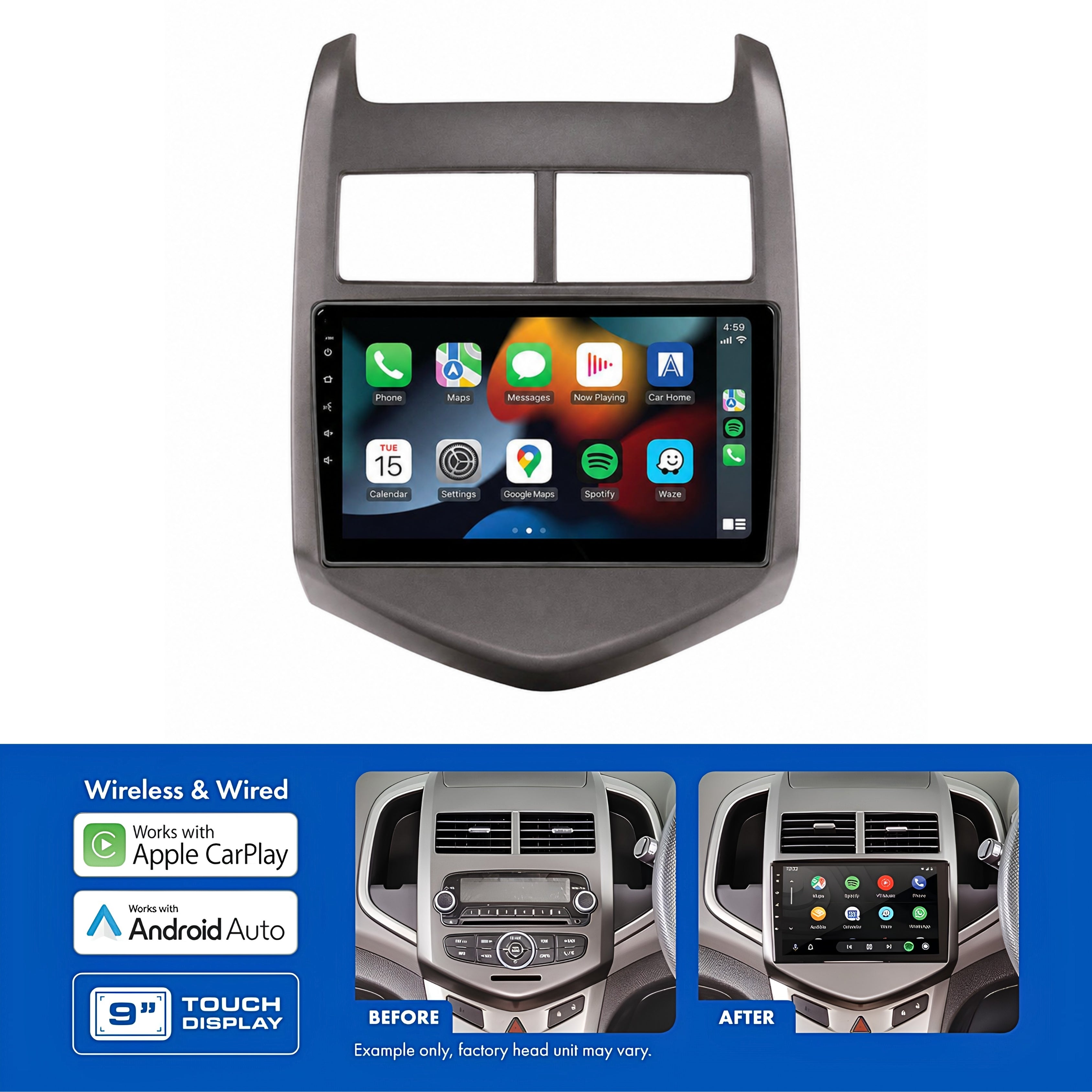

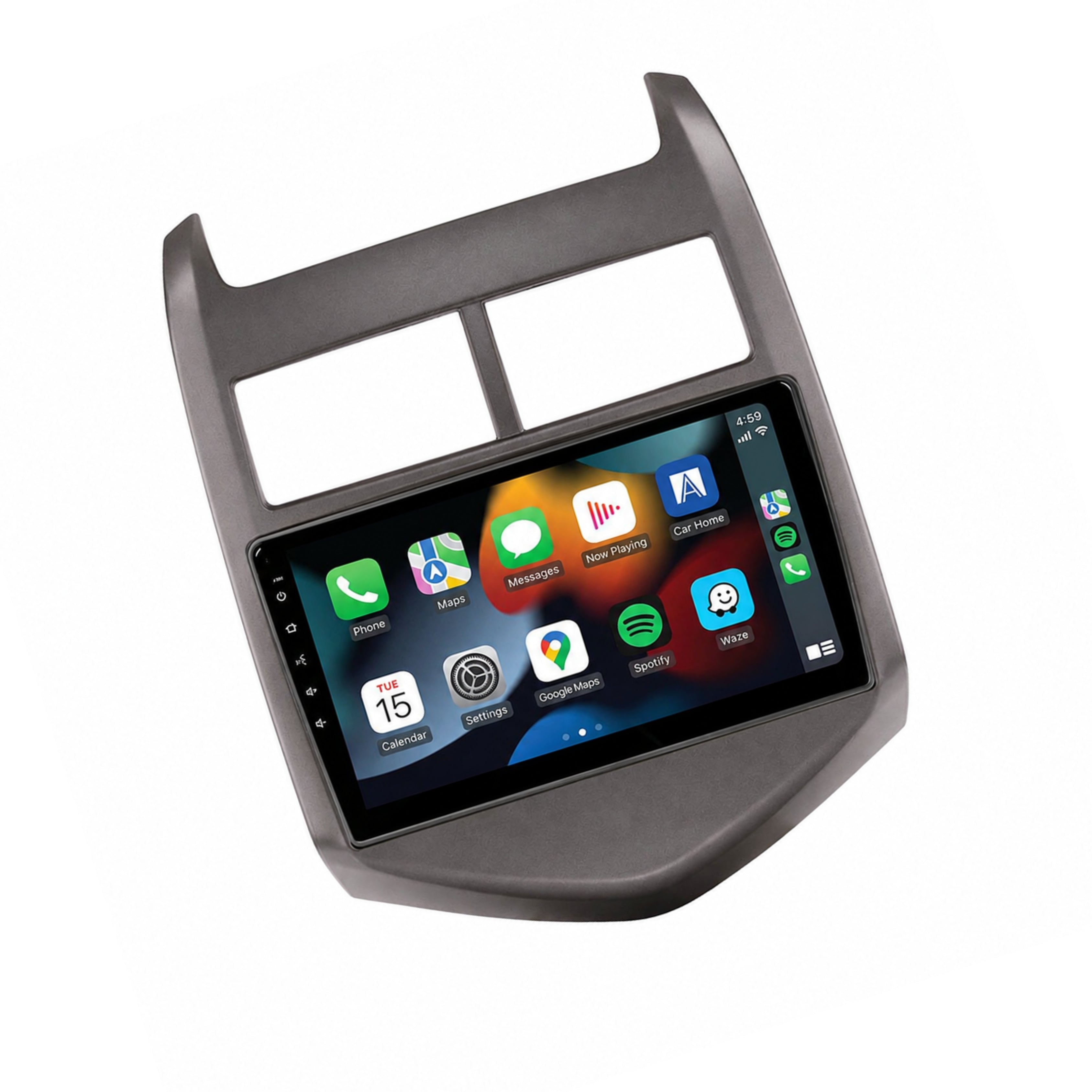

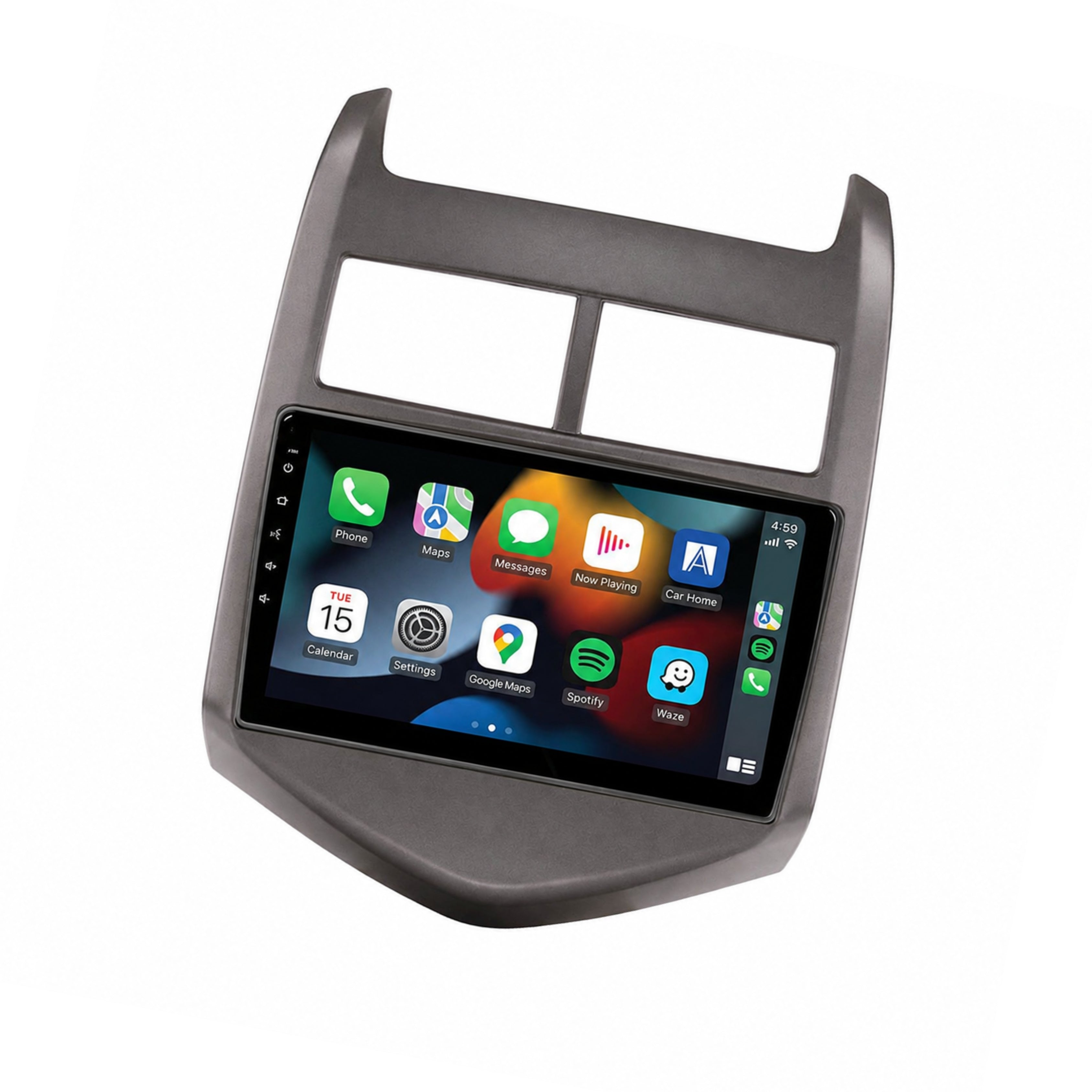

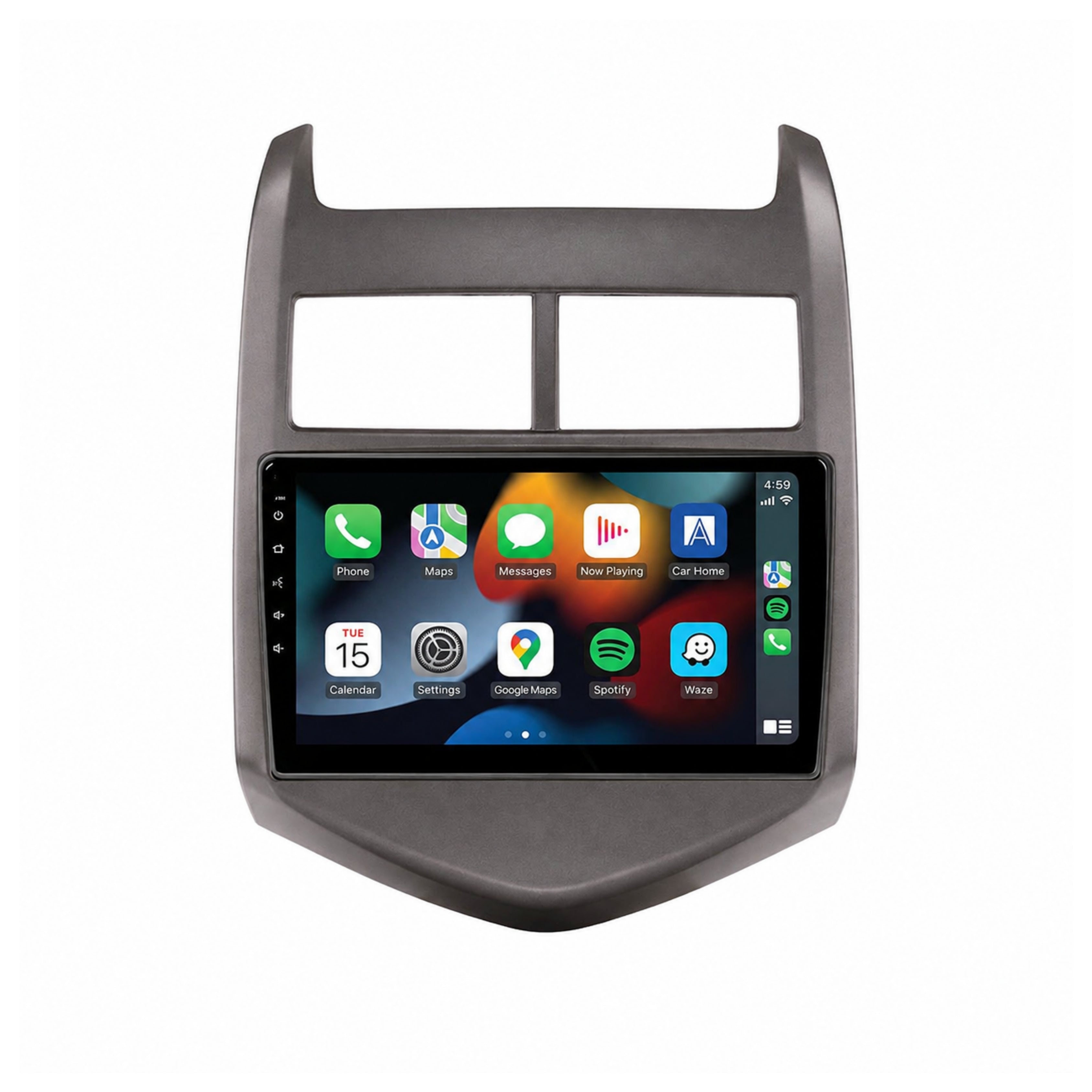

Aerpro AMGM5 9" Multimedia Receiver Complete Kit Holden Barina TM 2011-2016
A complete 9" head unit upgrade kit from Aerpro for Holden Barina TM (2011-2016) vehicles without the factory MyLink system, the AMGM5 includes the AM9X multimedia receiver with wireless Apple CarPlay, Android Auto, Bluetooth V4.2, and 50W x 4 output, plus a silver fascia kit, SWC interface harness, and antenna adaptor. Retains steering wheel controls and parking tones.
Product Overview
The Aerpro AMGM5 is a vehicle-specific complete head unit upgrade kit for Holden Barina TM (2011-2016), supplied with everything required to complete the installation and retain important factory vehicle features. This kit suits non-MyLink models only. The included AM9X multimedia receiver features a 9" capacitive (G+G) touchscreen at 1024x600 resolution, wireless and wired Apple CarPlay and Android Auto, Bluetooth V4.2+EDR with HD Voice (HFP 1.6), AM/FM with RDS, 50W x 4 maximum output, 5-channel 4V RCA preouts, and 8-band graphic EQ with time alignment. Two rear USB inputs provide media playback and CarPlay/Android Auto connectivity. Dual camera inputs (AHD 720P compatible) and a rear A/V input are included on the head unit.
Vehicle feature retention covers steering wheel controls and parking tones. Factory reverse camera, USB input, and AUX input retention are not supported. Note: this unit is also compatible with factory navigation Barina TM models, however access to vehicle menus, personalisation settings, and climate visuals displayed on the factory screen will be lost after installation. These settings can be configured on the factory unit before removal but will not be accessible via the AMGM5.
Features & Benefits
Complete Head Unit Upgrade Kit - All Installation Parts Included: The AMGM5 includes the AM9X multimedia receiver, silver fascia kit, SWC interface harness, and antenna adaptor. No additional parts are required to complete the installation.
Wireless Apple CarPlay and Android Auto: Access maps, music, calls, and messages via the touchscreen without plugging in the phone. Wired connection is also supported for simultaneous charging.
Bluetooth V4.2 with HD Voice - Hands-Free Calling and Audio Streaming: Bluetooth V4.2+EDR supports A2DP, AVRCP, HFP 1.6 (HD Voice), and PBAP for hands-free calling, wireless audio streaming, and phonebook access. Both built-in and external microphones are included.
9" Capacitive Touchscreen - 1024x600 Resolution: Smooth, responsive G+G capacitive touch control for navigation, media, and settings.
50W x 4 Maximum Output with 5-Channel 4V RCA Preouts: 50W x 4 maximum output with 5-channel 4V RCA preouts (front, rear, subwoofer) for connection of aftermarket amplifiers.
8-Band Graphic EQ with Time Alignment and Subwoofer Control: 8-band graphic EQ at 50Hz, 200Hz, 400Hz, 800Hz, 1kHz, 3kHz, 7kHz, and 15kHz with 8 preset EQ modes, time alignment, and subwoofer LPF control.
Dual Rear USB Inputs: USB1 supports CarPlay, Android Auto, and media playback. USB2 supports media playback. Both supply 5V/1.5A charging.
Dual Camera Inputs (AHD 720P Compatible) and Rear A/V Input: Two 720P AHD compatible camera inputs and a rear RCA A/V input are included on the head unit for camera and video source connection.
Steering Wheel Control and Parking Tones Retention: The SWC interface harness retains factory steering wheel controls. Parking tones are retained.
AM/FM Radio with RDS: AM/FM tuning with RDS and 30 preset stations (18 FM, 12 AM) for full broadcast radio coverage.
What's in the Box
- AM9X 9" Fixed Multimedia Receiver (2 DIN Short Body)
- Silver Fascia Kit
- Steering Wheel Control Interface Harness
- Antenna Adaptor
- Power Harness with ISO/SWC Plug
- AV-In Cable (RCA with Audio L/R and Video In)
- Reverse Camera Input Cable (with 12V power supply to camera)
- 4.1CH Audio Out Cable
- External Microphone
Technical Specs
| Specification |
Detail |
| SKU |
AMGM5 |
| Brand |
Aerpro |
| Compatible Vehicle |
Holden Barina TM (2011-2016) - Non-MyLink Models |
| Head Unit Model |
AM9X |
| Screen Size |
9" |
| Resolution |
1024 x 600 |
| Touchscreen |
Capacitive (G+G) |
| OS / CPU |
Linux 3.4.5 / SPHE8368U |
| RAM / Flash |
128MB / 256MB |
| DIN Format |
2 DIN Short Body |
| Apple CarPlay |
Yes (Wireless and Wired) |
| Android Auto |
Yes (Wireless and Wired) |
| DAB+ |
No |
| AM/FM Presets |
AM 12 / FM 18 |
| FM Range |
87.5-108.0MHz (0.05MHz Step) |
| AM Range |
529-1629KHz (9KHz Step) |
| RDS |
Yes |
| Bluetooth |
V4.2+EDR (A2DP, AVRCP, HFP 1.6, PBAP) |
| Microphone |
Built-In and External |
| Rated Power Output |
4 x 25W at 4Ω (14.4V, 1kHz, THD 10%) |
| Max Power Output |
4 x 50W |
| RCA Preouts |
4V, 5-Channel (Front/Rear/Subwoofer) |
| EQ |
8-Band (50/200/400/800/1K/3K/7K/15KHz) |
| Preset EQs |
8 (Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft) |
| Time Alignment |
Yes |
| Subwoofer LPF |
Yes |
| USB1 (Rear) |
CarPlay/Android Auto + Media + Charging (5V/1.5A) |
| USB2 (Rear) |
Media + Charging (5V/1.5A) |
| USB Max Capacity |
FAT32, 32GB |
| Media Formats |
MP3, AAC, FLAC, Xvid, MPEG 1/2/4 |
| Reverse Camera Input |
Yes (720P AHD Compatible) |
| Second Camera Input |
Yes (720P AHD Compatible) |
| Rear A/V Input |
Yes (RCA, 3 Piece) |
| Composite Video Output |
Yes |
| Button Illumination |
White |
| SWC Retention |
Yes |
| Parking Tones Retention |
Yes |
| Reverse Camera Retention |
No |
| USB Input Retention |
No |
| AUX Input Retention |
No |
| Factory Amplifier Retention |
N/A |
| Vehicle Menu |
Not Retained |
| Barcode |
9317114941121 |
Vehicle Feature Retention
| Feature |
Retained |
| Steering Wheel Controls |
Yes |
| Parking Tones |
Yes |
| Factory Reverse Camera |
No |
| USB Input |
No |
| AUX Input |
No |
| Factory Amplifier |
N/A |
| Vehicle Menu |
No |
Compatible With
| Make |
Model |
Variant |
Years |
| Holden |
Barina |
TM (Non-MyLink) |
2011-2016 |
Note: Suits Holden Barina TM (2011-2016) without factory MyLink system. Compatible with factory navigation models however vehicle menus, personalisation settings, and climate visuals displayed on the factory screen are not accessible after installation. These settings should be configured on the factory unit before removal. Confirm your specific Barina variant using the Aerpro What Fits Your Car Guide before purchase.
Frequently Asked Questions
Does the AMGM5 suit Holden Barina TM models with factory MyLink?
No. The AMGM5 is designed for Holden Barina TM (2011-2016) vehicles without the factory MyLink system. For MyLink equipped models, refer to the Aerpro What Fits Your Car Guide for the correct kit.
Does the AMGM5 support wireless CarPlay and Android Auto?
Yes. The AM9X supports both wireless and wired Apple CarPlay and Android Auto.
Does the AMGM5 retain factory steering wheel controls?
Yes. The included SWC interface harness retains factory steering wheel controls.
Will the AMGM5 work in a factory navigation Barina TM?
Yes, the AMGM5 is physically compatible with factory navigation models. However, vehicle menus, personalisation settings, and climate visuals that appear on the factory screen will not be accessible after installation. These should be configured on the factory unit before it is removed.
Does the AMGM5 include DAB+ digital radio?
No. The AM9X does not include DAB+. AM and FM radio with RDS is included.
