Description
Aerpro 9" Multimedia Receiver Suit Holden Colorado 7 2014-2016: Built-In Bluetooth For Hands-Free Phone Calls & Wireless Audio Streaming!

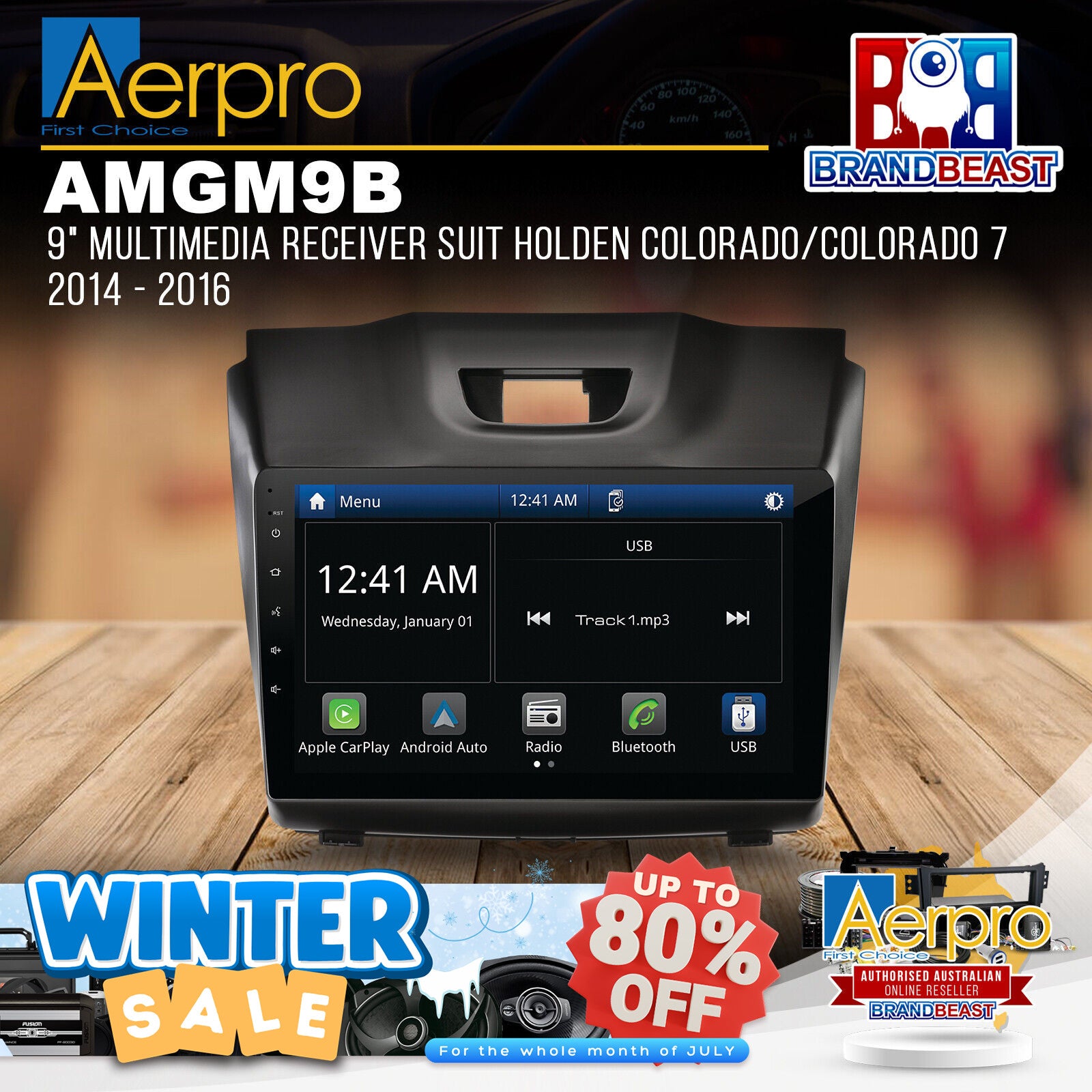

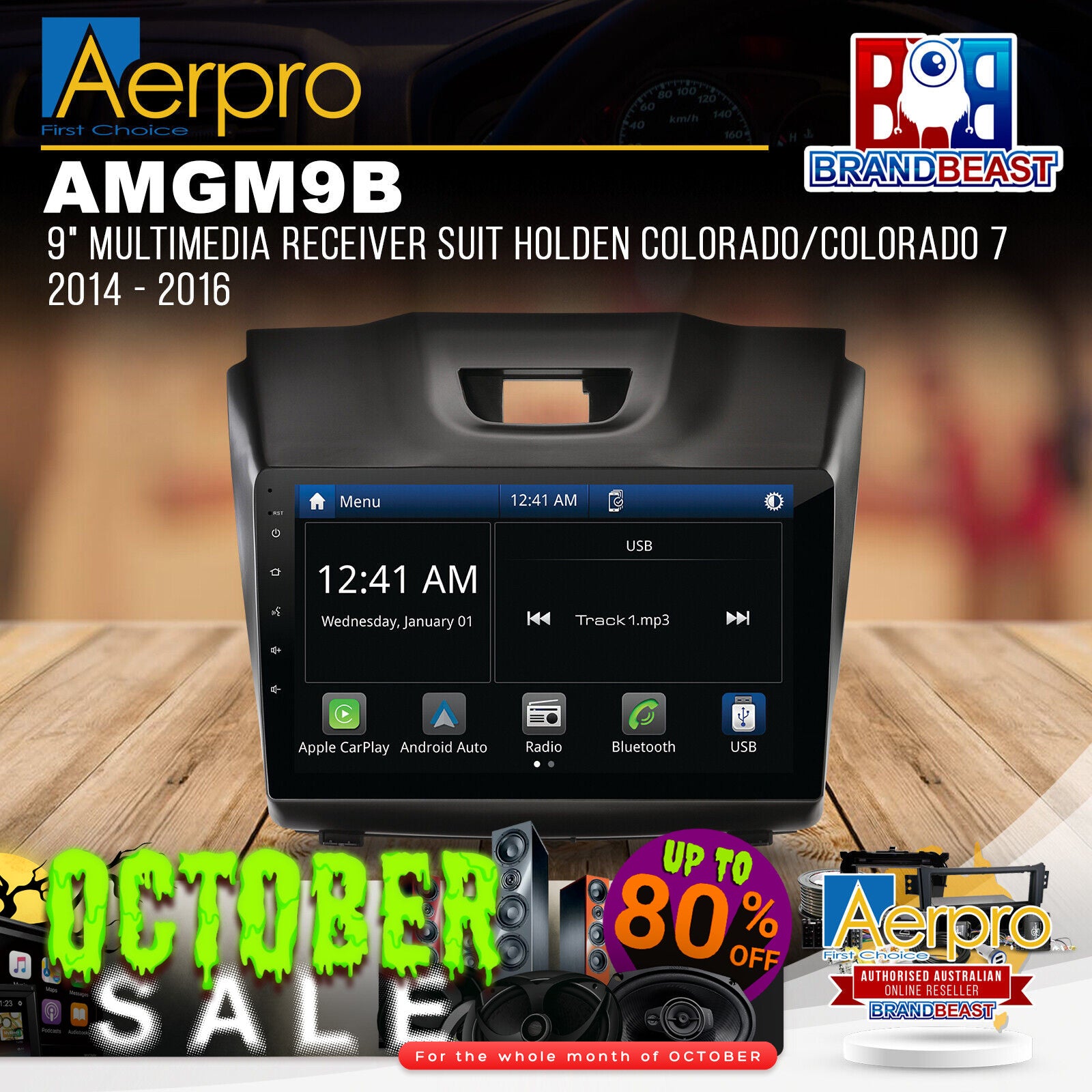

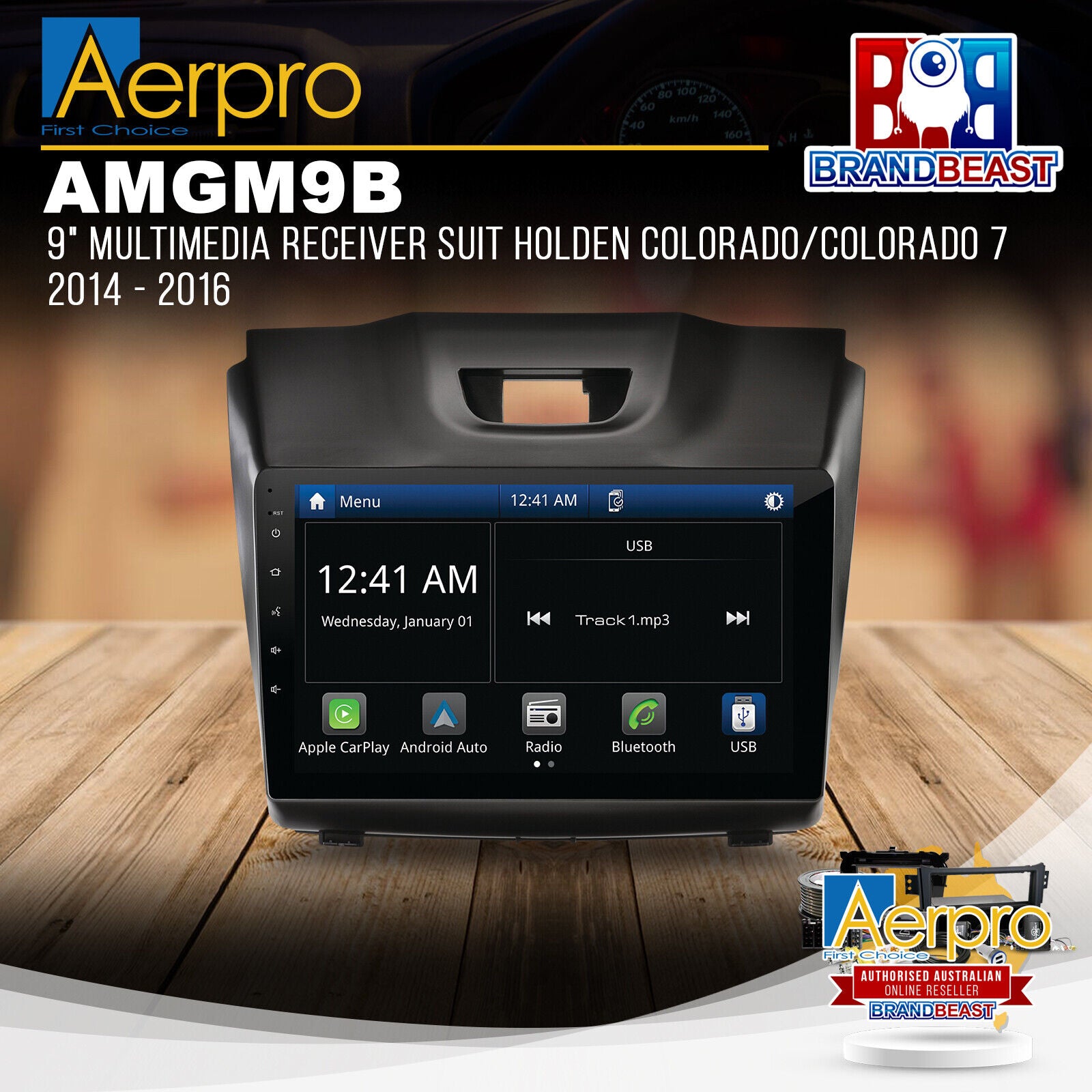

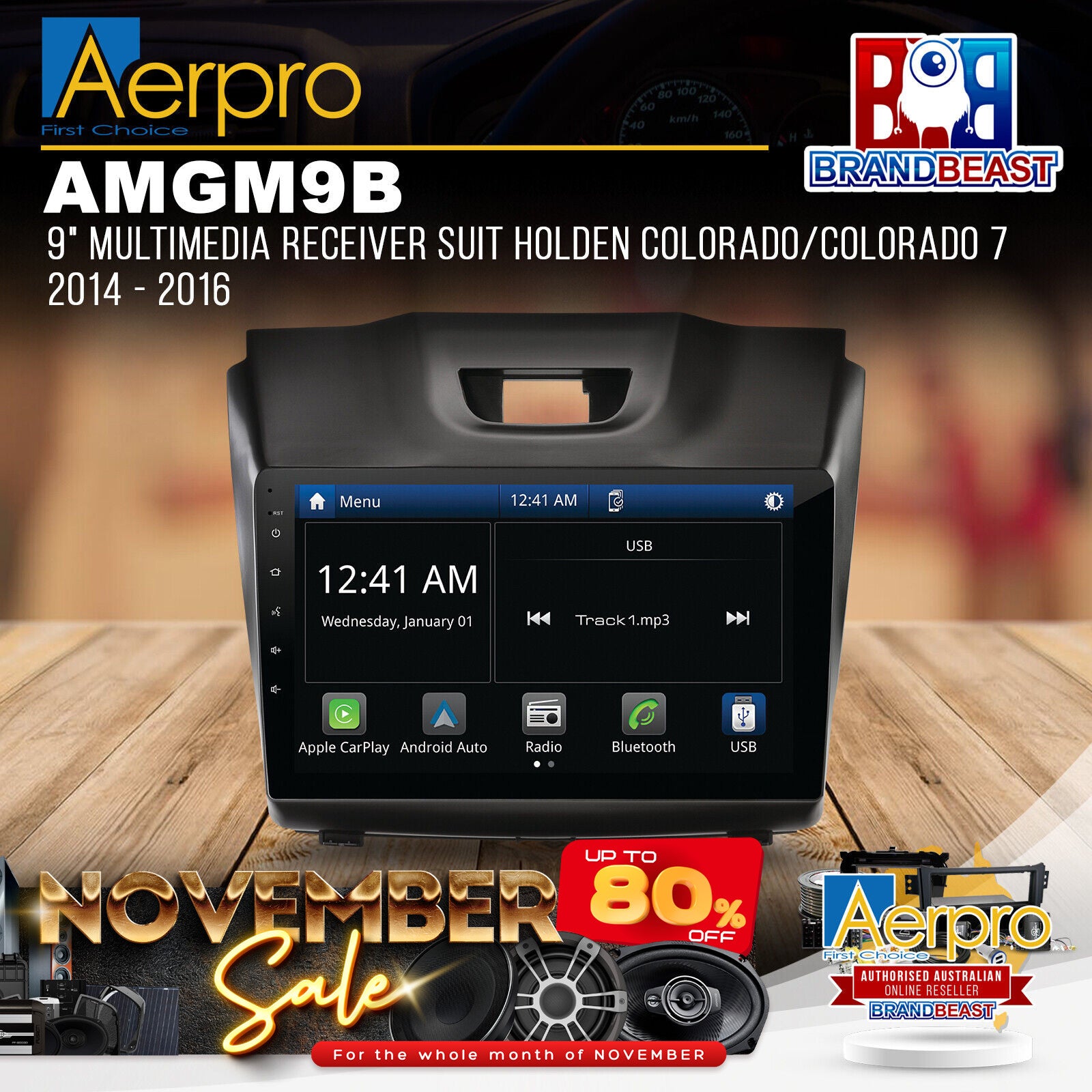

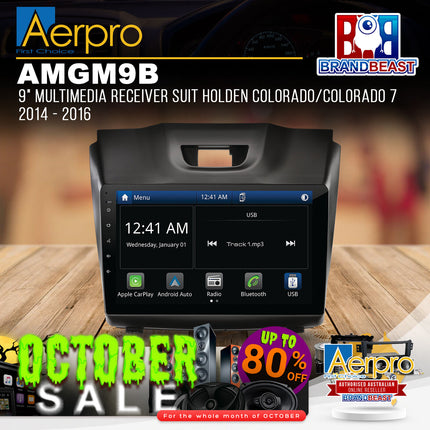

9" Multimedia Receiver Suit Holden Colorado Inc. 7 (2014-2016)The Aerpro AMGM9B 9" Multimedia Receiver with Wireless Apple CarPlay and Android Auto suits Holden Colorado (inc.7) (2014-2016) vehicles. Featuring a large 9" capacitive touchscreen display, this Multimedia Receiver has Apple CarPlay and Android Auto which can be used wireless or wired, built-in Bluetooth for hands-free phone calls & wireless audio streaming, rear USB input as well as an AM/FM radio tuner.
Sound quality is superb with 40Wx4 max output, 8 band graphic EQ and time alignment capabilities, amplifiers can be added to the system via the 4V/5CH RCA preouts. Supplied as a complete Head Unit Upgrade Kit, the Aerpro AMGM9B includes all the parts required to complete the installation and retains important vehicle features including steering wheel controls, parking tones, access to the vehicle menu and the factory reverse camera (If Equipped).
Hema Maps ReadyExperience seamless on-road and off-road navigation through the head unit display by adding the optional Aerpro AMHXD3 On-Road / Off-Road Navigation Module (Sold Separately).
Important Information:
- Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
- This kit includes an Infodaptor Interface which allows vehicle information to be displayed & accessed on the aftermarket head unit, retains steering wheel controls, retains parking tones & retains the factory camera (if equipped). The Interface connects to the rear camera input on the aftermarket head unit and the output for this kit will be low resolution.
- USB Port can be retained (if equipped), optional USB Retention Adaptor Required APUNIUSB (sold separately). Connects to the rear USB input on the Multimedia Receiver.
Aerpro AMGM9B Features:
- To suit Holden Colorado (inc.7) (2014-2016)
- Includes all the parts required to complete the installation and to retain important vehicle features
- Apple CarPlay & Android Auto (wireless / wired)
- Hema Maps Ready, experience seamless on-road and off-road navigation through the head unit display (optional AMHXD3 required, sold separately)
- Large 9" capacitive touchscreen display
- Steering wheel controls (including phone button), access to the vehicle settings, parking tones and factory reverse camera retention (if equipped)
- Climate Control and Parking Visualisation on the aftermarket display (if equipped)
- Bluetooth with external microphone included (A2DP, AVRCP, HFP, PBAP)
- AM / FM Tuner with RDS & presets (18FM/12AM)
- Rear USB input (1.5A max charging)
- Reverse camera input (AHD 720P compatible) & rear A/V input
- 40Wx4 Max with 8 band graphic EQ and time alignment capabilities
- 4V/5CH RCA Preout and subwoofer level control
Vehicle Feature Retention:
- Steering Wheel Controls: Yes (Including Phone Button)
- Factory Reverse Camera: Yes (If Equipped)
- AUX Input: N/A
- USB Input: Optional (APUNIUSB Required, Sold Separately)
- Parking Tones: Yes (If Equipped)
- Factory Amplifier: N/A
- Vehicle Menu: Yes
- Other: Climate Control and Parking Visualisation on the aftermarket display (If Equipped)
Aerpro AMGM9B Specifications:
- LCD Display:
Size: 9"
Resolution: 1024x600
Touch Screen: Capacitive (G+G)
- System Specifications:
OS System / CPU: Linux 3.4.5 / SPHE8368U
RAM / Flash Memory: 128MB / 256MB
- DIN Size: 2 DIN Short Body
- Power Output
Rated Power (4 Ohm @ 14.4 V, 1 kHz, THD 10 %): 4CH x 25W
MAX Power (4 Ohm): 4CH x 40W
- Media Playback: MP3 / AAC / FLAC / Xvid / MPEG 1, 2, 4
- Device Ports:
USB (Rear) Playback Formats: CPAA & Media
USB (Rear) Power - Voltage/Amps: 5V/1.5A
USB MAX Capability: FAT32_32GB
- Aux Inputs / Outputs:
Rear A/V Input (RCA Type - 3pcs): Yes
Composite Video Outputs: Yes
Reverse Camera Input: Yes (720P AHD Compatible)
- Smartphone Connectivity: CarPlay & Android Auto (Wireless & Wired)
- Bluetooth:
Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
Bluetooth Version: V4.2+EDR
Microphone: Built-in & External Microphone
ID3 Tag/Information (Artist, Album, Song): Yes
HFP Profile (1.2, 1.4 or HD Voice 1.6): HFP 1.6
- Tuner:
AM/FM (# of Presets): AM 12 (6X2) / FM 18 (6X3)
FM Frequency Span (MHz): 87.5-108.0MHz (0.05MHz Step)
AM Frequency Span (KHz): 529-1629KHz (9KHz Step)
RDS: Yes
FM Antenna Connector Impedance: 50 Ohm
FM Tuner Connector: Motorola
- RCA Preamp Outputs:
RCA Preamp Output: 2-Pair (Front / Rear)
Subwoofer RCA Output: Yes
Subwoofer Level Control: Yes
Preamp Voltage (1.2,2,4,5,6): 4V p-p
- Tone Control:
8 Band: 8 Band (50/200/400/800/1K/3K/7K/15K)
Loudness: Yes
LPF - Frequencies (Sub): Yes
8 Preset EQs: Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft
- Other Features:
Steering Wheel Control: Yes, with Aerpro SWC Adaptor
OSD Language: English
LED Colour (Buttons / Keys): White
- Accessories:
Power Harness: Yes with ISO/3.5mm jack
AV-In Cable (RCA with Audio L/R, Video In): Yes
Reverse Camera Input (With 12V Power Supply to The Camera): Yes
4.1CH Audio Out Cable: Yes
External Microphone: Included
Aerpro AMGM9B Vehicle Compatibility:
- Holden Colorado 2014-2016
- Holden Colorado 7 2014-2016
Aerpro AMGM9B Kit Inclusions:
- AM9X Multimedia Receiver
- Black Facia Kit
- Infodaptor Interface Harness
- SWC Patch Lead
- Antenna Adaptor
