Description
Built-In Bluetooth For Hands-Free Phone Calls & Wireless Audio Streaming!

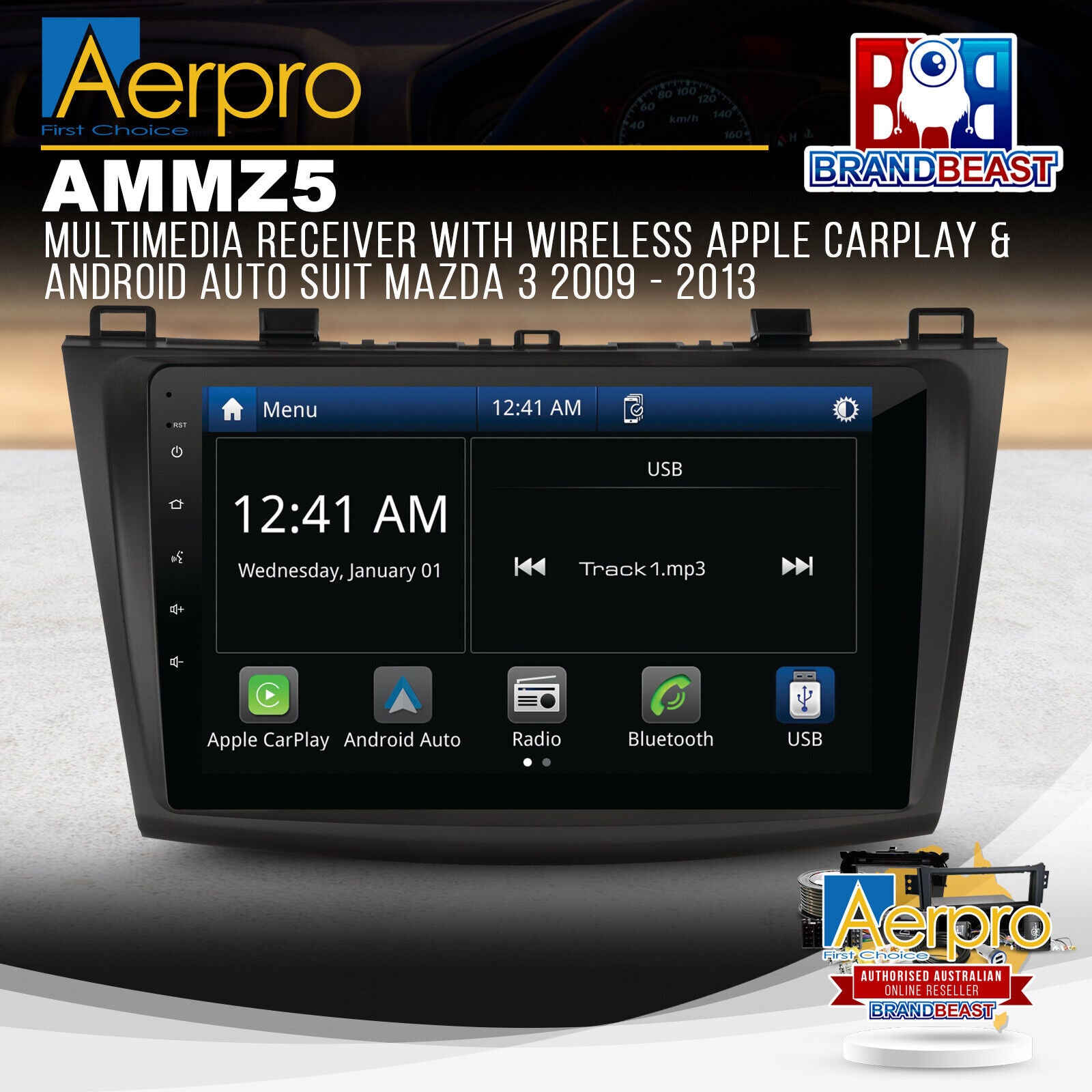

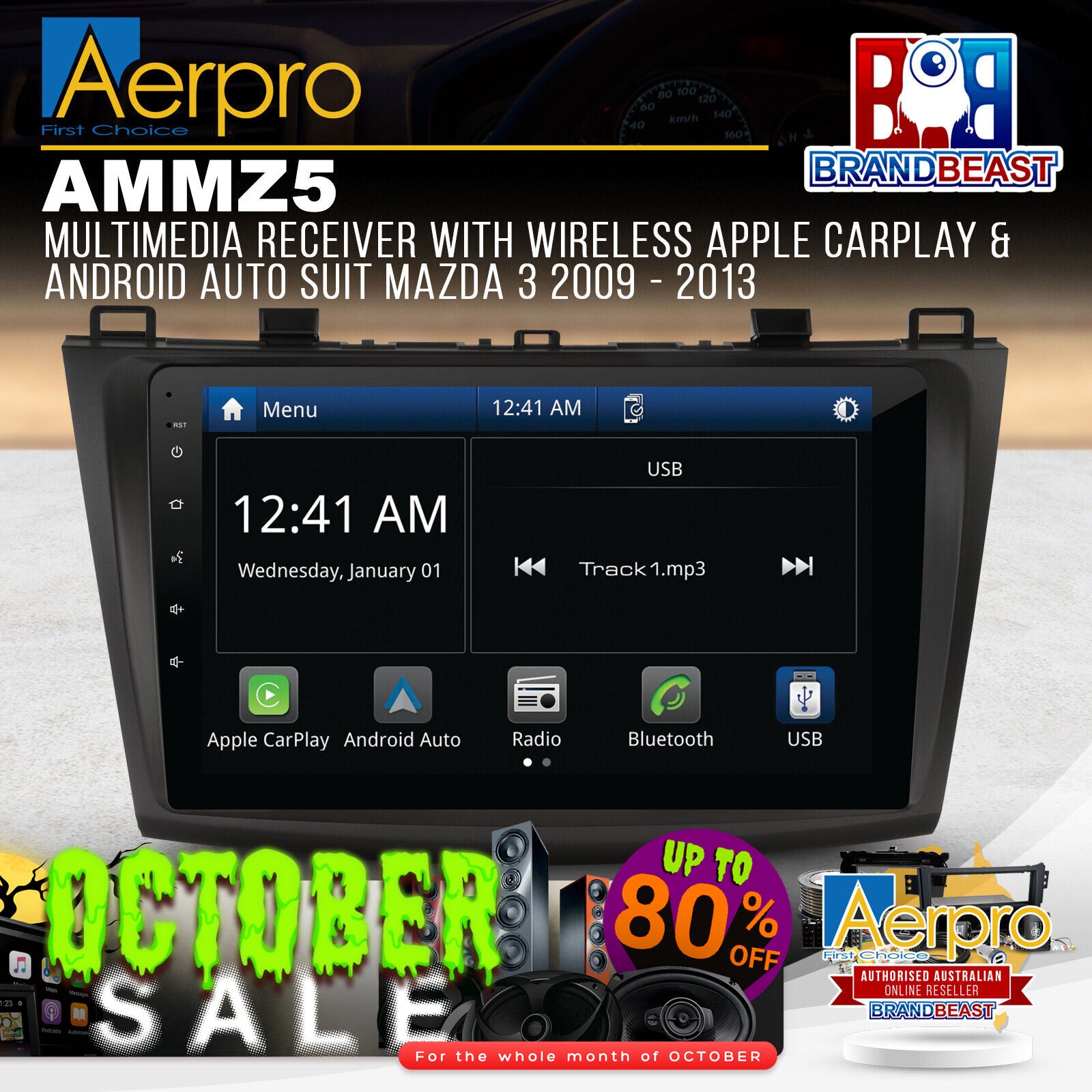

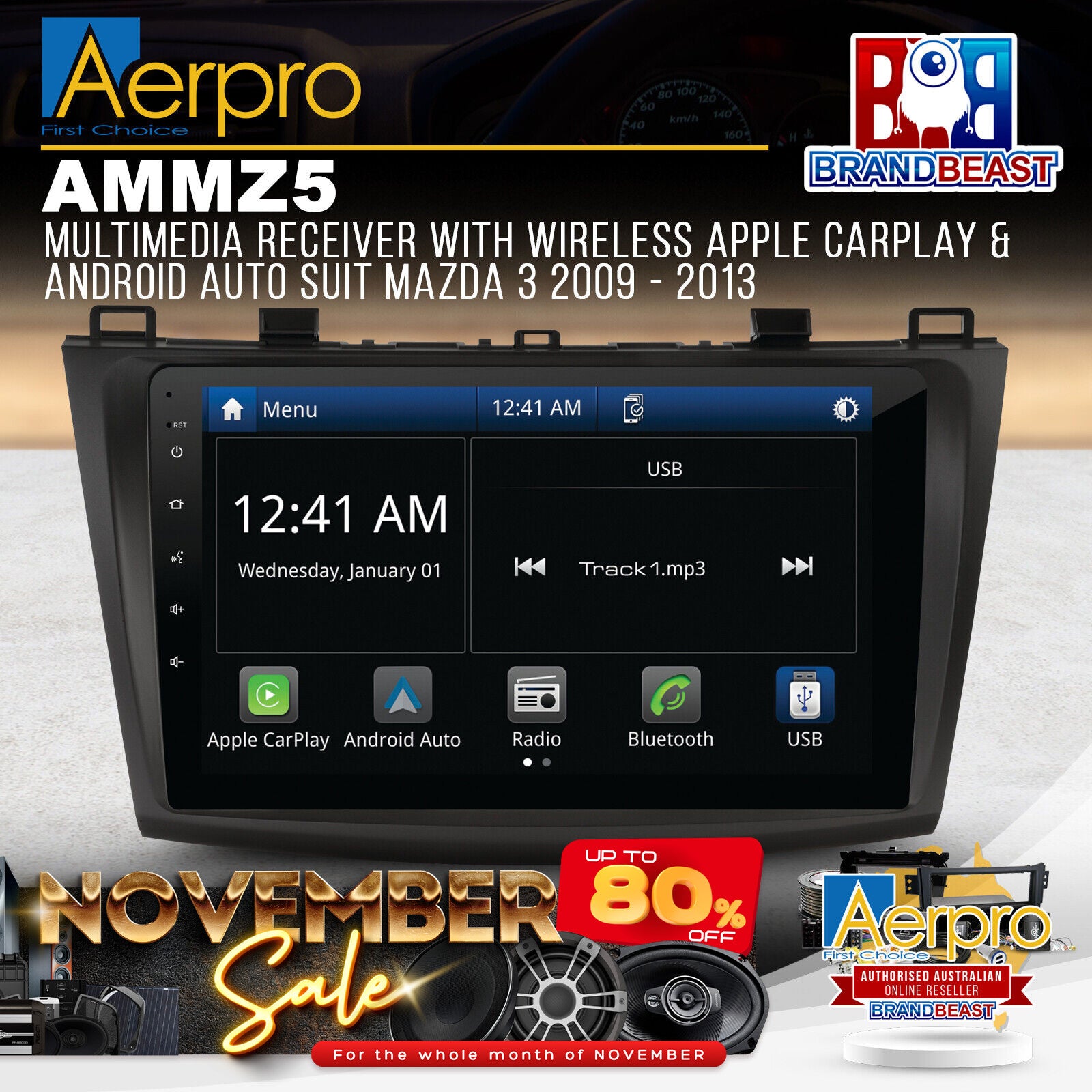

Multimedia Receiver Suit Mazda 3 (2009 - 2013) AmplifiedThe Aerpro AMMZ5 9" Multimedia Receiver suits Mazda 3 BL (2009-2013) factory Bose amplified vehicles. Featuring a large 9" capacitive touchscreen display, this Multimedia Receiver has Apple CarPlay and Android Auto which can be used wireless or wired, built-in Bluetooth for hands-free phone calls & wireless audio streaming, rear USB input as well as an AM/FM radio tuner.
Sound quality is superb with 40Wx4 max output, 8 band graphic EQ, and time alignment capabilities, amplifiers can be added to the system via the 4V/5CH RCA pre-outs. Supplied as a complete Headunit Upgrade Kit, the Aerpro AMMZ5 includes all the parts required to complete the installation and retains important vehicle features including steering wheel controls and factory Bose amplified system.
Hema Maps ReadyExperience seamless on-road and off-road navigation through the Headunit display by adding the optional Aerpro AMHXD3 Hema Maps On-Road / Off-Road Navigation Module (Sold Separately).
Important Information:
- Headunit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
- Suits factory Bose amplified vehicles.
- Does not support phone button steering wheel controls.
*In-Store Purchase & Pickup Only!Features:
- To suit Mazda 3 BL (2009-2013) factory Bose amplified vehicles
- Includes all the parts required to complete the installation and to retain important vehicle features
- Apple CarPlay & Android Auto (wireless / wired)
- Hema Maps Ready, experience seamless on-road and off-road navigation through the head unit display (Optional AMHXD3 Required, Sold Separately)
- Large 9" Capacitive Touchscreen Display
- Steering wheel control and factory Bose amplified system retention
- Bluetooth with external microphone included (A2DP, AVRCP, HFP, PBAP)
- AM / FM Tuner with RDS & presets (18FM/12AM)
- Rear USB input (1.5A max charging)
- Reverse camera input (AHD 720P compatible) & rear A/V input
- 40Wx4 Max with 8 bands graphic EQ and time alignment capabilities
- 4V/5CH RCA Pre-out and subwoofer level control
Specifications:
- LCD Display:
Size: 9"
Resolution: 1024 x 600
Touch Screen: Capacitive (G+G)
- System Specifications:
OS System / CPU: Linux 3.4.5 / SPHE8368U
RAM / Flash Memory: 128MB / 256MB
DIN Size: 2 DIN Short Body
- Power Output:
Rated Power (4 Ohm @ 14.4V, 1 kHz, THD 10 %): 4CH x 25W
MAX Power (4 Ohm): 4CH x 40W
Media Playback: MP3 / AAC / FLAC / XVID / MPEG 1, 2, 4
- Device Ports:
USB (Rear) Playback Formats: CPAA & Media
USB (Rear) Power - Voltage/Amps: 5V/1.5A
USB MAX Capability: FAT32_32GB
- Aux Inputs / Outputs:
Rear A/V Input (RCA Type - 3pcs): Yes
Composite Video Outputs: Yes
Reverse Camera Input: Yes (720P AHD Compatible)
- Smartphone Connectivity: CarPlay & Android Auto (Wireless & Wired)
- Bluetooth:
Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
Bluetooth Version: V4.2+EDR
Microphone: Built-In & External Microphone
ID3 Tag/Information (Artist, Album, Song): Yes
HFP Profile (1.2, 1.4 or HD Voice 1.6): HFP 1.6
- Tuner:
AM/FM (# of Presets): AM 12 (6X2) / FM 18 (6X3)
FM Frequency Span (MHz): 87.5 - 108.0MHz (0.05MHz Step)
AM Frequency Span (KHz): 529 - 1629KHz (9KHz Step)
RDS: Yes
FM Antenna Connector Impedance: 50 Ohm
FM Tuner Connector: Motorola
- RCA Preamp Outputs:
RCA Preamp Output: 2-Pair (Front / Rear)
Subwoofer RCA Output: Yes
Subwoofer Level Control: Yes
Preamp Voltage (1.2,2,4,5,6): 4V p-p
- Tone Control:
8 Band: 8 Band (50/200/400/800/1K/3K/7K/15K)
Loudness: Yes
LPF - Frequencies (Sub): Yes
8 Preset EQs: Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft
- Other Features:
Steering Wheel Control: Yes, With Aerpro SWC Adaptor
OSD Language: English
LED Colour (Buttons / Keys): White
- Accessories:
Power Harness: Yes With ISO/3.5mm Jack
AV-In Cable (RCA With Audio L/R, Video In): Yes
Reverse Camera Input (With 12V Power Supply To The Camera): Yes
4.1CH Audio Out Cable: Yes
External Microphone: Included
- Vehicle Compatibility: Mazda 3 (Axela) 2009-2013 BL
- Weight: 2.50kg
