Aerpro AOFC28 2-Channel 8AWG OFC Amp Install Kit 700W Maxcor

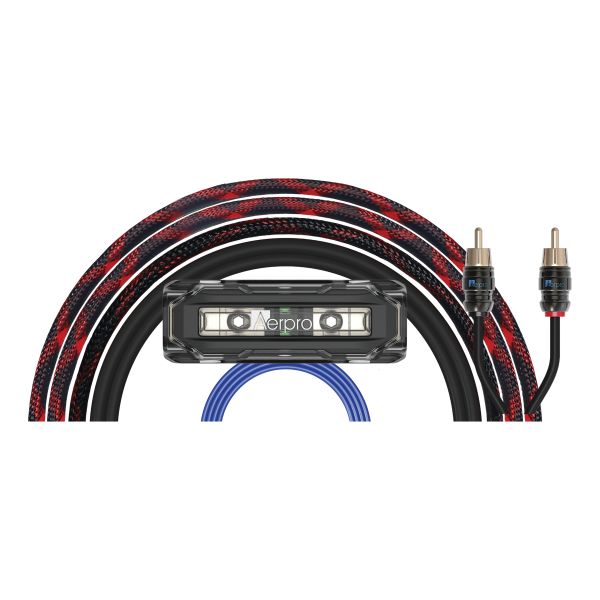

A 2-channel 8AWG Oxygen-Free Copper amplifier install kit rated at 700W RMS, the Aerpro AOFC28 Maxcor includes a 5.4-metre braided red OFC power cable, 0.9-metre earth cable with pre-attached O-ring terminals, 5-metre 2-channel braided shield RCA with gold-plated connectors, 5-metre 18AWG remote wire, Mini ANL fuse holder with 80A fuse, plastic grommet, assorted ring terminals, and cable ties.
Product Overview
The Aerpro AOFC28 is a 2-channel 8AWG amplifier installation kit from the Maxcor range, designed for powering high-quality 2-channel car amplifiers or subwoofers at up to 700W RMS. The power and earth cables use Oxygen-Free Copper (OFC) conductors with braided red PVC insulation on the power cable and black PVC insulation on the earth cable, providing superior conductivity and maximum power transfer compared to standard copper alternatives. O-ring terminals are pre-attached to one end of both power and earth cables for a professional and time-efficient installation.
Signal integrity is maintained via a 5-metre 2-channel RCA cable with braided shielding and gold-plated connectors, minimising electromagnetic interference and ensuring a clean audio signal between the head unit and amplifier. A Mini ANL fuse holder with a pre-installed 80A Mini ANL fuse provides circuit protection. The kit also includes a 5-metre 18AWG remote wire, an 8AWG plastic grommet for firewall cable routing, assorted ring terminals, and cable ties.
Features & Benefits
Oxygen-Free Copper (OFC) Power and Earth Cables: The AOFC28 uses OFC conductors throughout the power and earth cables, providing superior electrical conductivity and maximum power transfer efficiency compared to standard copper wiring, reducing resistance and heat generation at high current loads.
700W RMS Maximum Power Rating: The 8AWG OFC power cable is rated at 700W RMS maximum power, supporting high-performance 2-channel amplifier and subwoofer installations within this power range.

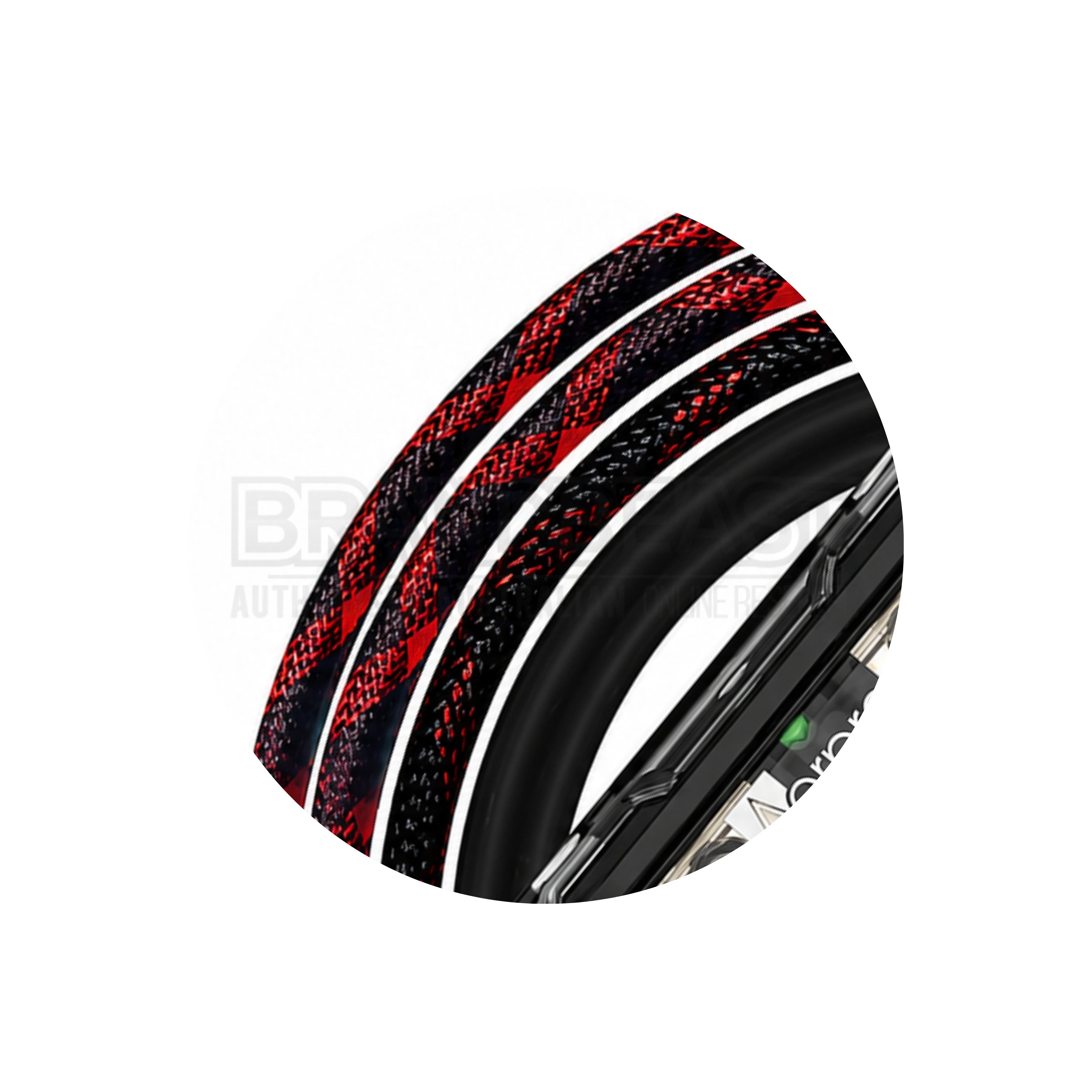

5.4-Metre Braided Red PVC Power Cable: The 5.4-metre power cable length accommodates installation in most passenger vehicles from the battery to the amplifier location, with braided red PVC insulation providing both durability and professional appearance.
Pre-Attached O-Ring Terminals: O-ring terminals are pre-attached to one end of both the power and earth cables, eliminating the need for additional crimping tools or terminal hardware at the battery and chassis connection points and simplifying the installation process.

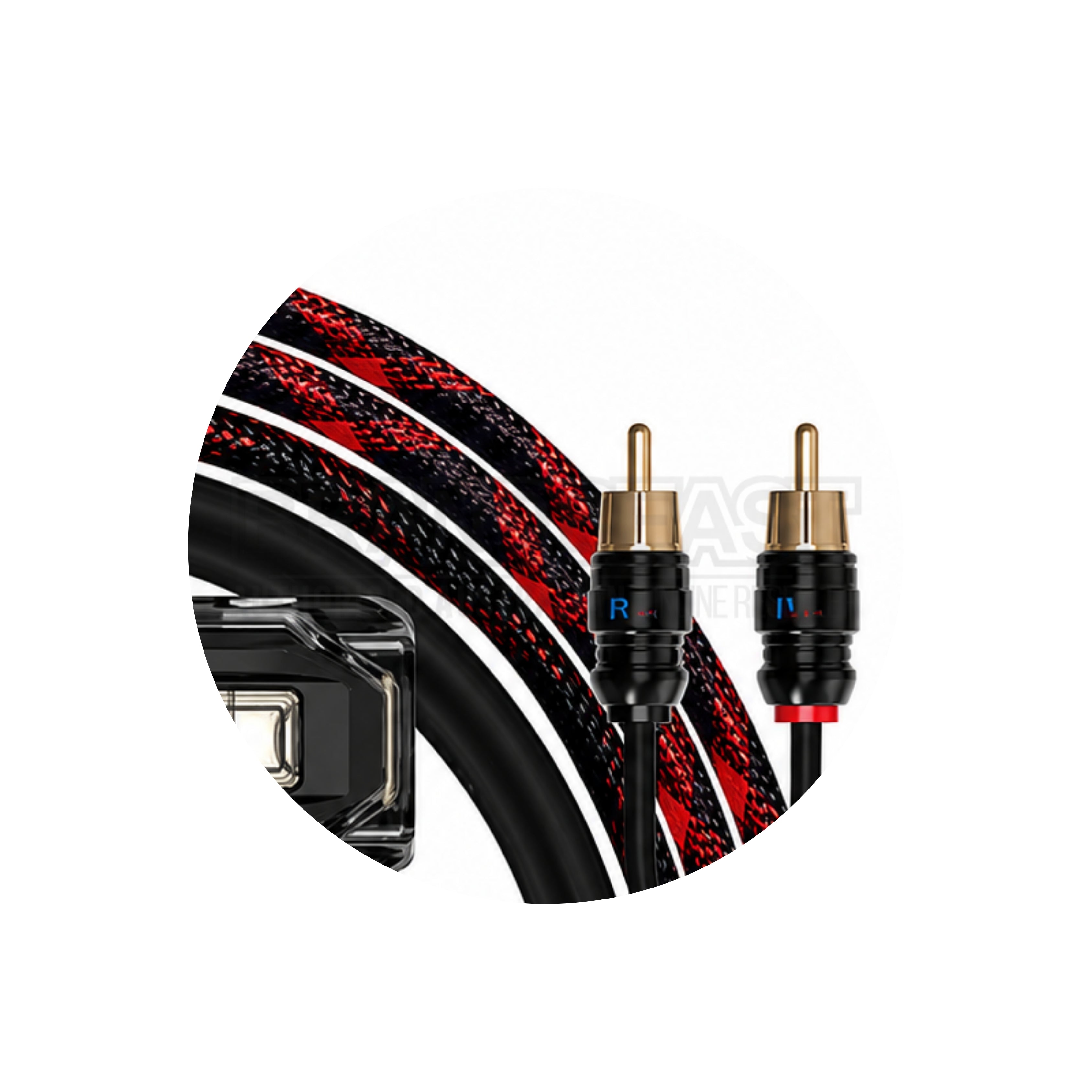

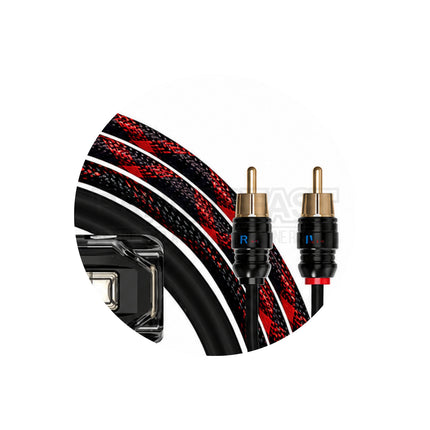

5-Metre 2-Channel Braided Shield RCA with Gold-Plated Connectors: The included 5-metre 2-channel RCA cable uses a braided shield to minimise electromagnetic and radio frequency interference, with gold-plated connectors providing low-resistance, corrosion-resistant connections at both the head unit and amplifier ends.

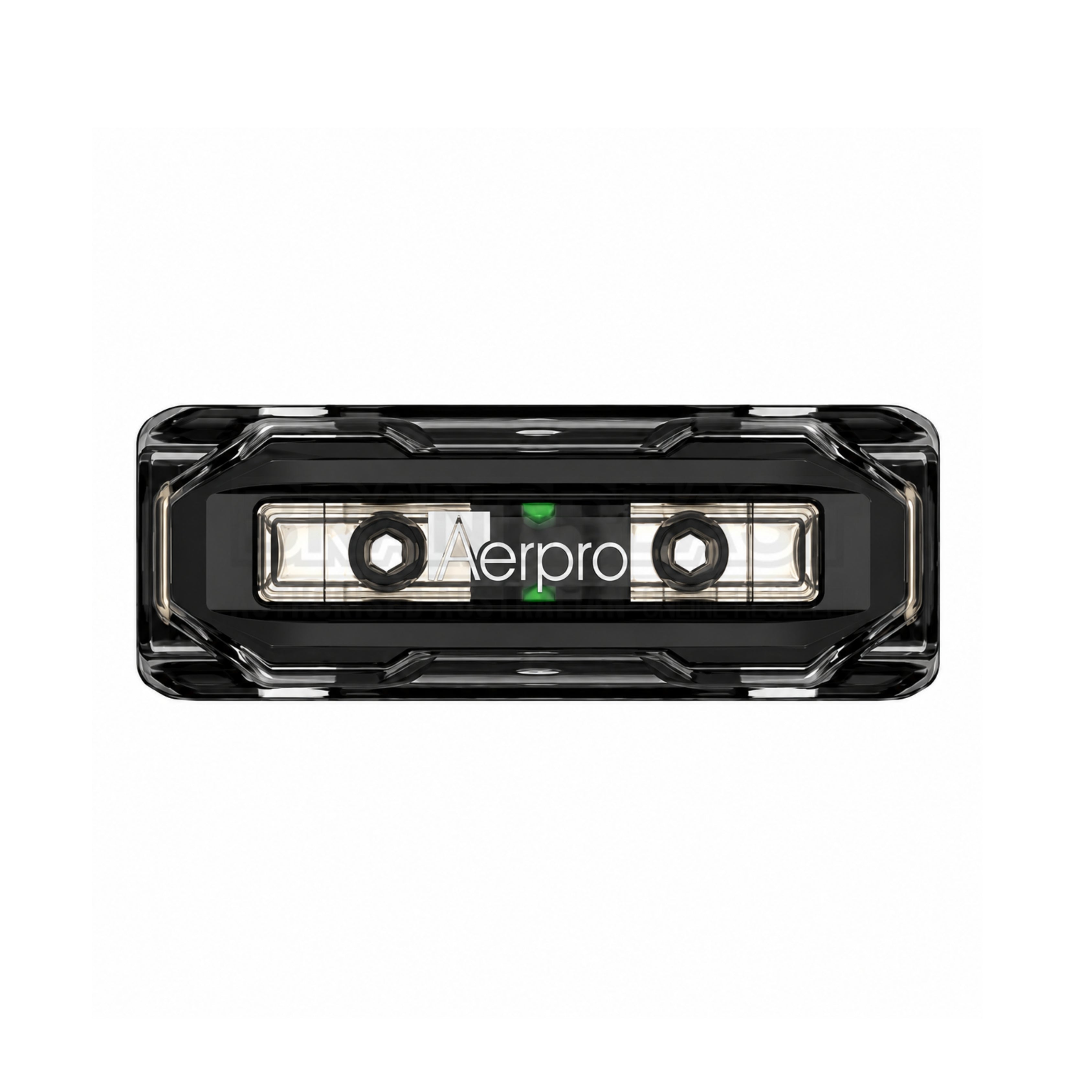

Mini ANL Fuse Holder with 80A Fuse Pre-Installed: A Mini ANL fuse holder with an 80A Mini ANL fuse pre-installed provides robust circuit protection for the power cable, protecting the vehicle wiring and amplifier from overcurrent faults.
5-Metre 18AWG Remote Wire: A 5-metre 18AWG remote turn-on wire is included for connecting the head unit remote output to the amplifier remote input, enabling automatic amplifier power-on and power-off with the head unit.
8AWG Plastic Grommet: An 8AWG plastic grommet is included for protecting the power cable at the firewall penetration point, preventing insulation damage from sharp metal edges during and after installation.
Assorted Ring Terminals and Cable Ties: Assorted ring terminals and cable ties are included to support a complete and tidy professional installation without requiring additional hardware.
Technical Specs
| Specification |
Detail |
| SKU |
AOFC28 |
| Brand |
Aerpro |
| Series |
Maxcor |
| Maximum Power |
700W RMS |
| Power Cable Gauge |
8AWG |
| Power Cable Length |
5.4 metres |
| Power Cable Type |
OFC (Oxygen-Free Copper) |
| Power Cable Insulation |
Braided Red PVC |
| Power Cable Terminal |
O-Ring (Pre-Attached, One End) |
| Earth Cable Gauge |
8AWG |
| Earth Cable Length |
0.9 metres |
| Earth Cable Type |
OFC (Oxygen-Free Copper) |
| Earth Cable Insulation |
Black PVC |
| Earth Cable Terminal |
O-Ring (Pre-Attached, One End) |
| Remote Wire |
5 metres, 18AWG |
| RCA Cable |
5 metres, 2-Channel, Braided Shield, Gold-Plated Connectors |
| Fuse Holder |
Mini ANL |
| Fuse Rating |
80A Mini ANL |
| Grommet |
8AWG Plastic |
| Additional Hardware |
Assorted Ring Terminals, Cable Ties |
What's in the Box
- 8AWG OFC Power Cable (5.4m, Braided Red PVC, O-Ring Terminal Pre-Attached)
- 8AWG OFC Earth Cable (0.9m, Black PVC, O-Ring Terminal Pre-Attached)
- Mini ANL Fuse Holder with 80A Mini ANL Fuse
- 5m 2-Channel RCA Cable (Braided Shield, Gold-Plated Connectors)
- 5m 18AWG Remote Wire
- Assorted Ring Terminals
- 8AWG Plastic Grommet
- Cable Ties
Compatible With
The AOFC28 is suited to 2-channel car amplifier and subwoofer amplifier installations rated up to 700W RMS requiring 8AWG power wiring. The 5.4-metre power cable length accommodates most passenger vehicle battery-to-amplifier routing distances. Confirm the power and earth cable lengths suit the specific installation layout of your vehicle before purchase.
Frequently Asked Questions
What is the advantage of OFC over standard copper wiring?
Oxygen-Free Copper (OFC) conductors have a higher purity than standard copper, resulting in lower electrical resistance and superior conductivity. This means more power is transferred from the battery to the amplifier with less energy lost as heat, which is particularly important at higher current loads sustained during peak audio output.
What fuse rating is included with the AOFC28 and can it be changed?
An 80A Mini ANL fuse is pre-installed in the included Mini ANL fuse holder. The fuse rating should be selected based on the amplifier's maximum current draw and the wire gauge used. Confirm that the 80A rating is appropriate for your specific amplifier before installation; replacement Mini ANL fuses are available in various ratings if a different value is required.
Is the RCA cable suitable for long runs without signal degradation?
Yes. The 5-metre 2-channel RCA cable uses a braided shield to minimise electromagnetic interference from vehicle wiring, alternator noise, and other electrical sources. Gold-plated connectors provide a low-resistance, corrosion-resistant connection at both ends, maintaining signal integrity over the full 5-metre run.
Do I need any additional hardware to complete the installation with the AOFC28?
The AOFC28 includes the power cable, earth cable, RCA cable, remote wire, fuse holder and fuse, grommet, ring terminals, and cable ties required for a standard 2-channel amplifier installation. Additional hardware such as split loom conduit, additional earth cables for multi-point earthing, or a distribution block may be required depending on the specific installation requirements.
What is the earth cable length and is it sufficient?
The earth cable is 0.9 metres long, which is standard for most amplifier-to-chassis earth installations where the amplifier is mounted in the boot or under a rear seat. If a longer earth cable run is required for your specific installation, a separate cable will need to be sourced.
