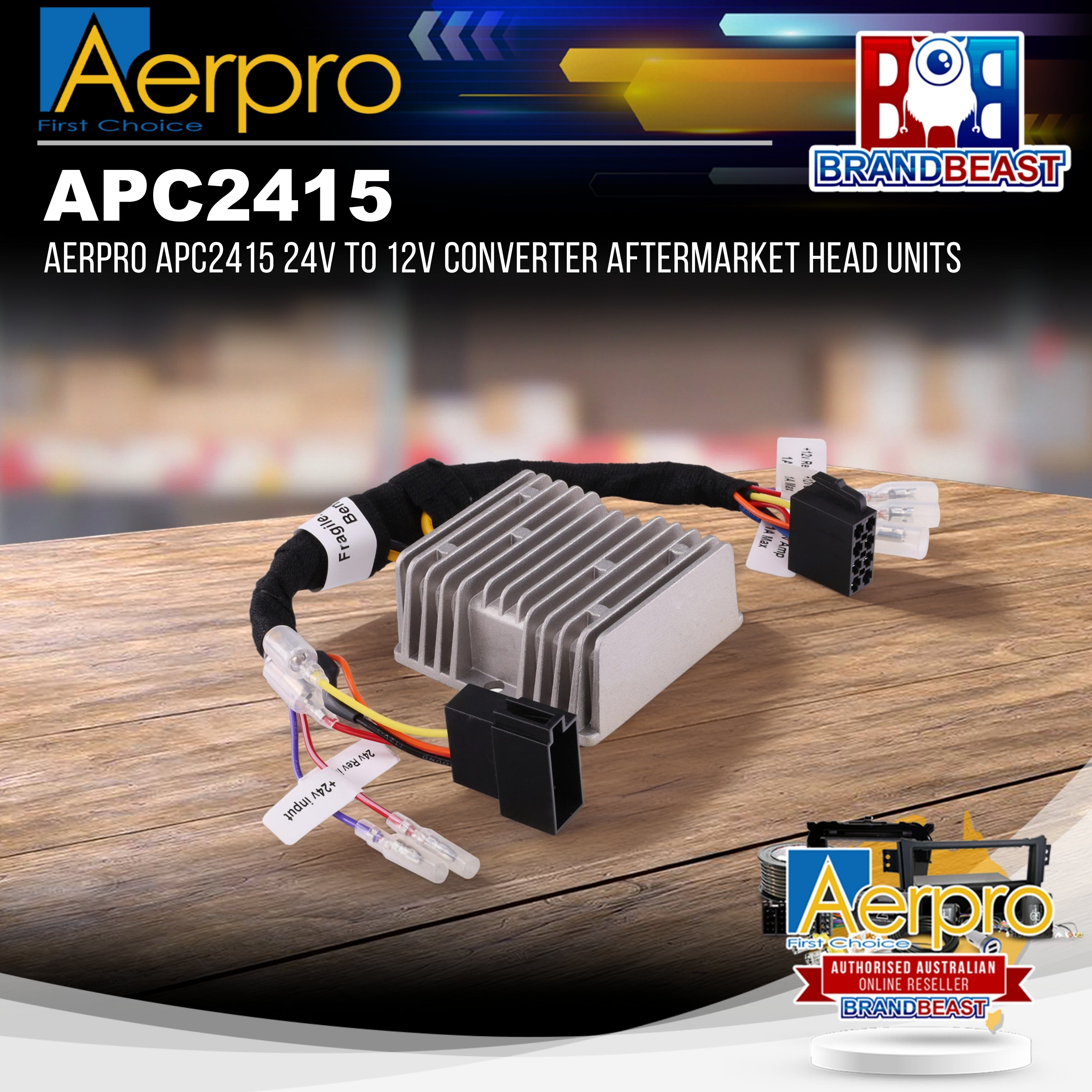

Aerpro APC2415 24V to 12V Converter Aftermarket Head Units
Enable seamless installation of modern 12V aftermarket head units in 24V commercial vehicles with professional power conversion, relay outputs, and comprehensive feature retention.
Product Overview

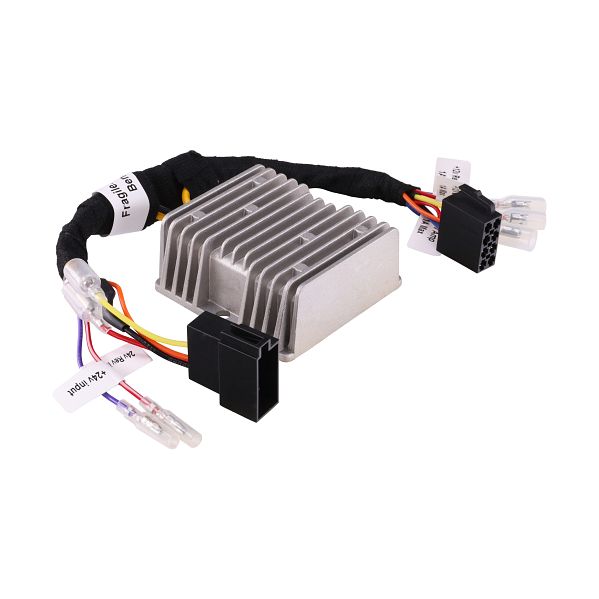

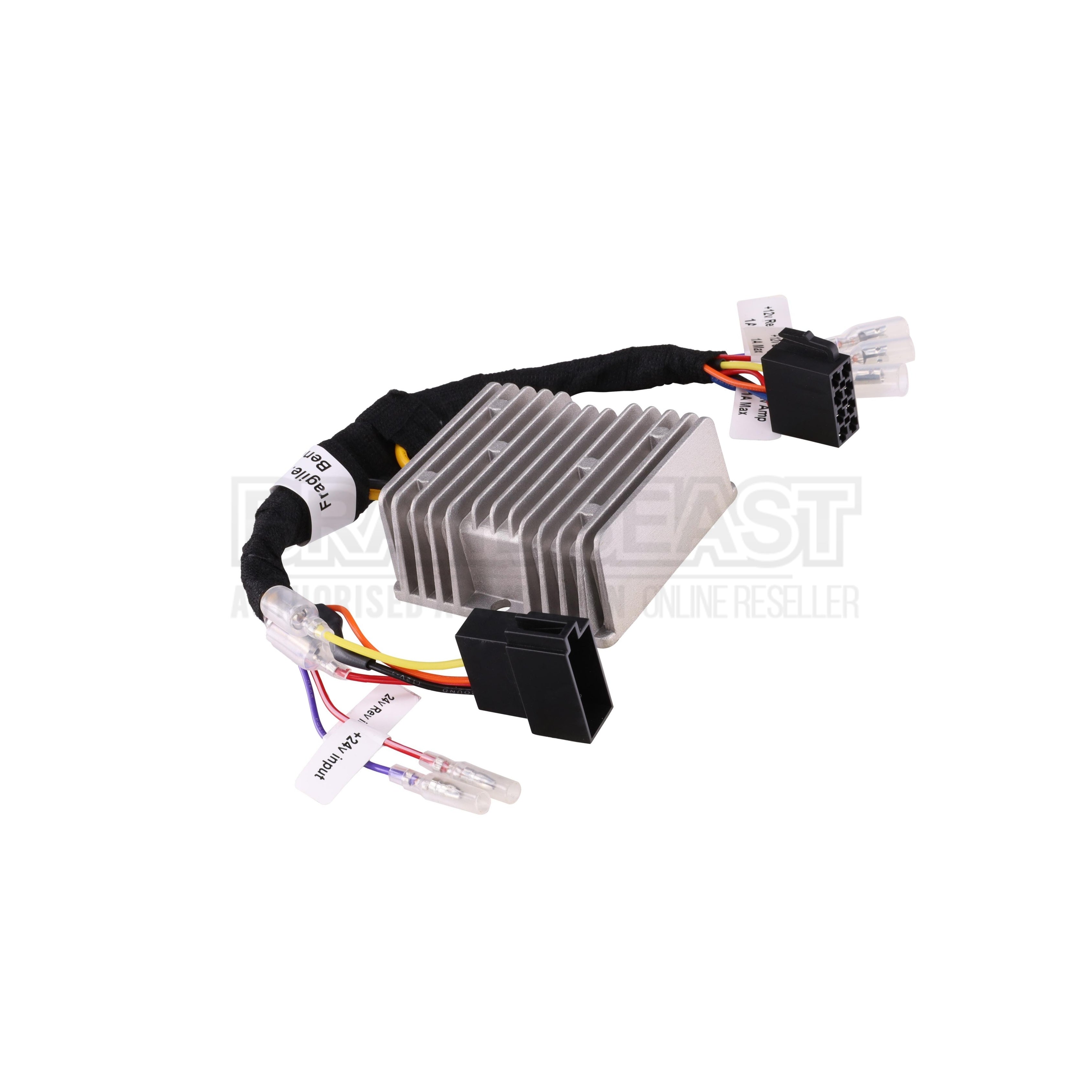

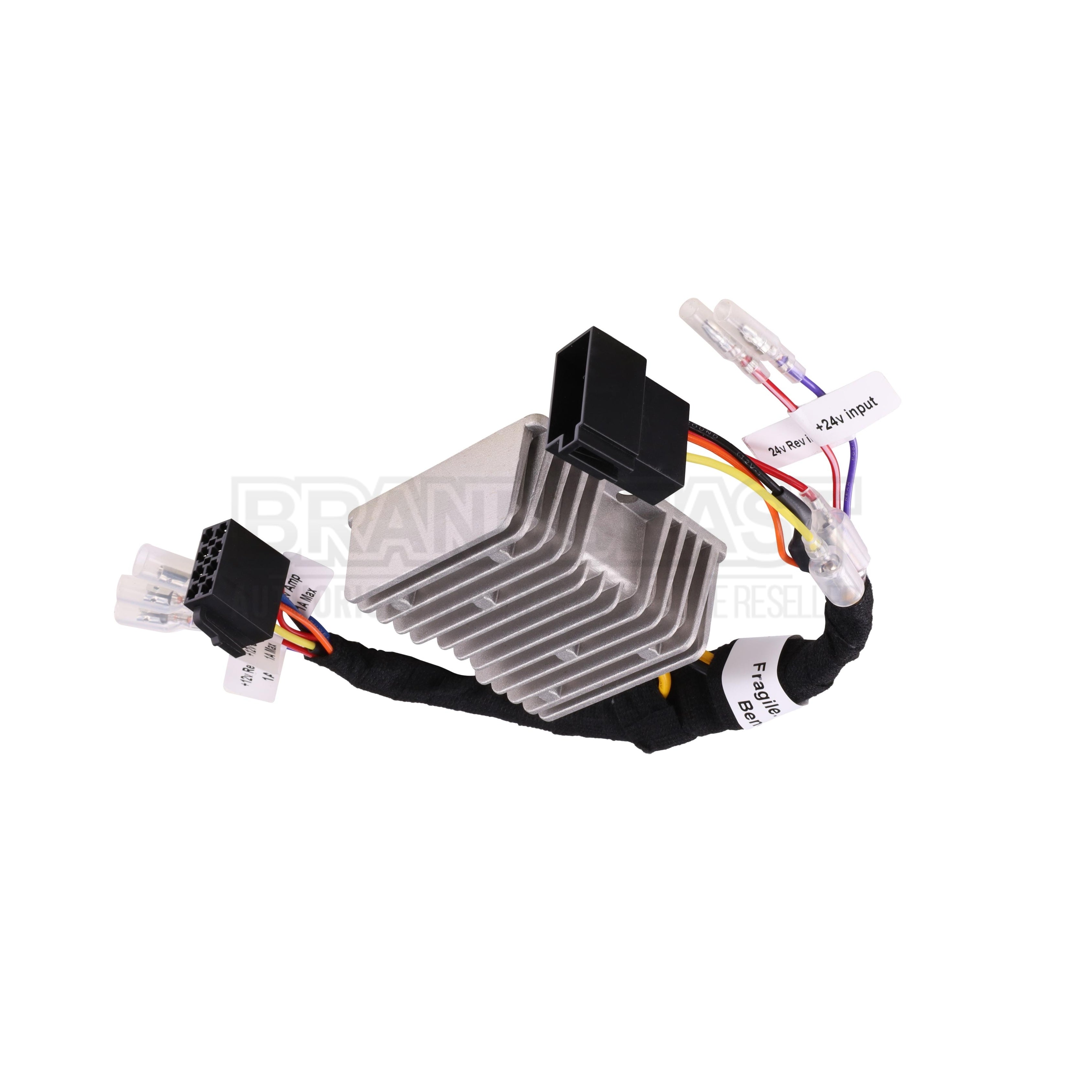

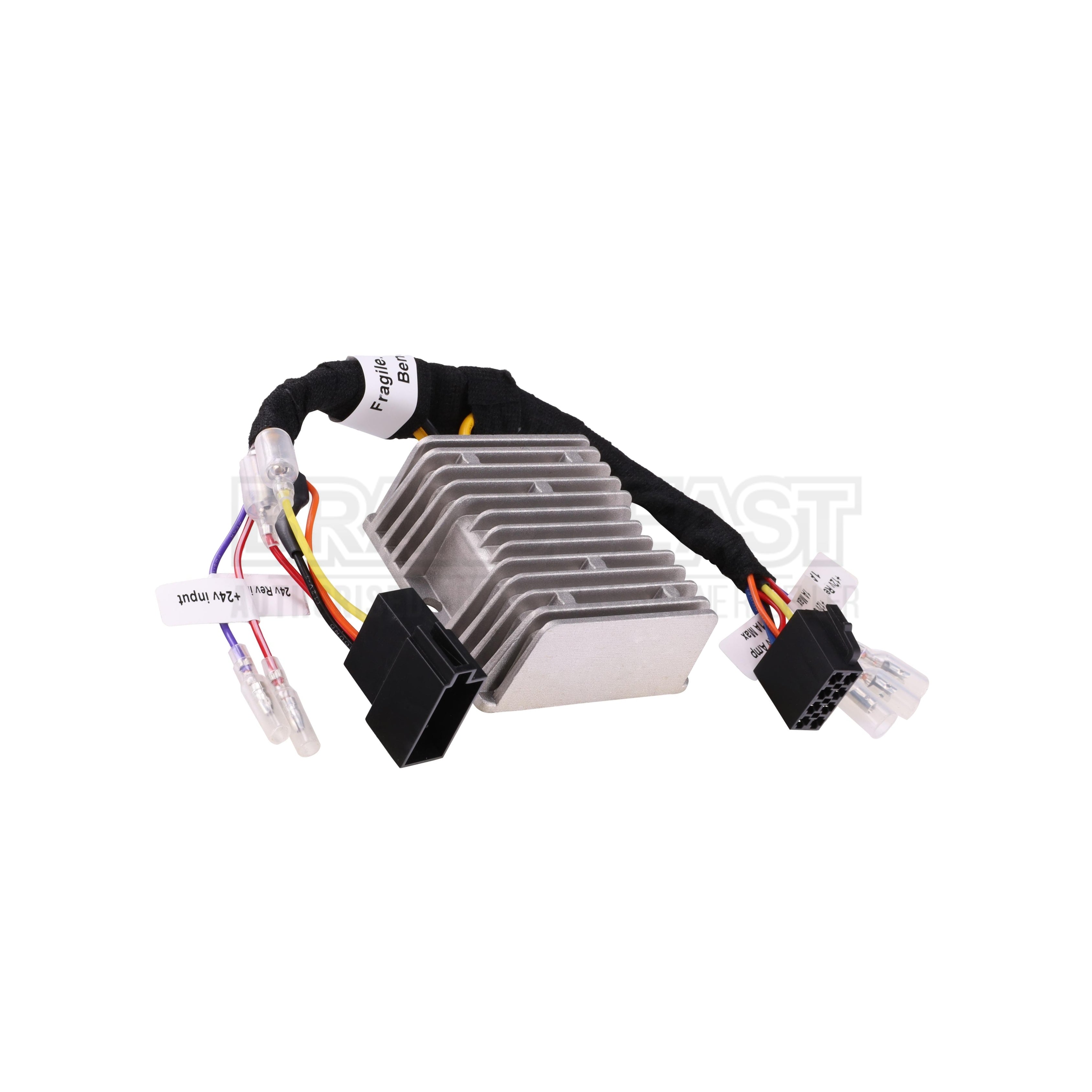

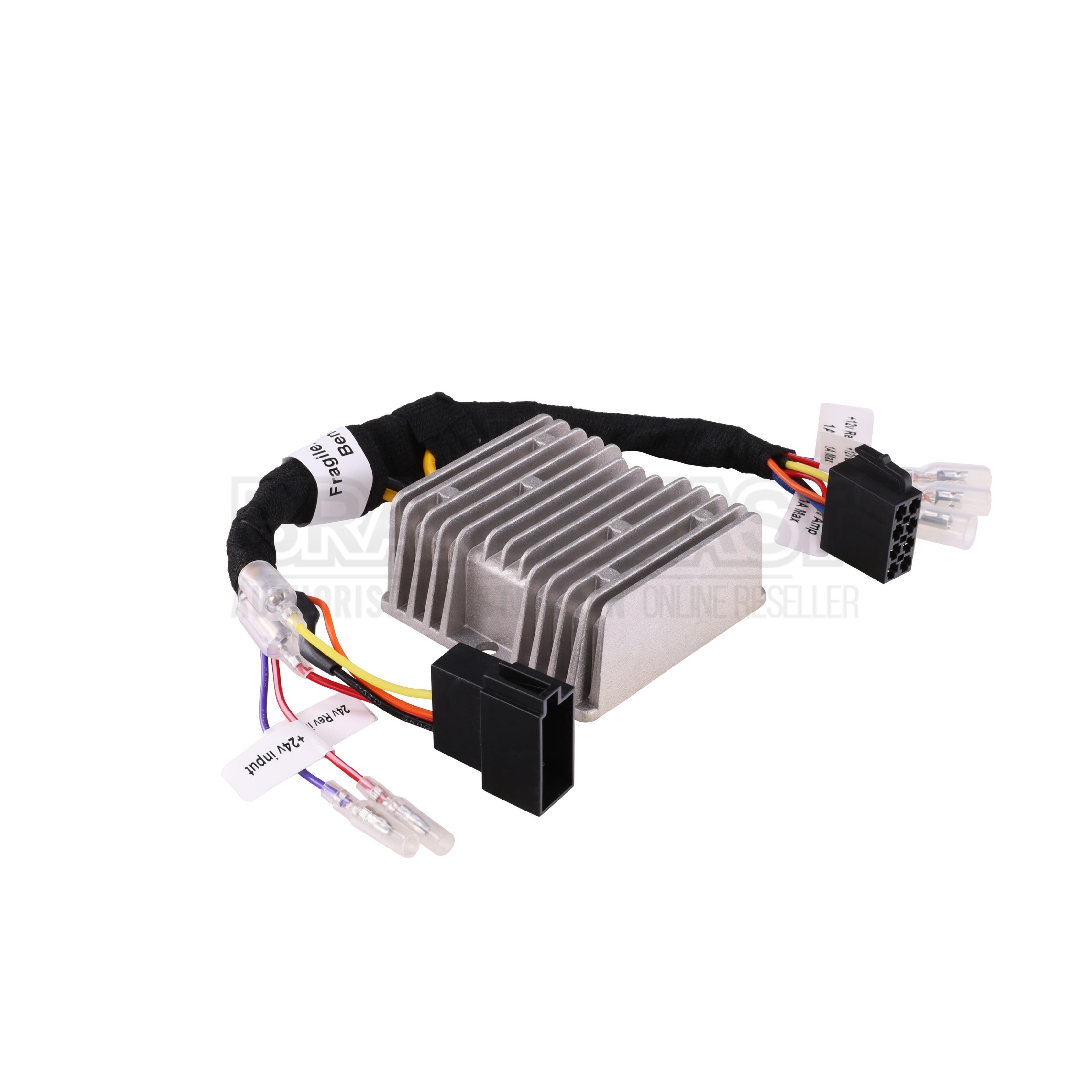

The Aerpro APC2415 is a professional-grade 24V to 12V power converter specifically engineered to enable installation of standard 12V multimedia head units in commercial vehicles, trucks, buses, and other equipment operating on 24V electrical systems. This sophisticated converter combines a robust single-channel 15A power reducer with an advanced 4-channel 24V to 12V optical relay module, providing dedicated 12V outputs for head unit power, accessories, illumination, reverse trigger, and an additional 12V output for triggering other low-power devices. The converter solves the critical compatibility challenge faced when upgrading 24V vehicle entertainment systems – standard aftermarket head units are designed for 12V automotive electrical systems and cannot operate directly on 24V power without damage or destruction. By stepping down 24V vehicle power to stable 12V output with sufficient current capacity (15A maximum), the APC2415 enables safe operation of modern head units featuring Apple CarPlay, Android Auto, Bluetooth, navigation, and advanced multimedia capabilities in commercial vehicle applications. The integrated ISO connectors ensure seamless installation compatibility with aftermarket head units and Aerpro vehicle-specific harnesses, while support for Aerpro steering wheel control adapters maintains factory control functionality. Critical safety note: the relay outputs are trigger signals only and must not be used to power devices – attempting to power accessories directly from relay outputs can cause converter failure and potential fire hazard.
Features & Benefits
Professional 24V to 12V Power Conversion: Robust single-channel 15A power reducer safely converts 24V vehicle electrical system power to stable 12V output required by aftermarket head units, preventing equipment damage or destruction that would occur from direct 24V connection while providing sufficient current capacity (15A maximum) to support modern multimedia receivers with amplifiers, displays, and power-hungry features without voltage drop or performance issues.
Integrated 4-Channel Optical Relay Module: Advanced optical relay system provides four separate 12V trigger outputs for accessories, illumination, reverse signal, and spare output, enabling proper integration of head unit control signals with 24V vehicle electrical systems for automatic features like accessory power control, dashboard illumination dimming synchronized with vehicle lights, automatic reverse camera activation, and triggering of additional low-power devices without requiring separate relay modules.
ISO Connector System Integration: Features standardized ISO connectors that interface seamlessly with aftermarket head units and Aerpro vehicle-specific harnesses, dramatically simplifying installation compared to hard-wiring approaches that require extensive electrical knowledge and introduce potential for wiring errors, ensuring professional results with plug-and-play convenience that reduces installation time and complexity.
Steering Wheel Control Compatibility: Fully compatible with Aerpro steering wheel control adapters for vehicles equipped with factory steering wheel buttons, enabling complete integration solutions that maintain hands-on-wheel control convenience and safety when upgrading commercial vehicle entertainment systems without losing the intuitive control functionality drivers depend on for safe operation.
Accessory and Illumination Retention: Maintains proper operation of head unit accessory functions that power on with ignition and illumination dimming that synchronizes with vehicle dashboard lighting, ensuring aftermarket head unit integrates naturally with vehicle electrical behavior for professional operation that matches OEM functionality rather than remaining at full brightness constantly or failing to shut off with ignition.
Reverse Trigger Output: Dedicated reverse trigger signal enables automatic activation of backup cameras when reverse gear is engaged, maintaining essential safety features in commercial vehicles where visibility is critical during maneuvering operations, loading docks, and tight spaces where rear visibility monitoring prevents accidents and property damage.
Additional Device Triggering Capability: Spare 12V trigger output provides flexibility for triggering additional low-power devices such as amplifier remote turn-on, signal processors, or other accessories requiring 12V activation signals synchronized with head unit operation, enabling expanded system capabilities without requiring additional trigger modules or complex wiring solutions.
Technical Specifications
| Category |
Specification |
| Brand |
Aerpro |
| Part Number |
APC2415 |
| Product Type |
24V to 12V Power Converter (DC-DC Converter) |
| Barcode |
9317114952547 |
| Input Voltage |
24V DC |
| Output Voltage |
12V DC |
| Maximum Output Current |
15A |
| Power Reducer Type |
Single-Channel 15A Reducer |
| Relay Module |
4-Channel 24V to 12V Optical Relay |
| Relay Output Functions |
Accessories, Illumination, Reverse Trigger, Spare Output |
| Connector Type |
ISO Connectors |
| Head Unit Constant Power Source |
Wired from 15A Reducer |
| Steering Wheel Control Support |
Compatible with Aerpro SWC Adaptors |
| Application |
24V Commercial Vehicles, Trucks, Buses |
| Installation Type |
ISO Connector Integration |
| Inner Carton Quantity |
1 Unit |
| Outer Carton Quantity |
50 Units |
| Category |
Converters, Inverters, Chargers / DC-DC Converter 24V-12V |
Compatible With
The Aerpro APC2415 converter is designed for universal application in vehicles and equipment operating on 24V electrical systems including commercial trucks, buses, coaches, heavy equipment, marine vessels with 24V systems, agricultural machinery, construction equipment, mining vehicles, and military vehicles. Compatible with all aftermarket 12V head units from major manufacturers including Pioneer, Kenwood, Sony, Alpine, JVC, Clarion, Boss, Dual, and others, provided total current draw does not exceed 15A maximum output capacity (sufficient for virtually all standard aftermarket head units including those with built-in amplifiers). The ISO connector system interfaces with Aerpro vehicle-specific harnesses and universal ISO harnesses for streamlined installation. Compatible with Aerpro steering wheel control adapters for vehicles equipped with factory steering wheel buttons, enabling complete integration solutions in commercial vehicles with steering-mounted controls. The four relay outputs (accessories, illumination, reverse, spare) provide 12V trigger signals for controlling accessories, synchronizing illumination with vehicle lighting, activating backup cameras, and triggering additional devices – CRITICAL: these relay outputs are trigger signals only (low current capacity) and must NOT be used to power devices directly as this can cause converter failure, fire hazard, and equipment damage. For powering additional 12V accessories beyond the head unit, separate 24V to 12V converters rated for the accessory's current requirements must be used. The head unit constant power is safely wired from the 15A reducer which provides adequate current capacity for head unit operation. Not suitable for applications requiring more than 15A output current, powering multiple devices simultaneously from single converter, or vehicles with unusual voltage requirements outside standard 24V systems. Professional installation recommended for commercial vehicle applications to ensure proper installation, adequate current capacity for selected head unit, correct relay wiring for trigger functions, and compliance with commercial vehicle electrical standards and safety regulations.
Frequently Asked Questions
Q: Can I use this converter to power other 12V accessories besides the head unit?
A: The 15A output is designed specifically for head unit power and provides adequate capacity for standard aftermarket head units. However, if you want to power additional 12V accessories (amplifiers, subwoofers, etc.), you'll need separate 24V to 12V converters rated for those accessories' current requirements. Do NOT attempt to power multiple devices from this single converter as it may exceed the 15A capacity.
Q: What are the relay outputs used for?
A: The four relay outputs (accessories, illumination, reverse, spare) provide 12V trigger signals for controlling various functions. IMPORTANT: These are trigger signals only with very low current capacity. Do NOT attempt to power devices directly from relay outputs – they are designed only to send activation signals to other equipment. Attempting to power devices from relay outputs can cause converter failure and fire hazard.
Q: Will this work with any 12V aftermarket head unit?
A: Yes, the APC2415 works with all standard 12V aftermarket head units from major manufacturers, provided the head unit's current draw doesn't exceed 15A (which is sufficient for virtually all standard head units including those with built-in amplifiers). The ISO connector system ensures broad compatibility.
Q: Can I use this with Aerpro steering wheel control adapters?
A: Yes, the APC2415 is fully compatible with Aerpro steering wheel control adapters. If your 24V vehicle has factory steering wheel controls, you can pair this converter with the appropriate Aerpro steering wheel control adapter to maintain hands-on-wheel functionality with your aftermarket head unit.
Q: What vehicles is this suitable for?
A: The APC2415 is designed for any vehicle or equipment operating on 24V electrical systems, including commercial trucks, buses, coaches, heavy equipment, agricultural machinery, construction equipment, mining vehicles, and some marine vessels. It's specifically engineered for enabling 12V aftermarket head unit installation in these 24V applications.
