Description
Aerpro APFOCBE2 Complete 5W UHF CB Kit for Ford Ranger RA 2022-On with AP477E Compact Radio CBSTHD1 3dBi Antenna and APVCBB10 Bonnet Mount Bracket

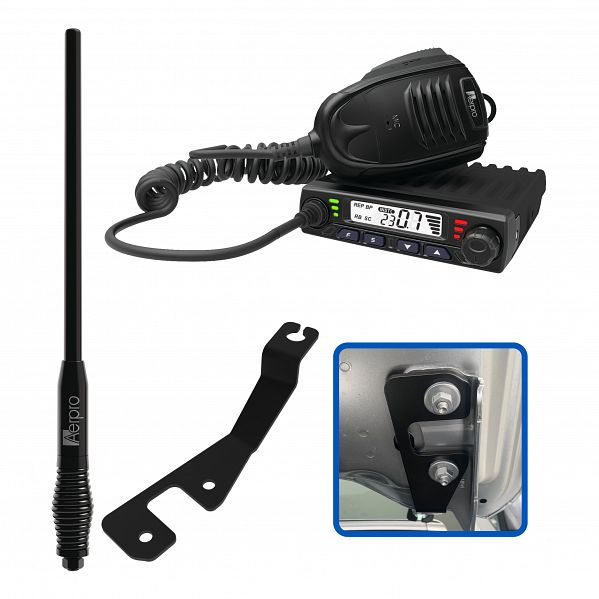

The Aerpro APFOCBE2 is a complete UHF CB radio kit designed specifically for the Ford Ranger RA (2022-on). Includes the Aerpro AP477E 5W ultra-compact UHF CB radio, the Aerpro CBSTHD1 3dBi heavy duty fibreglass radome antenna, and the Aerpro APVCBB10 vehicle-specific bonnet mount bracket. Everything needed to install a UHF radio and antenna in the RA Ranger is in the box. 5-year warranty on the radio, 1-year warranty on accessories.
Product overview
The APFOCBE2 is the compact (non-hideaway) counterpart to the APFOCBH2 hideaway kit for the Ford Ranger RA. Where the APFOCBH2 uses the AP477H hideaway radio with a remote speaker microphone, the APFOCBE2 uses the AP477E standard radio where all controls are on the radio body itself. The AP477E mounts in a visible, accessible position within the cabin rather than hidden under the dash or seat.
The AP477E provides 5W output across all 80 UHF CB channels with CTCSS/DCS codes, duplex mode, channel scan, auto squelch, busy channel lockout, a white backlit display, stereo mute output, and external speaker port. The fixed-cord microphone is attached directly to the radio body. Compatible with 12V and 24V systems.
The CBSTHD1 is a 700mm ground-independent elevated feed fibreglass radome antenna with stainless steel spring base, 4.5m RG58 cable, and FME to PL259 adaptor for solder-free installation. The APVCBB10 mounts on the passenger side bonnet hinge of the RA Ranger using existing mounting points with no drilling required, and does not obstruct bonnet operation or window wipers.
Features and benefits
Complete compact UHF CB kit for Ford Ranger RA 2022-on: Radio, antenna, and bonnet bracket all included.
AP477E ultra-compact radio with fixed-cord microphone: All controls on the radio body. White backlit display for low-light operation.
5W, 80 channels, 12V/24V compatible: CTCSS/DCS, duplex, channel scan, squelch, busy channel lockout, and stereo mute output.
CBSTHD1 3dBi ground-independent elevated feed antenna: 700mm fibreglass radome with stainless steel spring base, suited to bonnet bracket mounting.
4.5m RG58 cable with FME to PL259 adaptor: Solder-free antenna connection.
APVCBB10 uses existing bonnet hinge mounting points: No drilling or permanent modifications to the RA Ranger.
Does not obstruct bonnet or window wipers.
5-year warranty on the radio, 1-year warranty on accessories.
What's in the box
AP477E UHF CB Radio:
- 1x UHF CB Radio
- 1x Microphone (attached to radio)
- 1x Microphone Mounting Clip
- 1x Radio Mounting Bracket
CBSTHD1 UHF Antenna:
- 1x 700mm Fibreglass Radome Antenna with Stainless Steel Spring Base
- 1x 4.5m RG58 Cable with Female FME Connector
- 1x FME to PL259 Adaptor
- 1x Mounting Nut
- 1x Weather Cap
APVCBB10 Bonnet Bracket:
Technical specs
AP477E UHF CB Radio
| Specification |
Detail |
| Transmission Power |
5W |
| Frequency |
476.425MHz to 477.4125MHz |
| Channels |
80 |
| CTCSS/DCS Codes |
Yes |
| Duplex Mode |
Yes |
| Channel Scan |
Yes |
| Squelch Control |
Yes |
| Busy Channel Lockout |
Yes |
| Call Tone Alter |
Yes |
| Roger Beep |
Yes |
| Button Beep |
Yes |
| Volume Control |
Yes |
| Backlit Display |
White |
| Radio Type |
Ultra-compact chassis |
| Microphone |
Fixed cord |
| Voltage |
12V and 24V DC |
| External Speaker Port |
Yes |
| Mute Out |
Yes |
| Antenna Connection |
PL259 |
| Radio Warranty |
5 years |
CBSTHD1 UHF Antenna
| Specification |
Detail |
| Frequency |
477MHz |
| Gain |
3.0dBi |
| Ground Independent |
Yes |
| Elevated Feed |
Yes |
| Total Length |
700mm |
| Mast Length |
570mm |
| Mast Width |
40mm |
| Mast Type |
Fibreglass radome |
| Spring Type |
Stainless steel |
| Antenna Mounting Thread |
16mm |
| Mast Mounting Thread |
30mm |
| Cable Type |
RG58 with female FME |
| Cable Length |
4.5m |
| Colour |
Black |
| Antenna Warranty |
1 year |
APVCBB10 Bonnet Bracket
| Specification |
Detail |
| Mounting Position |
Passenger side bonnet hinge |
| Metal Type |
4mm press-bent steel |
| Finish |
Matte black powder coat |
| Antenna Mounting Hole |
18mm |
| Cable Slot Size |
5mm |
| Bracket Warranty |
1 year |
Compatible with
| Make |
Model |
Variant |
Years |
| Ford |
Ranger |
RA |
2022-on |
| Ford |
Everest |
UB |
2022-on |
Frequently asked questions
What is the difference between the APFOCBE2 and the APFOCBH2? The APFOCBH2 uses the AP477H hideaway radio, where the radio body mounts out of sight and all controls are on a separate remote speaker microphone. The APFOCBE2 uses the AP477E standard compact radio with a fixed-cord microphone, mounted in a visible, accessible position in the cabin. Both kits use the same CBSTHD1 antenna and APVCBB10 bonnet bracket for the Ford Ranger RA 2022-on.
What is included in the APFOCBE2 kit? The kit includes the Aerpro AP477E compact UHF CB radio with fixed-cord microphone, mounting clip, and radio mounting bracket; the Aerpro CBSTHD1 antenna with 4.5m RG58 cable, FME to PL259 adaptor, and mounting nut; and the Aerpro APVCBB10 bonnet bracket.
Does the AP477E radio work with 24V vehicles? Yes. The AP477E operates on both 12V and 24V DC systems, making it suited to passenger vehicles, 4WDs, utes, trucks, and vans.
Does the APVCBB10 bracket require drilling into the RA Ranger? No. The APVCBB10 uses existing mounting points on the passenger side bonnet hinge of the Ford Ranger RA (2022-on) with no drilling or permanent modifications required. It does not obstruct bonnet operation or window wipers.
What warranty does the APFOCBE2 kit carry? The AP477E radio carries a 5-year warranty. The CBSTHD1 antenna and APVCBB10 bracket each carry a 1-year warranty.
