Aerpro APNICBE2 Complete 5W UHF CB Kit for Nissan Patrol Y62 2019-On with AP477E Radio CBSTHD1 3dBi Heavy Duty Antenna and APVCBB13 Bonnet Mount Bracket

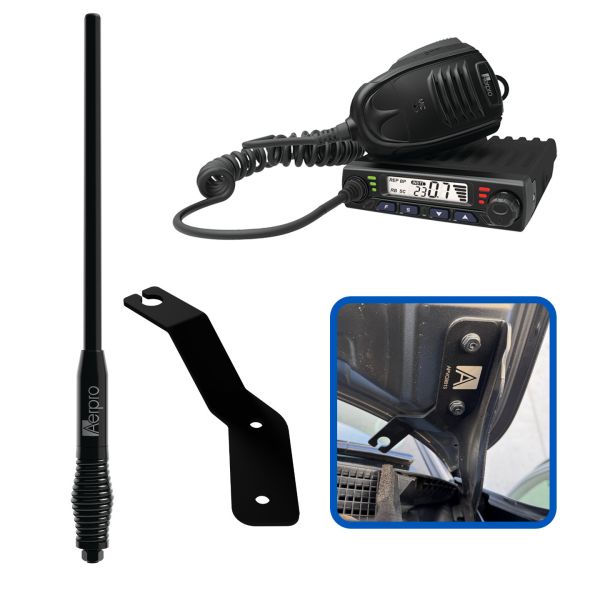

The Aerpro APNICBE2 is a complete UHF CB radio kit designed specifically for the Nissan Patrol Y62 (2019-on). Includes the Aerpro AP477E 5W ultra-compact UHF CB radio, the Aerpro CBSTHD1 3dBi 477MHz heavy duty fibreglass radome antenna, and the Aerpro APVCBB13 vehicle-specific bonnet mount antenna bracket. Everything needed to install a UHF radio and antenna in the Y62 Patrol is in the box. 5-year warranty on the radio, 1-year warranty on accessories.
Product overview
The APNICBE2 bundles three matched Aerpro products into a single kit purpose-fitted to the Nissan Patrol Y62 (2019-on), removing the need to source and match a radio, antenna, and bracket separately.
The AP477E is a 5W ultra-compact UHF CB radio covering all 80 UHF CB channels across 476.425MHz to 477.4125MHz. The aluminium die-cast chassis keeps the unit compact and durable. It is compatible with 12V and 24V systems, includes CTCSS/DCS codes for privacy, duplex mode for extended remote area coverage, channel scanning, auto squelch, busy channel lockout, and a mute output to silence the car stereo during transmission. The white backlit display suits low-light operation.
The CBSTHD1 is a 700mm heavy duty fibreglass radome antenna with a ground-independent elevated feed design, suited to bullbar and bonnet bracket mounting positions where the vehicle body cannot provide a ground plane. The stainless steel spring base, detachable mast, and weather cap are built for off-road durability. The 4.5m RG58 cable with FME connector and included FME to PL259 adaptor provides a solder-free antenna connection to the AP477E.
The APVCBB13 bracket mounts on the passenger side bonnet hinge of the Y62 Patrol using existing mounting points with no drilling or complex modifications. Constructed from press-bent 4mm steel with a matte black powder-coat finish, it has an 18mm antenna mounting hole and a 5mm cable slot for easy antenna installation and removal. The bracket does not obstruct bonnet operation or interfere with window wipers.
Features and benefits
Complete matched kit for Nissan Patrol Y62 2019-on: Radio, antenna, and vehicle-specific bonnet bracket all included and pre-matched, no separate sourcing required.
5W UHF CB radio, 80 channels, 12V/24V compatible: Full-featured AP477E with CTCSS/DCS, duplex, channel scan, squelch, busy channel lockout, and stereo mute output.
Ultra-compact aluminium die-cast radio chassis: Compact footprint for tight in-vehicle mounting positions.
CBSTHD1 3dBi ground-independent elevated feed antenna: Suited to bonnet and bullbar mounting without relying on the vehicle body as a ground plane. 700mm fibreglass radome with stainless steel spring base.
4.5m RG58 cable with FME to PL259 adaptor: Solder-free antenna connection, sufficient cable length for routing through the firewall grommet.
APVCBB13 uses existing bonnet hinge mounting points: No drilling or permanent modifications to the Patrol.
4mm press-bent steel with matte black powder-coat finish: Durable and discreet bracket construction.
Does not obstruct bonnet or window wipers: Confirmed clearance for full bonnet and wiper operation.
5-year warranty on the radio, 1-year warranty on accessories.
What's in the box
AP477E UHF CB Radio:
- 1x UHF CB Radio
- 1x Microphone (attached to radio)
- 1x Microphone Mounting Clip
- 1x Radio Mounting Bracket
CBSTHD1 UHF Antenna:
- 1x 700mm Fibreglass Radome Antenna with Stainless Steel Spring Base
- 1x 4.5m RG58 Cable with Female FME Connector
- 1x FME to PL259 Adaptor
- 1x Mounting Nut
- 1x Weather Cap
APVCBB13 Bonnet Bracket:
Technical specs
AP477E UHF CB Radio
| Specification |
Detail |
| Transmission Power |
5W |
| Frequency |
476.425MHz to 477.4125MHz |
| Channels |
80 |
| CTCSS/DCS Codes |
Yes |
| Duplex Mode |
Yes |
| Channel Scan |
Yes |
| Squelch Control |
Yes |
| Busy Channel Lockout |
Yes |
| Call Tone Alter |
Yes |
| Roger Beep |
Yes |
| Button Beep |
Yes |
| Volume Control |
Yes |
| Backlit Display |
White |
| Radio Type |
Ultra-compact chassis |
| Microphone |
Fixed cord |
| Voltage |
12V and 24V DC |
| External Speaker Port |
Yes |
| Mute Out |
Yes |
| Antenna Connection |
PL259 |
| Radio Warranty |
5 years |
CBSTHD1 UHF Antenna
| Specification |
Detail |
| Frequency |
477MHz |
| Gain |
3.0dBi |
| Ground Independent |
Yes |
| Elevated Feed |
Yes |
| Total Length |
700mm |
| Mast Length |
570mm |
| Mast Width |
40mm |
| Mast Type |
Fibreglass radome |
| Spring Type |
Stainless steel |
| Antenna Mounting Thread |
16mm |
| Mast Mounting Thread |
30mm |
| Cable Type |
RG58 with female FME |
| Cable Length |
4.5m |
| Colour |
Black |
| Antenna Warranty |
1 year |
APVCBB13 Bonnet Bracket
| Specification |
Detail |
| Mounting Position |
Passenger side bonnet hinge |
| Metal Type |
4mm press-bent steel |
| Finish |
Matte black powder coat |
| Antenna Mounting Hole |
18mm |
| Cable Slot Size |
5mm |
| Vehicle Compatibility |
Nissan Patrol Y62 2019-on |
| Bracket Warranty |
1 year |
Compatible with
Nissan Patrol Y62 2019-on.
The CBSTHD1 antenna and APVCBB13 bracket are also compatible with other UHF CB radios and UHF antenna brands using standard thread sizes. Confirm thread compatibility before mixing components from other brands.
Frequently asked questions
What is included in the APNICBE2 kit? The kit includes the Aerpro AP477E 5W UHF CB radio with microphone and mounting bracket, the Aerpro CBSTHD1 3dBi fibreglass radome antenna with 4.5m RG58 cable, FME to PL259 adaptor, and mounting nut, and the Aerpro APVCBB13 bonnet hinge mount bracket.
Why is the CBSTHD1 antenna suited to bonnet and bullbar mounting? The CBSTHD1 uses a ground-independent elevated feed design, meaning it does not rely on the vehicle body as a ground plane to function correctly. This makes it specifically suited to mounting positions such as bonnet brackets, bullbars, and roof racks where the antenna is not in contact with the main vehicle body.
Does the APVCBB13 bracket require drilling into the Patrol? No. The APVCBB13 uses existing mounting points on the passenger side bonnet hinge of the Y62 Patrol with no drilling or permanent modifications required.
Is the AP477E radio compatible with 24V vehicles such as trucks? Yes. The AP477E operates on both 12V and 24V DC systems, making it suited to passenger vehicles, 4WDs, trucks, vans, and motorhomes.
What warranty does the APNICBE2 kit carry? The AP477E radio carries a 5-year warranty. The CBSTHD1 antenna and APVCBB13 bracket each carry a 1-year warranty.
