Description
Aerpro APNICBH2 Complete Hideaway 5W UHF CB Kit for Nissan Patrol Y62 2019-On with AP477H Radio CBSTHD1 3dBi Antenna APVCBB13 Bonnet Bracket and ARJ45NS2 RJ45 Pass-Through Adapter

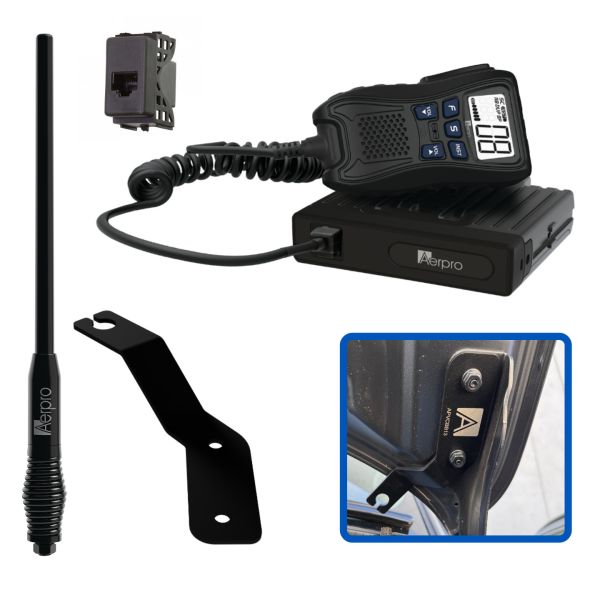

The Aerpro APNICBH2 is a complete hideaway UHF CB radio kit designed specifically for the Nissan Patrol Y62 (2019-on). Includes the Aerpro AP477H 5W ultra-compact hideaway UHF CB radio with remote speaker microphone, the Aerpro CBSTHD1 3dBi heavy duty fibreglass radome antenna, the Aerpro APVCBB13 vehicle-specific bonnet mount bracket, and the Aerpro ARJ45NS2 RJ45 pass-through adapter. Everything needed to install a concealed hideaway UHF radio in the Y62 Patrol is in the box. 5-year warranty on the radio, 1-year warranty on accessories.
Product overview
The APNICBH2 is the hideaway version of the APNICBE2 compact kit. Where the APNICBE2 uses the AP477E standard radio (all controls on the radio body), the APNICBH2 uses the AP477H hideaway radio the radio body mounts out of sight under the dash or seat, while a remote speaker microphone with a 7-colour backlit LCD display handles all controls from a convenient dash-mounted position.
The ARJ45NS2 RJ45 pass-through adapter replaces a factory switch blanking plate in the Y62's dashboard (21mm wide by 36mm face, 22mm wide by 41mm base) to provide a clean, OEM-style pass-through point for the RJ45 microphone cable, eliminating loose cables across the cabin.
The AP477H provides 5W output across all 80 UHF CB channels, with CTCSS/DCS codes, duplex mode, channel scan, auto squelch, busy channel lockout, stereo mute output, and external speaker port. The remote microphone extension cable (2 metres) is included. The radio is compatible with 12V and 24V systems.
The CBSTHD1 is a 700mm ground-independent elevated feed fibreglass radome antenna with stainless steel spring base, 4.5m RG58 cable, and FME to PL259 adaptor for solder-free installation. The APVCBB13 mounts on the passenger side bonnet hinge using existing mounting points with no drilling required, and does not obstruct bonnet operation or window wipers.
Features and benefits
Complete hideaway kit for Nissan Patrol Y62 2019-on: Radio, remote microphone, antenna, bonnet bracket, and RJ45 pass-through adapter all included.
AP477H hideaway radio with remote speaker microphone: Radio body mounts out of sight; all controls and functions operated from the 7-colour backlit LCD remote microphone.
7-colour backlit LCD display on the remote microphone: Personalised display colour to suit the vehicle interior and personal preference.
5W, 80 channels, 12V/24V compatible: Full-featured UHF CB with CTCSS/DCS, duplex, channel scan, squelch, busy channel lockout, and stereo mute output.
ARJ45NS2 RJ45 pass-through adapter: Replaces factory switch blanking plate (21mm W x 36mm face) for a clean, OEM-style cable pass-through in the dashboard.
2-metre remote microphone extension cable included.
CBSTHD1 3dBi ground-independent elevated feed antenna: 700mm fibreglass radome with stainless steel spring base, suited to bonnet bracket mounting without a vehicle body ground plane.
4.5m RG58 cable with FME to PL259 adaptor: Solder-free antenna connection.
APVCBB13 uses existing bonnet hinge mounting points: No drilling or permanent modifications to the Patrol.
Does not obstruct bonnet or window wipers.
5-year warranty on the radio, 1-year warranty on accessories.
What's in the box
AP477H UHF CB Radio:
- 1x UHF CB Hideaway Radio
- 1x Remote Speaker Microphone
- 1x Microphone Mounting Clip
- 1x Radio Mounting Bracket
- 1x Microphone Extension Cable (2 metres)
CBSTHD1 UHF Antenna:
- 1x 700mm Fibreglass Radome Antenna with Stainless Steel Spring Base
- 1x 4.5m RG58 Cable with Female FME Connector
- 1x FME to PL259 Adaptor
- 1x Mounting Nut
- 1x Weather Cap
APVCBB13 Bonnet Bracket:
ARJ45NS2 RJ45 Pass-Through Adapter:
- 1x RJ45 Pass-Through Adapter
Technical specs
AP477H UHF CB Radio
| Specification |
Detail |
| Transmission Power |
5W |
| Frequency |
476.425MHz to 477.4125MHz |
| Channels |
80 |
| CTCSS/DCS Codes |
Yes |
| Duplex Mode |
Yes |
| Channel Scan |
Yes |
| Squelch Control |
Yes |
| Busy Channel Lockout |
Yes |
| Call Tone Alter |
Yes |
| Roger Beep |
Yes |
| Button Beep |
Yes |
| Volume Control |
Yes |
| Backlit Display |
7 multicolour (on remote microphone) |
| Radio Type |
Hideaway ultra-compact chassis |
| Microphone |
Remote speaker microphone |
| Voltage |
12V and 24V DC |
| External Speaker Port |
Yes |
| Mute Out |
Yes |
| Antenna Connection |
PL259 |
| Radio Warranty |
5 years |
CBSTHD1 UHF Antenna
| Specification |
Detail |
| Frequency |
477MHz |
| Gain |
3.0dBi |
| Ground Independent |
Yes |
| Elevated Feed |
Yes |
| Total Length |
700mm |
| Mast Length |
570mm |
| Mast Width |
40mm |
| Mast Type |
Fibreglass radome |
| Spring Type |
Stainless steel |
| Antenna Mounting Thread |
16mm |
| Mast Mounting Thread |
30mm |
| Cable Type |
RG58 with female FME |
| Cable Length |
4.5m |
| Colour |
Black |
| Antenna Warranty |
1 year |
APVCBB13 Bonnet Bracket
| Specification |
Detail |
| Mounting Position |
Passenger side bonnet hinge |
| Metal Type |
4mm press-bent steel |
| Finish |
Matte black powder coat |
| Antenna Mounting Hole |
18mm |
| Cable Slot Size |
5mm |
| Vehicle Compatibility |
Nissan Patrol Y62 2019-on |
| Bracket Warranty |
1 year |
ARJ45NS2 RJ45 Pass-Through Adapter
| Specification |
Detail |
| Connection Type |
RJ45 pass-through |
| Mounting Type |
Clip-in |
| Face Dimensions |
21mm (W) x 36mm (H) |
| Body Dimensions |
22mm (W) x 41mm (H) |
| Replaces |
Factory switch blanking plate |
| Adapter Warranty |
1 year |
Compatible with
Nissan Patrol Y62 2019-on.
Frequently asked questions
What is the difference between the APNICBH2 and the APNICBE2? The APNICBE2 uses the AP477E standard radio where all controls are on the radio body itself. The APNICBH2 uses the AP477H hideaway radio the radio body mounts out of sight under the dash or seat, and all functions are controlled from a remote speaker microphone with a 7-colour backlit LCD display. The APNICBH2 also includes the ARJ45NS2 RJ45 pass-through adapter.
What does the ARJ45NS2 adapter do? The ARJ45NS2 clips into a factory switch blanking plate opening in the Y62's dashboard, providing a clean OEM-style pass-through point for the RJ45 microphone cable from the hideaway radio to the remote microphone. This eliminates loose cables across the cabin for a tidy installation.
Where does the AP477H hideaway radio mount? The AP477H radio body is designed to be mounted out of sight under the dashboard or seat. All radio controls and the display are on the remote speaker microphone, which mounts in a convenient position within reach of the driver.
Does the APVCBB13 bracket require drilling? No. The APVCBB13 uses existing mounting points on the passenger side bonnet hinge of the Y62 Patrol with no drilling or permanent modifications required. It does not obstruct bonnet operation or window wipers.
What warranty does the APNICBH2 kit carry? The AP477H radio carries a 5-year warranty. The CBSTHD1 antenna, APVCBB13 bracket, and ARJ45NS2 adapter each carry a 1-year warranty.
