Description
Aerpro APTYCBE2 Complete 5W UHF CB Kit for Toyota LandCruiser 200 Series 2016 to 2021 Excludes GX with AP477E Compact Radio CBSTHD1 3dBi Antenna and APVCBB5 Bonnet Mount Bracket

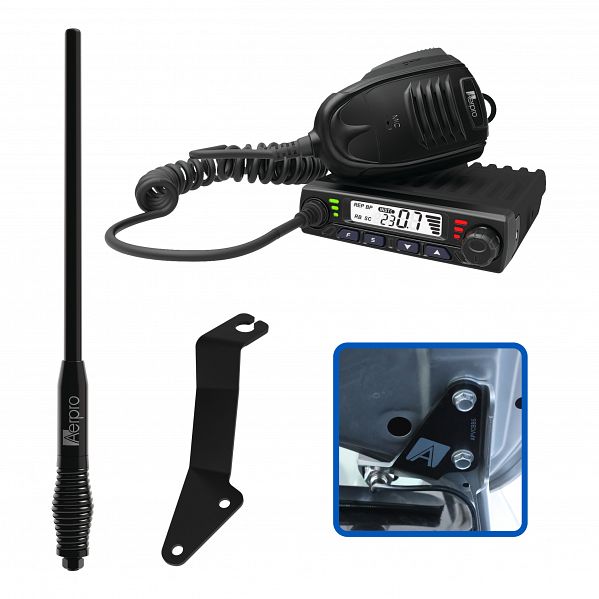

The Aerpro APTYCBE2 is a complete UHF CB radio kit designed specifically for the Toyota LandCruiser 200 Series (2016 to 2021), excluding GX models. Includes the Aerpro AP477E 5W ultra-compact UHF CB radio, the Aerpro CBSTHD1 3dBi heavy duty fibreglass radome antenna, and the Aerpro APVCBB5 vehicle-specific bonnet mount bracket. Everything needed to install a UHF radio and antenna in the LC200 is in the box. 5-year warranty on the radio, 1-year warranty on accessories.
Product overview
The APTYCBE2 is the compact (non-hideaway) counterpart to the APTYCBH2 hideaway kit for the Toyota LandCruiser 200 Series (2016 to 2021), excluding GX grade models. Where the APTYCBH2 uses the AP477H hideaway radio with a remote speaker microphone mounted out of sight, the APTYCBE2 uses the AP477E standard compact radio with a fixed-cord microphone, mounted in a visible, accessible position in the cabin.
The AP477E provides 5W output across all 80 UHF CB channels with CTCSS/DCS codes, duplex mode, channel scan, auto squelch, busy channel lockout, a white backlit display, stereo mute output, and external speaker port. Compatible with 12V and 24V systems.
The CBSTHD1 is a 700mm ground-independent elevated feed fibreglass radome antenna with stainless steel spring base, 4.5m RG58 cable, and FME to PL259 adaptor for solder-free installation. The APVCBB5 mounts on the passenger side bonnet hinge of the LC200 using existing mounting points with no drilling required, and does not obstruct bonnet operation or window wipers.
Features and benefits
Complete compact UHF CB kit for Toyota LandCruiser 200 Series 2016 to 2021 (excludes GX): Radio, antenna, and bonnet bracket all included.
AP477E ultra-compact radio with fixed-cord microphone: All controls on the radio body. White backlit display for low-light operation.
GX models excluded: The APTYCBE2 is confirmed for non-GX 200 Series variants only.
5W, 80 channels, 12V/24V compatible: CTCSS/DCS, duplex, channel scan, squelch, busy channel lockout, and stereo mute output.
CBSTHD1 3dBi ground-independent elevated feed antenna: 700mm fibreglass radome with stainless steel spring base, suited to bonnet bracket mounting.
4.5m RG58 cable with FME to PL259 adaptor: Solder-free antenna connection.
APVCBB5 uses existing bonnet hinge mounting points: No drilling or permanent modifications to the LC200.
Does not obstruct bonnet or window wipers.
5-year warranty on the radio, 1-year warranty on accessories.
What's in the box
AP477E UHF CB Radio:
- 1x UHF CB Radio
- 1x Microphone (attached to radio)
- 1x Microphone Mounting Clip
- 1x Radio Mounting Bracket
CBSTHD1 UHF Antenna:
- 1x 700mm Fibreglass Radome Antenna with Stainless Steel Spring Base
- 1x 4.5m RG58 Cable with Female FME Connector
- 1x FME to PL259 Adaptor
- 1x Mounting Nut
- 1x Weather Cap
APVCBB5 Bonnet Bracket:
Technical specs
AP477E UHF CB Radio
| Specification |
Detail |
| Transmission Power |
5W |
| Frequency |
476.425MHz to 477.4125MHz |
| Channels |
80 |
| CTCSS/DCS Codes |
Yes |
| Duplex Mode |
Yes |
| Channel Scan |
Yes |
| Squelch Control |
Yes |
| Busy Channel Lockout |
Yes |
| Call Tone Alter |
Yes |
| Roger Beep |
Yes |
| Button Beep |
Yes |
| Volume Control |
Yes |
| Backlit Display |
White |
| Radio Type |
Ultra-compact chassis |
| Microphone |
Fixed cord |
| Voltage |
12V and 24V DC |
| External Speaker Port |
Yes |
| Mute Out |
Yes |
| Antenna Connection |
PL259 |
| Radio Warranty |
5 years |
CBSTHD1 UHF Antenna
| Specification |
Detail |
| Frequency |
477MHz |
| Gain |
3.0dBi |
| Ground Independent |
Yes |
| Elevated Feed |
Yes |
| Total Length |
700mm |
| Mast Length |
570mm |
| Mast Width |
40mm |
| Mast Type |
Fibreglass radome |
| Spring Type |
Stainless steel |
| Antenna Mounting Thread |
16mm |
| Mast Mounting Thread |
30mm |
| Cable Type |
RG58 with female FME |
| Cable Length |
4.5m |
| Colour |
Black |
| Antenna Warranty |
1 year |
APVCBB5 Bonnet Bracket
| Specification |
Detail |
| Mounting Position |
Passenger side bonnet hinge |
| Metal Type |
4mm press-bent steel |
| Finish |
Matte black powder coat |
| Antenna Mounting Hole |
18mm |
| Cable Slot Size |
5mm |
| Bracket Warranty |
1 year |
Compatible with
| Make |
Model |
Variant |
Years |
Notes |
| Toyota |
LandCruiser |
200 Series (LC200) |
2016 to 2021 |
Excludes GX grade |
Frequently asked questions
What is the difference between the APTYCBE2 and the APTYCBH2? The APTYCBH2 uses the AP477H hideaway radio, where the radio body mounts out of sight and all controls are on a separate remote speaker microphone. The APTYCBE2 uses the AP477E standard compact radio with a fixed-cord microphone, mounted in a visible position in the cabin. Both kits use the same CBSTHD1 antenna and APVCBB5 bonnet bracket for the Toyota LandCruiser 200 Series 2016 to 2021 (excludes GX).
Why is the GX model excluded? The APTYCBE2 is confirmed for non-GX 200 Series LandCruiser variants only. The GX grade has a different dashboard and bonnet hinge configuration that is not compatible with this kit. Confirm your LandCruiser's grade before purchasing.
What is included in the APTYCBE2 kit? The kit includes the Aerpro AP477E compact UHF CB radio with fixed-cord microphone, mounting clip, and radio mounting bracket; the Aerpro CBSTHD1 antenna with 4.5m RG58 cable, FME to PL259 adaptor, and mounting nut; and the Aerpro APVCBB5 bonnet bracket.
Does the APVCBB5 bracket require drilling into the LandCruiser? No. The APVCBB5 uses existing mounting points on the passenger side bonnet hinge of the Toyota LandCruiser 200 Series (2016 to 2021) with no drilling or permanent modifications required. It does not obstruct bonnet operation or window wipers.
What warranty does the APTYCBE2 kit carry? The AP477E radio carries a 5-year warranty. The CBSTHD1 antenna and APVCBB5 bracket each carry a 1-year warranty.
