Description
Aerpro APTYCBH1 Complete Hideaway 5W UHF CB Kit for Toyota Hilux and Fortuner 2015-On with AP477H Radio CBSTHD1 3dBi Antenna APVCBB4 Bonnet Bracket and ARJ45TO7 RJ45 Pass-Through Adapter

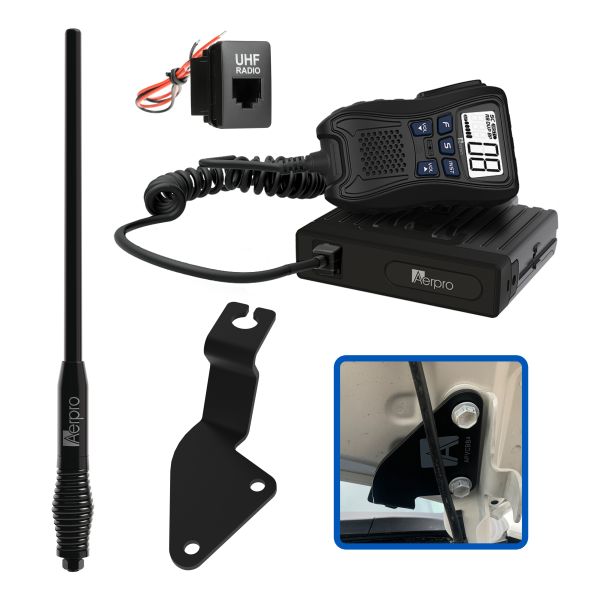

The Aerpro APTYCBH1 is a complete hideaway UHF CB radio kit designed specifically for the Toyota Hilux and Fortuner (2015-on). Includes the Aerpro AP477H 5W ultra-compact hideaway UHF CB radio with remote speaker microphone, the Aerpro CBSTHD1 3dBi heavy duty fibreglass radome antenna, the Aerpro APVCBB4 vehicle-specific bonnet mount bracket, and the Aerpro ARJ45TO7 RJ45 pass-through adapter with blue illumination. Everything needed to install a concealed hideaway UHF radio in the Toyota Hilux or Fortuner is in the box. 5-year warranty on the radio, 1-year warranty on accessories.
Product overview
The APTYCBH1 is a hideaway UHF CB kit purpose-matched to the Toyota Hilux and Fortuner (2015-on). The AP477H radio body mounts out of sight under the dash or seat while all controls and functions are operated from a remote speaker microphone with 7-colour backlit LCD display. The ARJ45TO7 RJ45 pass-through adapter replaces a factory switch blanking plate in the Toyota dashboard (21mm wide by 32mm high) to provide a clean, OEM-style blue-illuminated pass-through point for the RJ45 microphone cable.
The AP477H provides 5W output across all 80 UHF CB channels with CTCSS/DCS codes, duplex mode, channel scan, auto squelch, busy channel lockout, stereo mute output, and external speaker port. The 2-metre remote microphone extension cable is included. Compatible with 12V and 24V systems.
The CBSTHD1 is a 700mm ground-independent elevated feed fibreglass radome antenna with stainless steel spring base, 4.5m RG58 cable, and FME to PL259 adaptor for solder-free installation. The APVCBB4 mounts on the passenger side bonnet hinge of the Hilux and Fortuner using existing mounting points with no drilling required, and does not obstruct bonnet operation or window wipers.
Features and benefits
Complete hideaway kit for Toyota Hilux and Fortuner 2015-on: Radio, remote microphone, antenna, bonnet bracket, and RJ45 pass-through adapter all included.
AP477H hideaway radio with remote speaker microphone: Radio body mounts out of sight; all controls operated from the 7-colour backlit LCD remote microphone.
ARJ45TO7 RJ45 pass-through adapter with blue illumination: Replaces a factory switch blanking plate (21mm W x 32mm H) for a clean OEM-style cable pass-through. 12V positive and earth wiring connections required for illumination.
5W, 80 channels, 12V/24V compatible: CTCSS/DCS, duplex, channel scan, squelch, busy channel lockout, and stereo mute output.
2-metre remote microphone extension cable included.
CBSTHD1 3dBi ground-independent elevated feed antenna: 700mm fibreglass radome with stainless steel spring base, suited to bonnet bracket mounting.
4.5m RG58 cable with FME to PL259 adaptor: Solder-free antenna connection.
APVCBB4 uses existing bonnet hinge mounting points: No drilling or permanent modifications to the Hilux or Fortuner.
Does not obstruct bonnet or window wipers.
5-year warranty on the radio, 1-year warranty on accessories.
What's in the box
AP477H UHF CB Radio:
- 1x UHF CB Hideaway Radio
- 1x Remote Speaker Microphone
- 1x Microphone Mounting Clip
- 1x Radio Mounting Bracket
- 1x Microphone Extension Cable (2 metres)
CBSTHD1 UHF Antenna:
- 1x 700mm Fibreglass Radome Antenna with Stainless Steel Spring Base
- 1x 4.5m RG58 Cable with Female FME Connector
- 1x FME to PL259 Adaptor
- 1x Mounting Nut
- 1x Weather Cap
APVCBB4 Bonnet Bracket:
ARJ45TO7 RJ45 Pass-Through Adapter:
- 1x RJ45 Pass-Through Adapter
Technical specs
AP477H UHF CB Radio
| Specification |
Detail |
| Transmission Power |
5W |
| Frequency |
476.425MHz to 477.4125MHz |
| Channels |
80 |
| CTCSS/DCS Codes |
Yes |
| Duplex Mode |
Yes |
| Channel Scan |
Yes |
| Squelch Control |
Yes |
| Busy Channel Lockout |
Yes |
| Call Tone Alter |
Yes |
| Roger Beep |
Yes |
| Button Beep |
Yes |
| Volume Control |
Yes |
| Backlit Display |
7 multicolour (on remote microphone) |
| Radio Type |
Hideaway ultra-compact chassis |
| Microphone |
Remote speaker microphone |
| Voltage |
12V and 24V DC |
| External Speaker Port |
Yes |
| Mute Out |
Yes |
| Antenna Connection |
PL259 |
| Radio Warranty |
5 years |
CBSTHD1 UHF Antenna
| Specification |
Detail |
| Frequency |
477MHz |
| Gain |
3.0dBi |
| Ground Independent |
Yes |
| Elevated Feed |
Yes |
| Total Length |
700mm |
| Mast Length |
570mm |
| Mast Width |
40mm |
| Mast Type |
Fibreglass radome |
| Spring Type |
Stainless steel |
| Antenna Mounting Thread |
16mm |
| Mast Mounting Thread |
30mm |
| Cable Type |
RG58 with female FME |
| Cable Length |
4.5m |
| Colour |
Black |
| Antenna Warranty |
1 year |
APVCBB4 Bonnet Bracket
| Specification |
Detail |
| Mounting Position |
Passenger side bonnet hinge |
| Metal Type |
4mm press-bent steel |
| Finish |
Matte black powder coat |
| Antenna Mounting Hole |
18mm |
| Cable Slot Size |
5mm |
| Adapter Warranty |
1 year |
ARJ45TO7 RJ45 Pass-Through Adapter
| Specification |
Detail |
| Connection Type |
RJ45 pass-through |
| Mounting Type |
Clip-in |
| Face Dimensions |
21mm (W) x 32mm (H) |
| Body Dimensions |
21mm (W) x 32mm (H) |
| Illumination Colour |
Blue |
| Wiring |
12V positive (red), earth (black) |
| Replaces |
Factory switch blanking plate |
| Adapter Warranty |
1 year |
Compatible with
| Make |
Model |
Years |
| Toyota |
Hilux |
2015 to 2020 |
| Toyota |
Hilux |
2020 to 2025 |
| Toyota |
Fortuner |
2015 to 2020 |
| Toyota |
Fortuner |
2020-on |
Frequently asked questions
What is included in the APTYCBH1 kit? The kit includes the Aerpro AP477H hideaway UHF CB radio with remote speaker microphone, mounting bracket, microphone mounting clip, and 2-metre microphone extension cable; the Aerpro CBSTHD1 antenna with 4.5m RG58 cable, FME to PL259 adaptor, and mounting nut; the Aerpro APVCBB4 bonnet bracket; and the Aerpro ARJ45TO7 RJ45 pass-through adapter.
What does the ARJ45TO7 adapter do and does it require wiring? The ARJ45TO7 clips into a factory switch blanking plate opening in the Toyota dashboard to provide a clean, OEM-style pass-through for the RJ45 microphone cable. It features blue illumination which requires a 12V positive (red wire) and earth (black wire) connection. If illumination is not required, the wiring connections can be omitted.
Where does the AP477H hideaway radio mount? The AP477H radio body mounts out of sight under the dashboard or seat. All controls are on the remote speaker microphone which mounts within reach of the driver.
Does the APVCBB4 bracket require drilling into the Hilux or Fortuner? No. The APVCBB4 uses existing mounting points on the passenger side bonnet hinge of the Toyota Hilux and Fortuner (2015-on) with no drilling or permanent modifications required. It does not obstruct bonnet operation or window wipers.
What warranty does the APTYCBH1 kit carry? The AP477H radio carries a 5-year warranty. The CBSTHD1 antenna, APVCBB4 bracket, and ARJ45TO7 adapter each carry a 1-year warranty.
