Description
Aerpro APTYCBH2 Complete Hideaway 5W UHF CB Kit for Toyota LandCruiser 200 Series 2016 to 2021 Excludes GX with AP477H Radio CBSTHD1 3dBi Antenna APVCBB5 Bonnet Bracket and ARJ45TO7 RJ45 Adapter

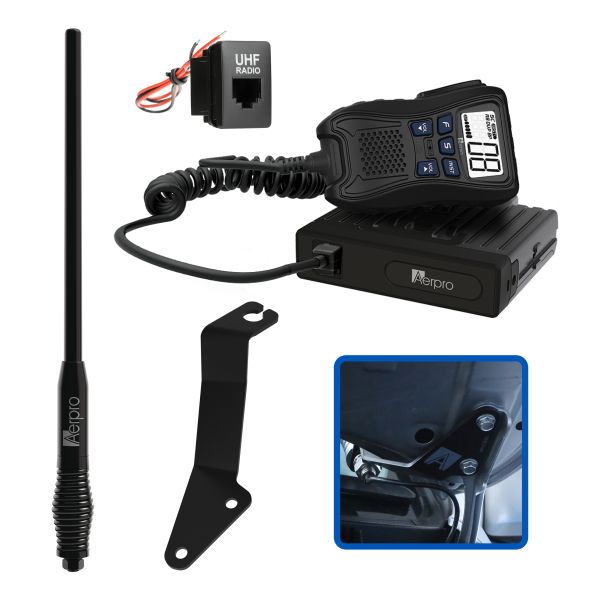

The Aerpro APTYCBH2 is a complete hideaway UHF CB radio kit designed specifically for the Toyota LandCruiser 200 Series (LC200, 2016 to 2021), excluding GX models. Includes the Aerpro AP477H 5W ultra-compact hideaway UHF CB radio with remote speaker microphone, the Aerpro CBSTHD1 3dBi heavy duty fibreglass radome antenna, the Aerpro APVCBB5 vehicle-specific bonnet mount bracket, and the Aerpro ARJ45TO7 RJ45 pass-through adapter with blue illumination. Everything needed to install a concealed hideaway UHF radio in the LC200 is in the box. 5-year warranty on the radio, 1-year warranty on accessories.
Product overview
The APTYCBH2 is a hideaway UHF CB kit purpose-matched to the Toyota LandCruiser 200 Series (2016 to 2021), excluding GX grade models. The AP477H radio body mounts out of sight under the dash or seat while all controls and functions are operated from a remote speaker microphone with 7-colour backlit LCD display.
The ARJ45TO7 adapter clips into a factory switch blanking plate opening in the LC200's dashboard (21mm wide by 32mm high), providing a clean, OEM-style blue-illuminated RJ45 pass-through for the microphone cable. Illumination requires a 12V positive (red wire) and earth (black wire) connection.
The AP477H provides 5W output across all 80 UHF CB channels with CTCSS/DCS codes, duplex mode, channel scan, auto squelch, busy channel lockout, stereo mute output, and external speaker port. The 2-metre remote microphone extension cable is included. Compatible with 12V and 24V systems.
The CBSTHD1 is a 700mm ground-independent elevated feed fibreglass radome antenna with stainless steel spring base, 4.5m RG58 cable, and FME to PL259 adaptor for solder-free installation. The APVCBB5 mounts on the passenger side bonnet hinge of the LC200 using existing mounting points with no drilling required, and does not obstruct bonnet operation or window wipers.
Features and benefits
Complete hideaway kit for Toyota LandCruiser 200 Series 2016 to 2021 (excludes GX): Radio, remote microphone, antenna, bonnet bracket, and RJ45 pass-through adapter all included.
AP477H hideaway radio with remote speaker microphone: Radio body mounts out of sight; all controls operated from the 7-colour backlit LCD remote microphone.
ARJ45TO7 OEM-style clip-in RJ45 pass-through adapter with blue illumination: Replaces a factory switch blanking plate (21mm W x 32mm H) in the LC200 dashboard. Requires 12V positive and earth wiring for illumination.
GX models excluded: The APTYCBH2 is confirmed for non-GX 200 Series variants only.
5W, 80 channels, 12V/24V compatible: CTCSS/DCS, duplex, channel scan, squelch, busy channel lockout, and stereo mute output.
2-metre remote microphone extension cable included.
CBSTHD1 3dBi ground-independent elevated feed antenna: 700mm fibreglass radome with stainless steel spring base, suited to bonnet bracket mounting.
4.5m RG58 cable with FME to PL259 adaptor: Solder-free antenna connection.
APVCBB5 uses existing bonnet hinge mounting points: No drilling or permanent modifications to the LC200.
Does not obstruct bonnet or window wipers.
5-year warranty on the radio, 1-year warranty on accessories.
What's in the box
AP477H UHF CB Radio:
- 1x UHF CB Hideaway Radio
- 1x Remote Speaker Microphone
- 1x Microphone Mounting Clip
- 1x Radio Mounting Bracket
- 1x Microphone Extension Cable (2 metres)
CBSTHD1 UHF Antenna:
- 1x 700mm Fibreglass Radome Antenna with Stainless Steel Spring Base
- 1x 4.5m RG58 Cable with Female FME Connector
- 1x FME to PL259 Adaptor
- 1x Mounting Nut
- 1x Weather Cap
APVCBB5 Bonnet Bracket:
ARJ45TO7 RJ45 Pass-Through Adapter:
- 1x RJ45 Pass-Through Adapter
Technical specs
AP477H UHF CB Radio
| Specification |
Detail |
| Transmission Power |
5W |
| Frequency |
476.425MHz to 477.4125MHz |
| Channels |
80 |
| CTCSS/DCS Codes |
Yes |
| Duplex Mode |
Yes |
| Channel Scan |
Yes |
| Squelch Control |
Yes |
| Busy Channel Lockout |
Yes |
| Call Tone Alter |
Yes |
| Roger Beep |
Yes |
| Button Beep |
Yes |
| Volume Control |
Yes |
| Backlit Display |
7 multicolour (on remote microphone) |
| Radio Type |
Hideaway ultra-compact chassis |
| Microphone |
Remote speaker microphone |
| Voltage |
12V and 24V DC |
| External Speaker Port |
Yes |
| Mute Out |
Yes |
| Antenna Connection |
PL259 |
| Radio Warranty |
5 years |
CBSTHD1 UHF Antenna
| Specification |
Detail |
| Frequency |
477MHz |
| Gain |
3.0dBi |
| Ground Independent |
Yes |
| Elevated Feed |
Yes |
| Total Length |
700mm |
| Mast Length |
570mm |
| Mast Width |
40mm |
| Mast Type |
Fibreglass radome |
| Spring Type |
Stainless steel |
| Antenna Mounting Thread |
16mm |
| Mast Mounting Thread |
30mm |
| Cable Type |
RG58 with female FME |
| Cable Length |
4.5m |
| Colour |
Black |
| Antenna Warranty |
1 year |
APVCBB5 Bonnet Bracket
| Specification |
Detail |
| Mounting Position |
Passenger side bonnet hinge |
| Metal Type |
4mm press-bent steel |
| Finish |
Matte black powder coat |
| Antenna Mounting Hole |
18mm |
| Cable Slot Size |
5mm |
| Bracket Warranty |
1 year |
ARJ45TO7 RJ45 Pass-Through Adapter
| Specification |
Detail |
| Connection Type |
RJ45 pass-through |
| Mounting Type |
Clip-in |
| Face/Body Dimensions |
21mm (W) x 32mm (H) |
| Illumination Colour |
Blue |
| Wiring |
12V positive (red), earth (black) |
| Replaces |
Factory switch blanking plate |
| Adapter Warranty |
1 year |
Compatible with
| Make |
Model |
Variant |
Years |
Notes |
| Toyota |
LandCruiser |
200 Series (LC200) |
2016 to 2021 |
Excludes GX grade |
Frequently asked questions
What is included in the APTYCBH2 kit? The kit includes the Aerpro AP477H hideaway UHF CB radio with remote speaker microphone, mounting bracket, microphone mounting clip, and 2-metre microphone extension cable; the Aerpro CBSTHD1 antenna with 4.5m RG58 cable, FME to PL259 adaptor, and mounting nut; the Aerpro APVCBB5 bonnet bracket; and the Aerpro ARJ45TO7 RJ45 pass-through adapter.
Why is the GX model excluded? The APTYCBH2 is confirmed for non-GX 200 Series LandCruiser variants only. The GX grade has a different dashboard switch plate configuration that is not compatible with the ARJ45TO7 adapter or the APVCBB5 bracket. Confirm your LandCruiser's grade before purchasing.
What does the ARJ45TO7 adapter do and does it require wiring? The ARJ45TO7 clips into a factory switch blanking plate opening in the LC200 dashboard (21mm wide by 32mm high) to provide a clean OEM-style pass-through for the RJ45 microphone cable. It features blue illumination which requires a 12V positive (red wire) and earth (black wire) connection. If illumination is not required, the wiring connections can be omitted.
Does the APVCBB5 bracket require drilling into the LandCruiser? No. The APVCBB5 uses existing mounting points on the passenger side bonnet hinge of the Toyota LandCruiser 200 Series (2016 to 2021) with no drilling or permanent modifications required. It does not obstruct bonnet operation or window wipers.
What warranty does the APTYCBH2 kit carry? The AP477H radio carries a 5-year warranty. The CBSTHD1 antenna, APVCBB5 bracket, and ARJ45TO7 adapter each carry a 1-year warranty.
