Aerpro APTYCBH4 Complete Hideaway 5W UHF CB Kit for Toyota Prado 150 Series with AP477H Radio CBSTHD1 3dBi Antenna APVCBB15 Bonnet Bracket and ARJ45TO7 RJ45 Pass-Through Adapter

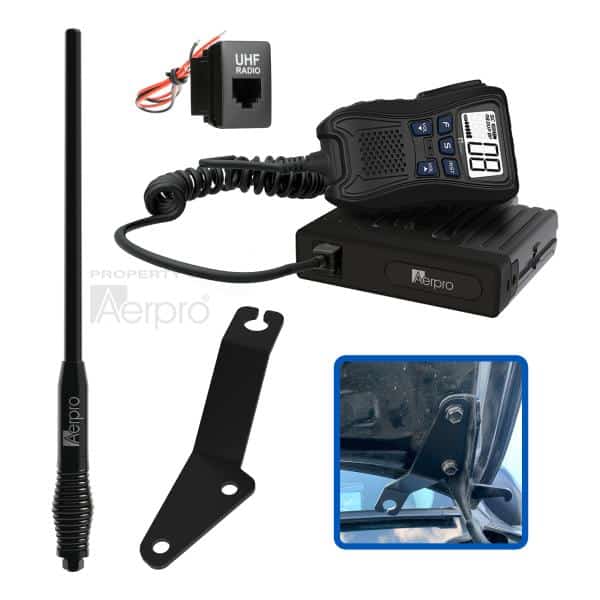

The Aerpro APTYCBH4 is a complete hideaway UHF CB radio kit designed specifically for the Toyota Prado 150 Series. Includes the Aerpro AP477H 5W ultra-compact hideaway UHF CB radio with remote speaker microphone, the Aerpro CBSTHD1 3dBi heavy duty fibreglass radome antenna, the Aerpro APVCBB15 vehicle-specific bonnet mount bracket, and the Aerpro ARJ45TO7 RJ45 pass-through adapter with blue illumination. Everything needed to install a concealed hideaway UHF radio in the Toyota Prado 150 Series is in the box. 5-year warranty on the radio, 1-year warranty on accessories.
Product overview
The APTYCBH4 is a hideaway UHF CB kit purpose-matched to the Toyota Prado 150 Series. The AP477H radio body mounts out of sight under the dash or seat while all controls and functions are operated from a remote speaker microphone with 7-colour backlit LCD display.
The ARJ45TO7 adapter clips into a factory switch blanking plate opening in the Prado's dashboard (21mm wide by 32mm high), providing a clean, OEM-style blue-illuminated RJ45 pass-through for the microphone cable. Illumination requires a 12V positive (red wire) and earth (black wire) connection.
The AP477H provides 5W output across all 80 UHF CB channels with CTCSS/DCS codes, duplex mode, channel scan, auto squelch, busy channel lockout, stereo mute output, and external speaker port. The 2-metre remote microphone extension cable is included. Compatible with 12V and 24V systems.
The CBSTHD1 is a 700mm ground-independent elevated feed fibreglass radome antenna with stainless steel spring base, 4.5m RG58 cable, and FME to PL259 adaptor for solder-free installation. The APVCBB15 mounts on the passenger side bonnet hinge of the Prado 150 Series using existing mounting points with no drilling required, and does not obstruct bonnet operation or window wipers.
Features and benefits
Complete hideaway kit for Toyota Prado 150 Series: Radio, remote microphone, antenna, bonnet bracket, and RJ45 pass-through adapter all included.
AP477H hideaway radio with remote speaker microphone: Radio body mounts out of sight; all controls operated from the 7-colour backlit LCD remote microphone.
ARJ45TO7 OEM-style clip-in RJ45 pass-through adapter with blue illumination: Replaces a factory switch blanking plate (21mm W x 32mm H) in the Prado dashboard. Requires 12V positive and earth wiring for illumination.
5W, 80 channels, 12V/24V compatible: CTCSS/DCS, duplex, channel scan, squelch, busy channel lockout, and stereo mute output.
2-metre remote microphone extension cable included.
CBSTHD1 3dBi ground-independent elevated feed antenna: 700mm fibreglass radome with stainless steel spring base, suited to bonnet bracket mounting.
4.5m RG58 cable with FME to PL259 adaptor: Solder-free antenna connection.
APVCBB15 uses existing bonnet hinge mounting points: No drilling or permanent modifications to the Prado 150 Series.
Does not obstruct bonnet or window wipers.
5-year warranty on the radio, 1-year warranty on accessories.
What's in the box
AP477H UHF CB Radio:
- 1x UHF CB Hideaway Radio
- 1x Remote Speaker Microphone
- 1x Microphone Mounting Clip
- 1x Radio Mounting Bracket
- 1x Microphone Extension Cable (2 metres)
CBSTHD1 UHF Antenna:
- 1x 700mm Fibreglass Radome Antenna with Stainless Steel Spring Base
- 1x 4.5m RG58 Cable with Female FME Connector
- 1x FME to PL259 Adaptor
- 1x Mounting Nut
- 1x Weather Cap
APVCBB15 Bonnet Bracket:
ARJ45TO7 RJ45 Pass-Through Adapter:
- 1x RJ45 Pass-Through Adapter
Technical specs
AP477H UHF CB Radio
| Specification |
Detail |
| Transmission Power |
5W |
| Frequency |
476.425MHz to 477.4125MHz |
| Channels |
80 |
| CTCSS/DCS Codes |
Yes |
| Duplex Mode |
Yes |
| Channel Scan |
Yes |
| Squelch Control |
Yes |
| Busy Channel Lockout |
Yes |
| Call Tone Alter |
Yes |
| Roger Beep |
Yes |
| Button Beep |
Yes |
| Volume Control |
Yes |
| Backlit Display |
7 multicolour (on remote microphone) |
| Radio Type |
Hideaway ultra-compact chassis |
| Microphone |
Remote speaker microphone |
| Voltage |
12V and 24V DC |
| External Speaker Port |
Yes |
| Mute Out |
Yes |
| Antenna Connection |
PL259 |
| Radio Warranty |
5 years |
CBSTHD1 UHF Antenna
| Specification |
Detail |
| Frequency |
477MHz |
| Gain |
3.0dBi |
| Ground Independent |
Yes |
| Elevated Feed |
Yes |
| Total Length |
700mm |
| Mast Length |
570mm |
| Mast Width |
40mm |
| Mast Type |
Fibreglass radome |
| Spring Type |
Stainless steel |
| Antenna Mounting Thread |
16mm |
| Mast Mounting Thread |
30mm |
| Cable Type |
RG58 with female FME |
| Cable Length |
4.5m |
| Colour |
Black |
| Antenna Warranty |
1 year |
APVCBB15 Bonnet Bracket
| Specification |
Detail |
| Mounting Position |
Passenger side bonnet hinge |
| Metal Type |
4mm press-bent steel |
| Finish |
Matte black powder coat |
| Antenna Mounting Hole |
18mm |
| Cable Slot Size |
5mm |
| Bracket Warranty |
1 year |
ARJ45TO7 RJ45 Pass-Through Adapter
| Specification |
Detail |
| Connection Type |
RJ45 pass-through |
| Mounting Type |
Clip-in |
| Face/Body Dimensions |
21mm (W) x 32mm (H) |
| Illumination Colour |
Blue |
| Wiring |
12V positive (red), earth (black) |
| Replaces |
Factory switch blanking plate |
| Adapter Warranty |
1 year |
Compatible with
| Make |
Model |
Variant |
Years |
| Toyota |
Prado |
150 Series (GX) |
2009 to 2011 |
| Toyota |
Prado |
150 Series |
2009 to 2013 |
| Toyota |
Prado |
150 Series (GX) |
2012 to 2013 |
| Toyota |
Prado |
150 Series |
2014 to 2017 |
| Toyota |
Prado |
150 Series |
2017 to 2020 |
| Toyota |
Prado |
150 Series |
2020 to 2024 |
Frequently asked questions
What is included in the APTYCBH4 kit? The kit includes the Aerpro AP477H hideaway UHF CB radio with remote speaker microphone, mounting bracket, microphone mounting clip, and 2-metre microphone extension cable; the Aerpro CBSTHD1 antenna with 4.5m RG58 cable, FME to PL259 adaptor, and mounting nut; the Aerpro APVCBB15 bonnet bracket; and the Aerpro ARJ45TO7 RJ45 pass-through adapter.
What does the ARJ45TO7 adapter do and does it require wiring? The ARJ45TO7 clips into a factory switch blanking plate opening in the Prado 150 Series dashboard (21mm wide by 32mm high) to provide a clean OEM-style pass-through for the RJ45 microphone cable. It features blue illumination which requires a 12V positive (red wire) and earth (black wire) connection. If illumination is not required, the wiring connections can be omitted.
Where does the AP477H hideaway radio mount? The AP477H radio body mounts out of sight under the dashboard or seat. All controls are on the remote speaker microphone which mounts within reach of the driver.
Does the APVCBB15 bracket require drilling into the Prado? No. The APVCBB15 uses existing mounting points on the passenger side bonnet hinge of the Toyota Prado 150 Series with no drilling or permanent modifications required. It does not obstruct bonnet operation or window wipers.
What warranty does the APTYCBH4 kit carry? The AP477H radio carries a 5-year warranty. The CBSTHD1 antenna, APVCBB15 bracket, and ARJ45TO7 adapter each carry a 1-year warranty.
