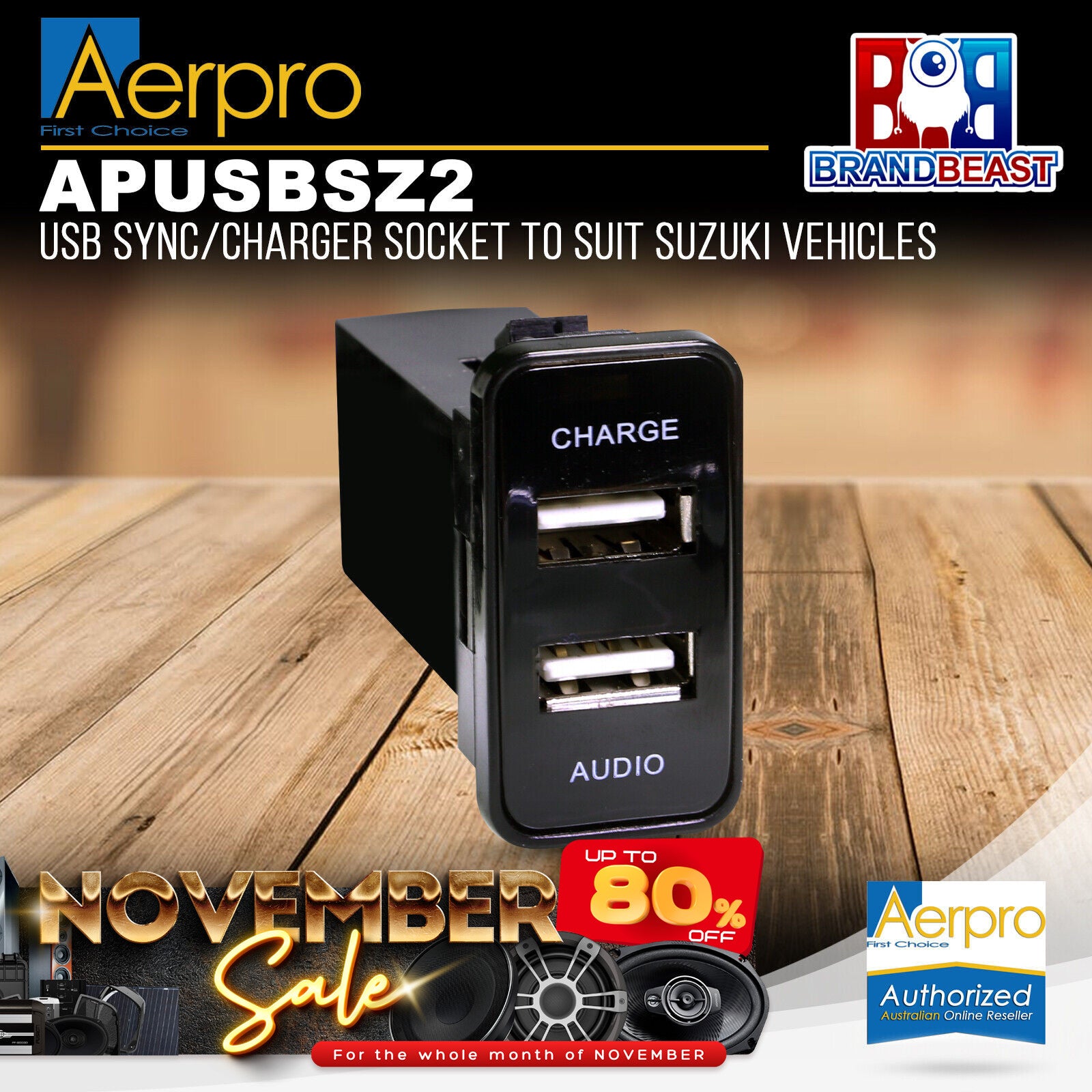

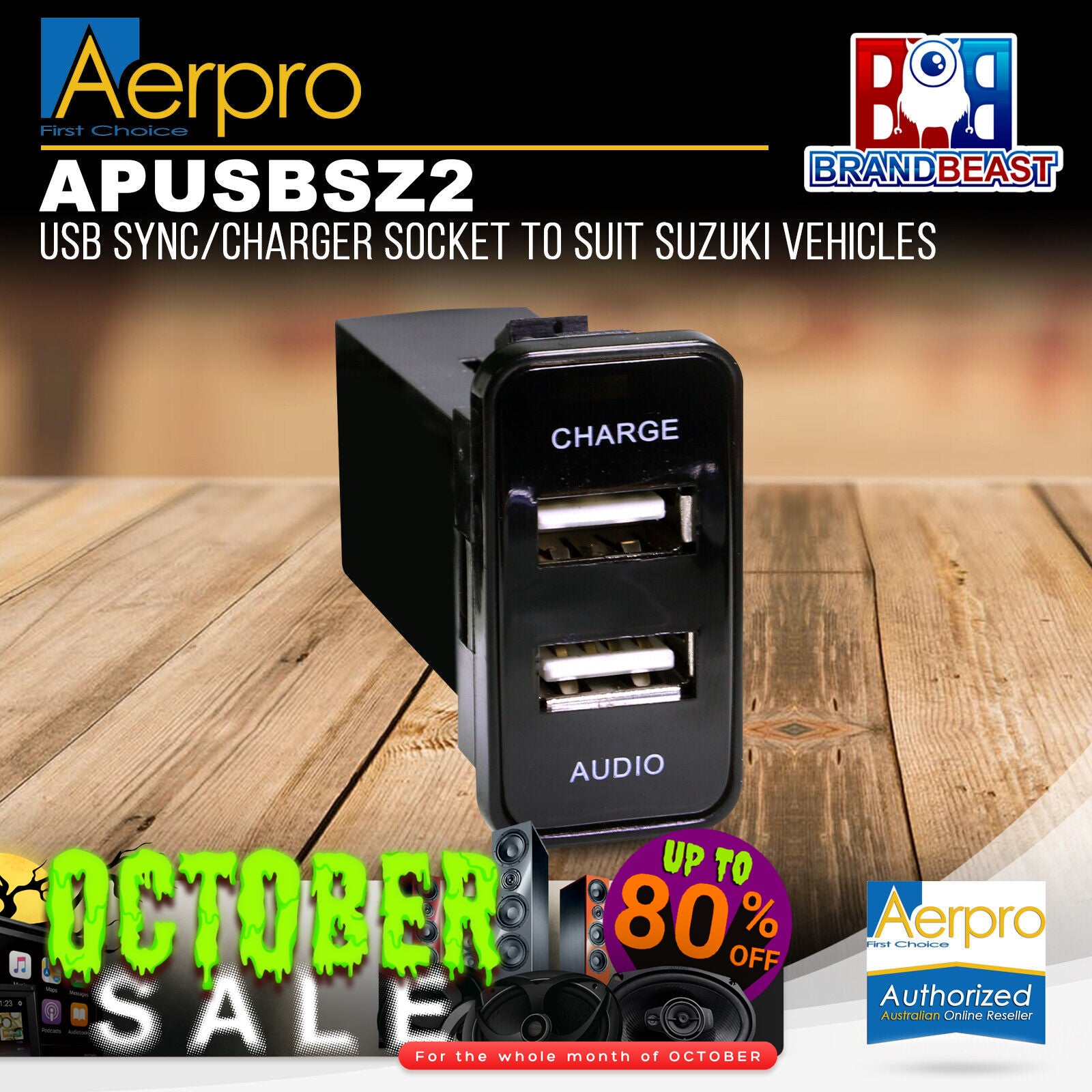

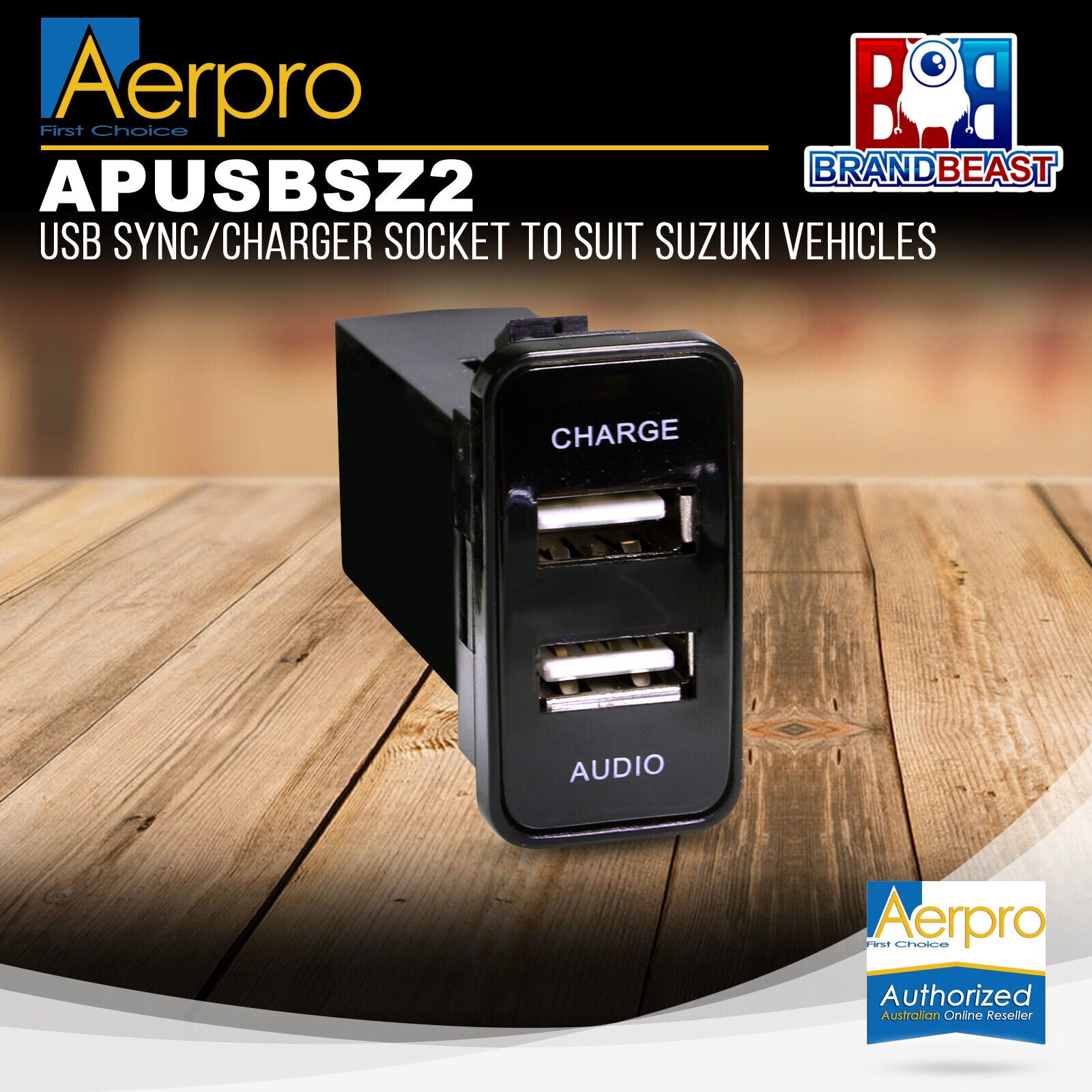

Dual USB Charge & Sync (26mm x 41mm)Aerpro APUSBSZ2 Dual USB Charge & Sync has been designed specifically to suit various Suzuki vehicles. It replaces the spare factory switch blanking plates in the vehicle dashboard that measure 26mm wide x 41mm high, providing seamless USB integration for your vehicle. Featuring two USB ports, one is designed for smartphone and device fast charging at 3A max and the other provides USB pass-through sync for Audio, CarPlay & Android Auto when connected to the rear USB input on compatible aftermarket headunits.
The USB ports are bidirectional, allowing the cable to be connected either way and the charge port illuminates blue making it easy to find day and night. The clip-in design combined with the simple 3 wire plus USB connection, makes it quick and easy to install, providing a professional and discreet USB upgrade solution for the vehicle.
Important Information:
- The AUDIO USB Port is passed through, it will only function when connected to the rear USB input of an aftermarket head unit.
- Not recommended for aftermarket head units with a USB lead from rear of unit. Recommended for aftermarket head units with USB port on the rear of unit.
Features:
- Suitable for Suzuki vehicles with 26mm wide x 41mm high switch blanking plates.
- Replaces factory switch blanking plates in the dashboard.
- Vehicle-specific OEM-style design for discreet seamless USB integration.
- Dual USB ports, one charge, and one sync pass-through.
- The charge port supports up to 3 amps max and illuminates blue.
- The audio/sync port provides USB pass-through for Audio, CarPlay & Android Auto when connected to compatible headunits.
- Bidirectional USB ports, allow the cable to be connected either way.
- Ferrite choke on USB cable to reduce signal interference.
- A simple clip-in design makes it easy to install with no modifications required.
- 3-wire installation; accessory power, illumination, earth/ground, plus USB connection.
Specifications:
- Vehicle Application: Various Suzuki Vehicles
- Panel Dimensions:
Body: 26mm (W) x 41mm (H)
Face: 26mm (W) x 41mm (H)
- Connection Type: Dual USB
USB 1: Fast Charge 3.0A Max
USB 2: Pass-Through (Audio & Sync)
- Mounting Type: Clip-In
- Wiring Installation:
12V+ Accessory Power: Red
Earth: Black
Illumination: Blue
USB Connection: USB-A
- Dimensions: 26mm (W) x 41mm (H)
- Weight: 0.08kg
