Description

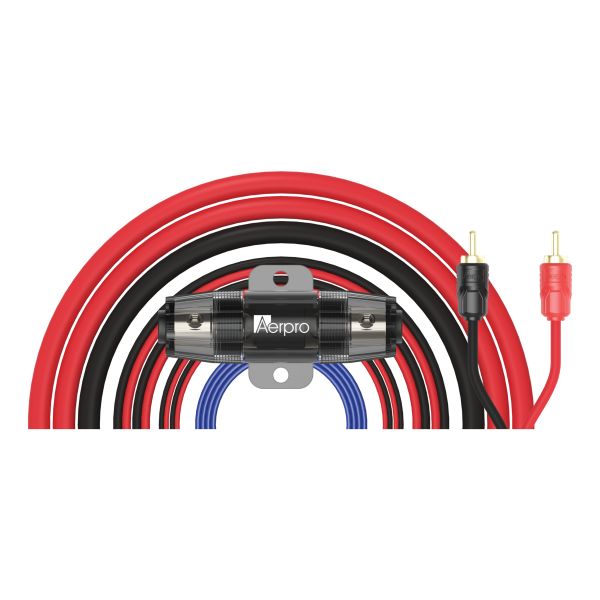

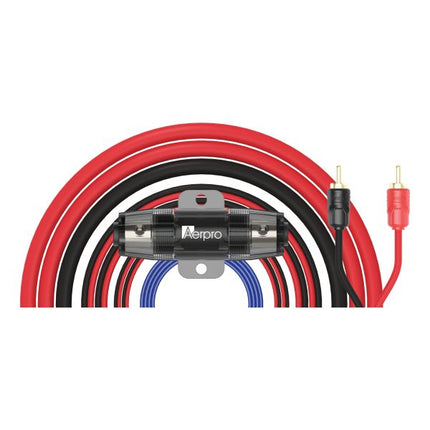

Aerpro APW24 2-Channel 4GA Amplifier Install Kit 900W Maximum Power with CCA Power Cable 2-Channel RCA 100A Mini ANL Fuse and Speaker Wire
The APW24 from Aerpro is a complete 2-channel 4GA amplifier installation kit rated at 900W maximum power, providing all cables, fusing, and accessories required to install a high-powered 2-channel car audio amplifier or subwoofer system. The kit includes 4GA Copper-Clad Aluminium (CCA) power and ground cables, 5m 2-channel twisted shield RCA cables with gold-plated connectors, a barrel inline fuse holder with 100A Mini ANL fuse, 2.4m of 18GA speaker wire, 5m of 18GA remote wire, assorted ring terminals, a 4GA plastic grommet, and cable ties.
Product overview
The APW24 provides a complete installation solution for 2-channel car audio amplifier and subwoofer installations rated up to 900W maximum power. The 4GA CCA power and ground cables deliver the current flow required for high-powered 2-channel amplifier systems, with pre-attached O-ring terminals at one end of each cable for immediate battery and chassis connection. The 5.4m red power cable and 0.9m black ground cable are finished in PVC insulation.
The 5m 2-channel twisted shield RCA cables with gold-plated connectors provide clear, interference-free signal transfer between the head unit and amplifier. A barrel inline fuse holder with a 100A Mini ANL fuse is included for circuit protection at the power cable. Note that the APW24 includes 2.4m of 18GA speaker wire, which is shorter than the 16m included in the 4-channel APW44 kit, reflecting the typical speaker cable requirements of a 2-channel or subwoofer-only installation.
Features and benefits
900W maximum power rating: The APW24 is rated at 900W maximum power, providing the current capacity required for demanding 2-channel car audio amplifier and subwoofer systems.
4GA CCA power and ground cables: The 4GA Copper-Clad Aluminium (CCA) power and ground cables provide an effective balance of conductivity and routing flexibility, with pre-attached O-ring terminals at one end for immediate connection.
2-channel RCA cables with twisted shield and gold-plated connectors: The 5m 2-channel twisted shield RCA cables with gold-plated connectors provide clear, interference-free signal transfer between the head unit and amplifier.
100A Mini ANL fuse and barrel inline fuse holder: The barrel inline fuse holder and 100A Mini ANL fuse provide electrical protection for the vehicle and audio equipment at the power cable connection point.
Complete all-inclusive kit: Everything required for a complete 2-channel amplifier installation is included in a single purchase, eliminating the need to source individual cables and accessories separately.
What's in the box
- 1x 5.4m 4GA Red CCA Power Cable with pre-attached O-ring terminal
- 1x 0.9m 4GA Black CCA Ground Cable with pre-attached O-ring terminal
- 1x Barrel Inline Fuse Holder with 100A Mini ANL Fuse
- 1x 5m 2-Channel Twisted Shield RCA Cable (gold-plated connectors)
- 1x 2.4m 18GA Speaker Wire
- 1x 5m 18GA Remote Wire
- Assorted Ring Terminals
- 4GA Plastic Grommet
- Cable Ties
Technical specs
| Specification |
Detail |
| SKU |
APW24 |
| Brand |
Aerpro |
| Maximum Power Rating |
900W |
| Power Cable Gauge |
4GA |
| Power Cable Type |
Copper-Clad Aluminium (CCA) |
| Power Cable Length |
5.4m, red, pre-attached O-ring terminal |
| Ground Cable Length |
0.9m, black, pre-attached O-ring terminal |
| Power Cable Insulation |
Red PVC, Black PVC |
| Remote Cable |
5m, 18GA |
| RCA Cables |
5m, 2-channel, twisted shield, gold-plated connectors |
| Speaker Wire |
2.4m, 18GA |
| Fuse Holder |
Barrel inline |
| Fuse |
100A Mini ANL |
Frequently asked questions
What is the difference between the APW24 and the APW44?
Both are Aerpro 4GA CCA amplifier install kits rated at 900W maximum power with identical power cable, ground cable, fuse, and remote wire specifications. The APW24 is a 2-channel kit with 2-channel RCA cables and 2.4m of speaker wire, suited to 2-channel or subwoofer amplifier installations. The APW44 is a 4-channel kit with 4-channel RCA cables and 16m of speaker wire, suited to full 4-channel amplifier installations. Select the kit that matches your amplifier channel configuration.
What is Copper-Clad Aluminium (CCA) cable?
Copper-Clad Aluminium cable uses an aluminium conductor with a copper coating, providing an effective balance of conductivity and flexibility at a lower weight than pure copper cable. CCA is widely used in car audio installation kits as a cost-effective alternative to pure OFC copper cable. For the highest performance installations, pure OFC copper cable is preferred.
What fuse is included in the APW24?
The APW24 includes a barrel inline fuse holder with a 100A Mini ANL fuse for circuit protection at the power cable connection point near the battery.
Is the APW24 suitable for a subwoofer amplifier installation?
Yes. The APW24 is well suited to monoblock subwoofer amplifier installations within the 900W power rating. The 2-channel RCA cables can be used to connect a monoblock amplifier from a head unit with stereo subwoofer outputs. Contact us if you need guidance on selecting the correct kit for your specific amplifier and subwoofer configuration.
Why is the speaker wire shorter in the APW24 compared to the APW44?
The APW24 includes 2.4m of 18GA speaker wire, reflecting the typical speaker cable requirement of a 2-channel or subwoofer-only installation where the amplifier is connected to one or two speakers rather than four. The APW44 includes 16m to cover all four channels of a full 4-channel amplifier installation.
