Description
Honda Steering Wheel Control Interface Retains Factory Reverse Camera (3 Angles), USB & Antenna, CANBUS, No Factory Wiring Cut Required.
Product Overview

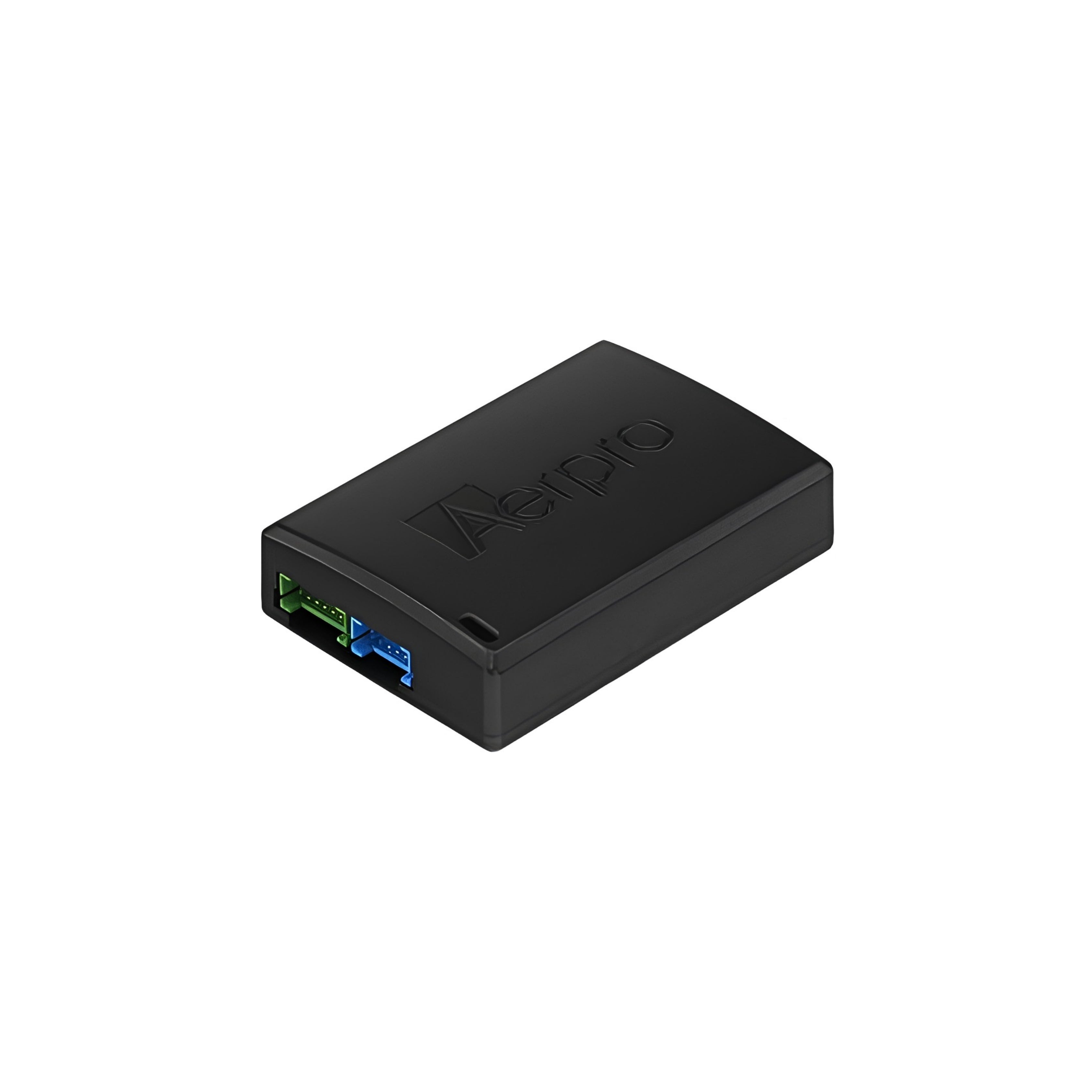

The Aerpro ASHO17C is a CANBUS steering wheel control interface designed for Honda vehicles without side cameras. It allows an aftermarket head unit to be installed while retaining factory steering wheel controls with no cutting of the factory wiring harness required. The vehicle-specific plug connects directly into the existing vehicle wiring.
Beyond SWC retention, the ASHO17C also retains the factory reverse camera (with 3 adjustable camera angles, if equipped), factory USB input, and factory antenna and includes an antenna adaptor to convert the vehicle antenna to a universal DIN plug. Reverse trigger and park brake outputs are provided.
For simplified installation, pair with the optional Aerpro APP8 Head Unit Secondary ISO Harness (sold separately), which connects between the aftermarket head unit and this interface.

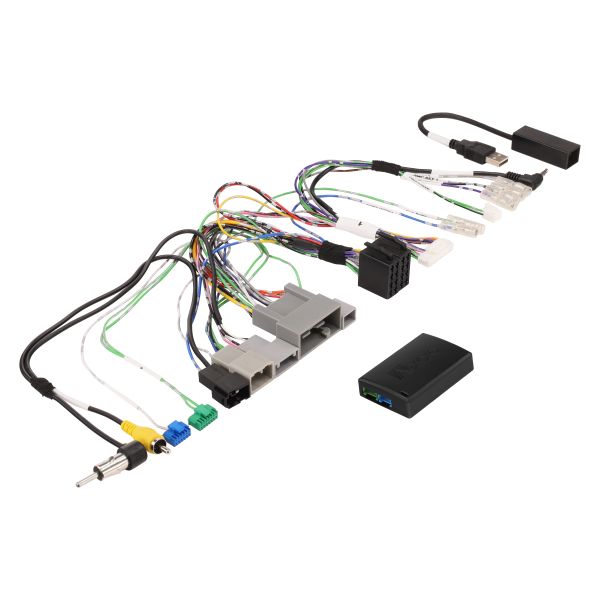

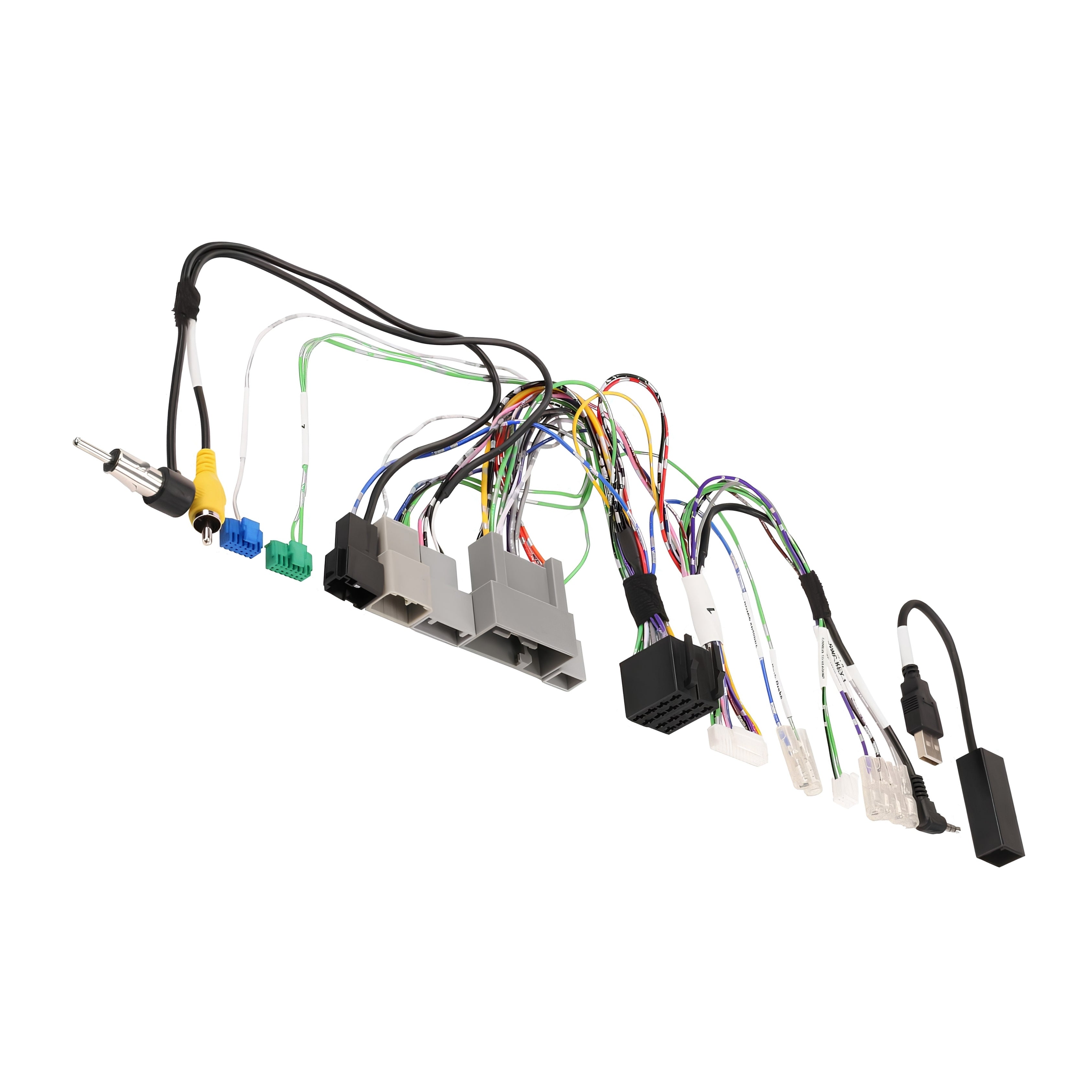

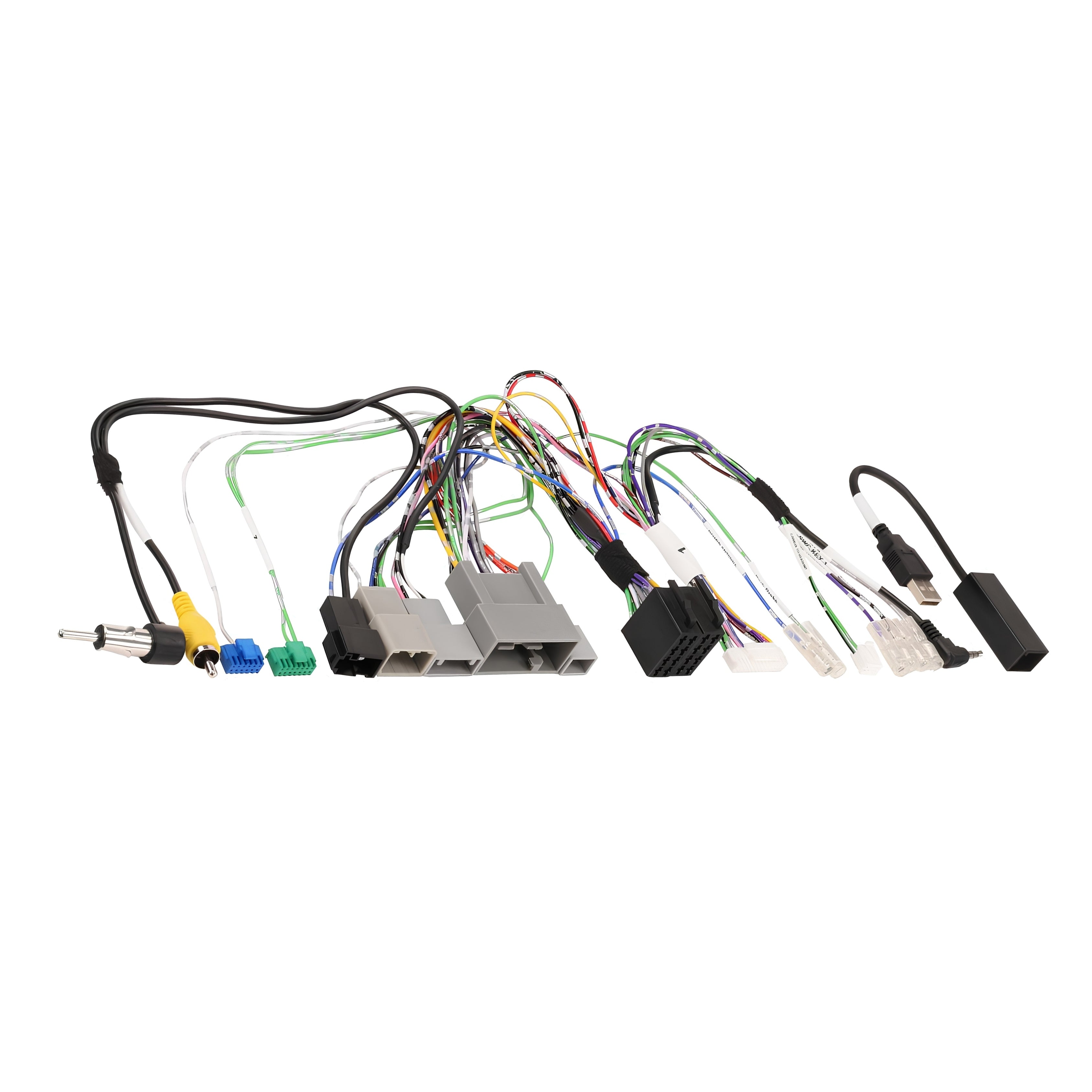

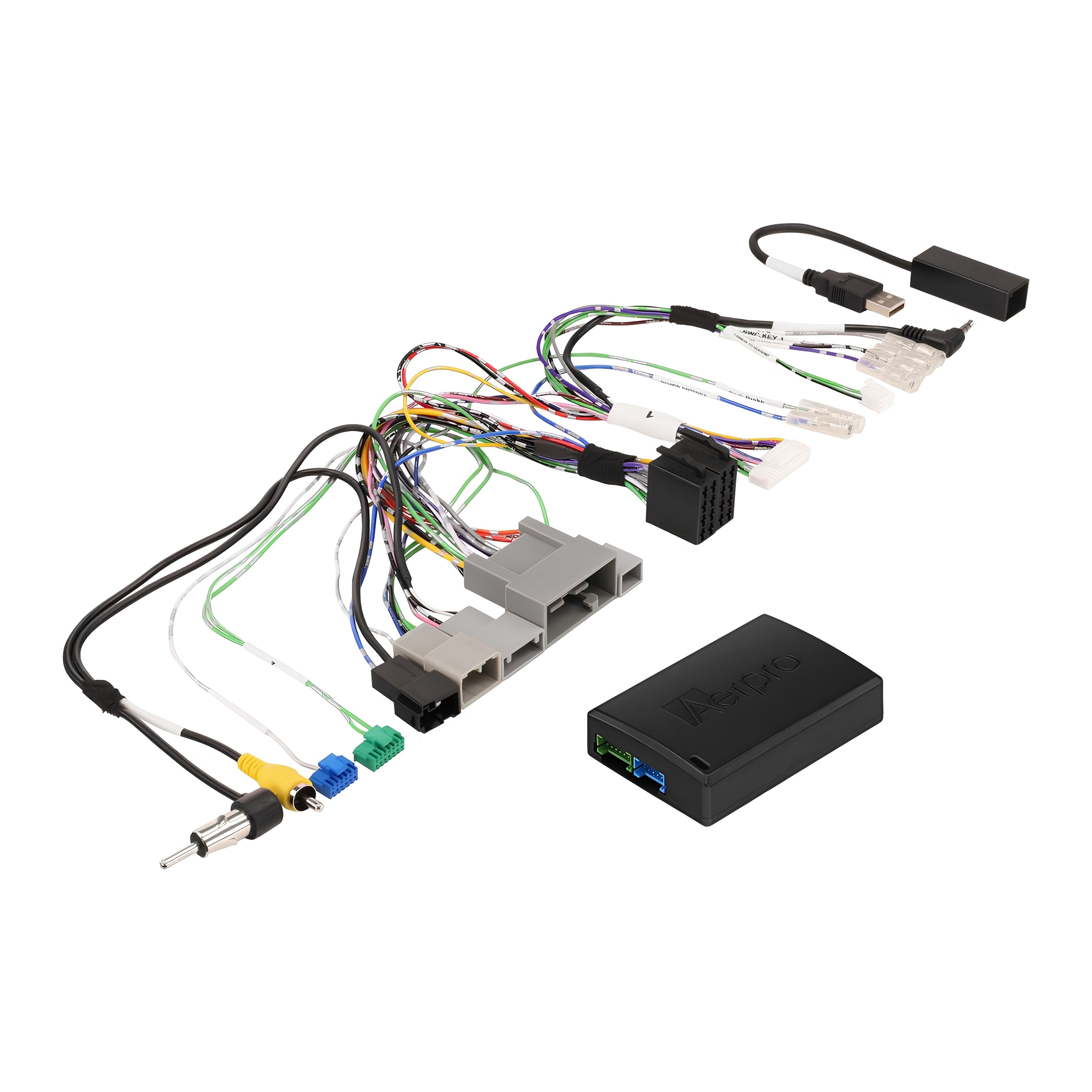

Kit Inclusions
- SWC Interface Harness (vehicle-specific Honda plug)
- Antenna Adaptor
- Reverse Camera Retention Adaptor
- USB Retention Lead
Retention & Output Summary
| Feature |
Detail |
| Steering Wheel Controls |
Yes |
| Factory Reverse Camera |
Yes 3 adjustable angles (if equipped) |
| USB Input |
Yes (if equipped) |
| Antenna |
Yes |
| Vehicle Menu |
No |
| OEM Amplifier |
No |
| AUX Input |
No |
| Reverse Trigger Output |
Yes (purple wire) |
| Park Brake Output |
Yes (green wire) |
| Speed Pulse |
No |
| Illumination |
Yes |
| Ant Remote |
Yes |
| Telephone Mute |
No |
Key Specifications
- Interface type: CANBUS
- Patch lead type: H
- Suits: Honda vehicles without side cameras
- No factory wiring cutting required
- Brand: Aerpro
- SKU: ASHO17C
Features & Benefits
-
Retains factory SWC: Keep your hands on the wheel and eyes on the road full steering wheel control function retained on compatible aftermarket head units
-
Retains factory reverse camera with 3 adjustable angles:Â If originally fitted aftermarket head unit requires RCA reverse camera input
-
Retains factory USB input: If originally fitted aftermarket head unit requires rear USB input
-
Includes antenna adaptor: Converts the vehicle antenna plug to a universal DIN plug for aftermarket radios no separate antenna adaptor purchase required
-
CANBUS interface:Â Communicates directly with the vehicle's CANBUS system for accurate SWC signal reading
-
No factory wiring cuts: Vehicle-specific plug connects directly to existing wiring clean, reversible installation
-
Reverse trigger and park brake outputs:Â Pre-wired outputs for reverse trigger (purple) and park brake (green) connection to the aftermarket head unit
-
Pairs with APP8:Â Optional Aerpro APP8 Head Unit Secondary ISO Harness simplifies connection between this interface and the head unit (sold separately)
Technical Specs
| Specification |
Detail |
| SKU |
ASHO17C |
| Brand |
Aerpro |
| Interface Type |
CANBUS |
| Patch Lead Type |
H |
| Reverse Trigger |
Yes purple wire |
| Park Brake |
Yes green wire |
| Speed Pulse |
No |
| Illumination |
Yes |
| Ant Remote |
Yes |
| Telephone Mute |
No |
| Suits |
Honda vehicles without side cameras |
Frequently Asked Questions
Does this interface require cutting of the factory wiring?
No the vehicle-specific Honda plug connects directly into the existing vehicle wiring with no cutting required.
Does this retain the factory reverse camera?
Yes if originally fitted, the factory reverse camera is retained with 3 adjustable camera angles. The aftermarket head unit must have an RCA reverse camera input.
What Honda vehicles does this suit?
The ASHO17C suits Honda vehicles without side cameras. Use the Aerpro Vehicle Selector to confirm compatibility with your specific model and year before purchasing.
What is the recommended companion harness?
The optional Aerpro APP8 Head Unit Secondary ISO Harness connects between the aftermarket head unit and this interface for simplified installation sold separately.
What is the return policy for this product?
Return eligibility is subject to the retailer's policy. Always verify vehicle compatibility before purchasing.
