Description
Honda Steering Wheel Control Interface Retains Factory Reverse & Side Cameras (3 Angles), AUX, USB & Antenna, CANBUS, Speed Pulse Output, No Factory Wiring Cut Required.
Product Overview
The Aerpro ASHO23C is a CANBUS steering wheel control interface designed for Honda vehicles the side camera variant, distinct from the ASHO17C (without side cameras) and ASHO22C (without side cameras) listed earlier. The ASHO23C adds side camera retention to the feature set, retaining both the factory reverse camera (with 3 adjustable angles) and side camera(s), alongside factory AUX, USB, and antenna all with no cutting of the factory wiring harness required.
Reverse trigger, park brake, and speed pulse outputs are provided. Vehicle time and date settings via steering controls are also retained. Pair with the optional Aerpro APP8 Head Unit Secondary ISO Harness for simplified installation.

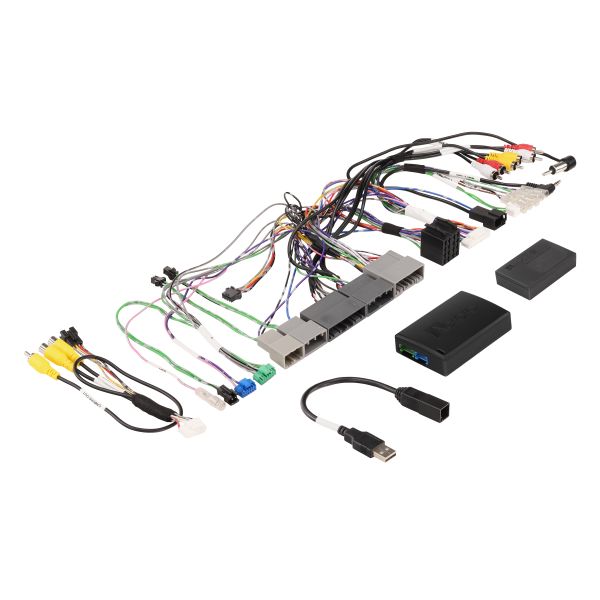

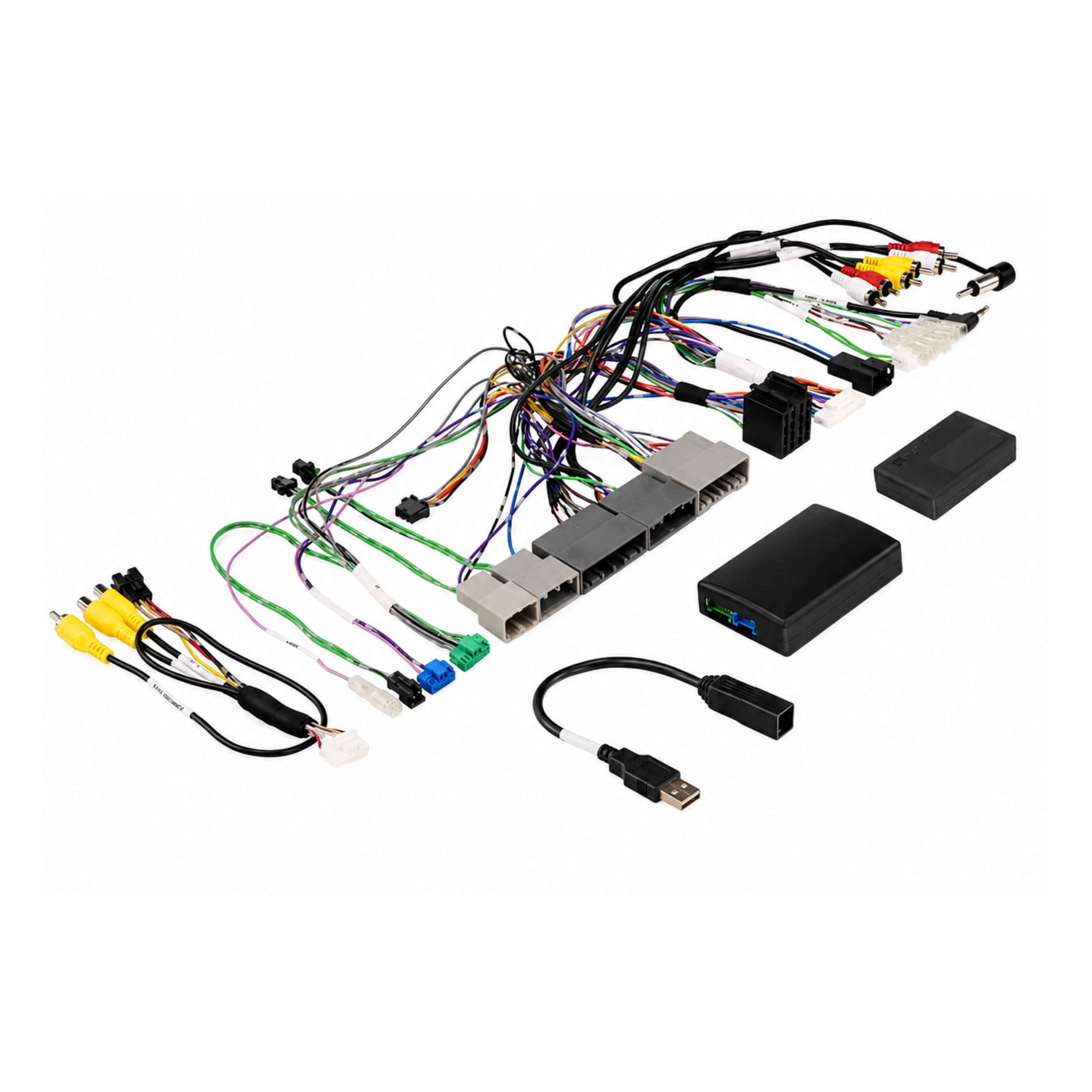

Kit Inclusions

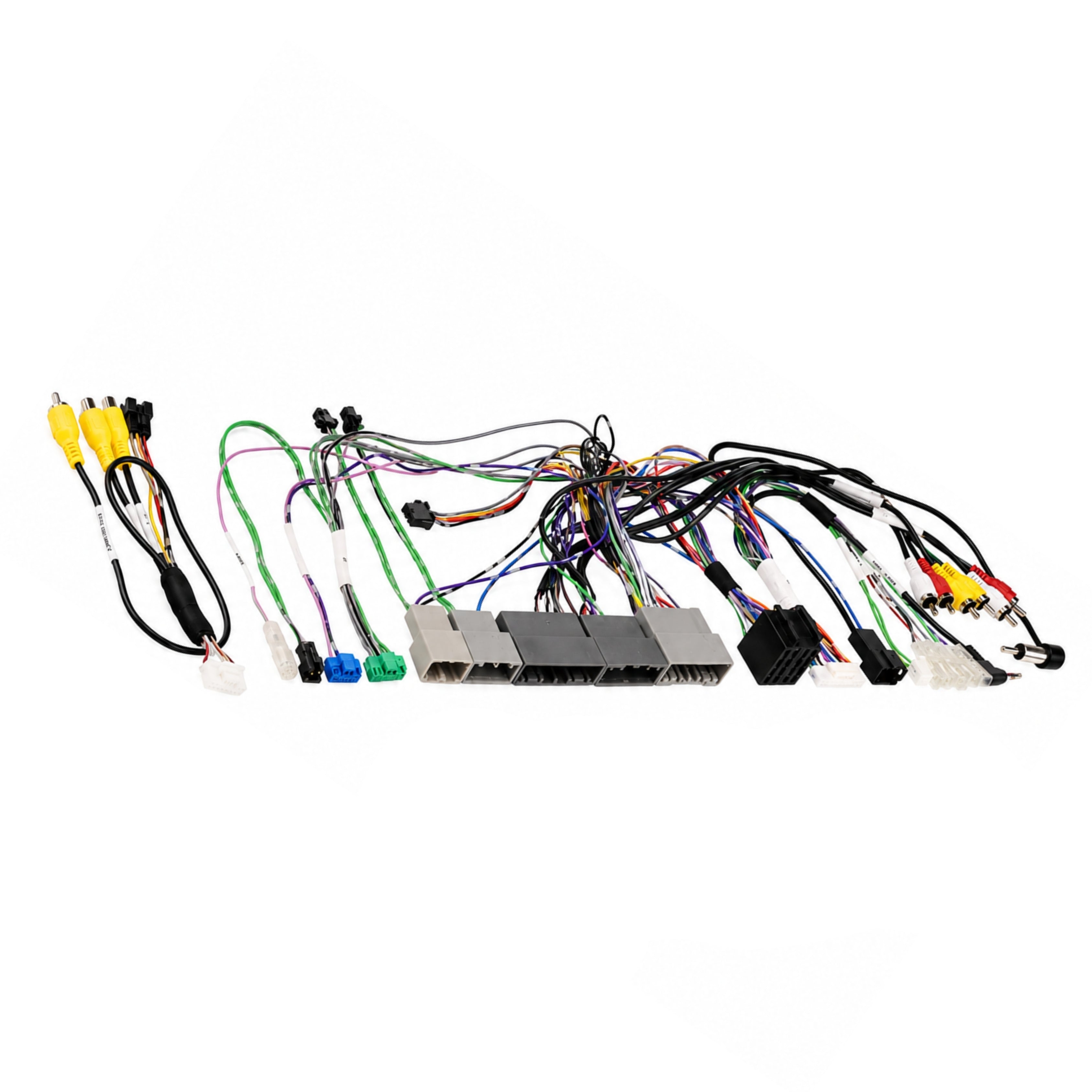

- SWC Interface Harness (vehicle-specific Honda plug)
- Antenna Adaptor
- Reverse Camera Retention Adaptor
- Side Camera Retention Adaptor(s)
- AUX Retention Lead

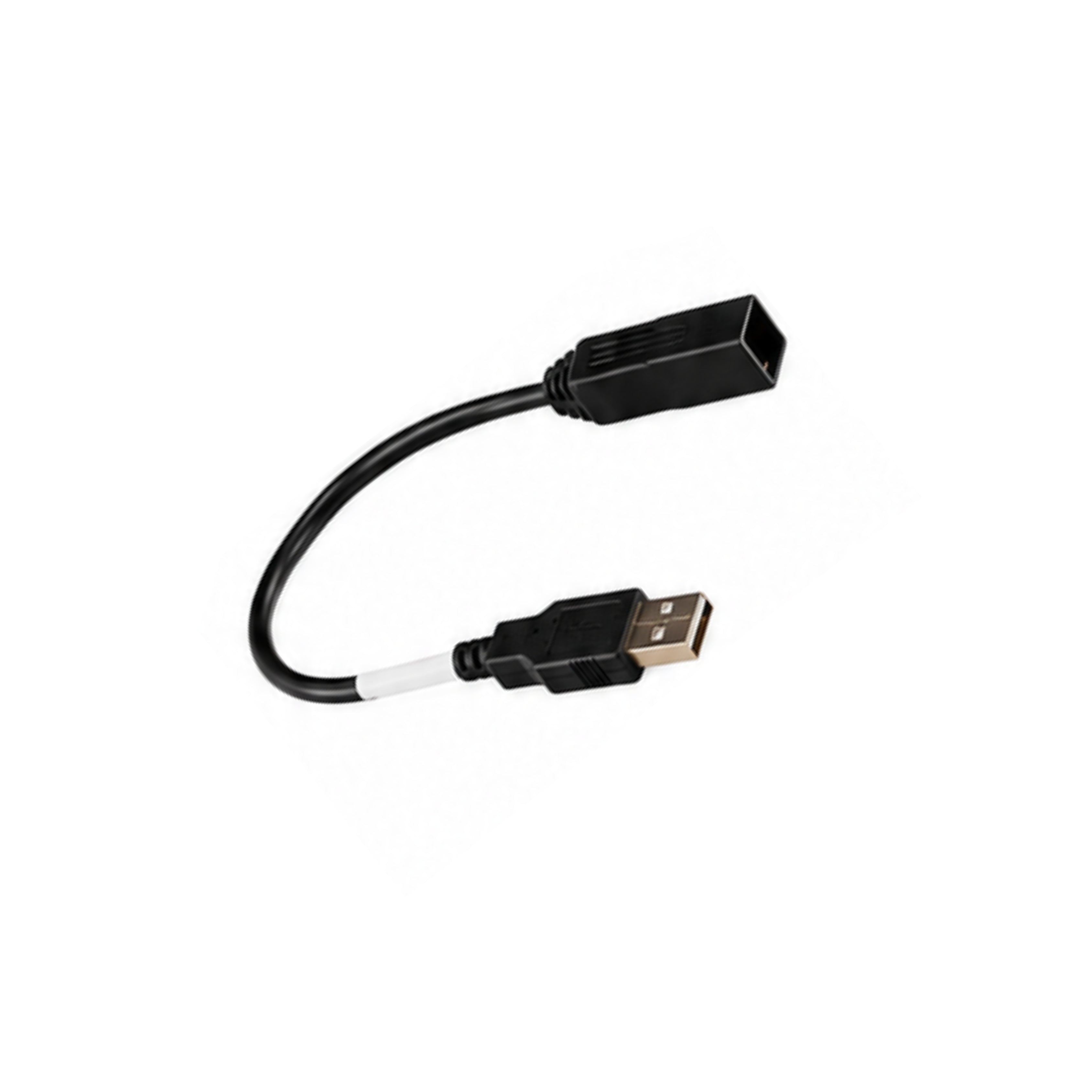

- USB Retention Lead
Retention & Output Summary
| Feature |
Detail |
| Steering Wheel Controls |
Yes |
| Factory Reverse Camera |
Yes 3 adjustable angles (if equipped) |
| Side Camera(s) |
Yes (if equipped) |
| AUX Input |
Yes (if equipped RCA AUX required on HU) |
| USB Input |
Yes (if equipped rear USB required on HU) |
| Antenna |
Yes |
| Vehicle Menu |
Yes time & date via SWC |
| OEM Amplifier |
No |
| Reverse Trigger Output |
Yes (purple wire) |
| Park Brake Output |
Yes (green wire) |
| Speed Pulse Output |
Yes (pink wire) |
| Illumination |
Yes |
| Amp Remote |
No |
| Telephone Mute |
No |
Key Specifications
- Interface type: CANBUS
- Patch lead type: H
- Suits: Honda vehicles (with side camera models)
- Not compatible with factory amplified models
- No factory wiring cutting required
- Brand: Aerpro
- SKU: ASHO23C
Honda SWC Interface Comparison (this session)
| Feature |
ASHO17C |
ASHO22C |
ASHO23C |
| SWC Retained |
Yes |
Yes |
Yes |
| Factory Reverse Camera |
Yes (3 angles) |
Yes (3 angles) |
Yes (3 angles) |
| Side Camera(s) |
No |
No |
Yes |
| AUX Retained |
No |
Yes |
Yes |
| USB Retained |
Yes |
Yes |
Yes |
| Antenna |
Yes |
Yes |
Yes |
| Vehicle Menu |
No |
No |
Yes (time & date) |
| Reverse Trigger |
Yes |
Yes |
Yes |
| Park Brake |
Yes |
Yes |
Yes |
| Speed Pulse |
No |
Yes |
Yes |
| Factory Amp |
N/A |
N/A |
Not compatible |
| Suits |
No side cameras |
No side cameras |
With side cameras |
Features & Benefits
-
Retains factory reverse and side cameras: Both reverse (3 adjustable angles) and side camera(s) retained the key distinction from the ASHO17C and ASHO22C
-
Vehicle time and date via SWC:Â Time and date settings accessible via steering wheel controls
-
Retains factory AUX and USB: If originally fitted AUX requires RCA input, USB requires rear USB on head unit
-
Includes antenna adaptor:Â Converts factory antenna to universal DIN for aftermarket radios
-
CANBUS interface:Â Direct CANBUS communication for accurate SWC reading
-
No factory wiring cuts: Vehicle-specific plug clean, reversible installation
-
Reverse trigger, park brake and speed pulse outputs:Â Full output set for compatible head units
-
Not for factory amplified models:Â Confirm your Honda does not have a factory amplified system before purchasing
-
Pairs with APP8:Â Optional Aerpro APP8 ISO Harness simplifies head unit connection (sold separately)
Technical Specs
| Specification |
Detail |
| SKU |
ASHO23C |
| Brand |
Aerpro |
| Interface Type |
CANBUS |
| Patch Lead Type |
H |
| Reverse Trigger |
Yes purple wire |
| Park Brake |
Yes green wire |
| Speed Pulse |
Yes pink wire |
| Illumination |
Yes |
| Amp Remote |
No |
| Telephone Mute |
No |
| Suits |
Honda vehicles with side cameras (non-amplified) |
Frequently Asked Questions
How does the ASHO23C differ from the ASHO17C and ASHO22C?
The ASHO23C adds side camera retention and vehicle time/date adjustment via SWC compared to the ASHO17C and ASHO22C. The ASHO23C suits Honda models with side cameras while the ASHO17C and ASHO22C suit Honda models without side cameras. Use the Aerpro Vehicle Selector to confirm which interface suits your vehicle.
Does this suit factory amplified Honda models?
No the ASHO23C is not compatible with factory amplified Honda vehicles.
Does this retain both the reverse and side cameras?
Yes both factory reverse camera (with 3 adjustable angles) and side camera(s) are retained if originally fitted. The aftermarket head unit requires an RCA reverse camera input.
Does this require cutting of the factory wiring?
No the vehicle-specific Honda plug connects directly with no cutting required.
What is the return policy for this product?
Return eligibility is subject to the retailer's policy. Always verify vehicle compatibility before purchasing.
