Description
Hyundai & Kia Steering Wheel Control Interface Retains Factory Reverse Camera, AUX, USB & Antenna, CANBUS, No Factory Wiring Cut Required.
Product Overview

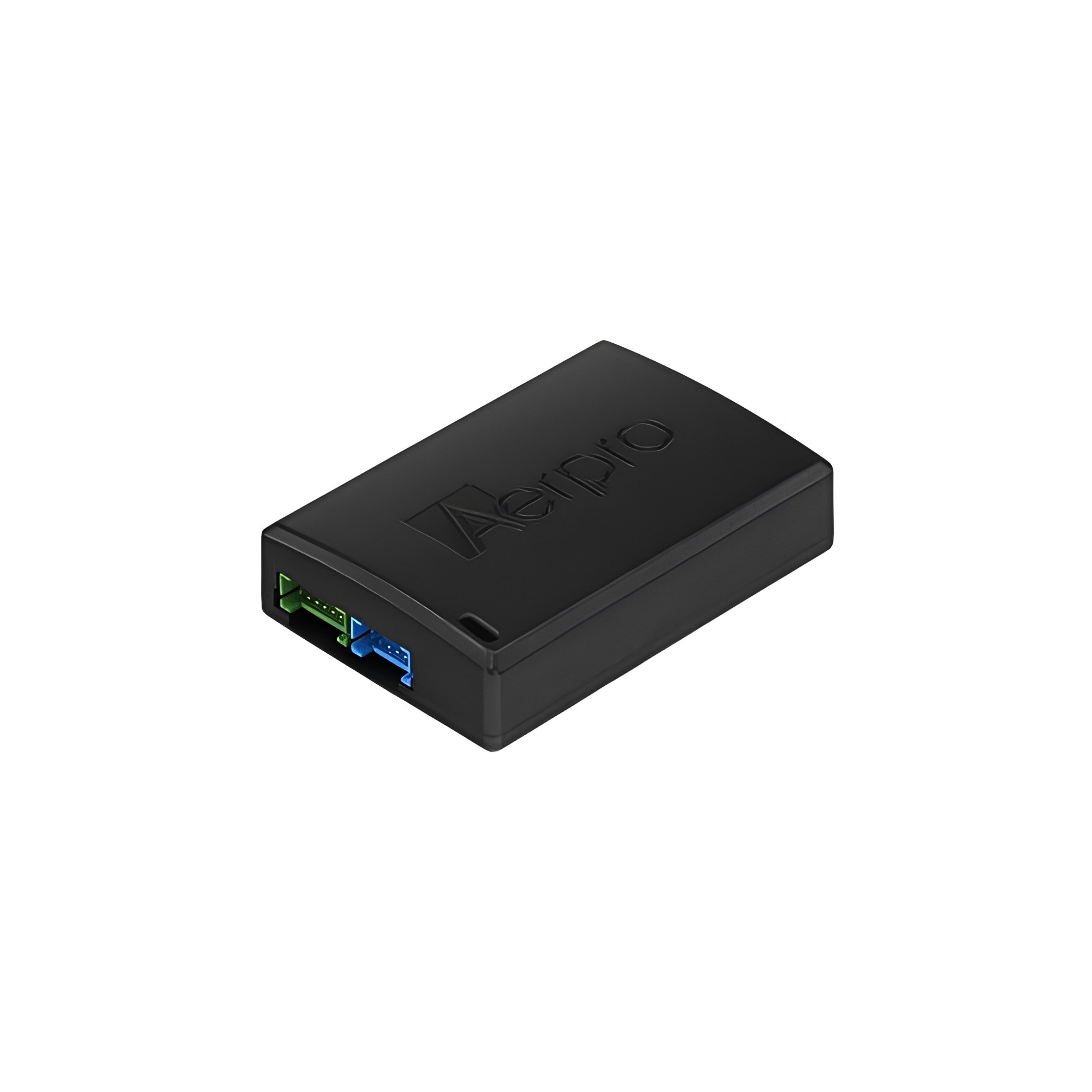

The Aerpro ASHY16C is a CANBUS steering wheel control interface designed for Hyundai and Kia vehicles. It allows an aftermarket head unit to be installed while retaining factory steering wheel controls with no cutting of the factory wiring harness required. The vehicle-specific plug connects directly into the existing vehicle wiring.
Beyond SWC retention, the ASHY16C also retains the factory reverse camera (if equipped), factory AUX input, factory USB input, and factory antenna. An antenna adaptor is included to convert the factory antenna plug to a universal DIN plug. Reverse trigger and park brake outputs are provided.
Pair with the optional Aerpro APP8 Head Unit Secondary ISO Harness for simplified installation between this interface and the head unit.

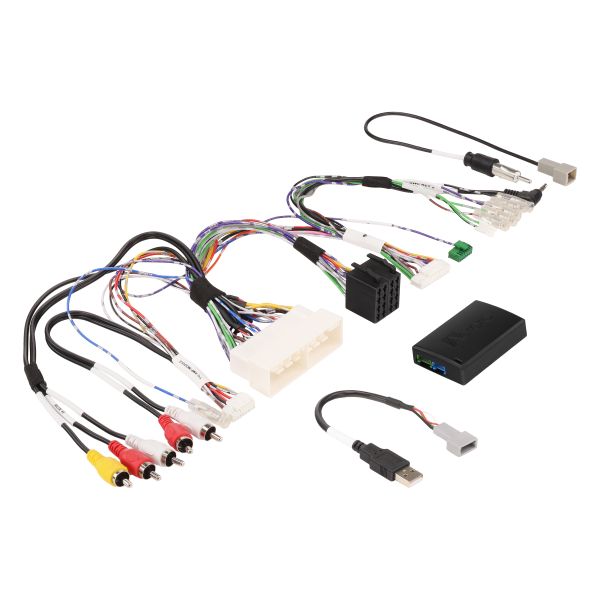

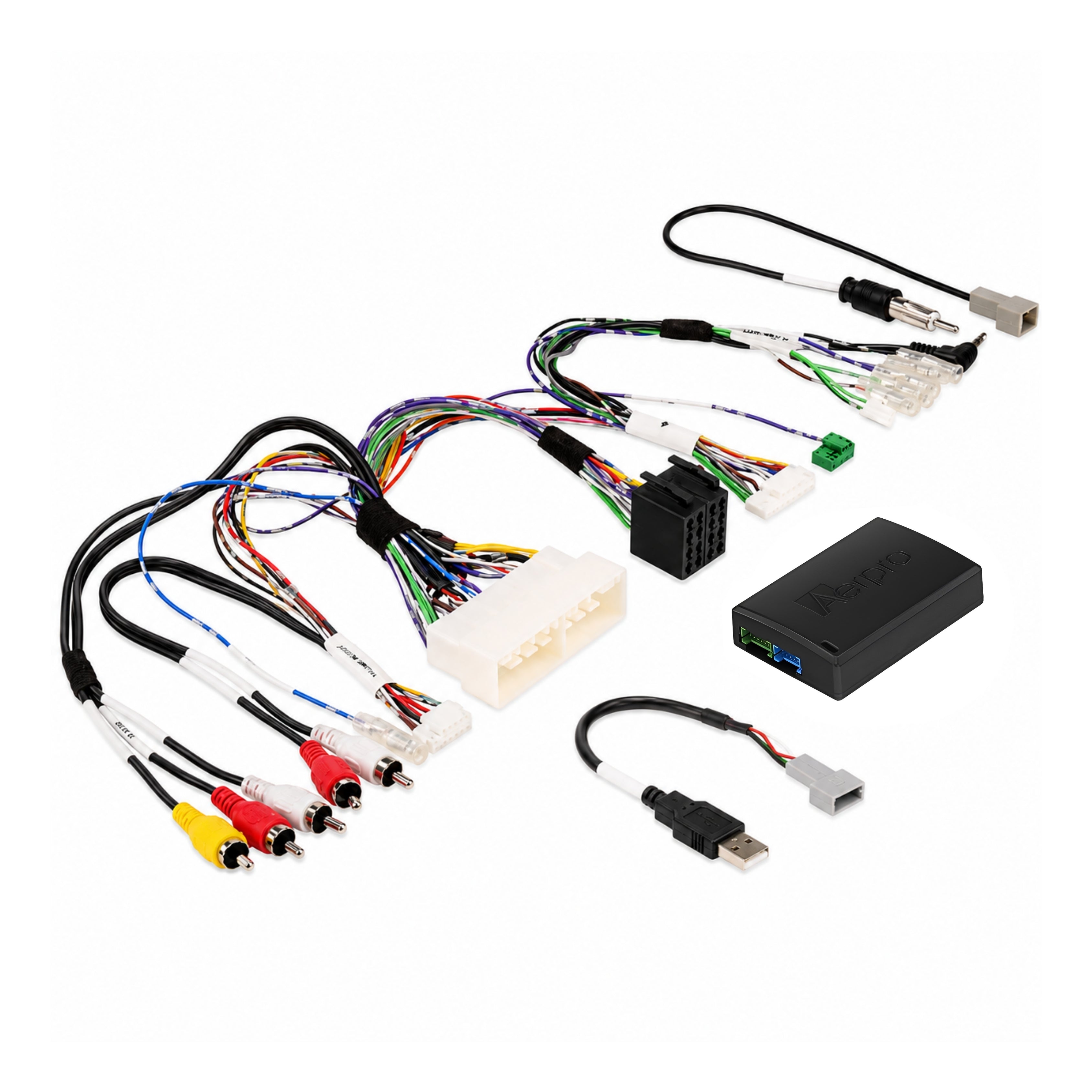

Kit Inclusions

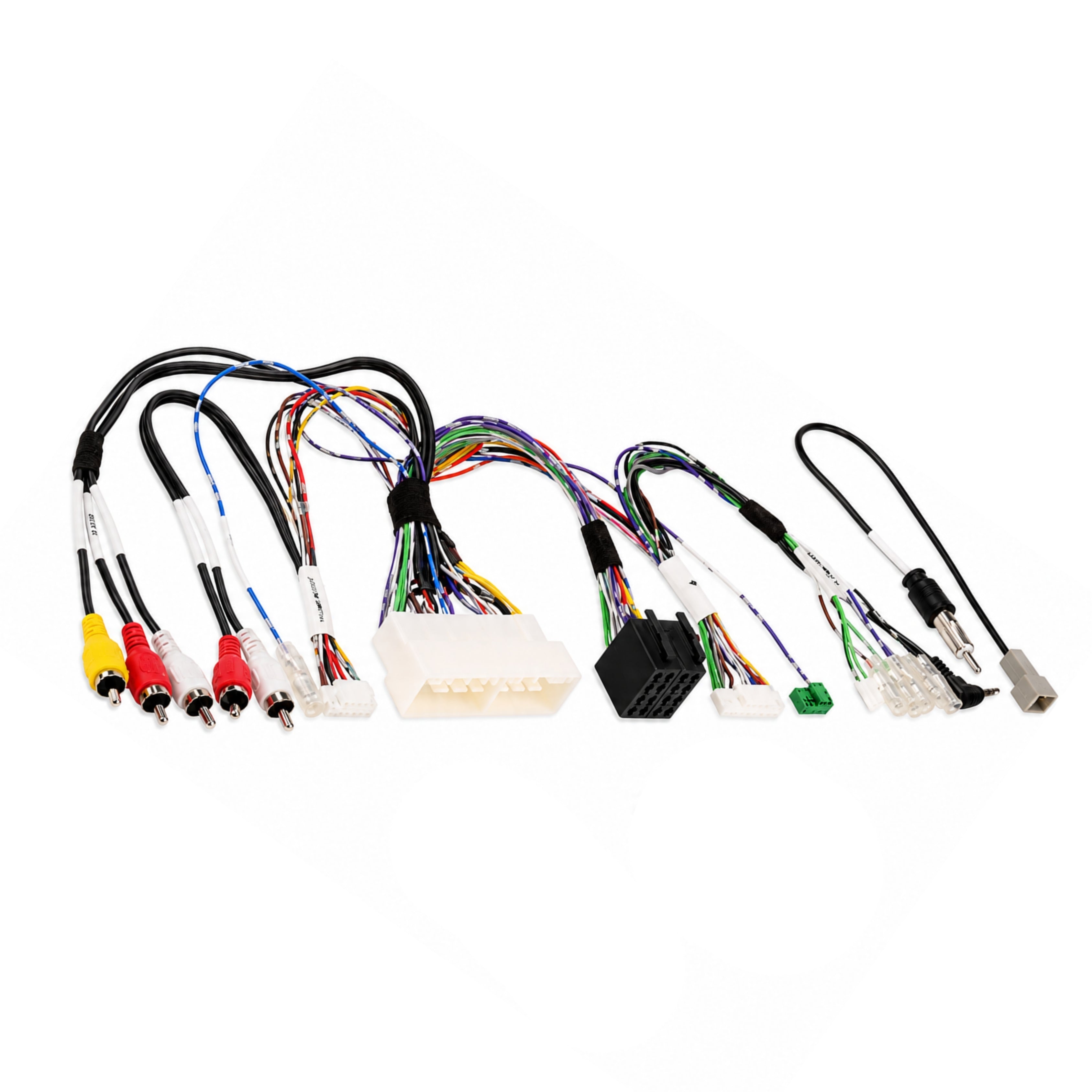

- SWC Interface Harness (vehicle-specific Hyundai/Kia plug)
- Antenna Adaptor
- Reverse Camera Retention Adaptor
- AUX Retention Lead

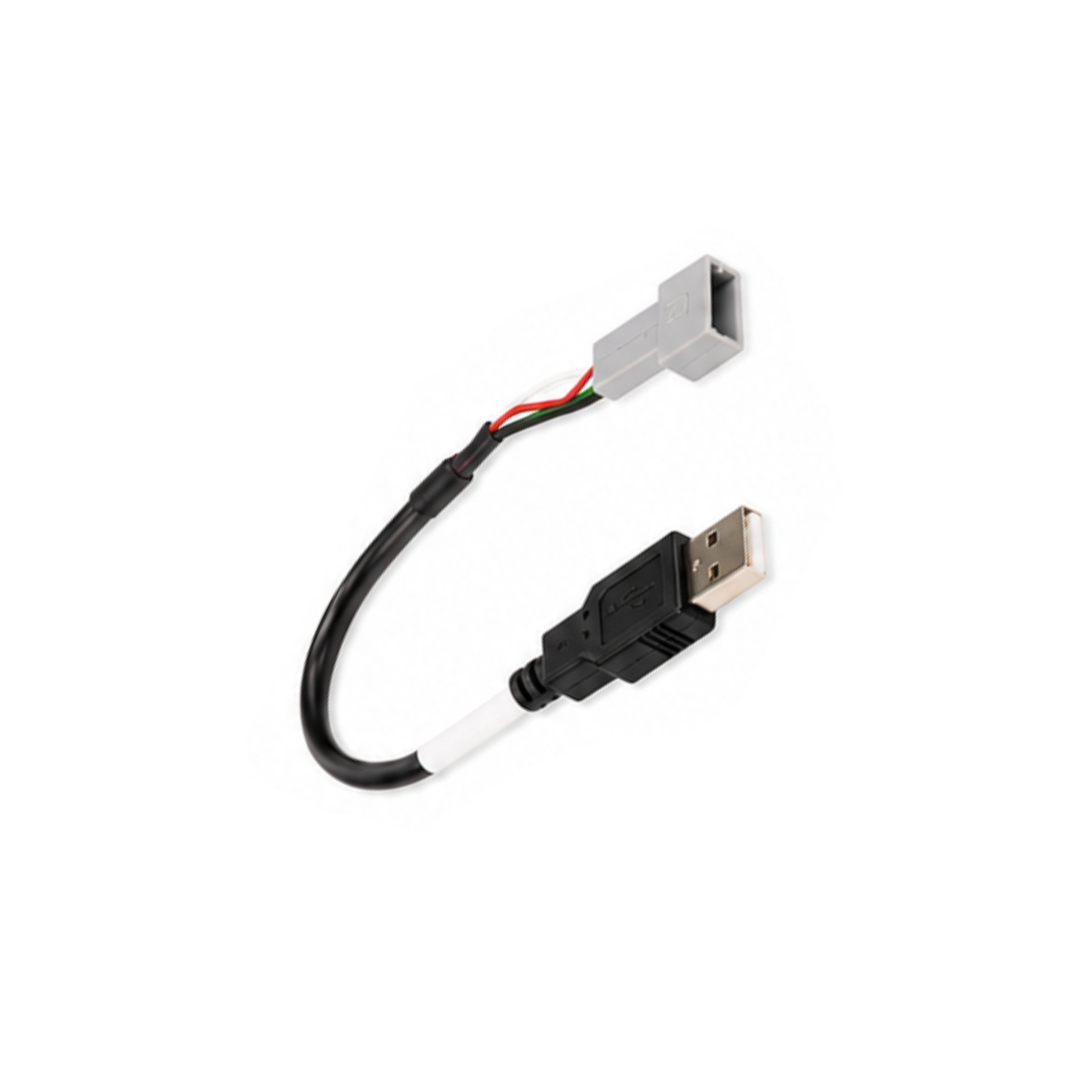

- USB Retention Lead
Retention & Output Summary
| Feature |
Detail |
| Steering Wheel Controls |
Yes |
| Factory Reverse Camera |
Yes (if equipped RCA input required on HU) |
| AUX Input |
Yes (if equipped RCA AUX required on HU) |
| USB Input |
Yes (if equipped rear USB required on HU) |
| Antenna |
Yes |
| Vehicle Menu |
No |
| OEM Amplifier |
No |
| Reverse Trigger Output |
Yes (purple wire) |
| Park Brake Output |
Yes (green wire) |
| Speed Pulse |
No |
| Illumination |
Yes |
| Amp Remote |
No |
| Telephone Mute |
No |
Key Specifications
- Interface type: CANBUS
- Patch lead type: H
- Suits: Hyundai and Kia vehicles
- No factory wiring cutting required
- Brand: Aerpro
- SKU: ASHY16C
Features & Benefits
-
Retains factory SWC:Â Full steering wheel control function retained on compatible aftermarket head units
-
Retains factory reverse camera: If originally fitted aftermarket head unit requires RCA reverse camera input
-
Retains factory AUX and USB inputs: If originally fitted AUX requires RCA input, USB requires rear USB on head unit
-
Includes antenna adaptor:Â Converts factory Hyundai/Kia antenna plug to universal DIN for aftermarket radios
-
CANBUS interface:Â Direct CANBUS communication for accurate SWC signal reading
-
No factory wiring cuts: Vehicle-specific plug connects directly clean, reversible installation
-
Reverse trigger and park brake outputs:Â Pre-wired outputs for aftermarket head unit connection
-
Pairs with APP8:Â Optional Aerpro APP8 Head Unit Secondary ISO Harness simplifies head unit connection (sold separately)
Technical Specs
| Specification |
Detail |
| SKU |
ASHY16C |
| Brand |
Aerpro |
| Interface Type |
CANBUS |
| Patch Lead Type |
H |
| Reverse Trigger |
Yes purple wire |
| Park Brake |
Yes green wire |
| Speed Pulse |
No |
| Illumination |
Yes |
| Amp Remote |
No |
| Telephone Mute |
No |
| Suits |
Hyundai and Kia vehicles |
Frequently Asked Questions
Does this interface require cutting of the factory wiring?
No the vehicle-specific Hyundai/Kia plug connects directly into the existing vehicle wiring with no cutting required.
Does this retain the factory reverse camera?
Yes if originally fitted. The aftermarket head unit must have an RCA reverse camera input.
Does this retain the factory AUX and USB?
Yes if originally fitted. AUX retention requires an RCA AUX input on the head unit; USB retention requires a rear USB input.
Is speed pulse output included?
No the ASHY16C provides reverse trigger and park brake outputs only. Speed pulse is not included.
What is the return policy for this product?
Return eligibility is subject to the retailer's policy. Always verify vehicle compatibility before purchasing.
