Description

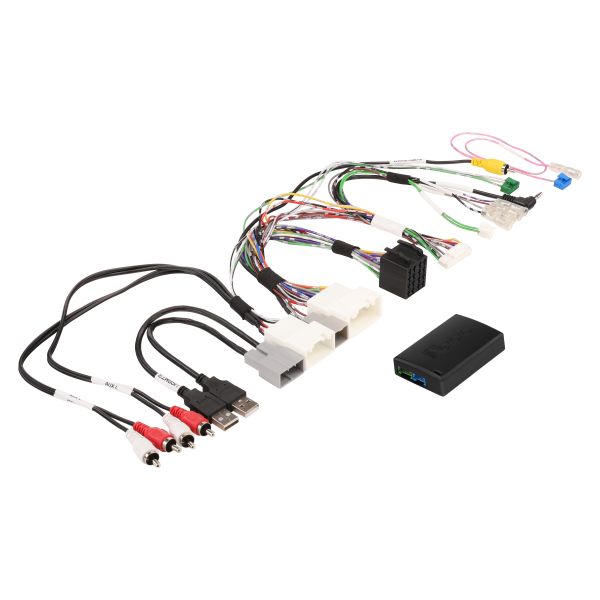

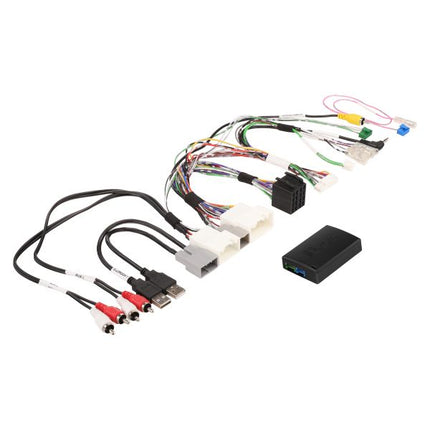

Aerpro ASMB12C CANBUS Steering Wheel Control Interface for Mitsubishi Pajero Sport Outlander and ASX Retains Reverse Camera Rockford Fosgate Amplifier AUX and USB
The Aerpro ASMB12C is a CANBUS steering wheel control (SWC) interface for compatible Mitsubishi vehicles, allowing upgrade to an aftermarket head unit while retaining factory steering wheel controls. Patch lead type H. Retains factory reverse camera (includes 360-degree), Rockford Fosgate amplifier, AUX input, USB inputs (x2), and antenna. Provides reverse trigger and park brake outputs. No cutting of factory wiring required.
Product overview
The ASMB12C connects directly into the existing vehicle wiring via a vehicle-specific plug, with no cutting of the factory harness required. The CANBUS interface reads the factory steering wheel control signals and translates them for the aftermarket head unit. All SWC functions must be confirmed against the specific model functions may vary from OEM operation on the aftermarket head unit.
Factory retention covers the reverse camera including 360-degree where originally fitted (aftermarket head unit requires RCA reverse camera input), Rockford Fosgate amplifier where equipped, AUX input (aftermarket head unit requires RCA for AUX), and two USB inputs where originally fitted. Reverse trigger and park brake outputs are provided. For a complete installation, pairing with the Aerpro APP8 Head Unit Secondary ISO Harness (sold separately) is recommended.
Features and benefits
Retains factory steering wheel controls: Upgrade to an aftermarket head unit without losing use of factory SWC functions.
Retains factory reverse camera including 360-degree: Where originally fitted; aftermarket head unit requires RCA reverse camera input.
Retains factory Rockford Fosgate amplifier: Where equipped, preserving premium factory audio through the aftermarket head unit.
Retains factory AUX and USB inputs: Where originally fitted; AUX requires RCA input on the aftermarket head unit; USB requires rear USB port.
Retains factory antenna.
Reverse trigger output (purple) and park brake output (green): Provides feeds for aftermarket head unit reverse and parking functions.
Vehicle-specific plug: No cutting of factory wiring harness required.
CANBUS interface, patch lead type H.
Pairs with Aerpro APP8 Head Unit Secondary ISO Harness (sold separately).
Technical specs
| Specification |
Detail |
| SKU |
ASMB12C |
| Brand |
Aerpro |
| Type |
Steering wheel control interface |
| Interface Type |
CANBUS |
| Patch Lead Type |
H |
| Reverse Trigger Output |
Yes (purple wire) |
| Park Brake Output |
Yes (green wire) |
| Speed Pulse Output |
No |
| Illumination Output |
Yes |
| Amp Remote Output |
No |
| Telephone Mute Output |
No |
| OEM Amplifier Retention |
Yes (Rockford Fosgate) |
| OEM Reverse Camera Retention |
Yes (includes 360-degree) |
| OEM AUX Retention |
Yes |
| OEM USB Retention |
Yes (x2) |
| OEM Antenna Retention |
Yes |
| Vehicle Menus |
No |
Compatible vehicles
| Make |
Model |
Years |
Chassis |
| Mitsubishi |
Pajero Sport |
2019 to 2024 |
QF |
| Mitsubishi |
Outlander |
2019 to 2021 |
ZL |
| Mitsubishi |
ASX |
2019 to 2024 |
XD |
| Mitsubishi |
ASX |
2017 to 2019 |
XC |
Frequently asked questions
Will the ASMB12C work with my aftermarket head unit?
The aftermarket head unit must be SWC compatible. Steering wheel control functions may vary from OEM operation depending on the head unit. Confirm SWC compatibility with your chosen head unit before purchasing.
Does the ASMB12C retain the factory reverse camera?
Yes, where the factory reverse camera including 360-degree is originally fitted. The aftermarket head unit must have an RCA reverse camera input to use this function.
Does the ASMB12C retain the factory Rockford Fosgate amplifier?
Yes, where the Rockford Fosgate amplifier is fitted to the vehicle. Confirm whether your specific vehicle is equipped with this amplifier before purchasing.
Do I need any additional harnesses to install the ASMB12C?
Aerpro recommends pairing the ASMB12C with the Aerpro APP8 Head Unit Secondary ISO Harness, sold separately, for a complete installation. Contact us to confirm all required components for your specific vehicle and head unit combination.
How do I confirm the ASMB12C suits my specific vehicle?
The ASMB12C suits Mitsubishi Pajero Sport QF 2019 to 2024, Outlander ZL 2019 to 2021, ASX XD 2019 to 2024, and ASX XC 2017 to 2019. Use the Aerpro vehicle selector or contact us to confirm the correct part for your vehicle before ordering.
