Description
Mazda Steering Wheel Control Interface Retains Factory Reverse Camera & Antenna, CANBUS, Centre Console Commander, Speed Pulse Output, No Factory Wiring Cut Required.
Product Overview

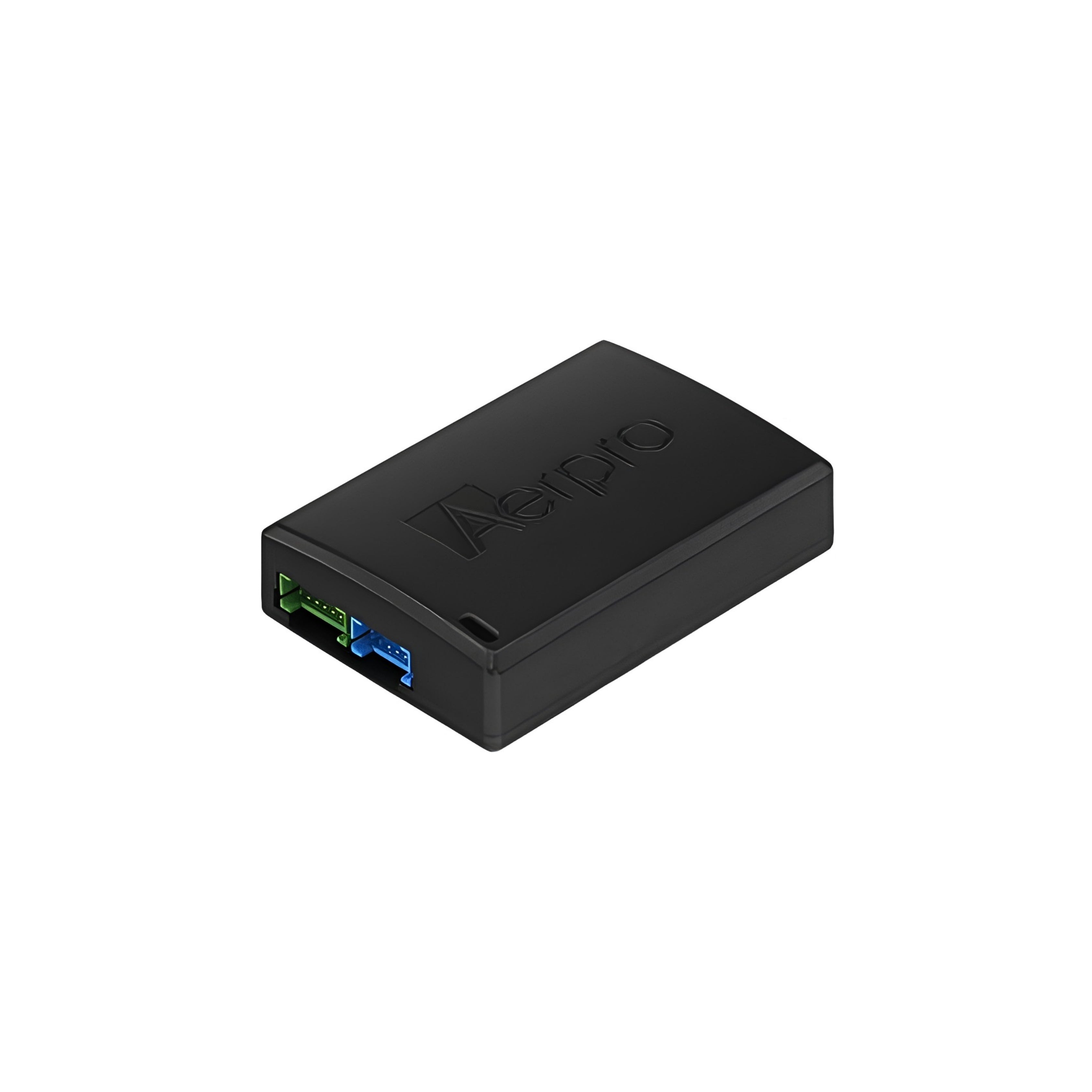

The Aerpro ASMZ7C is a CANBUS steering wheel control interface designed for Mazda vehicles. It allows an aftermarket head unit to be installed while retaining factory steering wheel controls and the centre console commander switch with no cutting of the factory wiring harness required. The vehicle-specific plug connects directly into the existing vehicle wiring.
The ASMZ7C retains the factory reverse camera (if equipped) and antenna, with reverse trigger, park brake, and speed pulse outputs provided. The centre console commander switch retains functionality for volume up/down, mute, and track forward/back other buttons function as MODE.
For Mazda vehicles with factory BOSE amplified systems, the APP7240 line converter is required and sold separately. Pair with the optional Aerpro APP8 Head Unit Secondary ISO Harness for simplified head unit installation.

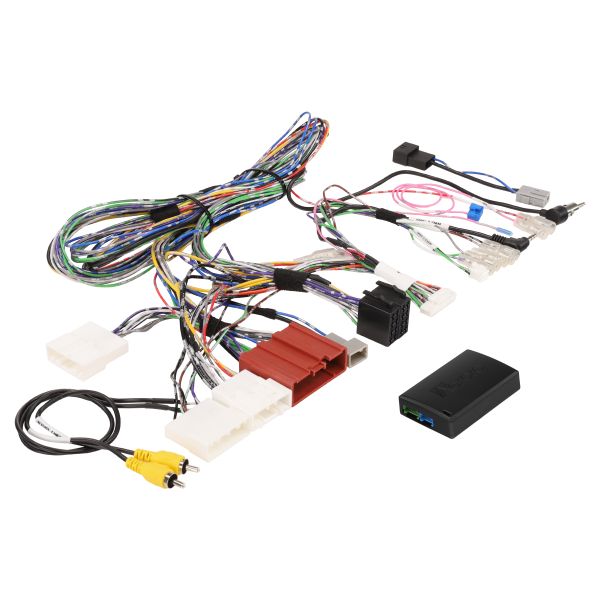

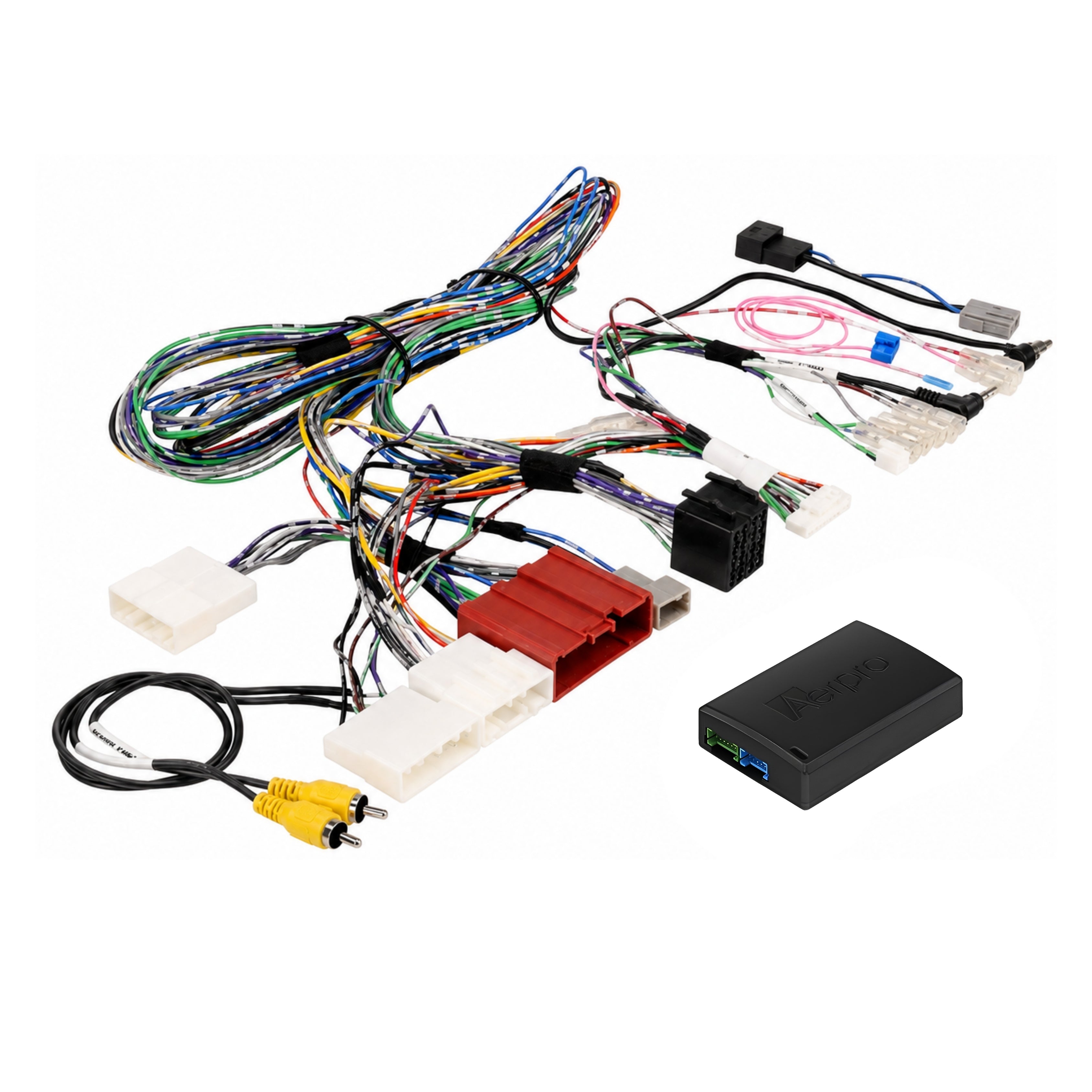

Kit Inclusions

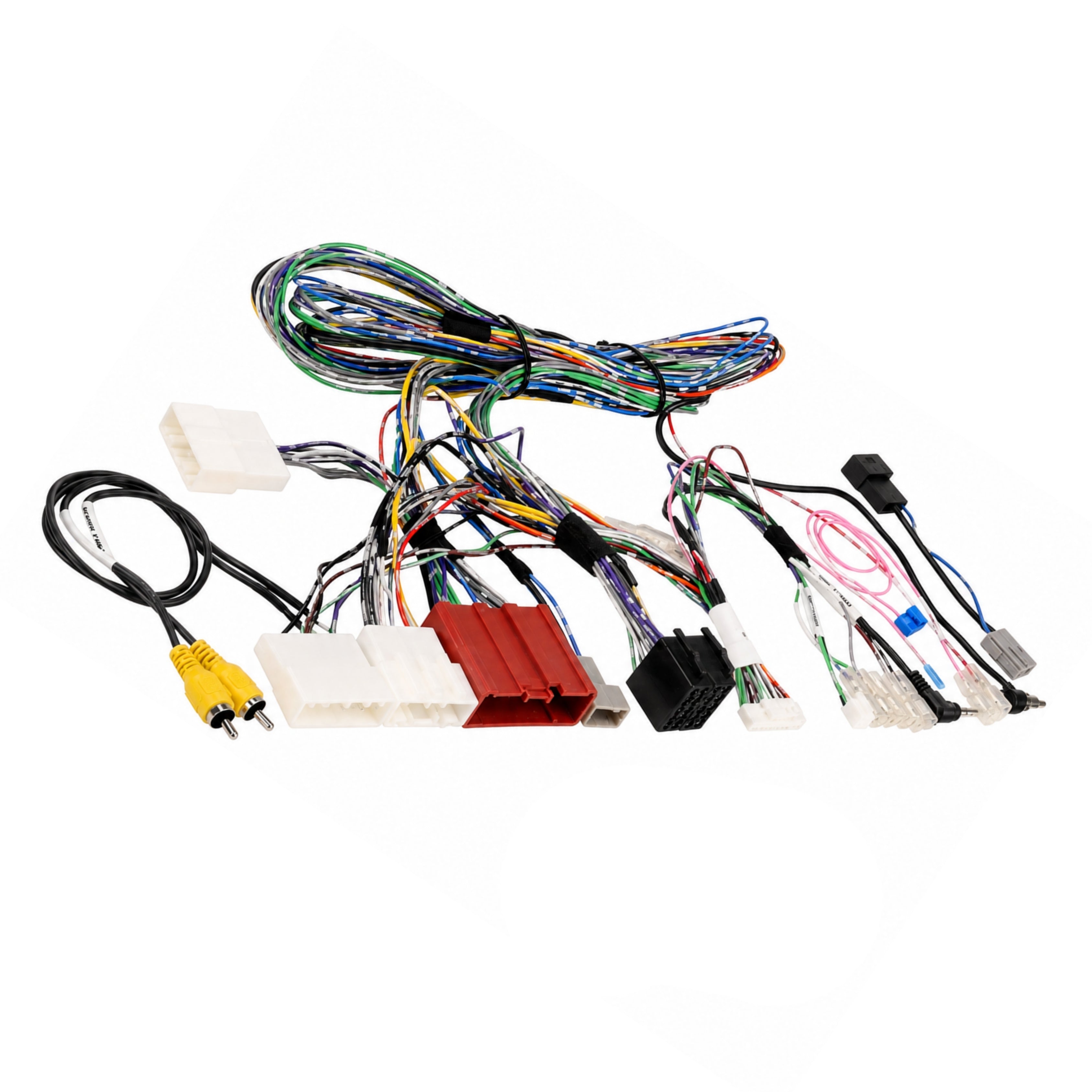

- SWC Interface Harness (vehicle-specific Mazda plug)

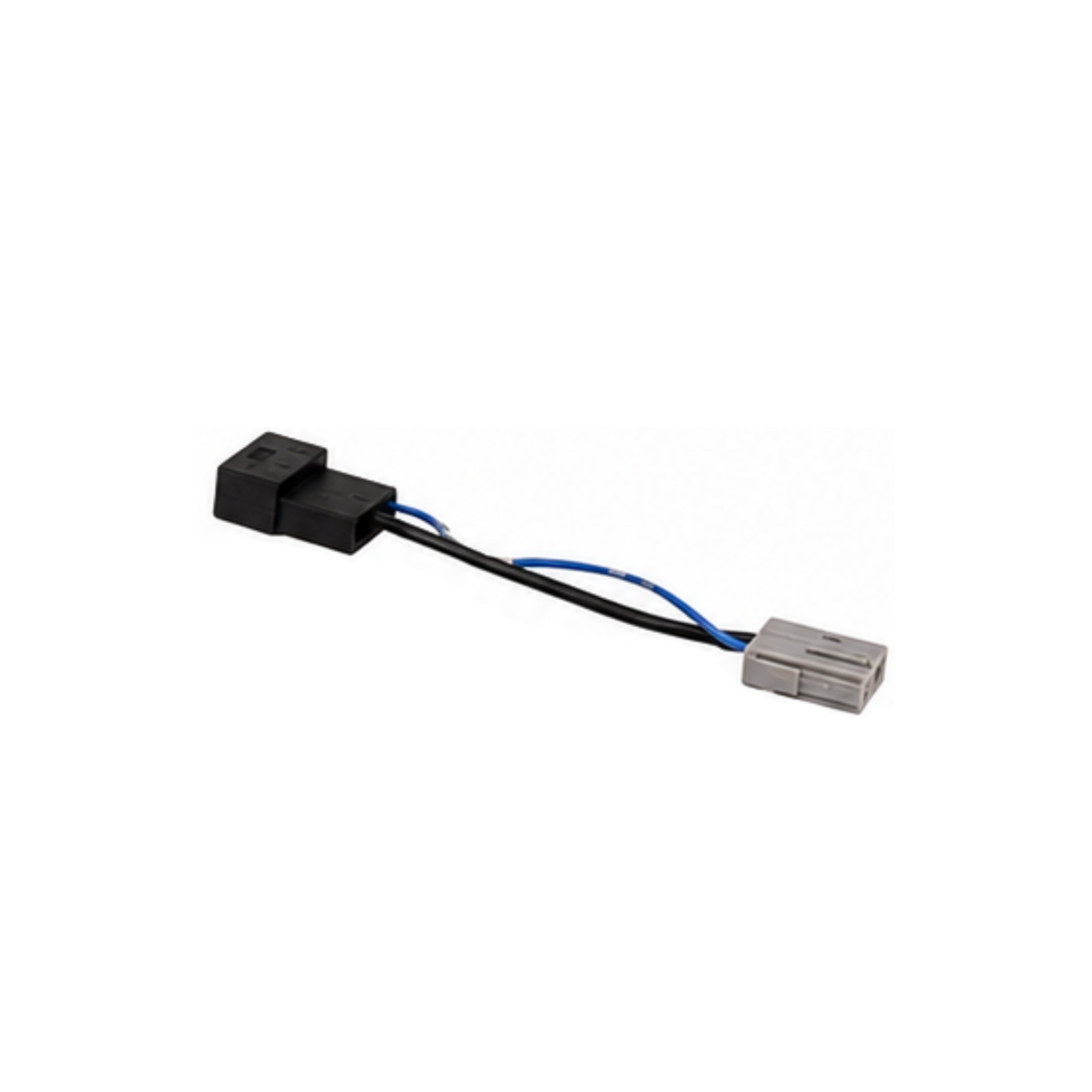

- Antenna Adaptor
- Reverse Camera Retention Adaptor
Retention & Output Summary
| Feature |
Detail |
| Steering Wheel Controls |
Yes |
| Centre Console Commander |
Yes (Vol +/-, Mute, Track +/-, others = MODE) |
| Factory Reverse Camera |
Yes (if equipped RCA input required on HU) |
| Antenna |
Yes |
| OEM Amplifier (BOSE) |
Yes* APP7240 required (sold separately) |
| AUX Input |
No |
| USB Input |
No |
| Vehicle Menu |
No |
| Reverse Trigger Output |
Yes (purple wire) |
| Park Brake Output |
Yes (green wire) |
| Speed Pulse Output |
Yes (pink wire) |
| Illumination |
Yes |
| Ant Remote |
No |
| Telephone Mute |
No |
Key Specifications
- Interface type: CANBUS
- Patch lead type: H
- Suits: Mazda vehicles
- No factory wiring cutting required
- Brand: Aerpro
- SKU: ASMZ7C
Features & Benefits
-
Retains factory SWC:Â Full steering wheel control retained on compatible aftermarket head units
-
Centre console commander retained: Volume up/down, mute, and track forward/back functions retained other buttons function as MODE
-
Retains factory reverse camera: If originally fitted aftermarket head unit requires RCA reverse camera input
-
Retains factory antenna:Â Antenna adaptor converts factory Mazda antenna to universal DIN for aftermarket radios
-
BOSE amplifier compatible:Â BOSE amplified Mazda models are supported with the APP7240 line converter (sold separately)
-
CANBUS interface:Â Direct CANBUS communication for accurate SWC signal reading
-
No factory wiring cuts: Vehicle-specific plug clean, reversible installation
-
Reverse trigger, park brake and speed pulse outputs:Â Full output set for compatible head units
-
Pairs with APP8:Â Optional Aerpro APP8 ISO Harness simplifies head unit connection (sold separately)
Technical Specs
| Specification |
Detail |
| SKU |
ASMZ7C |
| Brand |
Aerpro |
| Interface Type |
CANBUS |
| Patch Lead Type |
H |
| Reverse Trigger |
Yes purple wire |
| Park Brake |
Yes green wire |
| Speed Pulse |
Yes pink wire |
| Illumination |
Yes |
| Ant Remote |
No |
| Telephone Mute |
No |
| Suits |
Mazda vehicles |
Frequently Asked Questions
Does this interface work with Mazda's BOSE factory audio system?
Yes with the addition of the APP7240 line converter, sold separately. The BOSE amplified system is not retained without the APP7240.
What functions does the centre console commander retain?
Volume up/down, mute, and track forward/back are all retained. Other console commander buttons function as MODE.
Does this retain the factory USB or AUX inputs?
No USB and AUX input retention are not supported by the ASMZ7C.
Does this retain the factory reverse camera?
Yes if originally fitted. The aftermarket head unit must have an RCA reverse camera input.
What is the return policy for this product?
Return eligibility is subject to the retailer's policy. Always verify vehicle compatibility before purchasing.
