Description

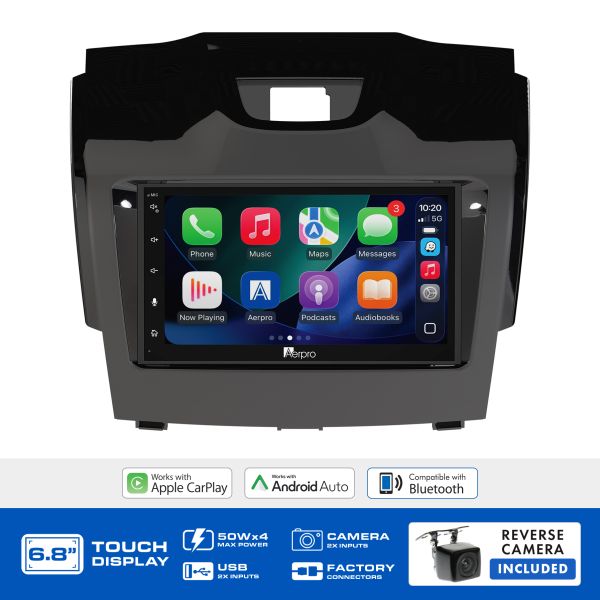

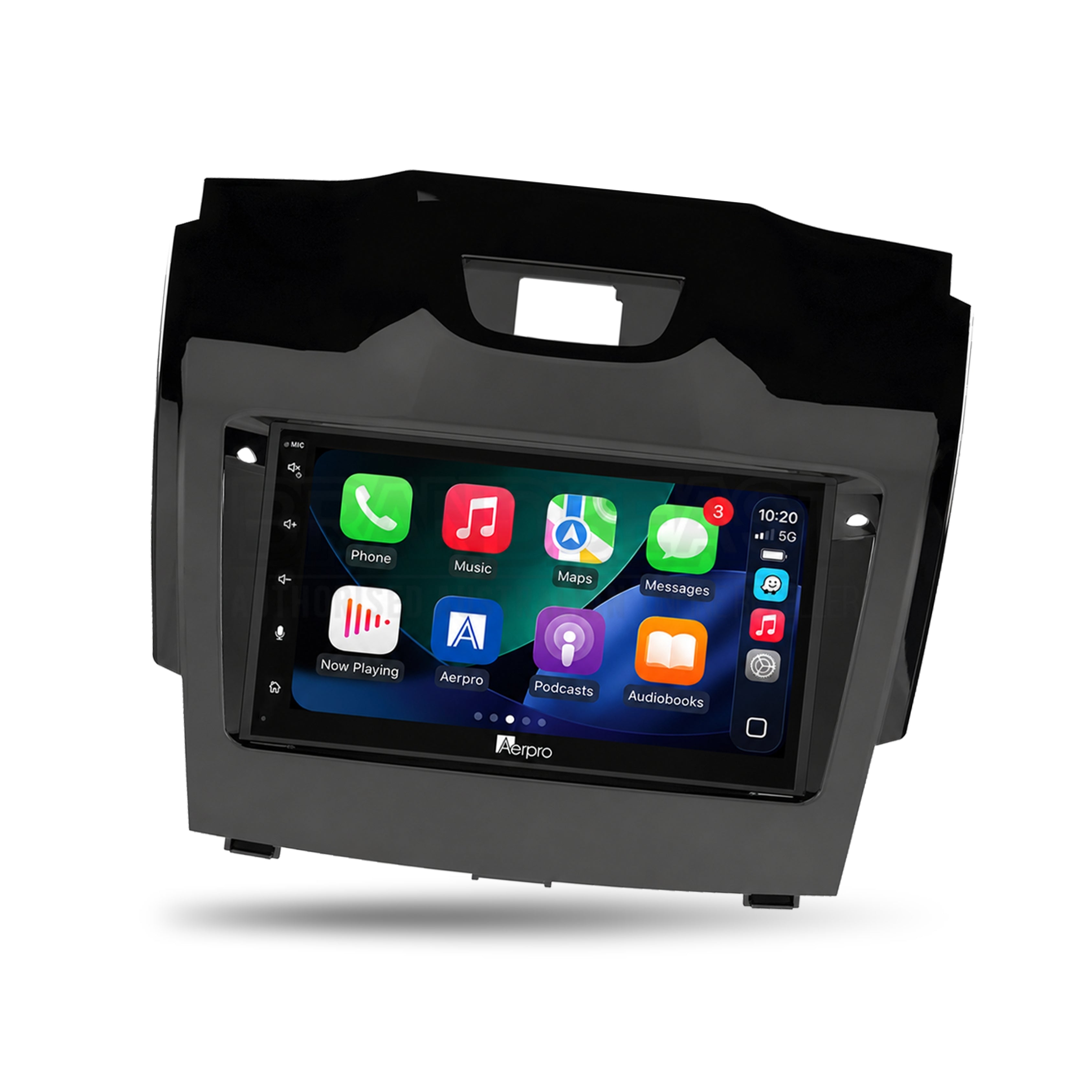

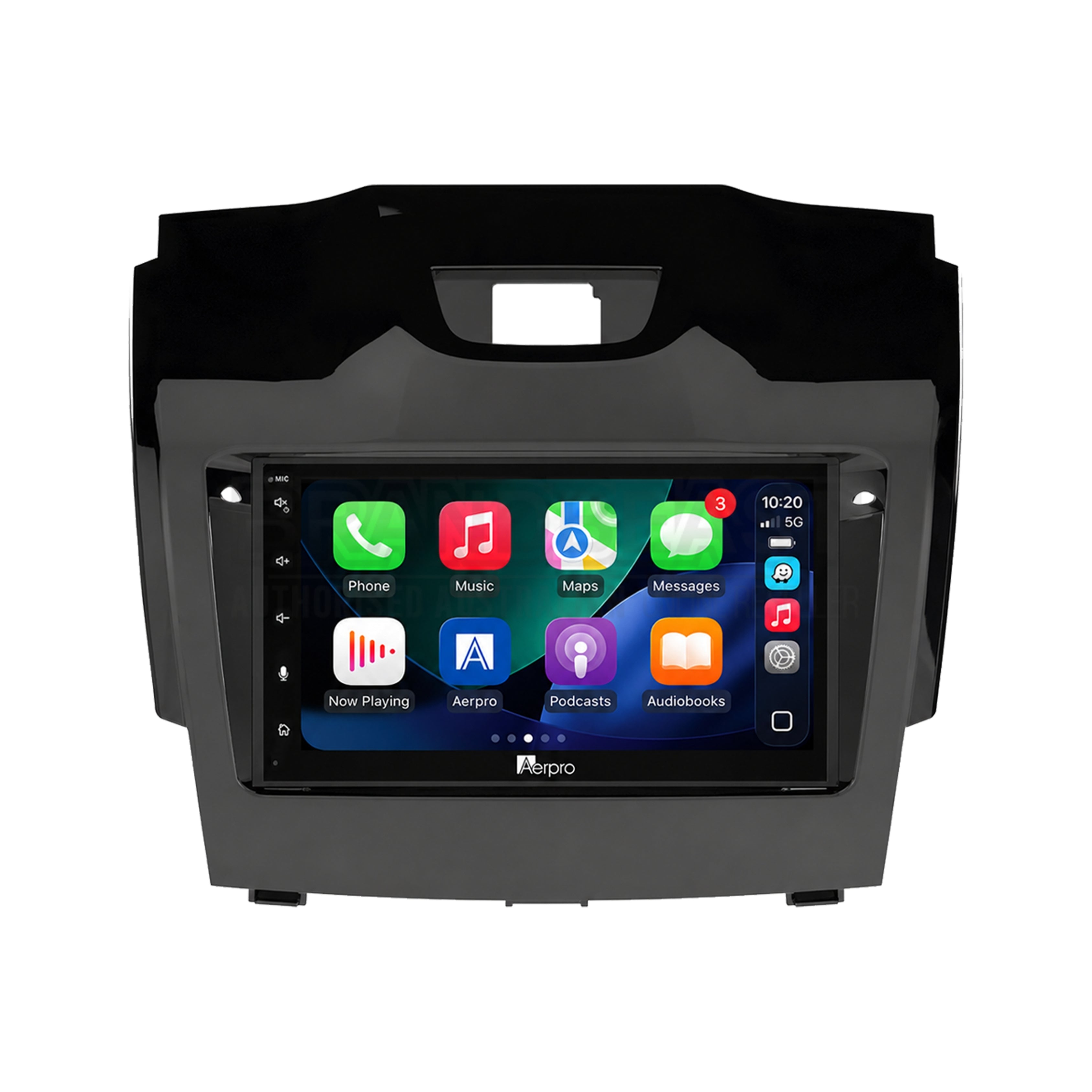

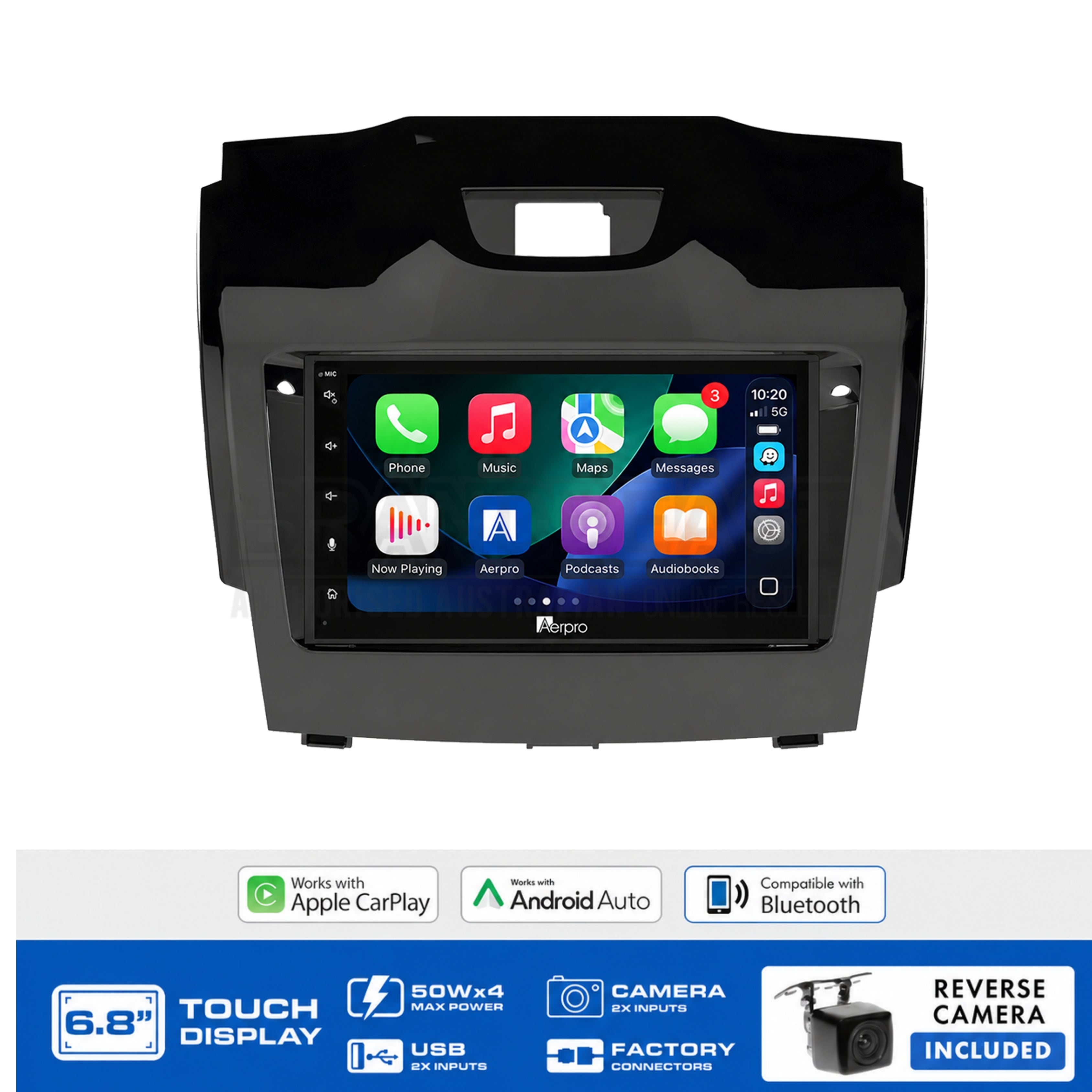

Aerpro AX8063PC 6.8" Multimedia Receiver Kit Holden Colorado and Colorado 7 2014-2016
A complete 6.8" head unit upgrade kit for the Holden Colorado and Colorado 7 (2014-2016), the AX8063PC includes a 6.8" wireless CarPlay and Android Auto multimedia receiver, vehicle-specific installation kit with piano black fascia, Infodapter SWC interface, chime speaker, antenna adaptor and universal patch lead, and a surface mount camera with 110-degree field of view and 6-metre cable, retaining steering wheel controls.
Product Overview
The Aerpro AX8063PC is a 6.8" multimedia receiver upgrade kit designed specifically for the Holden Colorado and Colorado 7 from 2014-2016. The kit is built around an Aerpro 6.8" Double DIN multimedia receiver featuring a 1024x600 capacitive touchscreen, wireless and wired Apple CarPlay and Android Auto, Bluetooth V5 with HFP 1.6 HD Voice, A2DP, AVRCP, and PBAP, AM/FM tuner with RDS, dual rear USB inputs, 50W x 4 maximum power output, 13-band graphic EQ with time alignment, and 4V 6-channel RCA pre-outs covering front, rear, and subwoofer outputs.
The vehicle-specific installation kit includes a piano black fascia kit, Infodapter steering wheel control interface, chime speaker, antenna adaptor, and universal patch lead. The included surface mount camera provides a 110-degree field of view, optional parking guidelines, and IP67 weather resistance, and is mountable as a front, rear, or reverse camera. It connects via a 6-metre video cable with inline reverse trigger. The head unit provides two 720P AHD-compatible camera inputs, supporting the included camera alongside an additional front or towing camera. Use the Aerpro What Fits Your Car Guide to confirm the correct parts for your specific vehicle before purchase.
Features & Benefits
Complete Head Unit Upgrade Kit for Holden Colorado and Colorado 7 2014-2016: The AX8063PC includes all components required to complete a 6.8" Double DIN head unit installation in the Holden Colorado and Colorado 7 (2014-2016) in a single purchase, including fascia kit, Infodapter SWC interface, chime speaker, antenna adaptor, patch lead, and surface mount camera.
6.8" Capacitive Touchscreen Display at 1024x600: A 6.8" capacitive touchscreen at 1024x600 resolution provides smooth and responsive touch control for navigation of maps, media, and menus across CarPlay, Android Auto, and the native head unit interface.
Wireless and Wired Apple CarPlay and Android Auto: Both wireless and wired Apple CarPlay and Android Auto are supported, providing full smartphone integration without requiring a cable connection for compatible devices.
Steering Wheel Control Retention with Infodapter Interface: The included Infodapter SWC interface and universal patch lead retain the factory steering wheel audio controls with the aftermarket head unit where applicable.
Chime Speaker Included: A chime speaker is included in the vehicle-specific installation kit, supporting factory chime and tone retention after the head unit installation.
Piano Black Fascia Kit for Holden Colorado and Colorado 7: The included piano black fascia kit is designed specifically for the Holden Colorado and Colorado 7 (2014-2016) dashboard profile, providing a factory-fit appearance around the 6.8" Double DIN head unit.
Surface Mount Camera with 110-Degree Angle: The included surface mount camera provides a 110-degree field of view with optional parking guidelines and IP67 weather resistance. It is mountable as a front, rear, or reverse camera and connects via a 6-metre video cable with inline reverse trigger.
Dual AHD 720P Camera Inputs: The head unit provides two 720P AHD-compatible camera inputs, supporting the included camera alongside an additional front or towing camera for comprehensive vehicle visibility.
Bluetooth V5 with HD Voice and External Microphone: Built-in Bluetooth V5 with HFP 1.6 HD Voice, A2DP, AVRCP, and PBAP supports wireless audio streaming, hands-free calling, and phone book access. An external microphone is included alongside the built-in microphone.
50W x 4 Maximum Power with 13-Band Graphic EQ and Time Alignment: The head unit delivers 50W x 4 maximum output at 4 ohms with a 13-band graphic EQ at 32Hz, 63Hz, 125Hz, 250Hz, 500Hz, 1kHz, 2kHz, 4kHz, 8kHz, 10kHz, 12kHz, 14kHz, and 16kHz, eight preset EQ profiles plus two custom profiles, loudness, subwoofer low-pass filter, and time alignment.
4V 6-Channel RCA Pre-Outs with Subwoofer Output: Front, rear, and subwoofer 4V RCA pre-outs with adjustable subwoofer level control support external amplifier integration.
Dual Rear USB Inputs with Media Playback: Two rear USB inputs support MP3, MP4, MKV, FLAC, and Xvid media playback. USB 1 supports CarPlay, Android Auto, and media; USB 2 supports media playback. Both provide 5V/1.5A charging. Maximum USB capacity is FAT32 32GB.
6-Colour Button Illumination: Button backlighting is selectable across six colours including red, yellow, green, blue, purple, and white for customisation to match the vehicle interior.
AM/FM Tuner with RDS: An AM/FM tuner with RDS provides 18 FM presets and 12 AM presets across standard Australian frequency ranges.
Technical Specs
| Specification |
Detail |
| SKU |
AX8063PC |
| Brand |
Aerpro |
| Compatible Vehicles |
Holden Colorado 2014-2016, Holden Colorado 7 2014-2016 |
| Head Unit Display Size |
6.8" |
| Display Resolution |
1024 x 600 |
| Touchscreen |
Capacitive |
| OS |
Linux |
| DIN Size |
2 DIN (Double DIN) |
| Max Power |
50W x 4 (4 Ohm) |
| RCA Pre-Outs |
4V, 6-Channel (Front, Rear, Subwoofer) |
| EQ |
13-Band Graphic (32/63/125/250/500/1K/2K/4K/8K/10K/12K/14K/16KHz) |
| EQ Presets |
6 Presets + 2 Custom |
| Time Alignment |
Yes |
| Apple CarPlay |
Yes (Wireless and Wired) |
| Android Auto |
Yes (Wireless and Wired) |
| Bluetooth Version |
V5 |
| Bluetooth Profiles |
A2DP, AVRCP, HFP 1.6 (HD Voice), PBAP |
| Microphone |
Built-In and External (included) |
| USB 1 (Rear) |
CarPlay, Android Auto, Media Playback (5V/1.5A) |
| USB 2 (Rear) |
Media Playback (5V/1.5A) |
| USB Max Capacity |
FAT32 32GB |
| Media Formats |
MP3, MP4, MKV, FLAC, Xvid |
| Reverse Camera Input |
Yes (720P AHD compatible) |
| Second Camera Input |
Yes (720P AHD compatible) |
| Rear A/V Input |
Yes (RCA, 3-piece) |
| Composite Video Output |
Yes |
| AM/FM Tuner |
Yes, with RDS |
| FM Presets |
18 |
| AM Presets |
12 |
| FM Range |
87.5-108.0MHz (0.05MHz steps) |
| AM Range |
522-1710kHz (9kHz steps) |
| Button Illumination |
6-Colour (Red, Yellow, Green, Blue, Purple, White) |
| SWC Retention |
Yes (Infodapter Interface) |
| Fascia Colour |
Piano Black |
| Chime Speaker |
Included |
| Antenna Adaptor |
Included |
| Camera Angle |
110 Degrees |
| Camera IP Rating |
IP67 |
| Camera Parking Guidelines |
Optional |
| Camera Mount Type |
Surface Mount (Front, Rear, or Reverse) |
| Camera Cable Length |
6 Metres (with inline reverse trigger) |
What's in the Box
Head Unit:
- 6.8" Multimedia Double DIN Head Unit
- Double DIN Metal Frame and Mounting Hardware
- Head Unit Plastic Trim
- Wiring Harness with ISO Connection
- 3 Wire Learning SWC Lead
- External Microphone with Mount
- GPS Antenna with Adhesive Pad
- QR Digital Manual Leaflet
Vehicle Specific Installation Kit:
- Piano Black Fascia Kit
- Infodapter Steering Wheel Control Interface
- Chime Speaker
- Antenna Adaptor
- Universal Patch Lead
Camera:
- Surface Mount Camera
- 6m Video Cable (RCA) with Inline Reverse Trigger
Compatible With
The AX8063PC is designed specifically for the Holden Colorado and Colorado 7 from 2014-2016. The head unit provides two 720P AHD-compatible camera inputs, supporting the included surface mount camera alongside an additional front or towing camera. Use the Aerpro What Fits Your Car Guide to confirm the correct parts for your specific vehicle before purchase.
Frequently Asked Questions
Does the AX8063PC retain the Holden Colorado steering wheel controls?
Yes. The included Infodapter SWC interface and universal patch lead retain the factory steering wheel audio controls with the aftermarket head unit where applicable.
What is the Infodapter interface and how does it differ from a standard SWC interface?
The Infodapter is a vehicle-specific steering wheel control interface designed for Holden vehicles with CANBUS-based SWC systems. It connects directly into the factory vehicle wiring and interprets the CANBUS SWC signals for compatibility with the aftermarket head unit, without requiring manual button learning in most applications.
Why is a chime speaker included in the AX8063PC?
The Holden Colorado and Colorado 7 use the factory head unit to produce vehicle chimes and warning tones. The included chime speaker maintains audible chime output after the factory head unit is replaced, ensuring vehicle warning tones remain functional.
Can the included surface mount camera be used as a front camera?
Yes. The included surface mount camera is mountable as a front, rear, or reverse camera. The 6-metre cable with inline reverse trigger supports reverse camera installation; front camera installation uses the same cable without the reverse trigger active.
Does the AX8063PC support wireless CarPlay and Android Auto?
Yes. The head unit supports both wireless and wired Apple CarPlay and Android Auto, providing full smartphone integration without requiring a cable connection for compatible devices.
