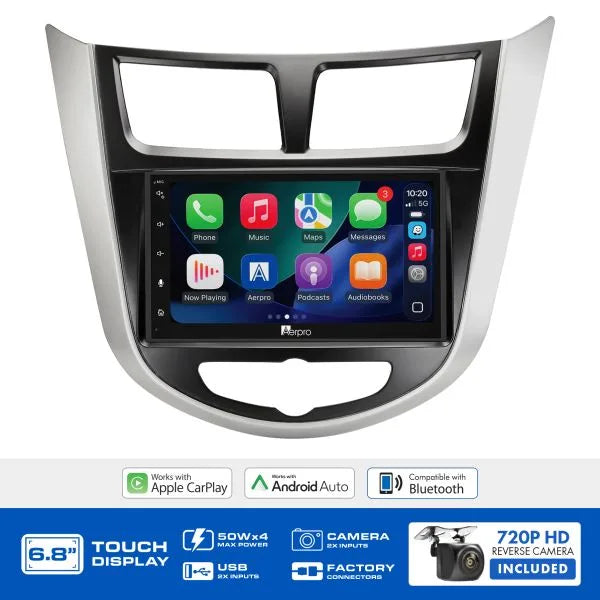

Aerpro AX8074K 6.8" Wireless CarPlay Multimedia Receiver Kit for Hyundai Accent 2011-2015
The AX8074K is a complete head unit upgrade kit for Hyundai Accent RB (2011-2015), combining a 6.8" double DIN multimedia receiver with wireless Apple CarPlay and Android Auto, a vehicle-specific installation kit, and a 720P AHD surface mount camera. The receiver delivers 4 x 50W max output, Bluetooth V5, a 13-band EQ, 4V/6 RCA preouts, and a 1024x600 capacitive touchscreen.
Product overview
The Aerpro AX8074K is designed as a direct, complete upgrade solution for Hyundai Accent RB (2011-2015) vehicles, supplying every component required for a full head unit installation in a single kit. The 6.8" capacitive touchscreen runs on a Linux OS and supports wireless and wired Apple CarPlay and Android Auto, giving the driver access to maps, music, calls, and messages without relying on the factory head unit's limited interface.
Bluetooth V5 with HFP 1.6 HD Voice support handles hands-free calling with clear audio quality, while A2DP and AVRCP profiles support wireless audio streaming from a paired device. Two rear USB inputs handle CarPlay and Android Auto connectivity on USB1, with media playback and charging on USB2. The AM/FM tuner supports 18 FM and 12 AM presets with RDS, and media playback covers MP3, MP4, MKV, FLAC, and Xvid formats from USB drives up to 32GB (FAT32).
On the audio side, 4 x 50W max output feeds through 6 RCA preouts at 4V for front, rear, and subwoofer channels, with a 13-band graphic EQ, time alignment, subwoofer level control, and low-pass filter for precise system tuning. The vehicle-specific installation kit includes a black and silver facia kit, metal mounting brackets, steering wheel control interface, and universal SWC patch lead to retain the factory steering wheel controls. The included 720P AHD surface mount camera provides high-definition reverse or front camera coverage with a 150-degree field of view and IP67 ingress protection.
Features and benefits
Wireless Apple CarPlay and Android Auto: Connects to a compatible iPhone or Android device wirelessly for hands-free access to maps, music, calls, and messages, or via USB for wired operation and simultaneous device charging.
6.8" 1024x600 capacitive touchscreen: The 6.8" IPS capacitive display delivers 1024x600 resolution with smooth, responsive touch input for navigation of maps, media, and menus across all connected sources.
Bluetooth V5 with HD Voice and full profile support: Bluetooth V5 supports HFP 1.6 HD Voice for clearer hands-free calls, alongside A2DP and AVRCP for wireless audio streaming and PBAP for phonebook access. Both internal and external microphone options are included.
4 x 50W max output with 4V/6 RCA preouts: Delivers 4 x 50W max power at 4 ohms, with 6 RCA preouts at 4V covering front, rear, and subwoofer channels for flexible amplifier integration and system expansion.
13-band graphic EQ with time alignment: A 13-band EQ across 32Hz to 16kHz, time alignment, subwoofer level control, and low-pass filter allow precise tuning of the audio system across all speaker positions and configurations.
Dual rear USB inputs: USB1 handles Apple CarPlay and Android Auto with 5V/1.5A charging, while USB2 supports media playback and charging from USB drives up to 32GB FAT32.
Dual AHD 720P camera inputs: Two AHD-compatible camera inputs support the included reverse camera plus an additional front or towing camera, with the head unit switching inputs based on reverse trigger signal.
720P AHD surface mount camera included: The Sony 225 1/3 CMOS AHD camera delivers high-definition image quality at 720P with a 150-degree lens angle, optional parking guidelines, IP67 rating, and 6m of video cable with an in-line reverse trigger.
Vehicle-specific installation kit for Hyundai Accent 2011-2015: The included kit contains a black and silver facia kit, metal mounting brackets, steering wheel control interface, and universal SWC patch lead for direct fitment to Hyundai Accent RB (2011-2015) without modification.
Steering wheel control retention: The steering wheel control interface and SWC patch lead retain the factory steering wheel audio controls through the aftermarket head unit installation.
AM/FM tuner with RDS: Supports 18 FM and 12 AM presets across full broadcast frequency ranges, with RDS for station and track information display.
6-colour customisable button illumination: Button lighting is selectable across six colours including red, yellow, green, blue, purple, and white to match the vehicle's interior lighting.
What's in the box
- Aerpro 6.8" double DIN multimedia receiver
- Double DIN metal frame and mounting hardware
- Head unit plastic trim
- Wiring harness with ISO connection
- 3-wire learning SWC lead
- External microphone with mount
- GPS antenna with adhesive pad
- QR digital manual leaflet
- Facia kit (black and silver)
- Steering wheel control interface
- Universal SWC patch lead
- 720P AHD surface mount camera (wired)
- 6m video cable (RCA) with in-line reverse trigger
Technical specs
| Specification |
Detail |
| SKU |
AX8074K |
| Barcode |
9317114954213 |
| Display Size |
6.8" |
| Resolution |
1024 x 600 |
| Touch Screen |
Capacitive |
| OS |
Linux |
| DIN Size |
Double DIN |
| Max Power Output |
4 x 50W |
| RCA Preouts |
6 x 4V (Front/Rear/Subwoofer) |
| Bluetooth Version |
V5 |
| Bluetooth Profiles |
A2DP, AVRCP, HFP, PBAP |
| HFP Profile |
HFP 1.6 (HD Voice) |
| CarPlay/Android Auto |
Wireless and wired |
| USB1 |
CarPlay/Android Auto, 5V/1.5A charging |
| USB2 |
Media playback, 5V/1.5A charging |
| USB Max Capacity |
32GB FAT32 |
| Media Formats |
MP3, MP4, MKV, FLAC, Xvid |
| AM Presets |
12 |
| FM Presets |
18 |
| RDS |
Yes |
| EQ |
13-band (32Hz to 16kHz) |
| Time Alignment |
Yes |
| Subwoofer Level Control |
Yes |
| Camera Inputs |
2 x AHD 720P compatible |
| Camera Image Sensor |
Sony 225, 1/3 CMOS AHD |
| Camera Lens Angle |
150 degrees |
| Camera IP Rating |
IP67 |
| Camera Resolution |
720P AHD |
| Button Illumination |
6-colour (Red, Yellow, Green, Blue, Purple, White) |
| Compatible Vehicle |
Hyundai Accent RB 2011-2015 |
Compatible with
| Make |
Model |
Variant |
Years |
| Hyundai |
Accent |
RB |
2011-2015 |
Vehicle feature retention
| Feature |
Retained |
| Steering Wheel Controls |
Yes, via included SWC interface and patch lead |
Frequently asked questions
Does the AX8074K retain the factory steering wheel controls in the Hyundai Accent?
Yes. The included steering wheel control interface and universal SWC patch lead retain the factory steering wheel audio controls through the aftermarket head unit installation.
Can the AX8074K connect to CarPlay and Android Auto wirelessly?
Yes. The AX8074K supports both wireless and wired Apple CarPlay and Android Auto. Wireless connection removes the need to plug in your phone for navigation and audio access, while wired connection via USB1 allows simultaneous device charging.
What camera inputs does the AX8074K support?
The AX8074K features two AHD 720P compatible camera inputs, supporting the included surface mount camera plus one additional front or towing camera. The head unit switches between inputs based on the reverse trigger signal.
Is the included 720P AHD camera suitable as a reversing camera?
Yes. The included Sony 225 CMOS AHD camera supports front, rear, or reverse mounting configurations with a 150-degree field of view, optional parking guidelines, and IP67 water resistance. The 6m video cable and in-line reverse trigger are included for direct connection to the head unit.
Is the AX8074K compatible with all Hyundai Accent models from 2011 to 2015?
The AX8074K is confirmed for the Hyundai Accent RB (2011-2015). Head unit upgrade kits can vary between vehicle variants, so contact us to confirm fitment for your specific Accent model and build before purchasing.
