Description
Designed to Connect Directly Into the Existing Wiring in the Vehicle With Ease!

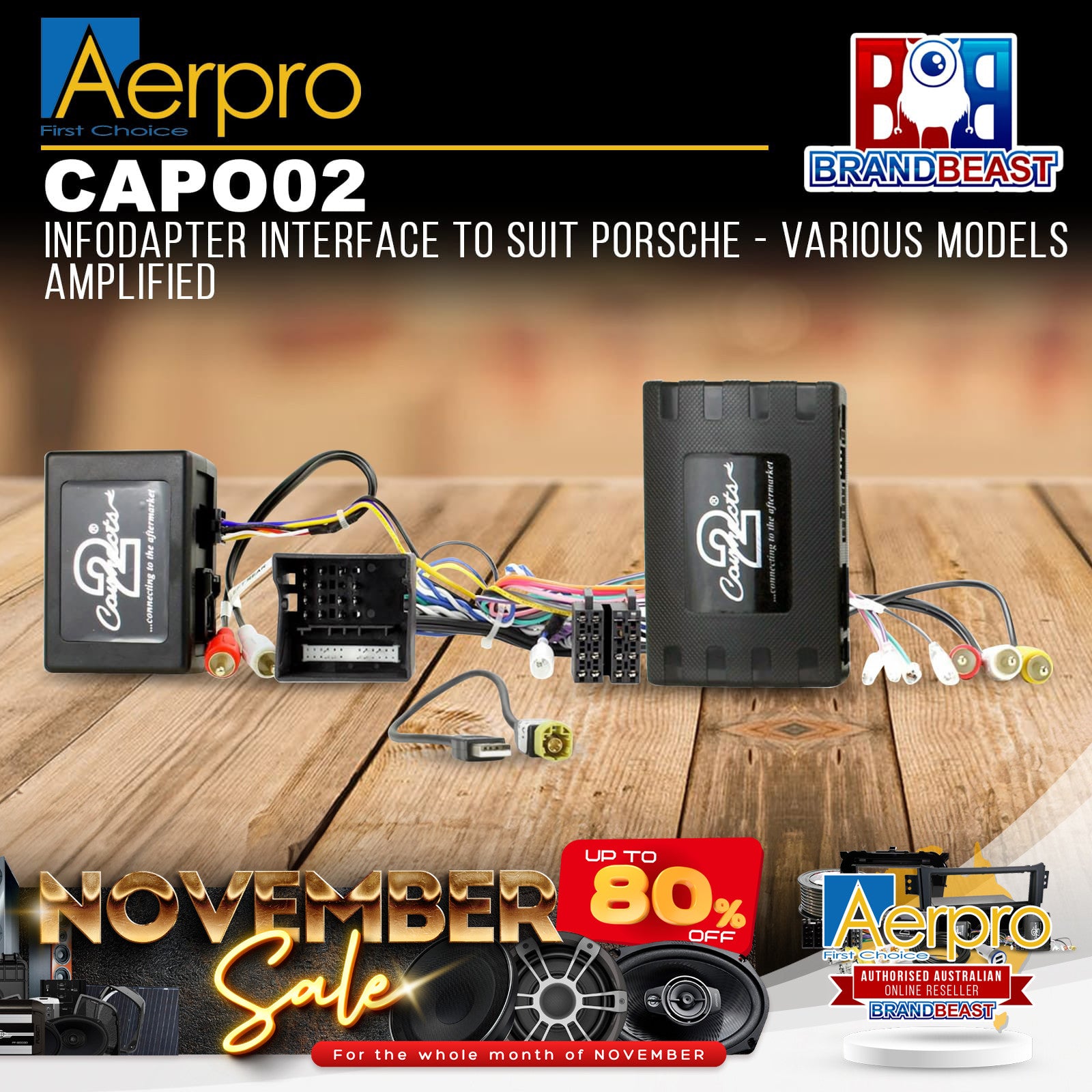

Infodapter Interface (CAPO02)The Aerpro CAPO02 Infodapter Interface allows you to upgrade to an aftermarket AV headunit whilst retaining vehicle features including; steering wheel control functionality, USB & AUX inputs, reverse sensor graphics/audio, and reverse camera. Engineered to suit various Porsche vehicles with PCM3.1 fibre amplified MOST25 OEM systems and quad lock connector, the infodapter interface includes a harness that is fitted with a vehicle-specific plug designed to connect directly into the existing wiring in the vehicle with ease, no cutting of the factory wiring harness in the vehicle is required.
Installation of the aftermarket headunit is simplified even further when paired with the optional Aerpro APP9 Headunit Secondary ISO Harness & SWC Patch Lead, which connects the aftermarket headunit and the Aerpro Infodapter Interface. This interface is CANBUS compatible and provides various outputs including Reverse Trigger, Park Brake, Speed Pulse, and Amp Remote.
Please Note:
- Infodapter Interfaces vary between models, to find the correct part for your vehicle use the Aerpro Vehicle Selector.
- A Steering Wheel Control Patch Lead is required to be used in conjunction with this part to enable Steering Wheel Controls to function (Sold Separately).
- The aftermarket headunit must be SWC compatible and Steering Wheel Control Functions may vary from the OEM Functions.
- Aftermarket headunit requires a rear camera input.
- To retain a factory fitted camera, an additional vehicle specific camera retention harness is also required (If Available, Sold Separately).
- Please be aware when installing a High Definition Camera, the camera resolution will be reduced using this product.
- Compatible with OEM fibre amplified MOST25 vehicles (PCM 3.1) only (Aftermarket headunit requires RCA inputs).
- Parking assist visualisation only compatible with vehicles that have this feature from factory, the graphics will not be exactly the same as the OEM display.
- The aftermarket headunit must have rear USB input, rear RCA AUX input, and Reverse Camera RCA input for all listed features to work.
- Updates to the vehicle's software through the dealership service department may have an impact on the functionality of this product.
Features:
- Allows you to upgrade to an aftermarket headunit whilst maintaining the use of your factory steering wheel controls.
- Increases driver safety by allowing you to keep your hands on the steering wheel and eyes on the road.
- Supports OEM Phone Button when connected to compatible aftermarket Bluetooth headunits.
- Retains access to the vehicle settings that were available through the original headunit.
- Displays parking sensor information on compatible aftermarket AV headunits and reproduces parking sensor audio through the included chime speaker.
- Retains a factory-fitted camera (If Equipped), an additional vehicle-specific camera retention harness is required (If Available, Sold Separately)
- Retains OEM USB and AUX inputs when connected to compatible aftermarket headunits.
- Retains OEM MOST 25 fiber amplified system.
- CAN-BUS and Fibre Optic integration compatible, no additional modules required.
- Provides output feeds for the reverse trigger, park brake, speed pulse, and amp remote.
- Fitted with a vehicle-specific plug, no cutting of wires is required.
- Recommended to be installed with an Aerpro APP9 Headunit Secondary ISO Harness & SWC Patch Lead (Sold Separately)
- Requires SWC patch lead to provide compatibility with the aftermarket headunit (Sold Separately)
Specifications:
- Interface Type: CANBUS
- Retention:
Steering Wheel Controls: Yes
Phone Button: Yes
Vehicle Settings: Yes (Settings that were accessible in the factory headunit)
OEM Parking Sensors: Yes (Reproduces graphic display & audio. May differ from factory display/audio)
OEM Reverse Camera: YES (An additional vehicle-specific camera retention harness is required, if available, sold separately)
USB: Yes
AUX: Yes
OEM Amplifier: Yes (MOST25 Systems)
- Outputs:
Reverse Trigger: Yes (Purple/White)
Park Brake: Yes (Green)
Speed Pulse: Yes (Pink)
Illumination: No
Amp Remote: Yes (Blue/White)
- Patch Lead Type: C
- Weight: 0.48kg
Vehicle Compatibility:
- Porsche 911 (2012 - 2016)
- Porsche Cayenne (2010 - 2016)
- Porsche Macan (2014 - 2016)
- Porsche Panamera (2009 - 2016)
