Description
Able to Deliver Strong & Reliable UHF Reception!

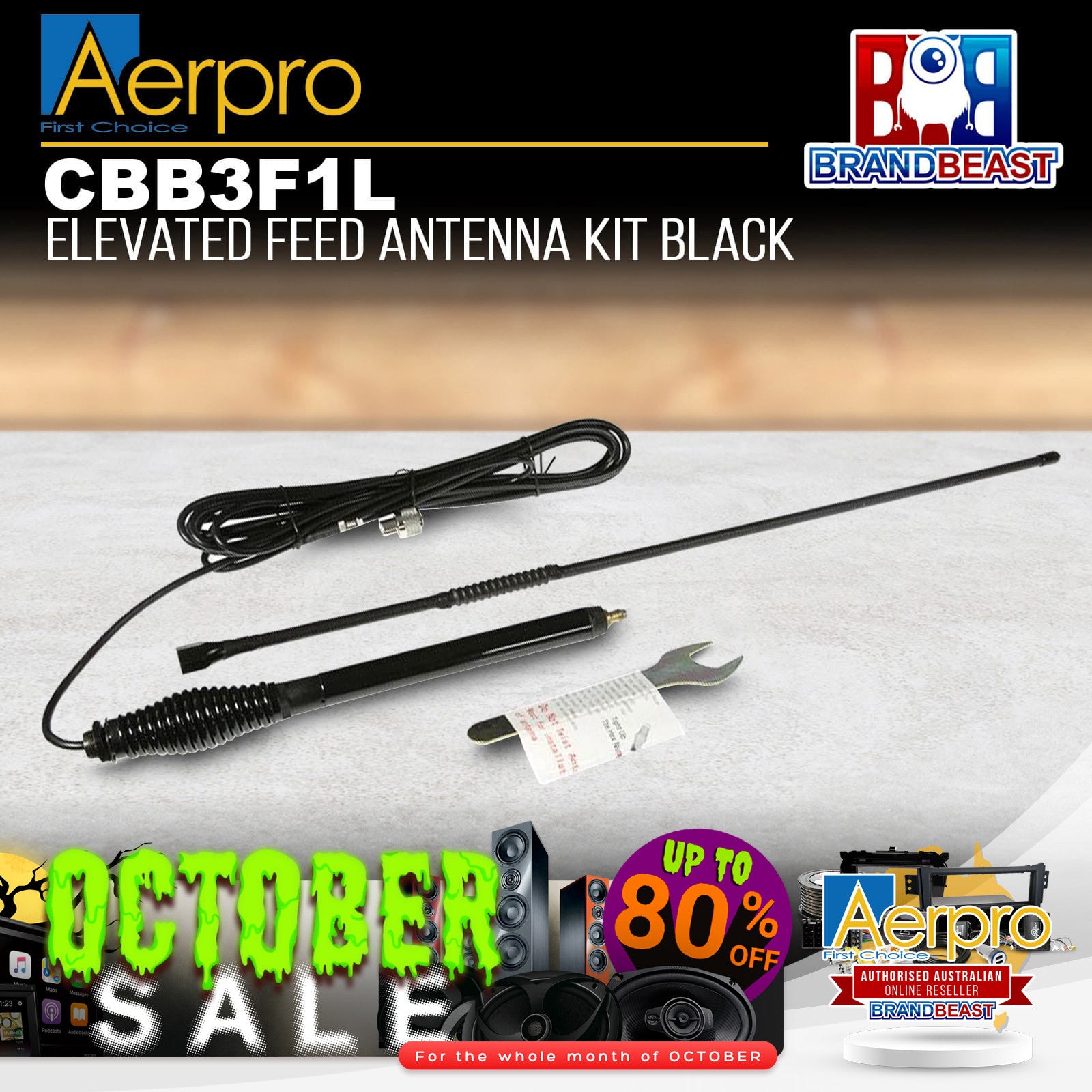

6dBi 477MHz Black Elevated Feed UHF AntennaThe Aerpro CBB3F1L 6dBi 477MHz Black Elevated Feed UHF Antenna is compatible with all brands of 477MHz UHF CB Radios in Australia and New Zealand. With 6dBi gain, this medium gain antenna is a great all-around performing antenna. The elliptical radiation pattern is more rounded compared to a high-gain antenna and radiates further compared to a low-gain antenna, making it ideal for medium-range communication in various environments such as suburban landscapes, towns, and low-density woodlands.
The 945mm length antenna features a black solid fibreglass whip mounted to a black elevated feed base which is fitted with a medium-duty black coated stainless steel spring. It's perfect for installing on all vehicles, including those that are prone to vibration such as trucks, agricultural machinery, and off-road 4WDs. The antenna is ground-independent which means it can be mounted virtually anywhere on the vehicle while maintaining a stable radiation pattern. The elevated feed design helps raise the radiation pattern above the vehicle roof and other obstructions to ensure high performance when mounted on a vehicle roof gutter, guard, or bullbar.
It is fitted with 4.9 metre RG58 coaxial cable which is pre-terminated with an FME connector making it easy to install through the firewall grommet in vehicles. An FME to UHF PL259 screw-on adaptor is also included as well as a mounting spanner for hassle-free installation. Built sturdy for the Australian outback, the CBB3F1L is the perfect all-rounder antenna.
Features:
- Suitable for use with all 477 MHz UHF CB Radios in Australia and New Zealand.
- 6dBi Gain has an elliptical radiation pattern suitable for medium-range communication.
- Suitable for use in areas with minimal obstructions such as suburban areas, towns, and low-density woodlands
- Recommended for use on all vehicles, including those that are prone to vibration such as trucks, agricultural machinery, and off-road 4WD's.
- 945mm Total length including spring base.
- 650mm Solid fibreglass black whip mast with threaded base for easy removal.
- Black elevated feed base which is fitted with a medium-duty stainless steel spring.
- Black-coated stainless steel spring reduces vibrations caused by the vehicle and driving conditions.
- Elevated feed and ground-independent design means it can be mounted virtually anywhere on the vehicle.
- 4.9 metre RG58 coaxial cable, insulated to reduce signal interference.
- FME connector, fitted to cable for ease of installing through the firewall grommet in the vehicle.
- FME to PL259 adaptor included, for solder-free installation.
- Installation spanner included, no additional tools required.
Specifications:
- Frequency: 477MHz
- Gain: 6dBi
- Main Colour: Black
- Ground Independent: Yes
- Elevated Feed: Yes
- Total Length: 945mm
- Mast Length: 650mm
- Mast Width: 6.5mm
- Mast Type: Fibreglass Whip
- Spring Type: Medium Duty Stainless Steel
- Antenna Mounting Thread Size: 16mm
- Mast Mounting Thread Size: 5/16"
- Cable Type: RG58 Terminated With Female FME
- Cable Length: 4.9 Metre (Approx.)
- Packaging Type: Side Blister
- Weight: 1.00kg
Included Accessories:
- FME to PL259 Adaptor
- Mounting Nut
- Installation Spanner
